Introduction

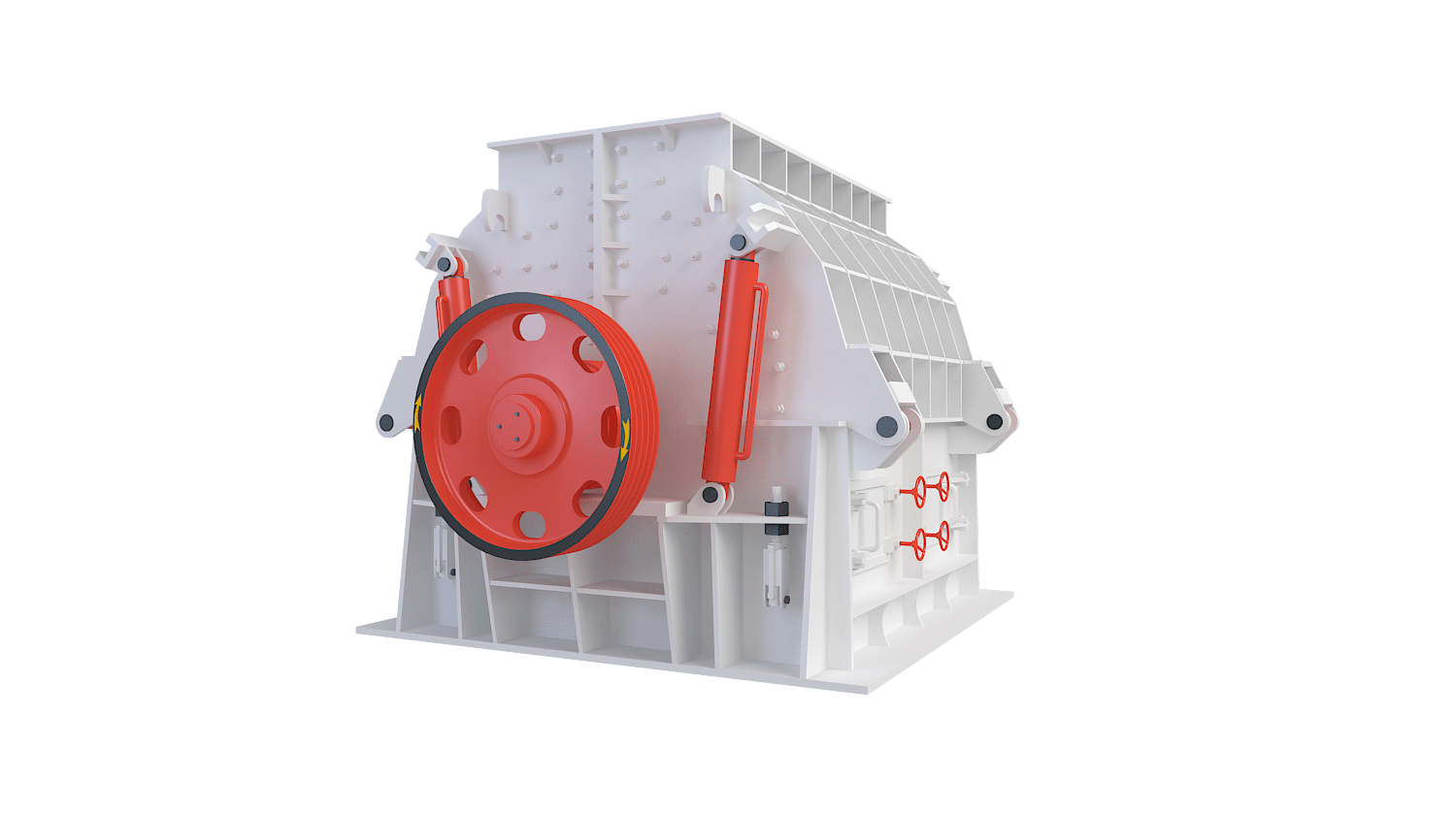

Single Rotor Sand Maker

The Single Rotor Sand Maker is an advanced and reliable crushing equipment specialized in the production of high-quality manufactured sand and fine aggregates. Equipped with a single high-speed rotor, it crushes raw materials through impact, attrition, and grinding between the rotor and the machine’s chamber. This method ensures excellent grain shape, high crushing ratio, and uniform particle distribution. Its robust design includes wear-resistant components that enhance durability and reduce maintenance costs. This machine is ideal for various applications such as construction aggregates, concrete mixing stations, and road building. Its compact structure and user-friendly operation make it a preferred choice in modern sand production lines.

Technical Parameters

Model	Rotor diameter×length (mm)	Feeding port size width×length (mm)	Motor power (kw)	Capacity (t/h)
PCK0808	800×800	800×350	75	20-40
PCK1010	1000×1000	1000×400	55*2	40-50
PCK1013	1000×1300	1300×500	75*2	60-80
PCK1215	1200×1500	1500×500	110*2	80-100
PCK1318	1300×1800	1800×600	132*2	100-120
PCK1520	1500×1200	2000×700	160*2	120-150

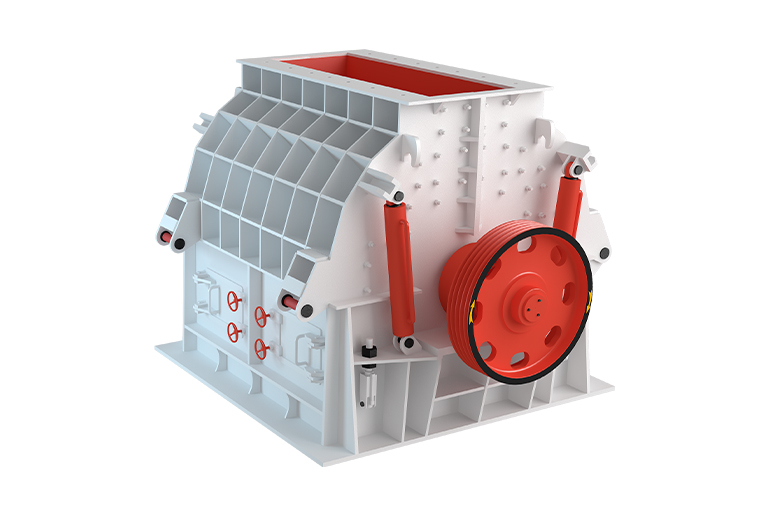

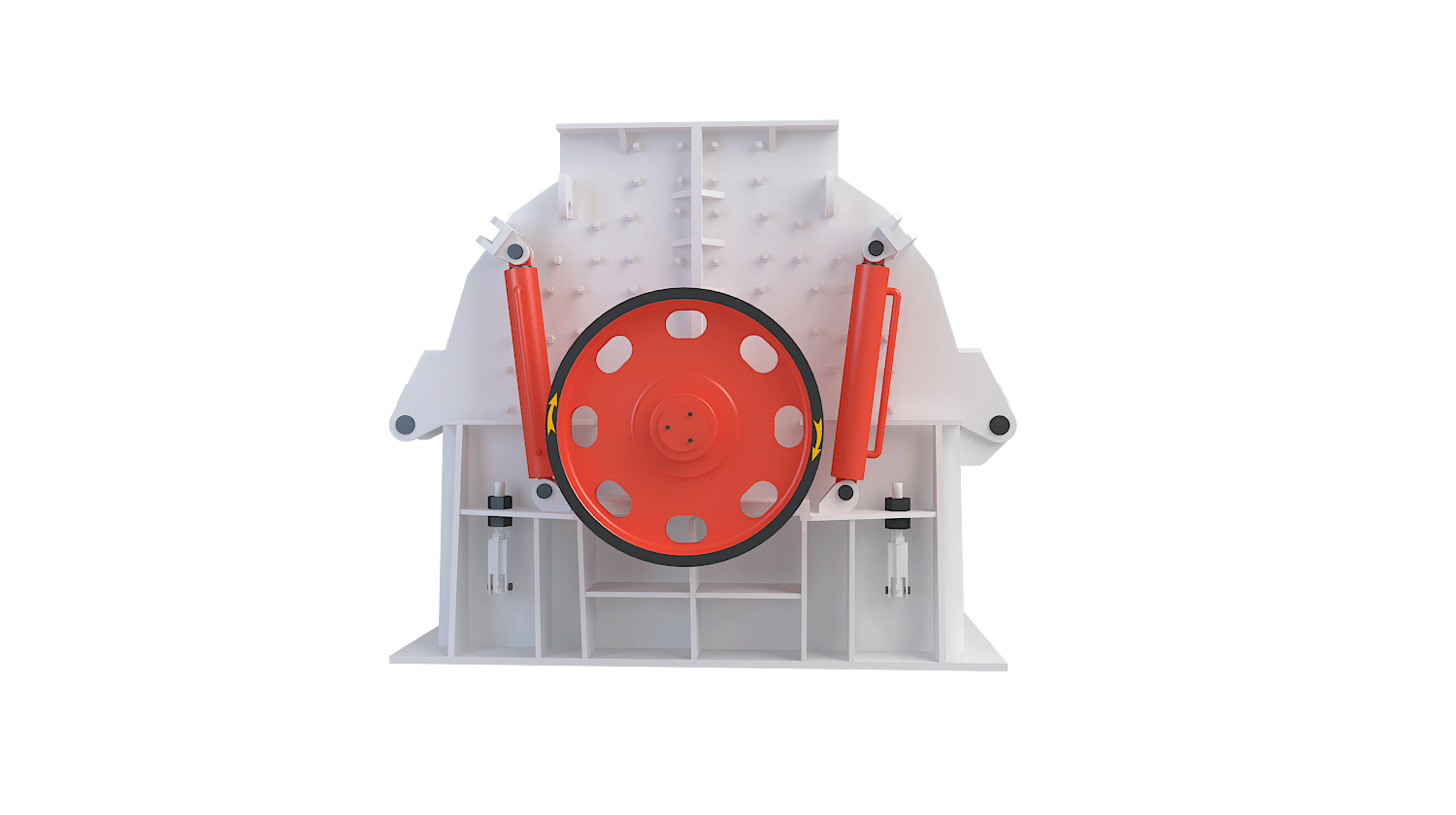

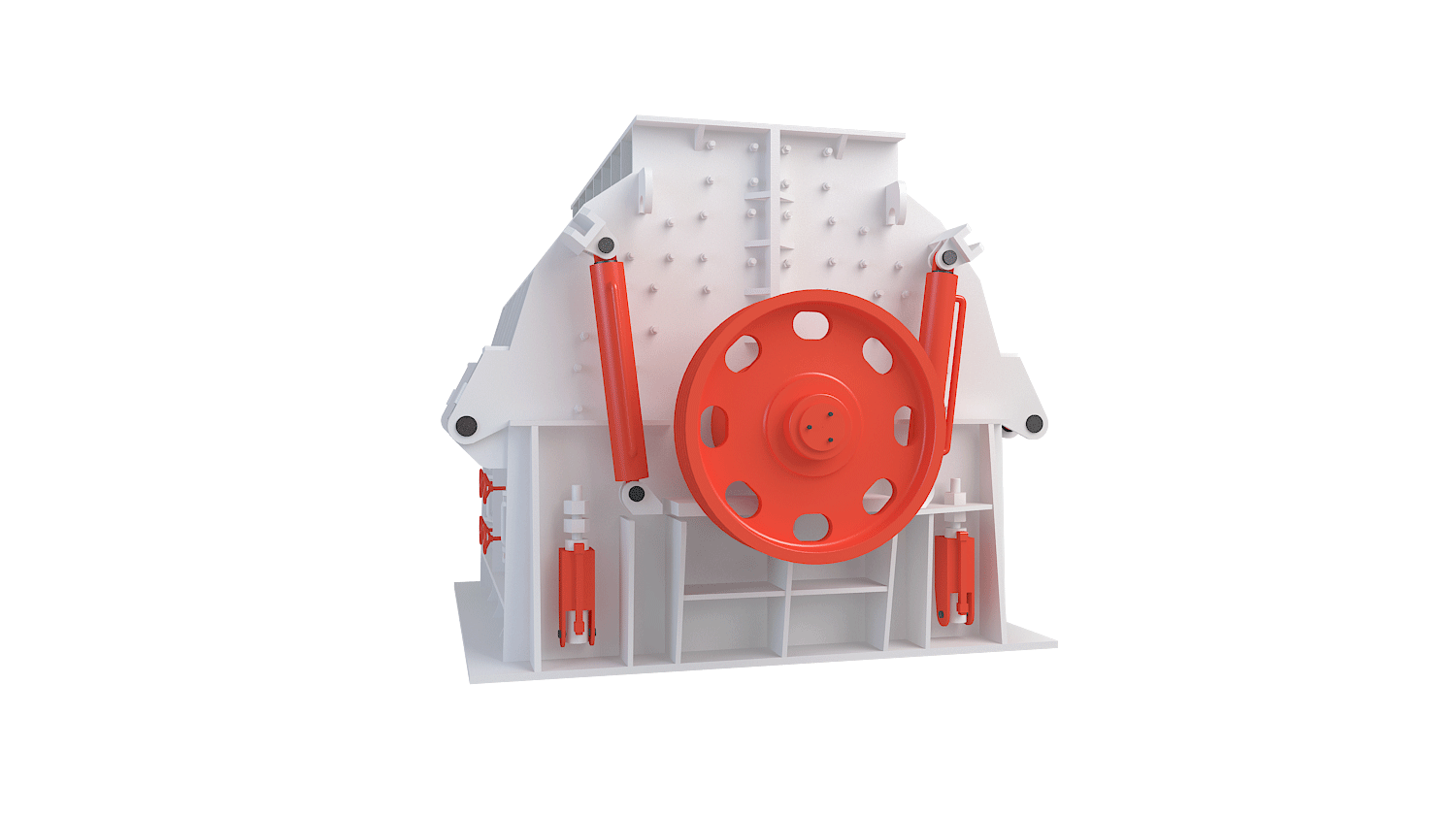

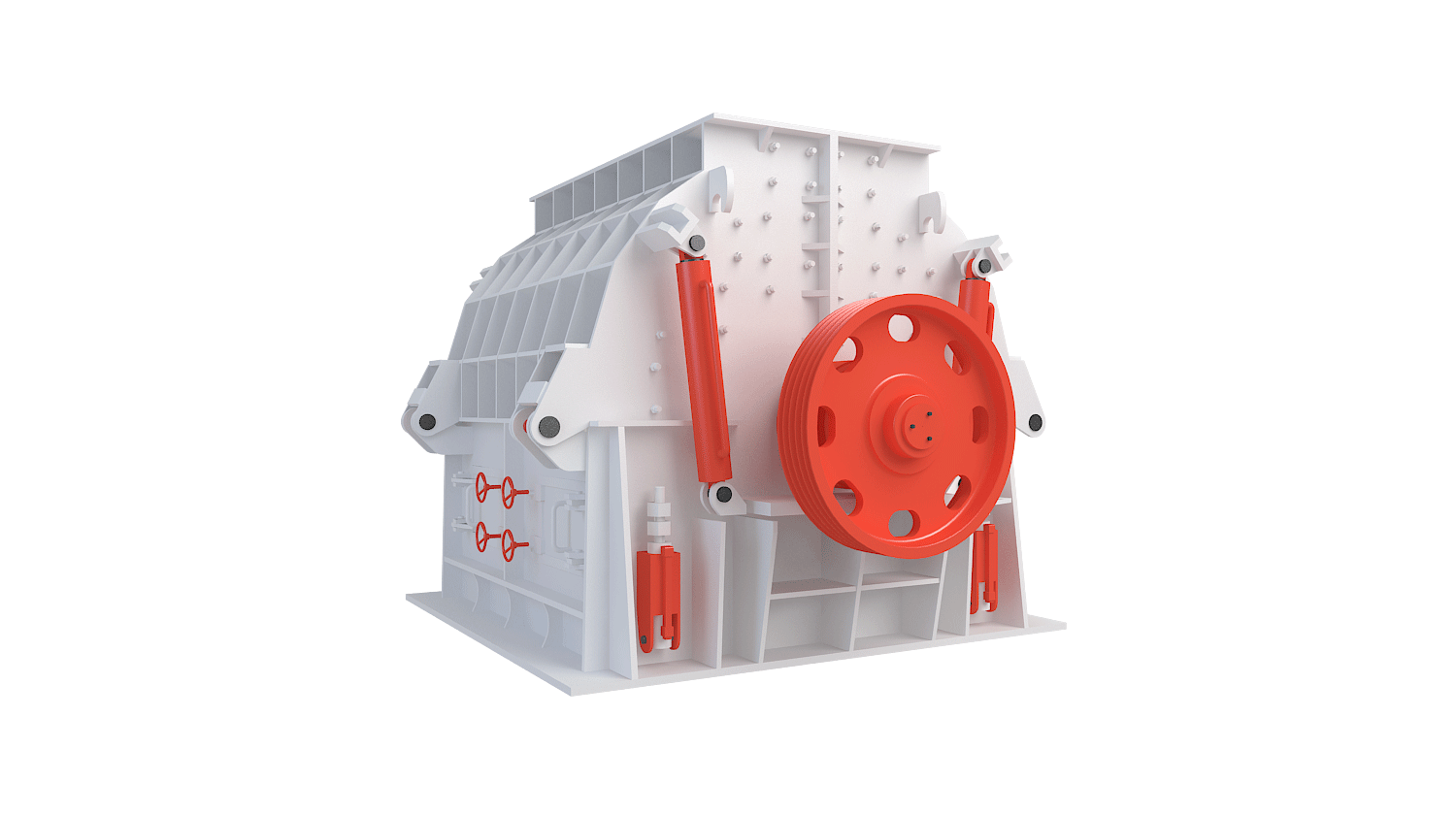

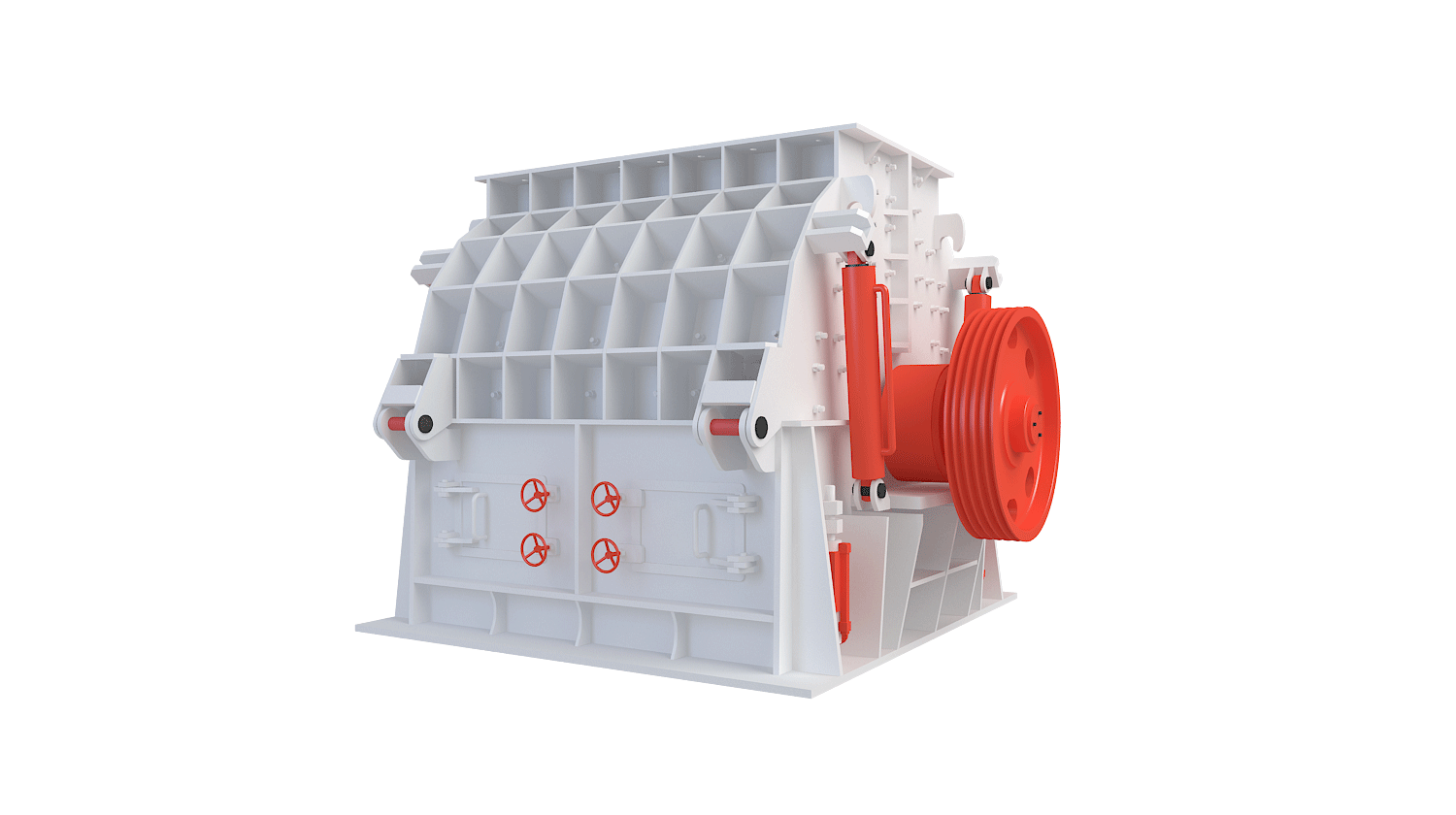

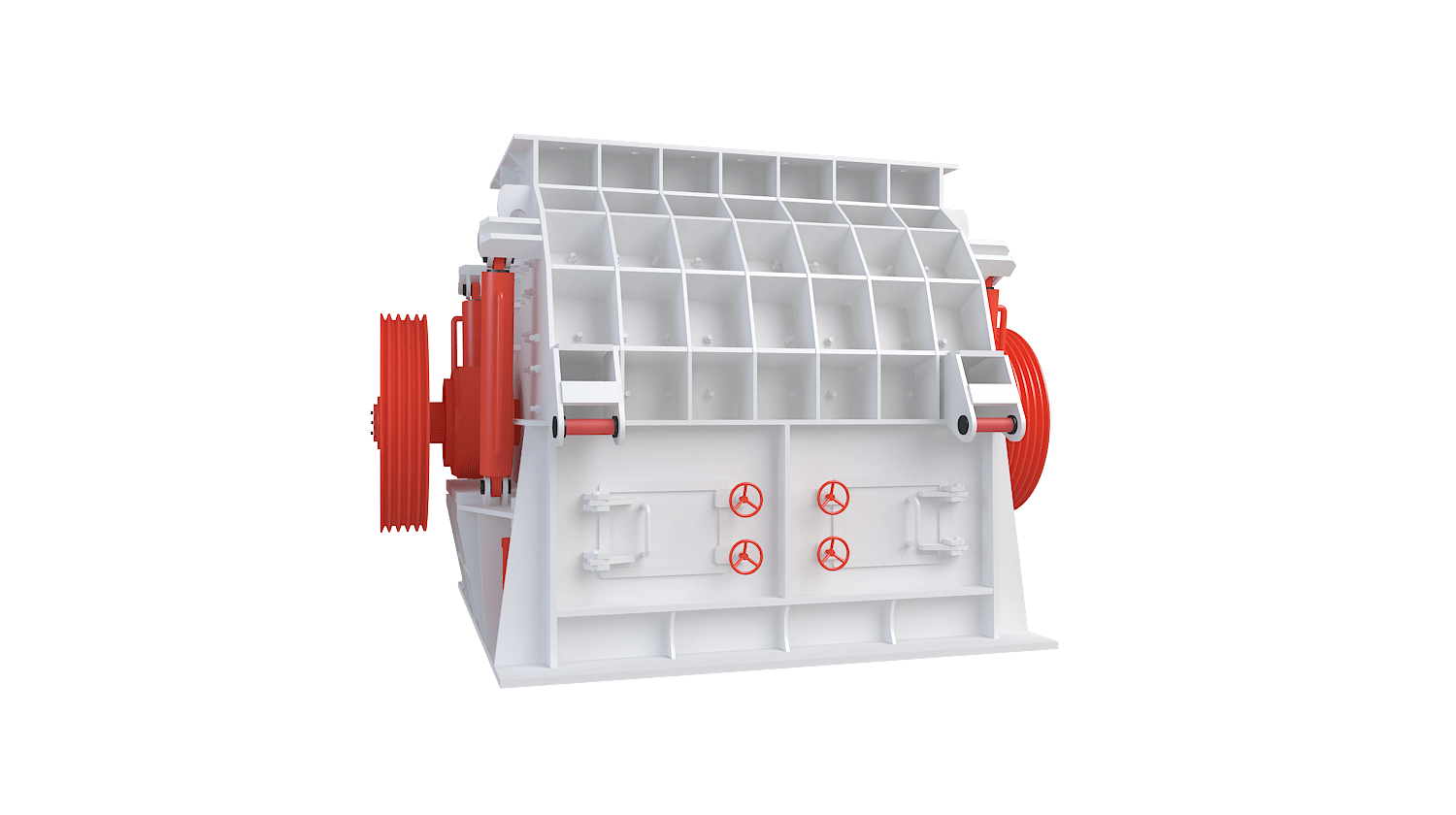

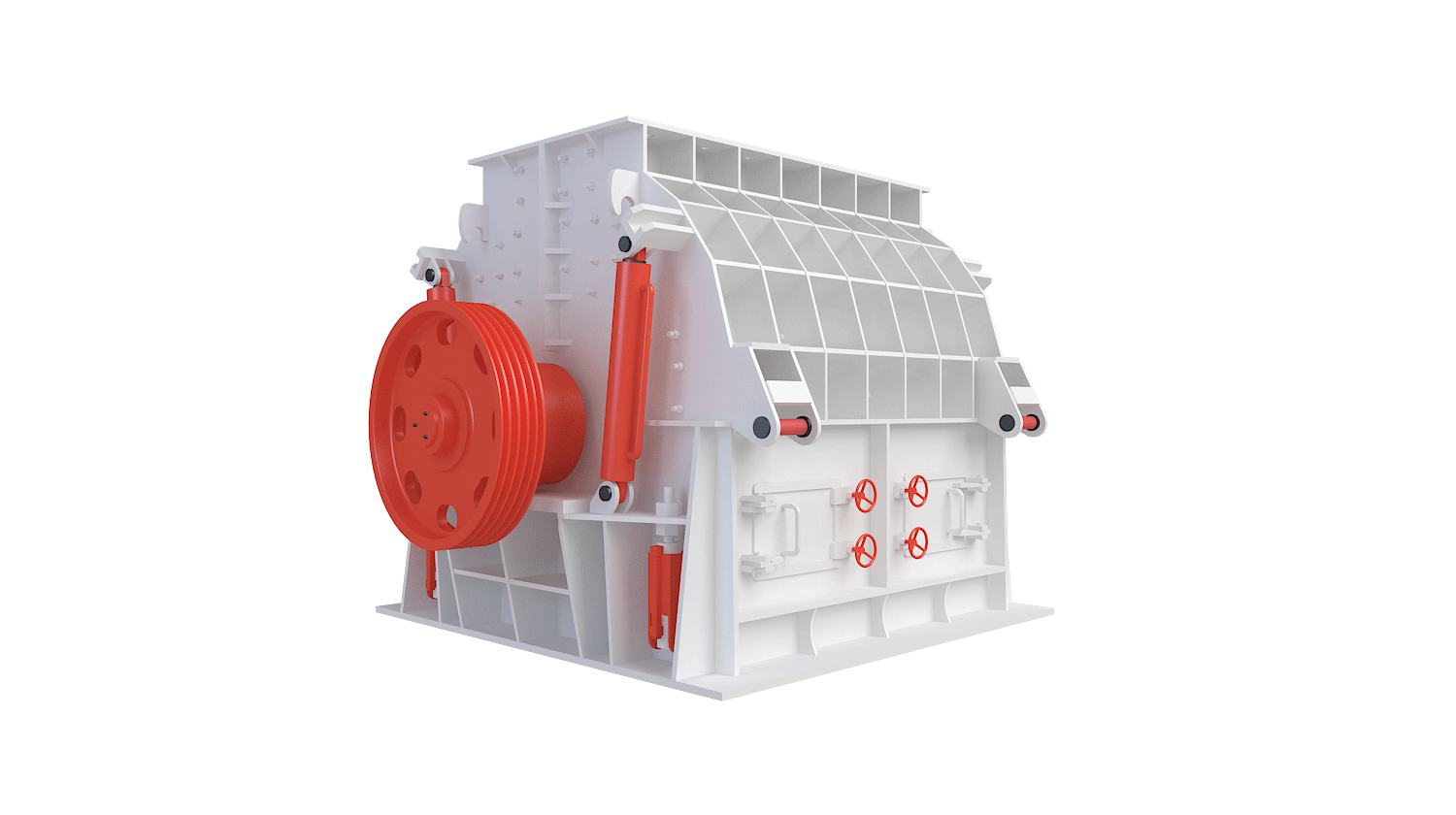

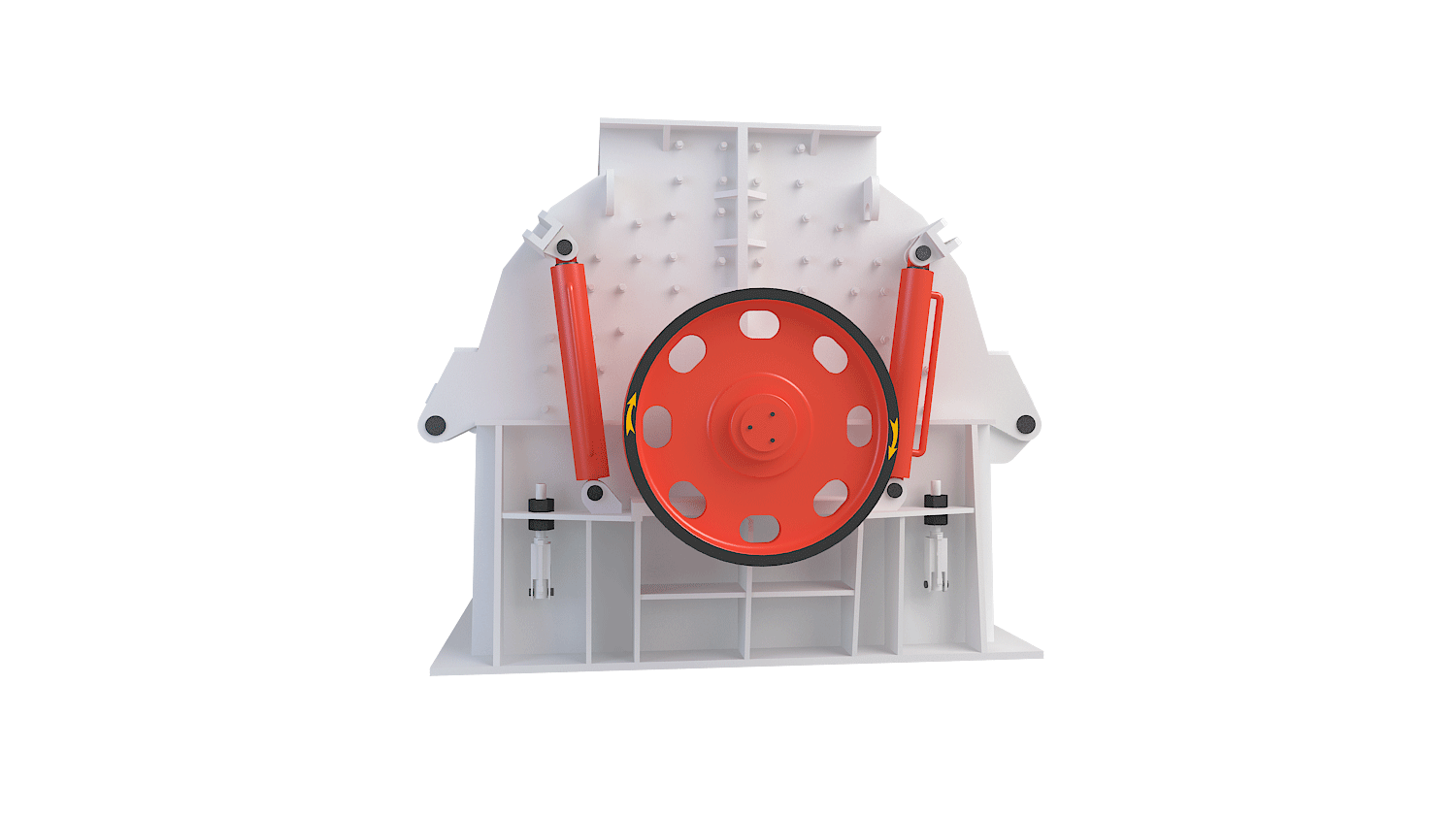

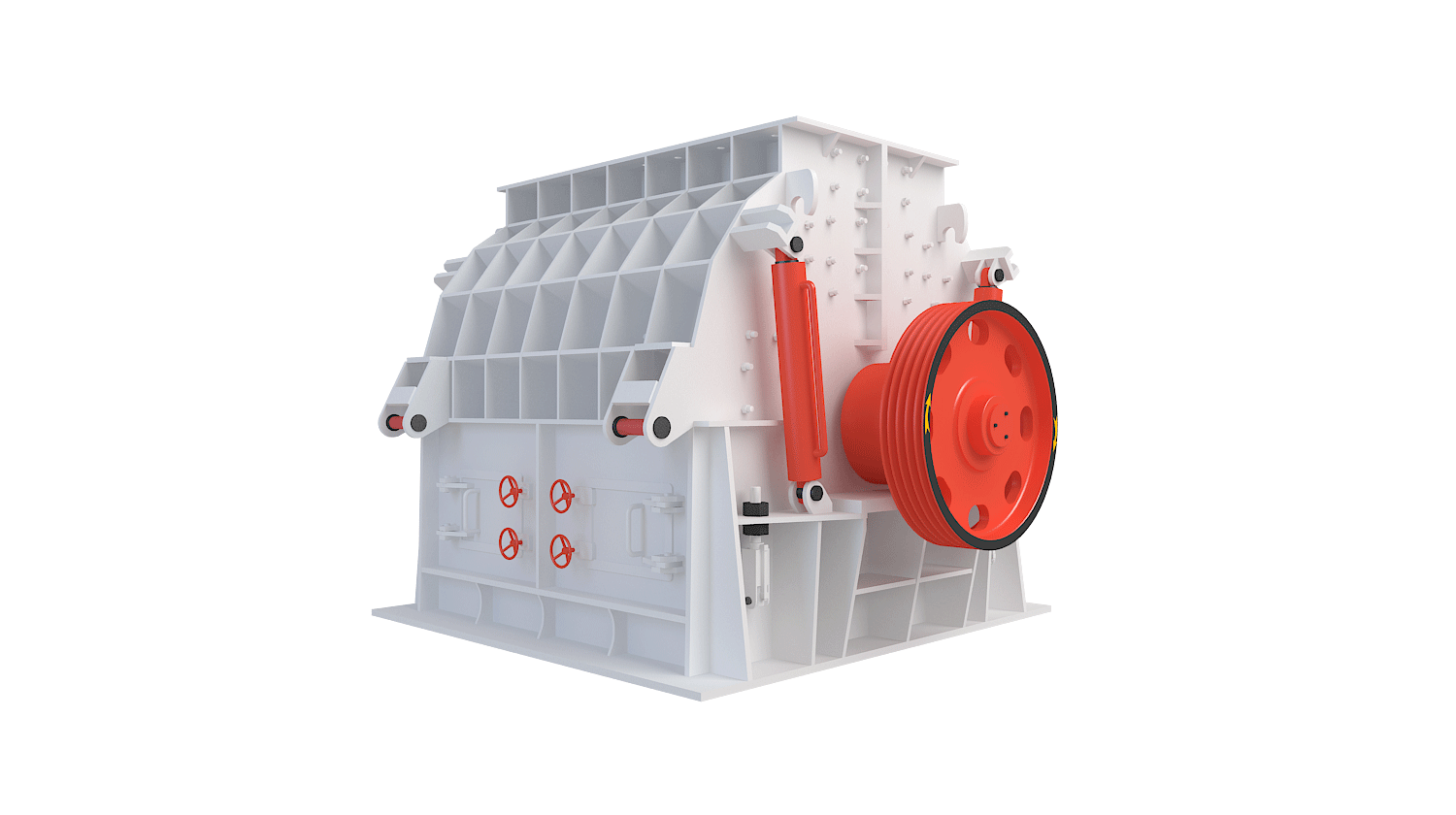

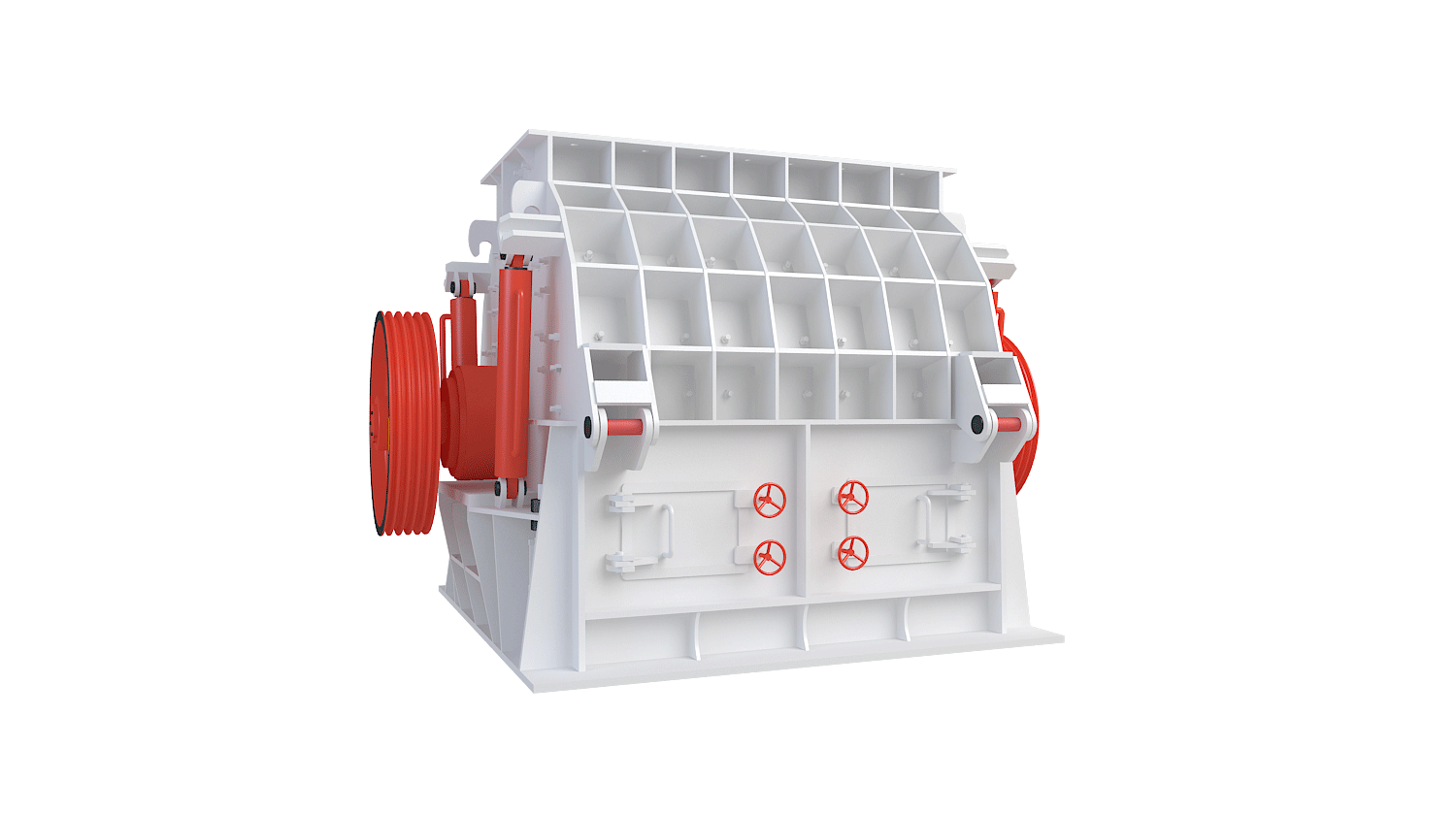

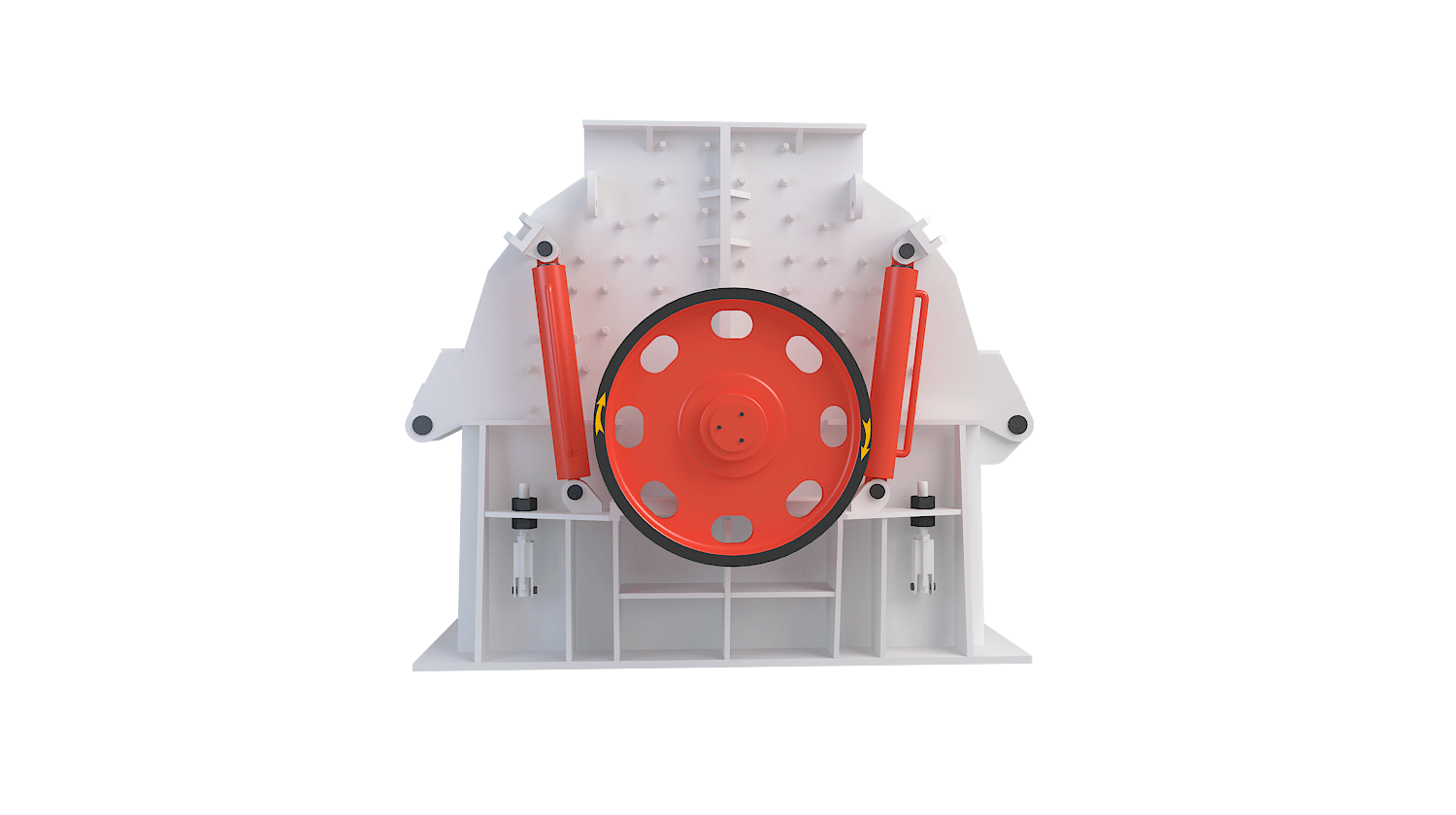

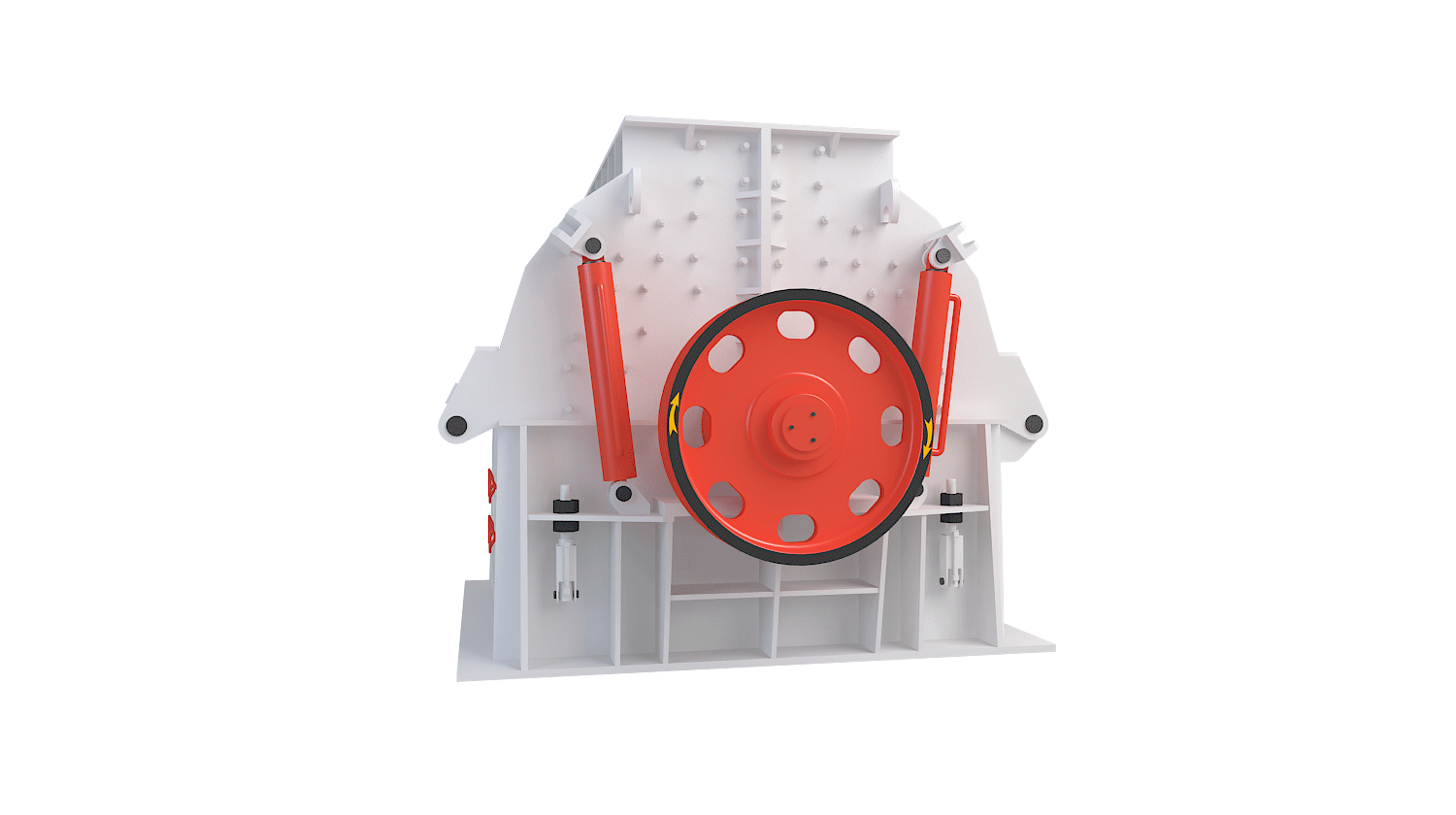

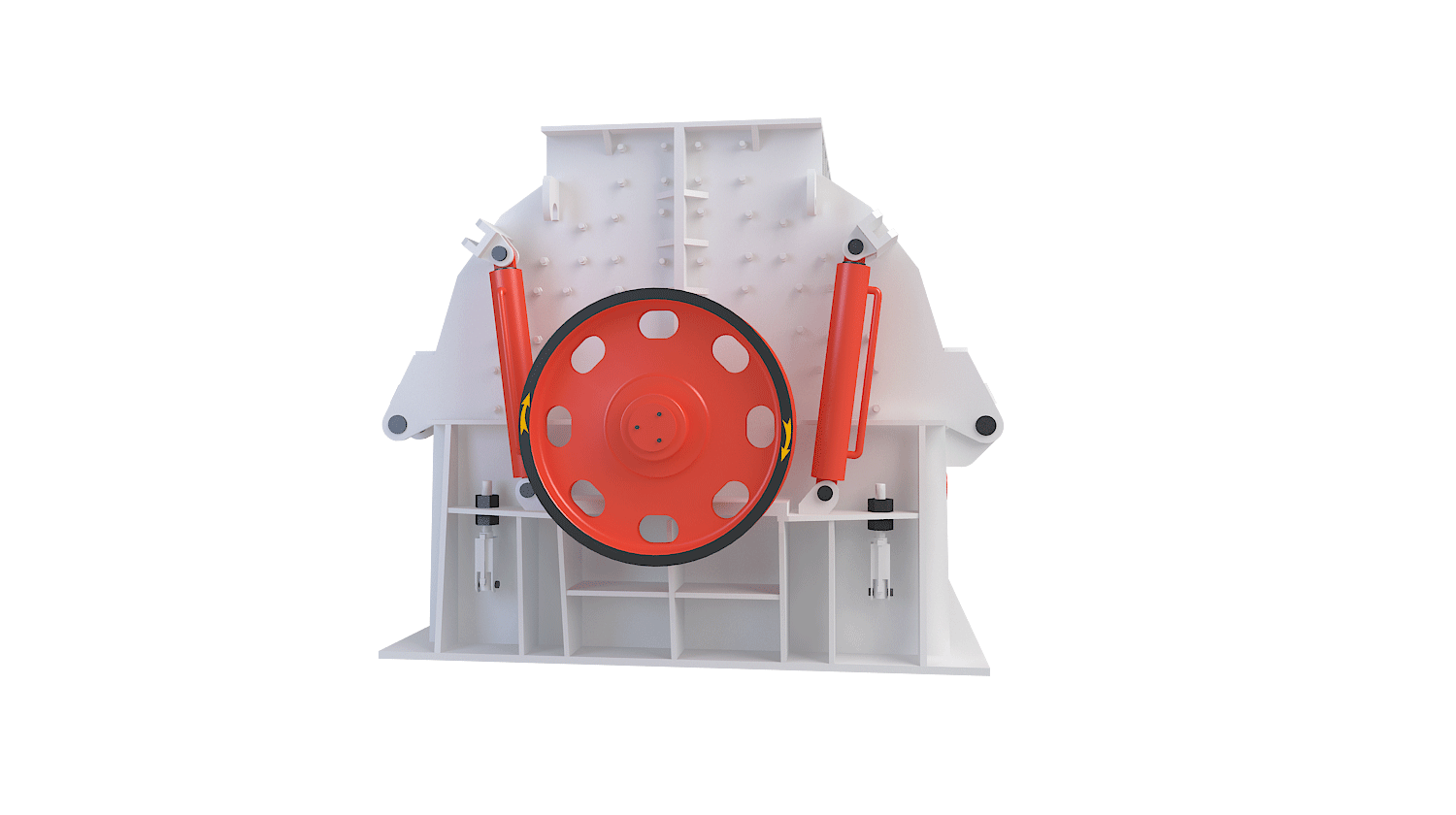

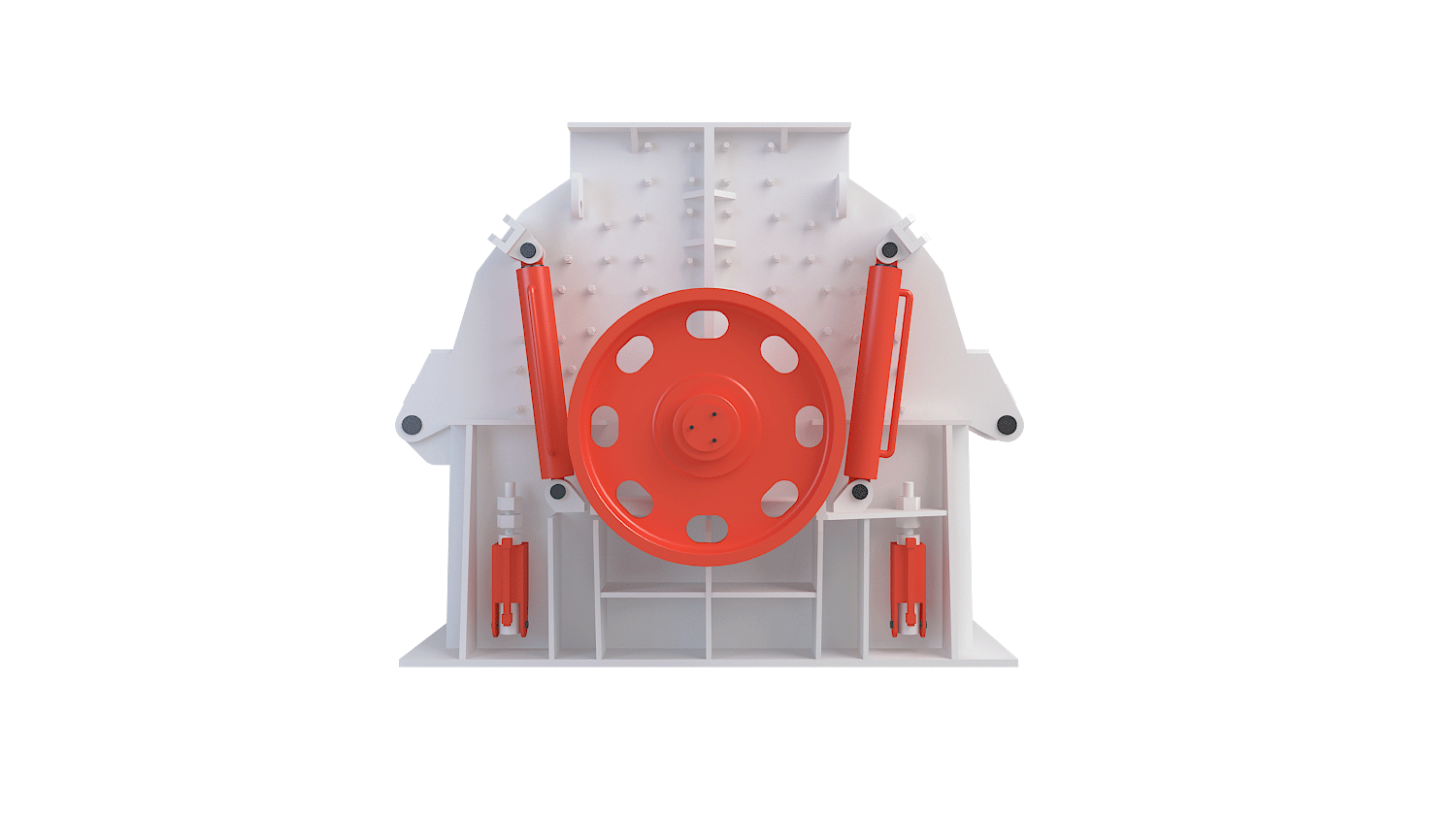

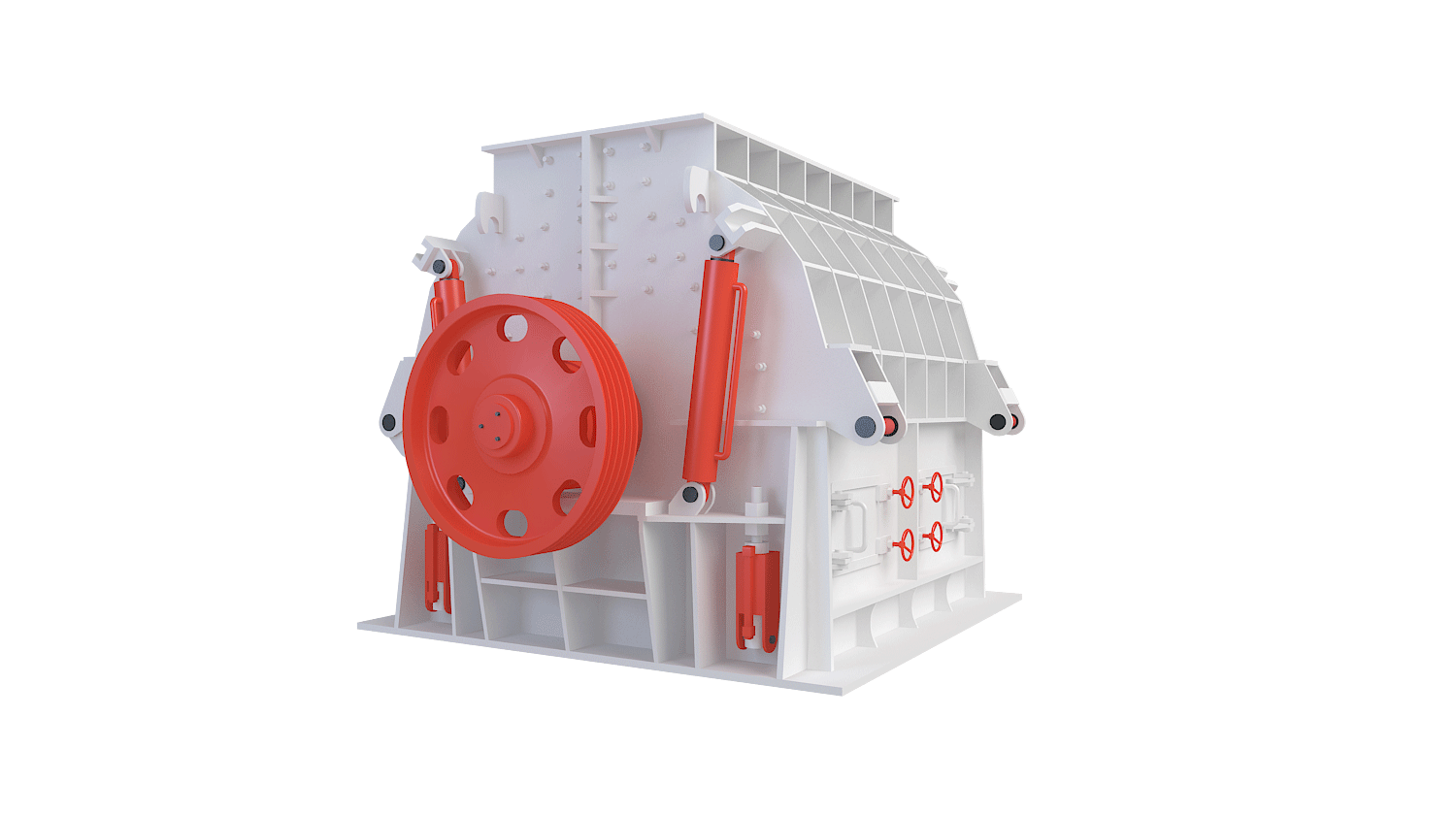

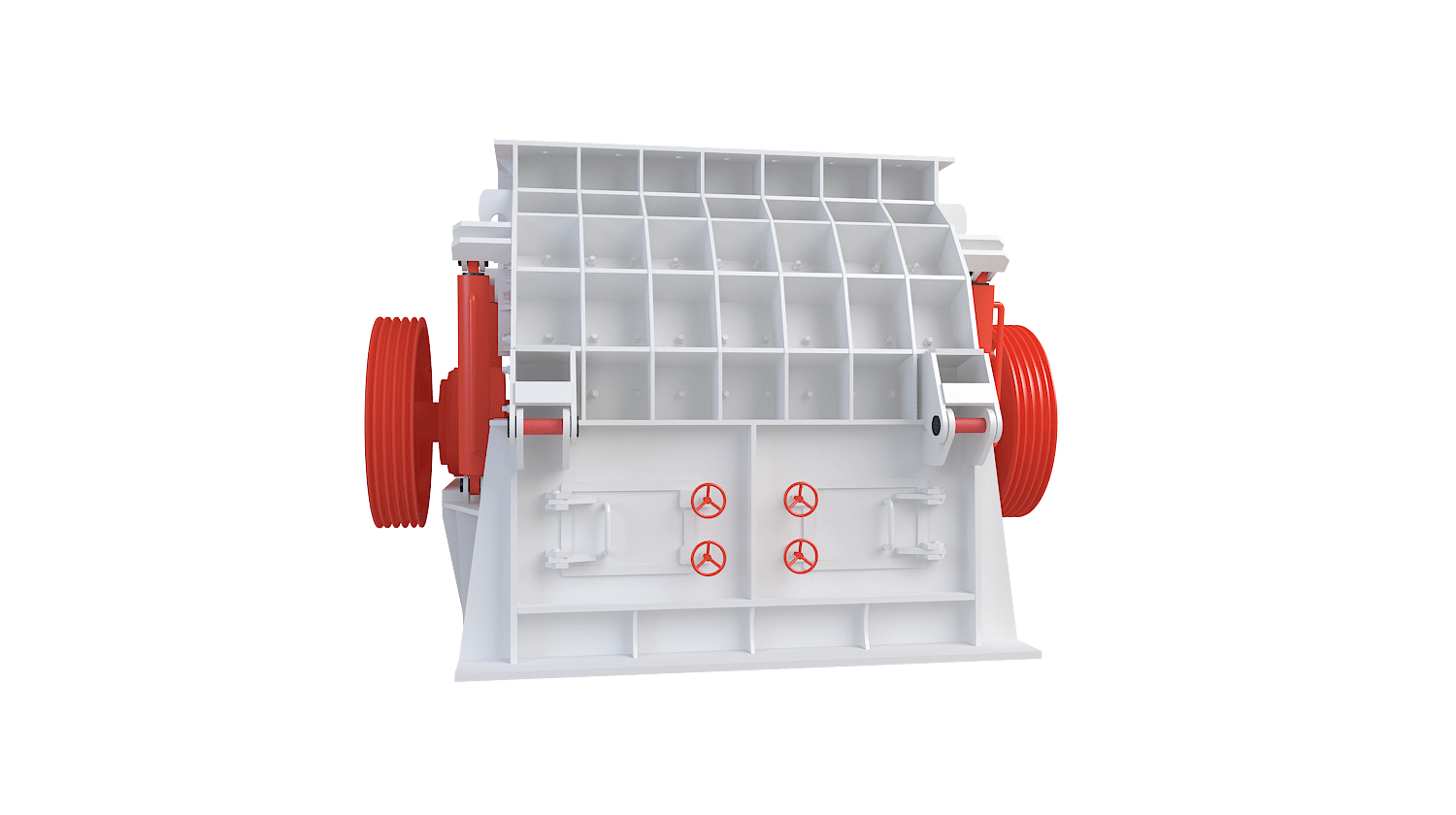

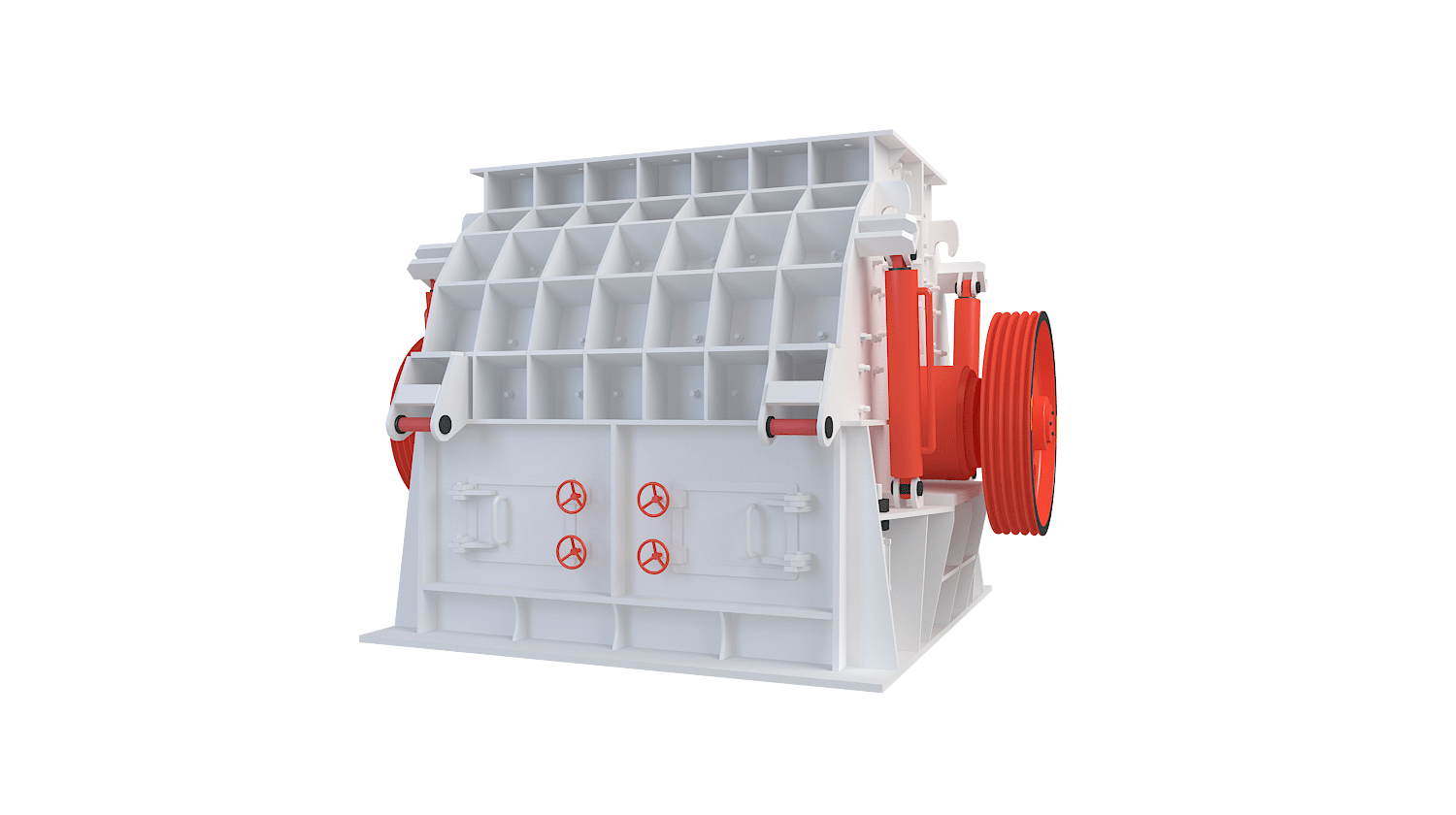

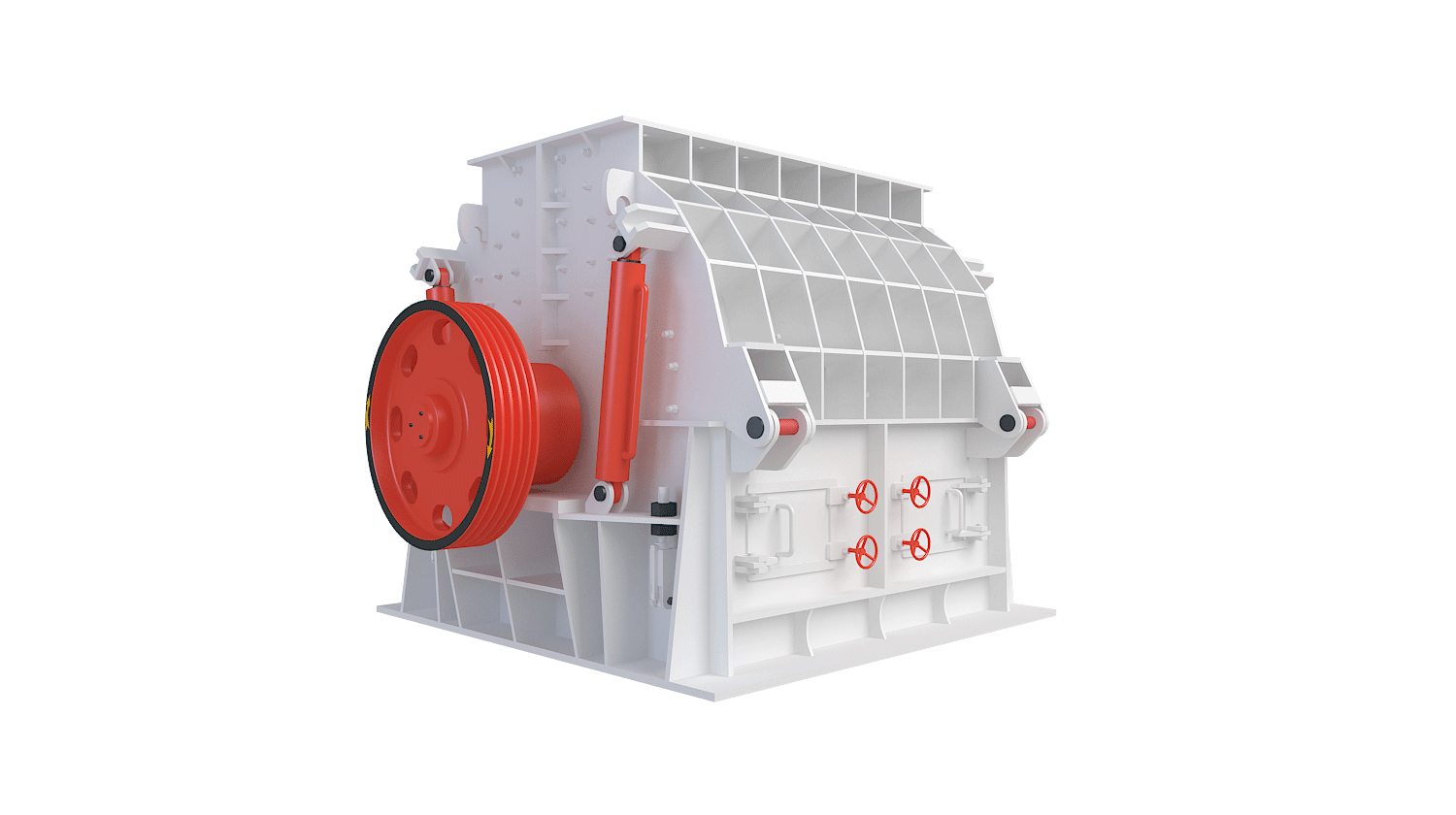

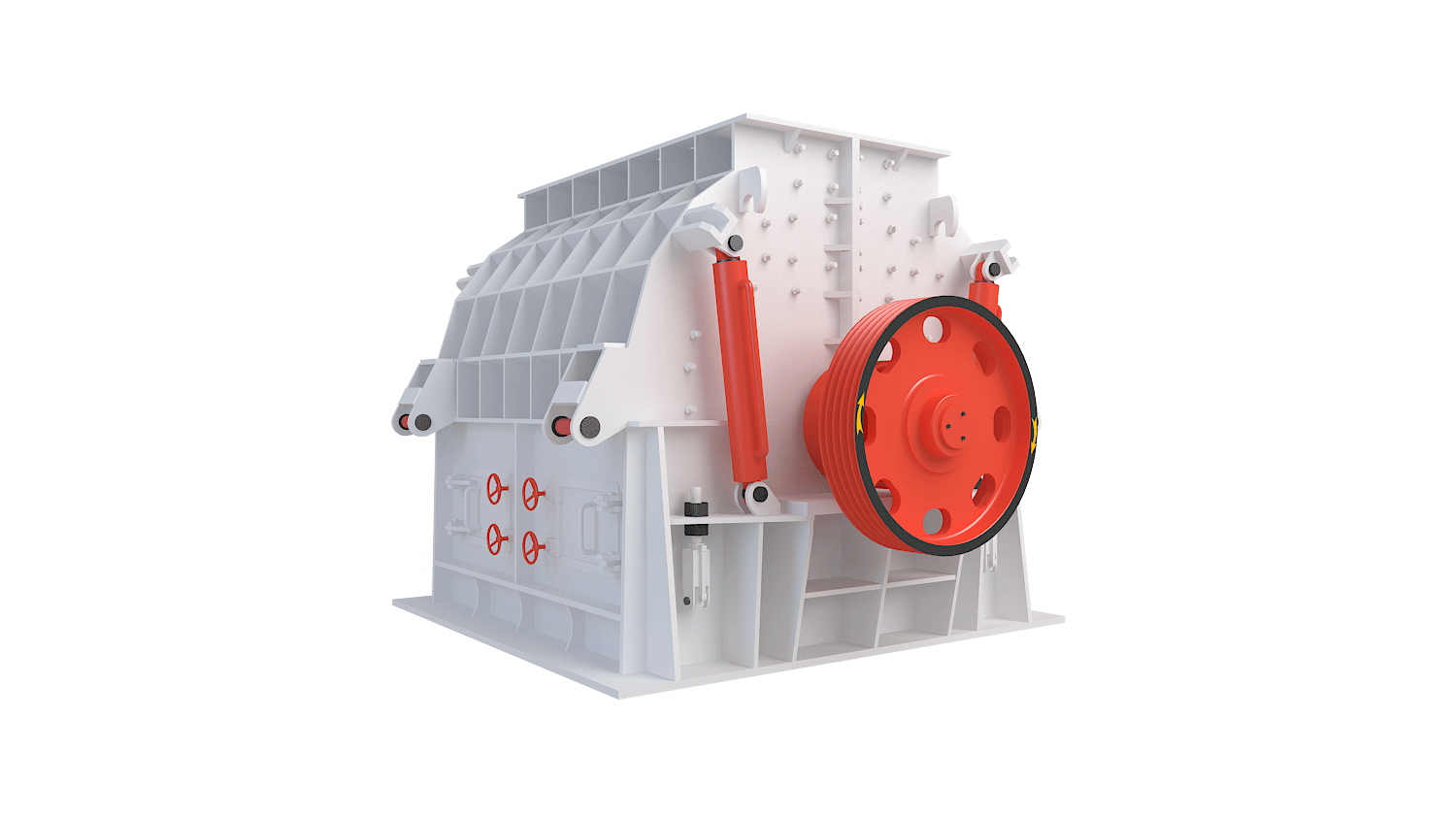

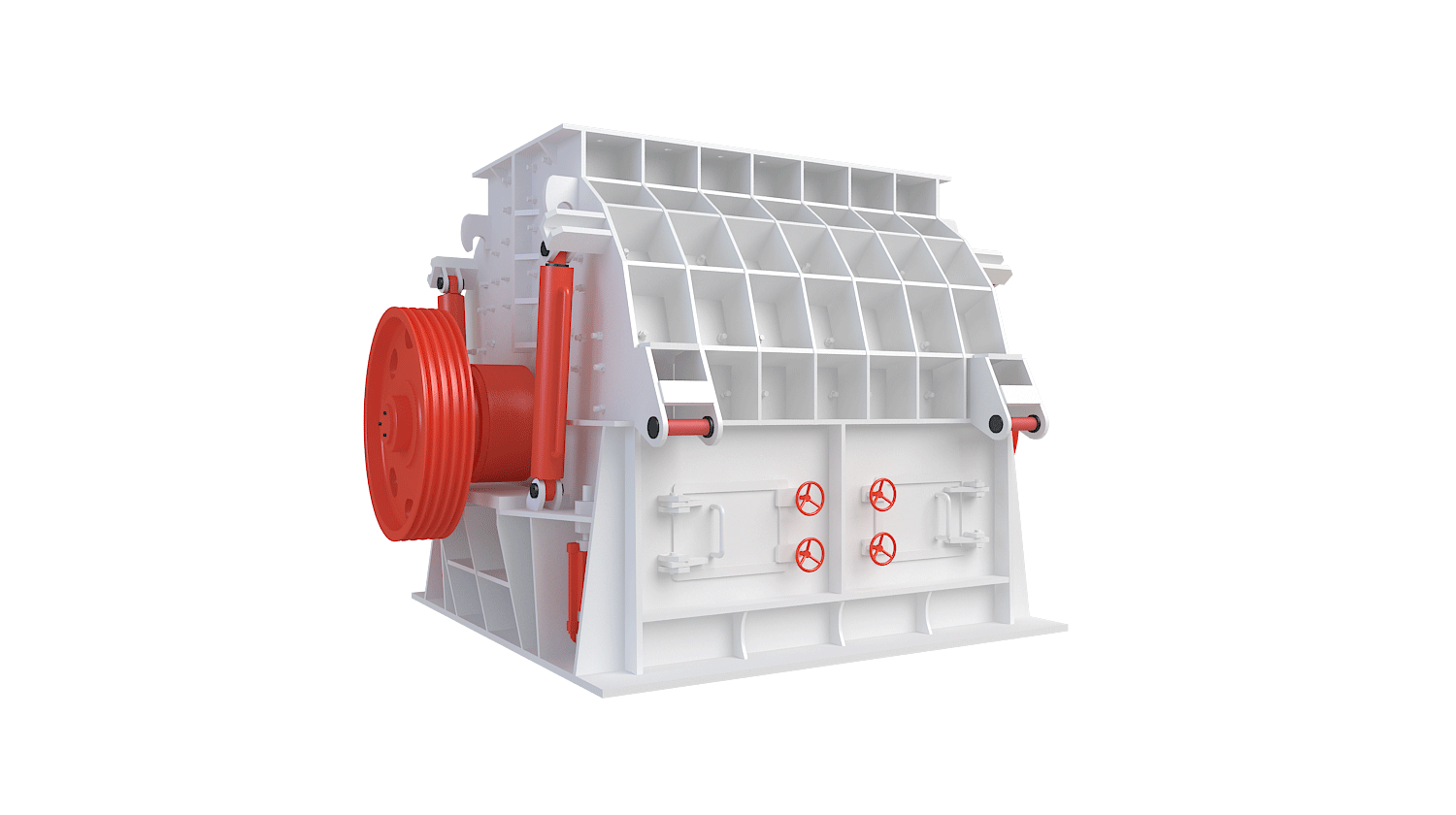

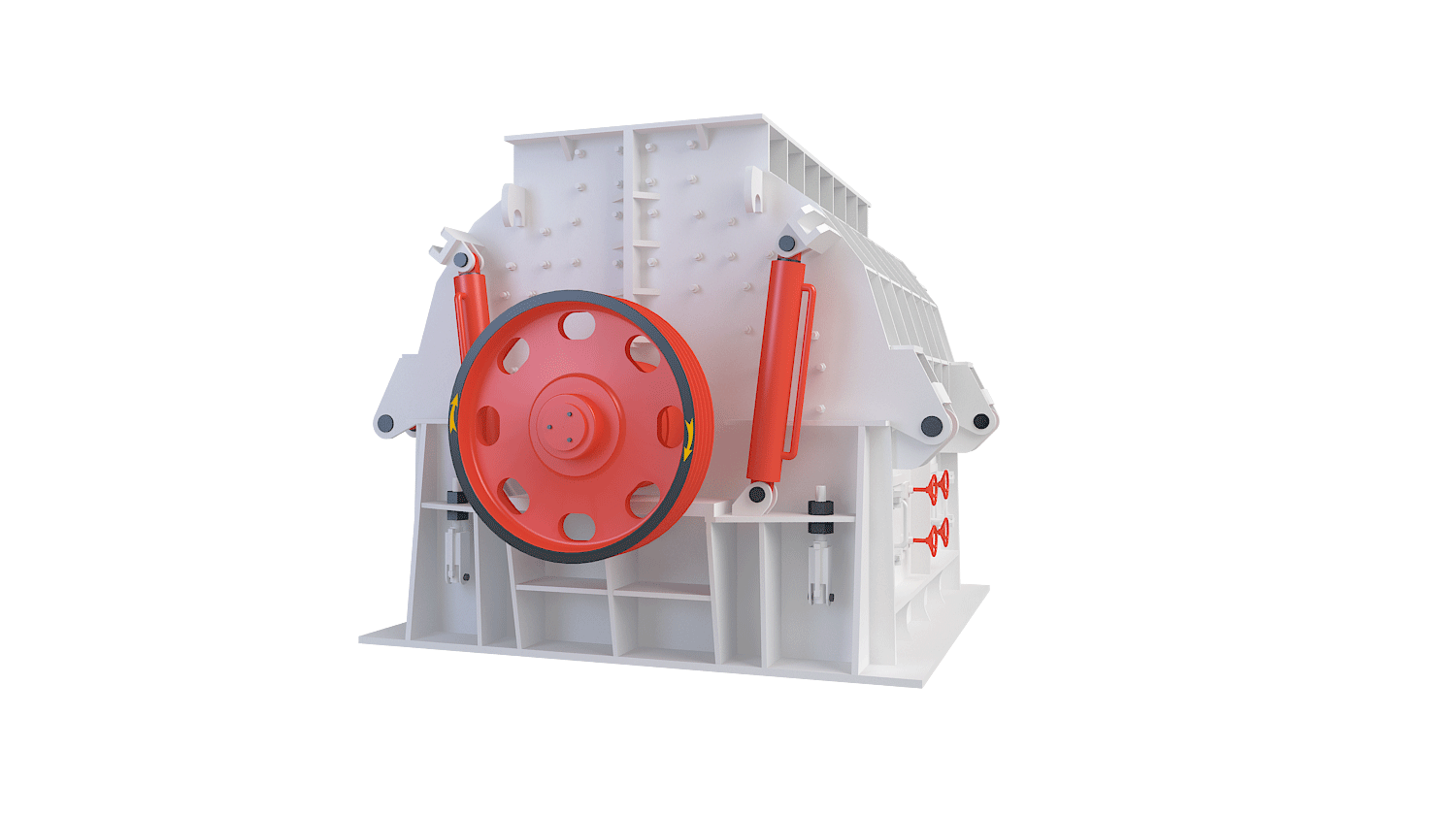

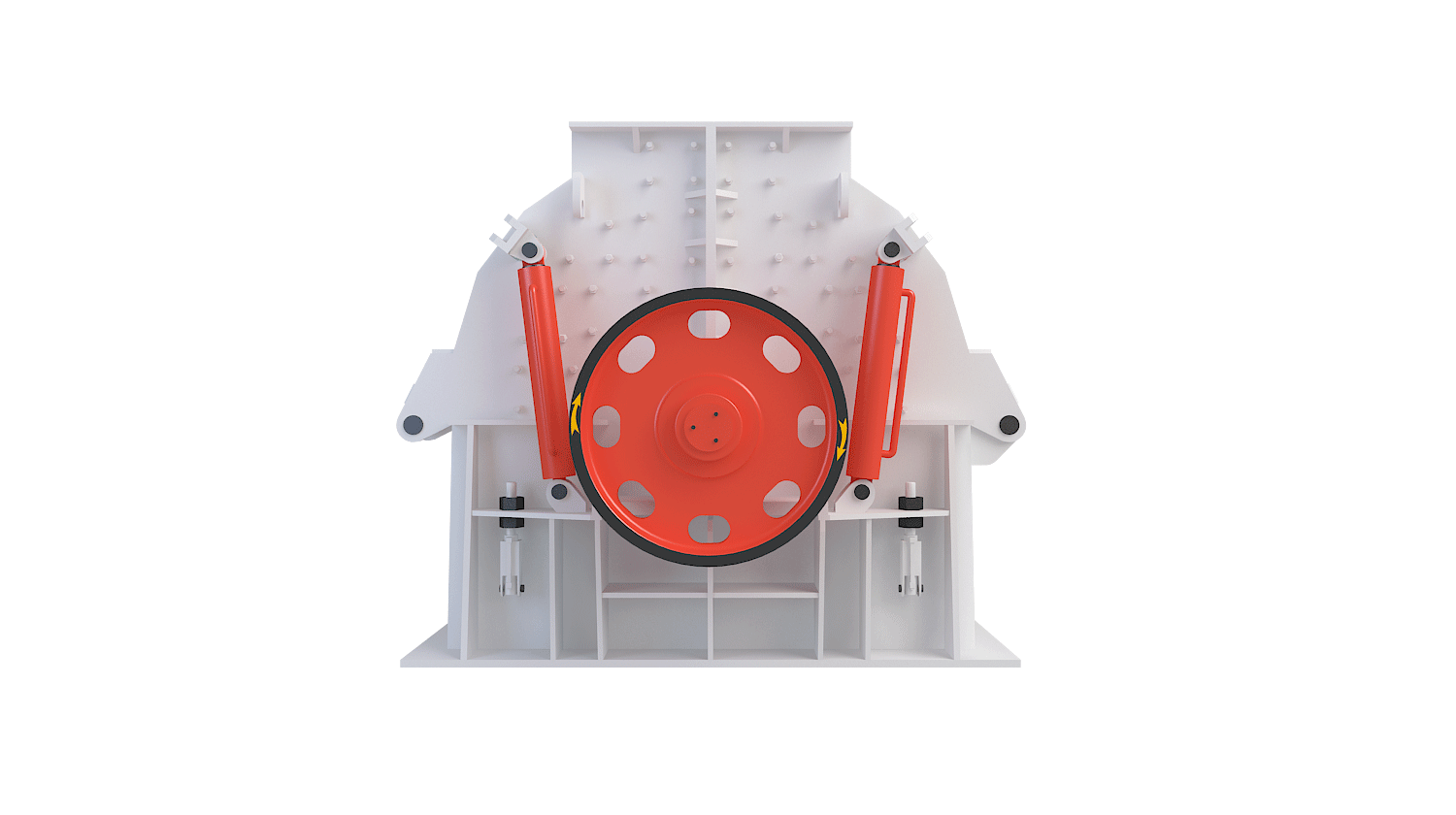

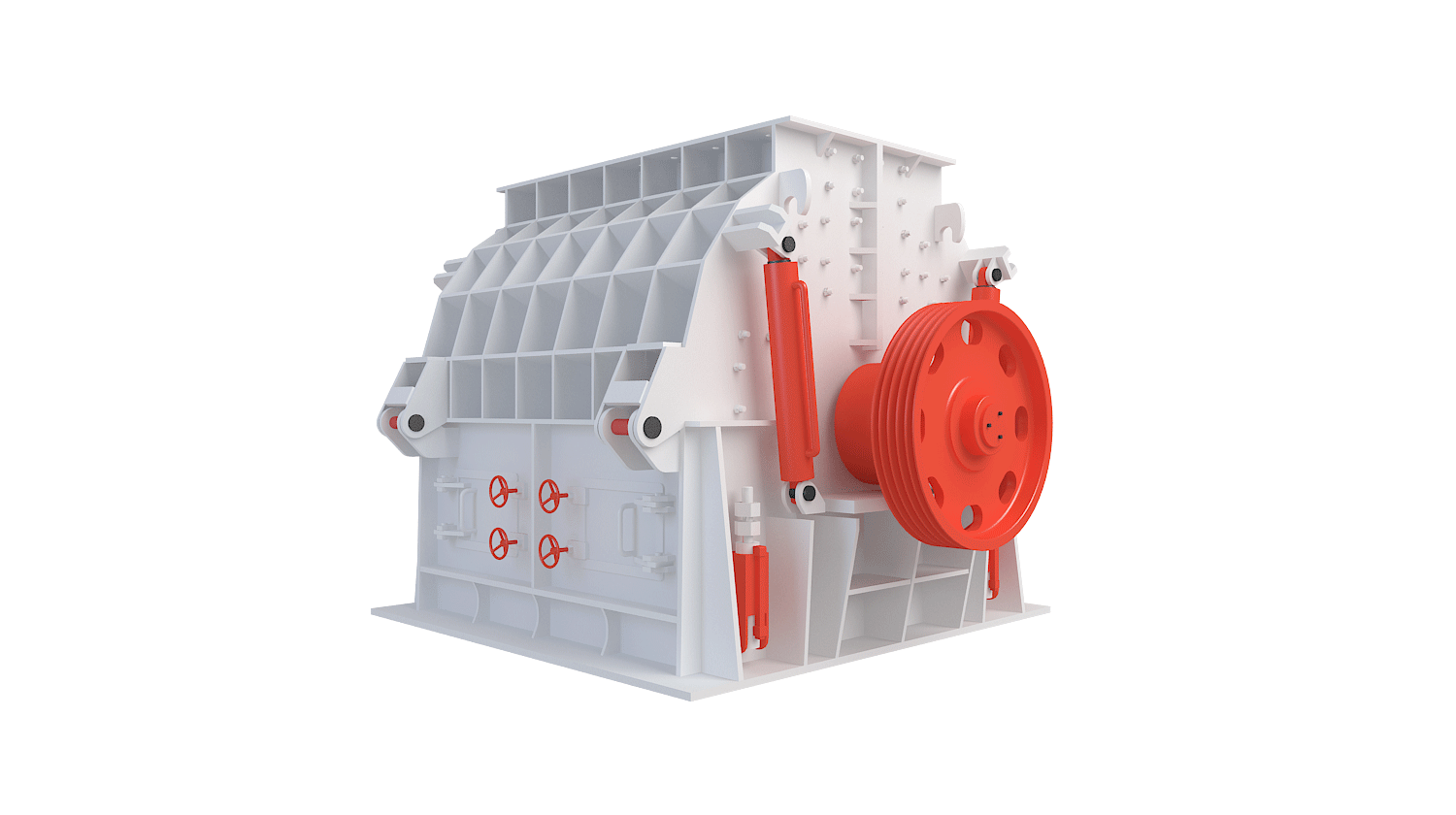

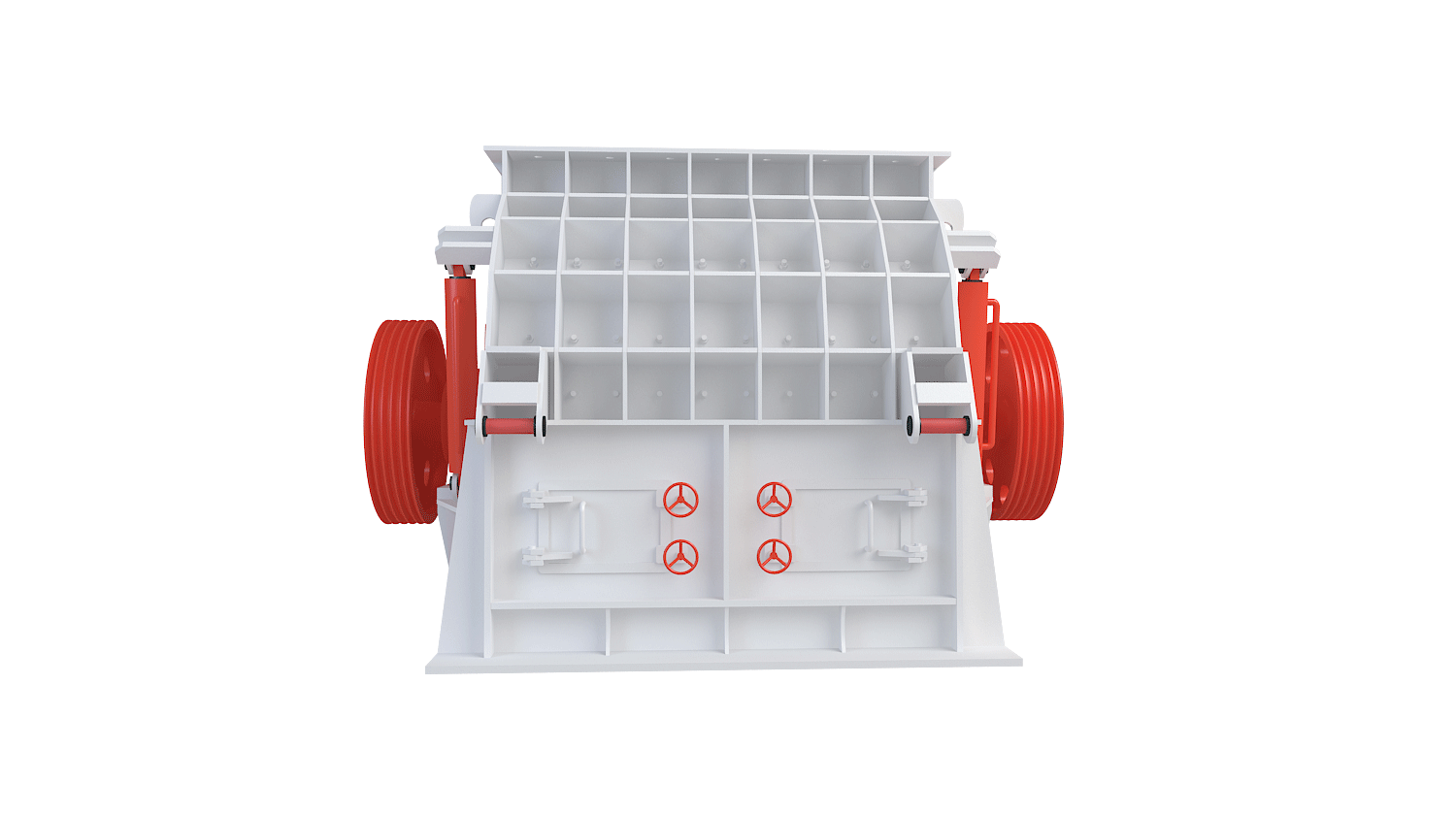

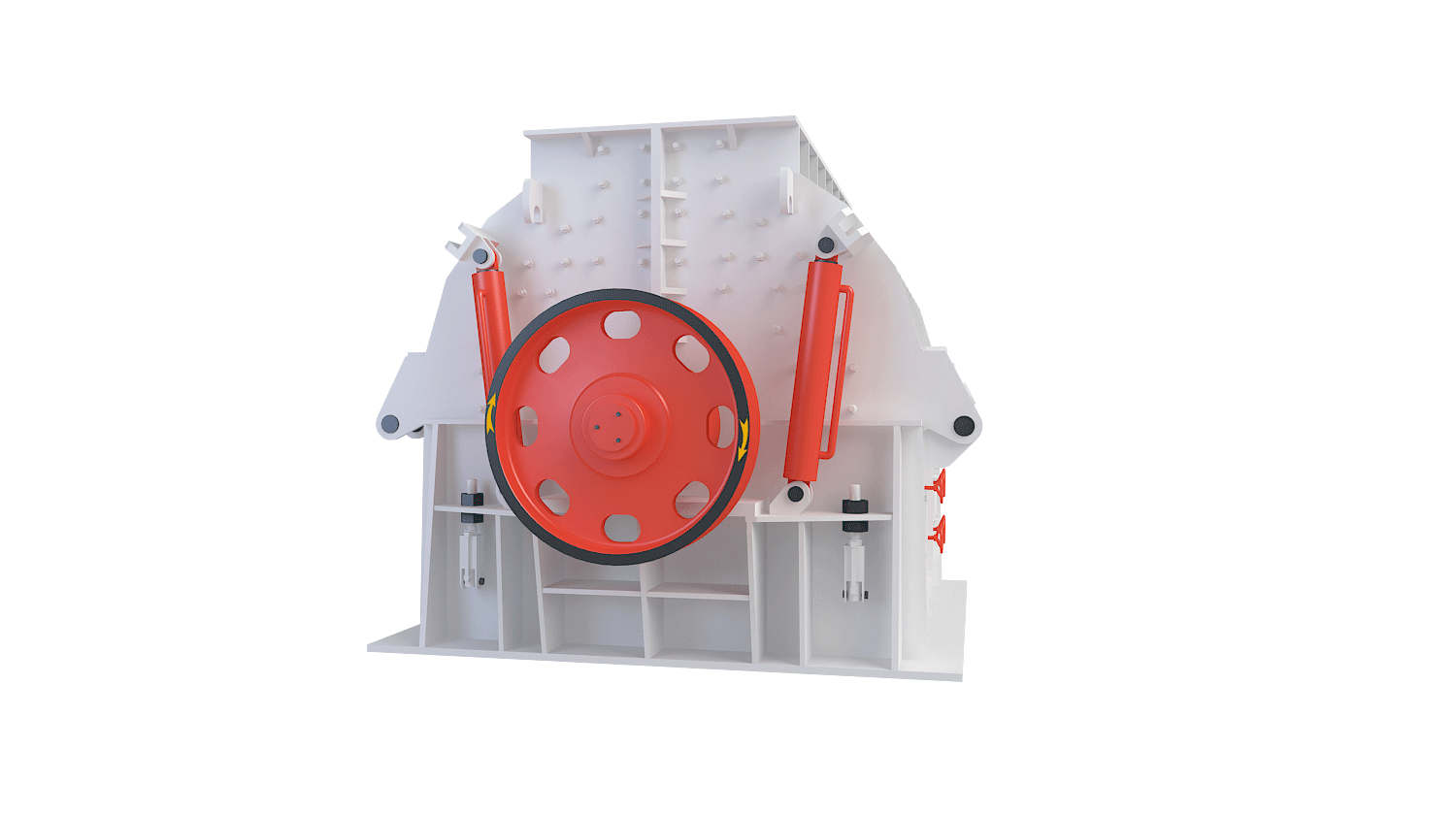

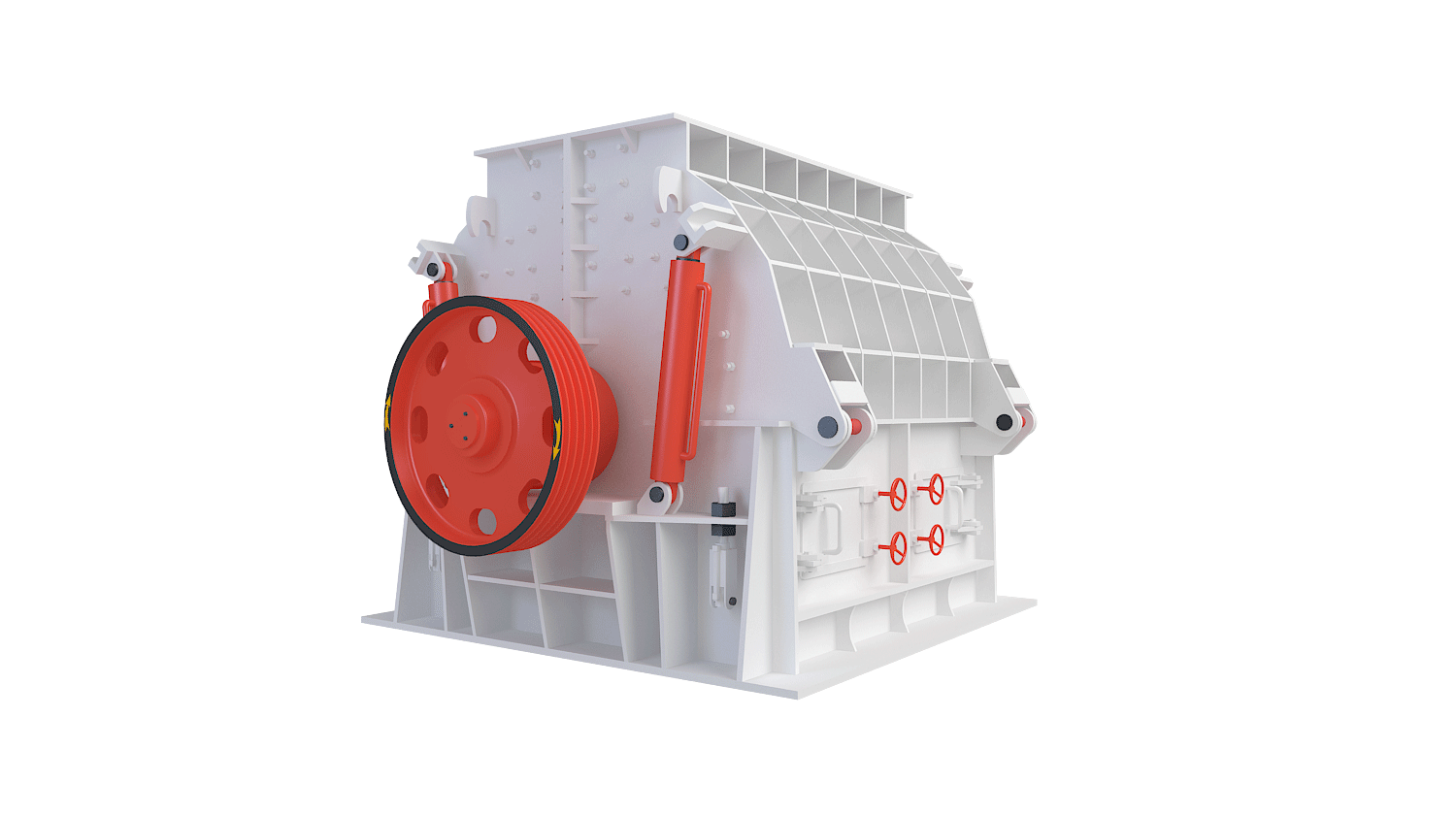

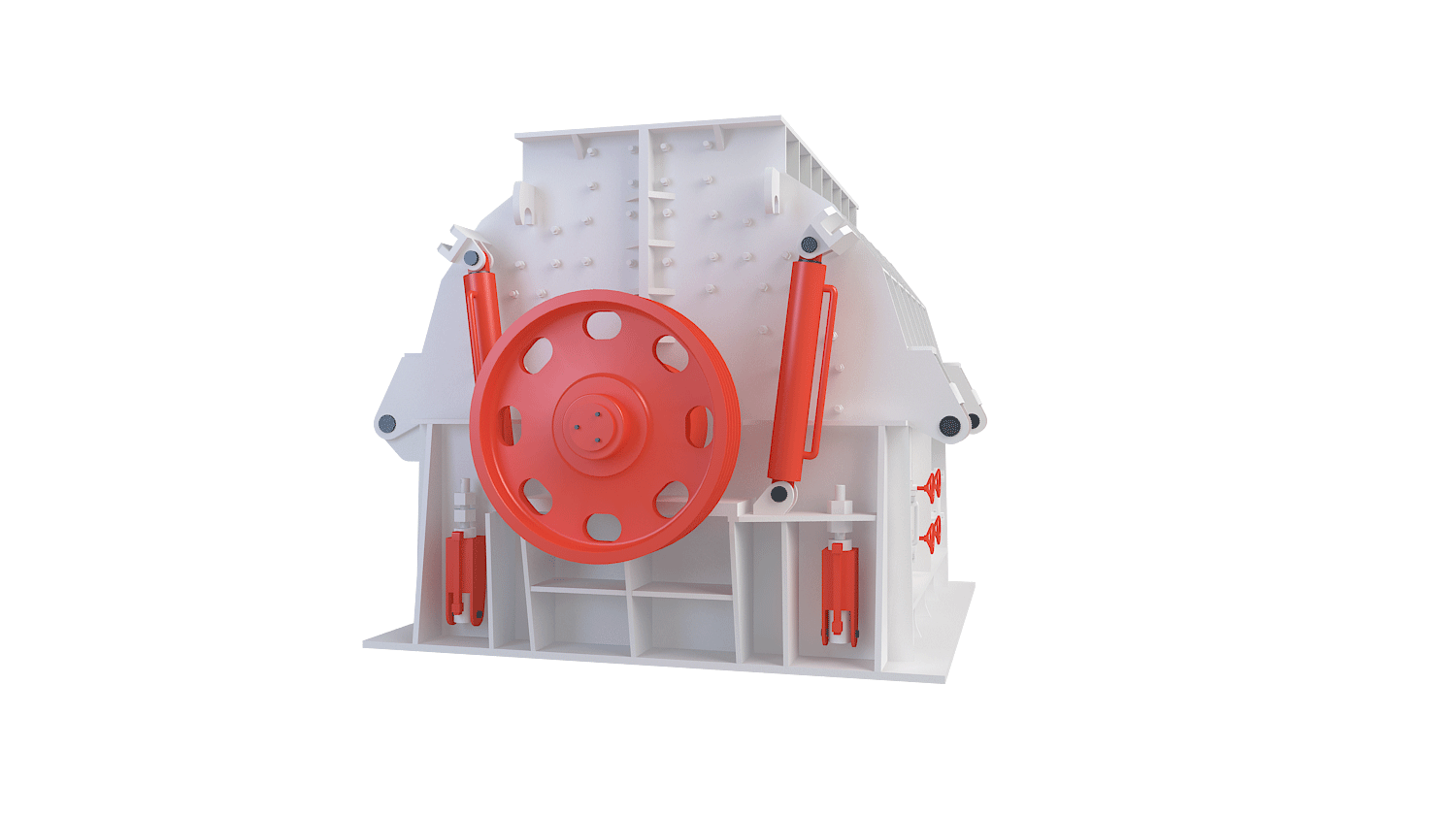

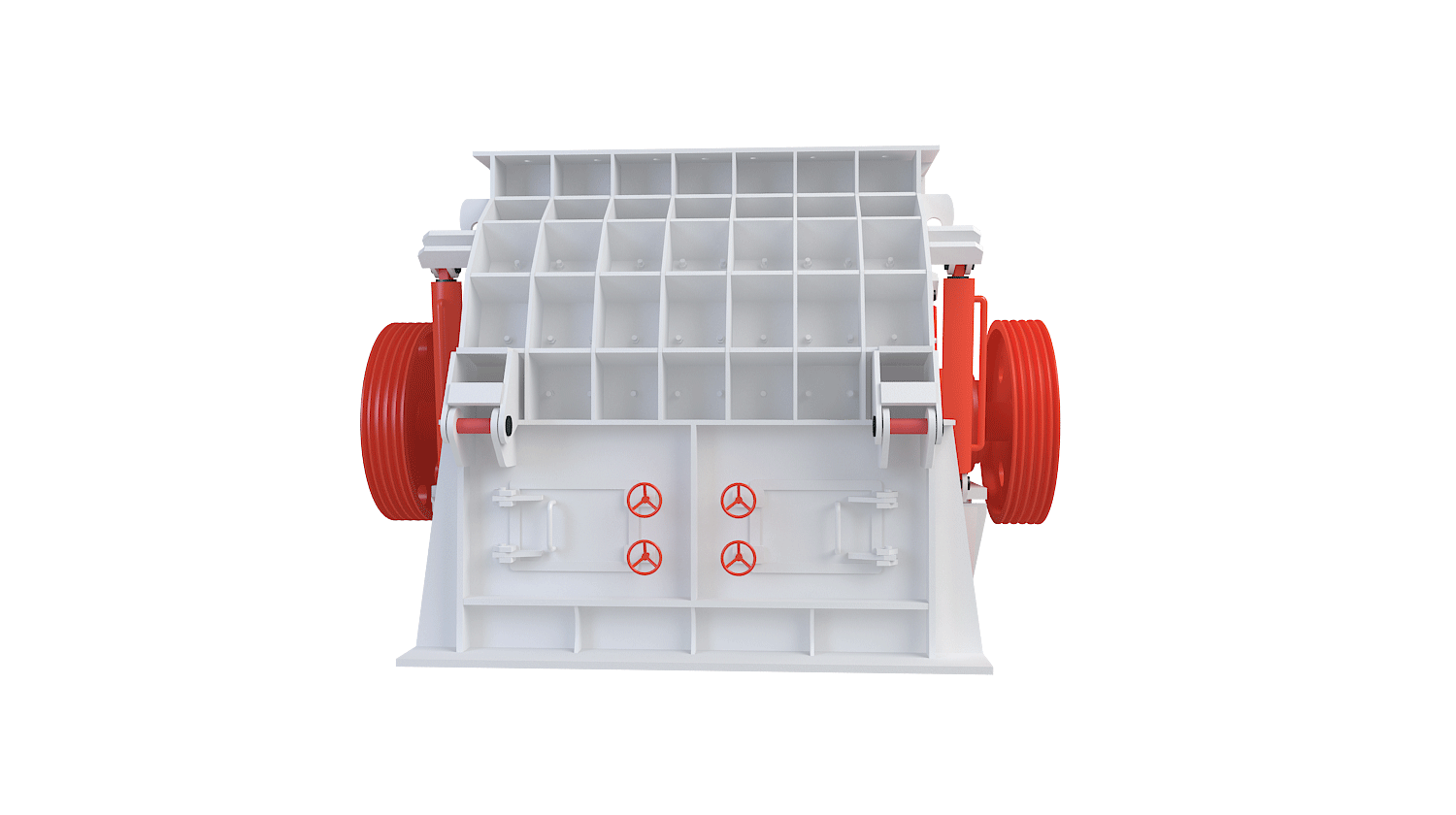

360° panoramic view of the product

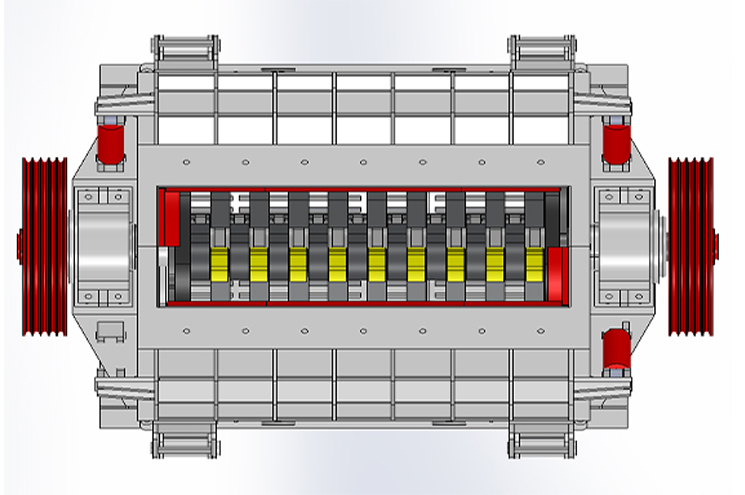

Working Principle

The Single Rotor Sand Maker operates by using a high-speed rotating rotor to impact and crush the raw materials fed into the crushing chamber. The materials are accelerated and thrown against the crushing chamber walls and other materials, creating a cascading effect that breaks the particles into smaller sizes. The continuous impact and friction between the rotor and the materials achieve fine crushing and shaping. The adjustable rotor speed and feed size allow for control over the final product’s granularity and shape. The machine efficiently converts large and medium-sized stones into fine sand with a consistent and desired particle size distribution.

Features

Rhombus Hammer Plate

Unique diamond-shaped hammer plate structure, more effective crushing and grinding

Torx Rotor

The rotor is attached with a high manganese and high chromium protective sleeve

Hammer Head Reversible

After one side of the hammer head is severely worn, there is no need to turn it over manually, and the other side can be used in reverse, saving time and effort, and improving the crushing efficiency during production

Observation Door

The sand making machine is equipped with observation doors on the front, rear, left, and right sides, so that the internal operation of the machine can be observed at any time, and the material can be checked and cleaned in time when the material is blocked

dETAIL

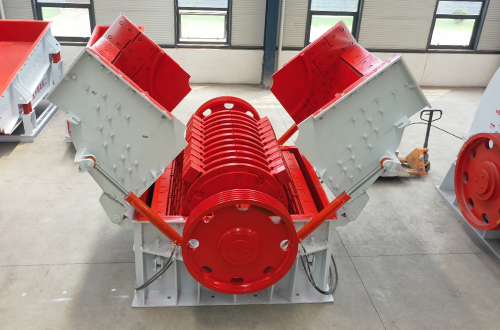

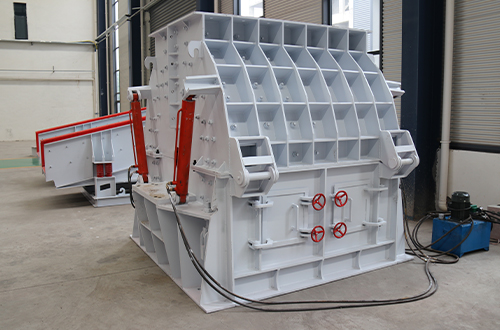

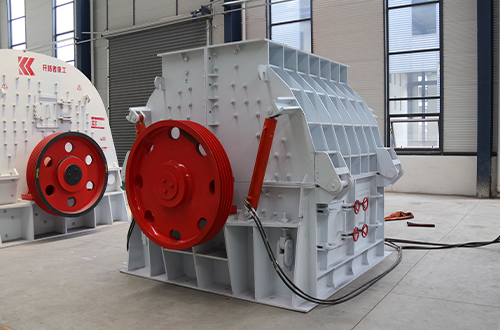

Product Detail Show
