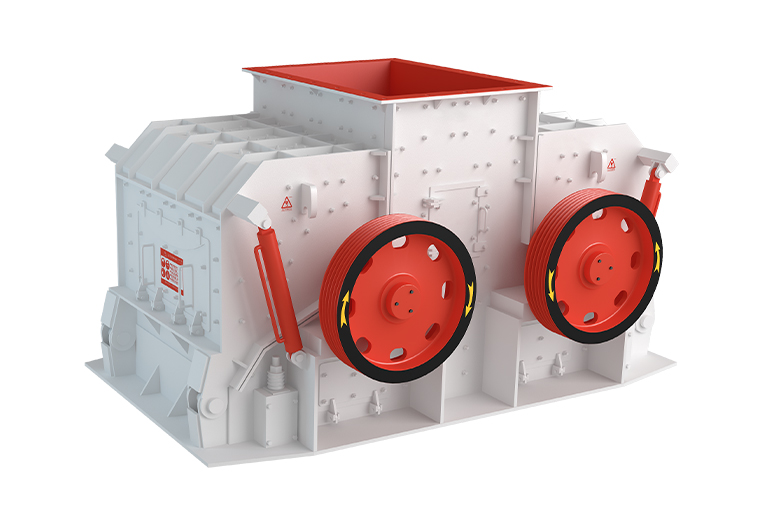

Double Rotor Sand Maker

Double Rotor Sand Maker is a powerful sand crushing machine designed with two high-speed rotors working in tandem. It delivers superior crushing performance and higher output efficiency compared to single rotor machines. Widely used in mining, construction, and aggregate production, this machine produces well-shaped, uniform sand particles suitable for various applications.
Capacity
150-300t/h
Feeding Size
≤280mm
SHARE :
Introduction
Parameters
360° Panorama
Working Principle
Features
Detail
Introduction

Double Rotor Sand Maker

The Double Rotor Sand Maker is an advanced sand production machine that utilizes two synchronized high-speed rotors to achieve high crushing efficiency and excellent product quality. As materials enter the crushing chamber, they are subjected to repeated impact from both rotors, ensuring thorough crushing and improved particle shape. This dual-rotor system increases the material's contact frequency, reduces over-crushing, and significantly boosts output compared to single rotor models. With a compact structure, wear-resistant components, and easy maintenance, it is ideal for large-scale sand and aggregate production in industries such as construction, mining, road building, and cement manufacturing. Its ability to produce fine, consistent sand makes it a preferred choice for high-standard engineering applications.

Technical Parameters

Model Capacity
(t/h)
Feed size
(mm)
Feeding port size
width×length
(mm)
Dimensions
(mm)
Motor power
(kw)
SZJ1315 150-220 ≤180 1000×1570 3350×2920×2100 110*4
SZJ1516 220-300 ≤280 1160×1740 4190×3220×2360 160*4

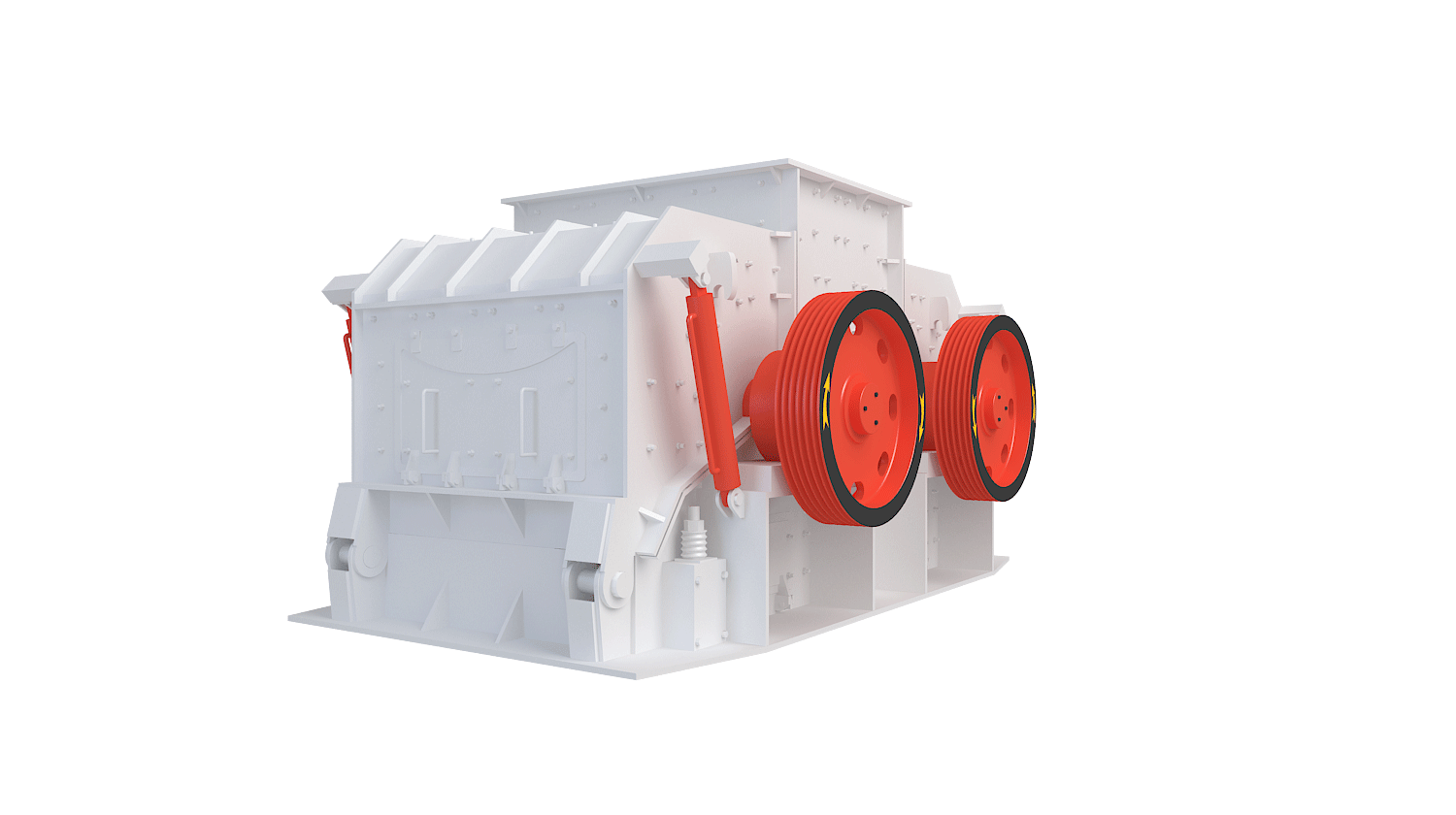

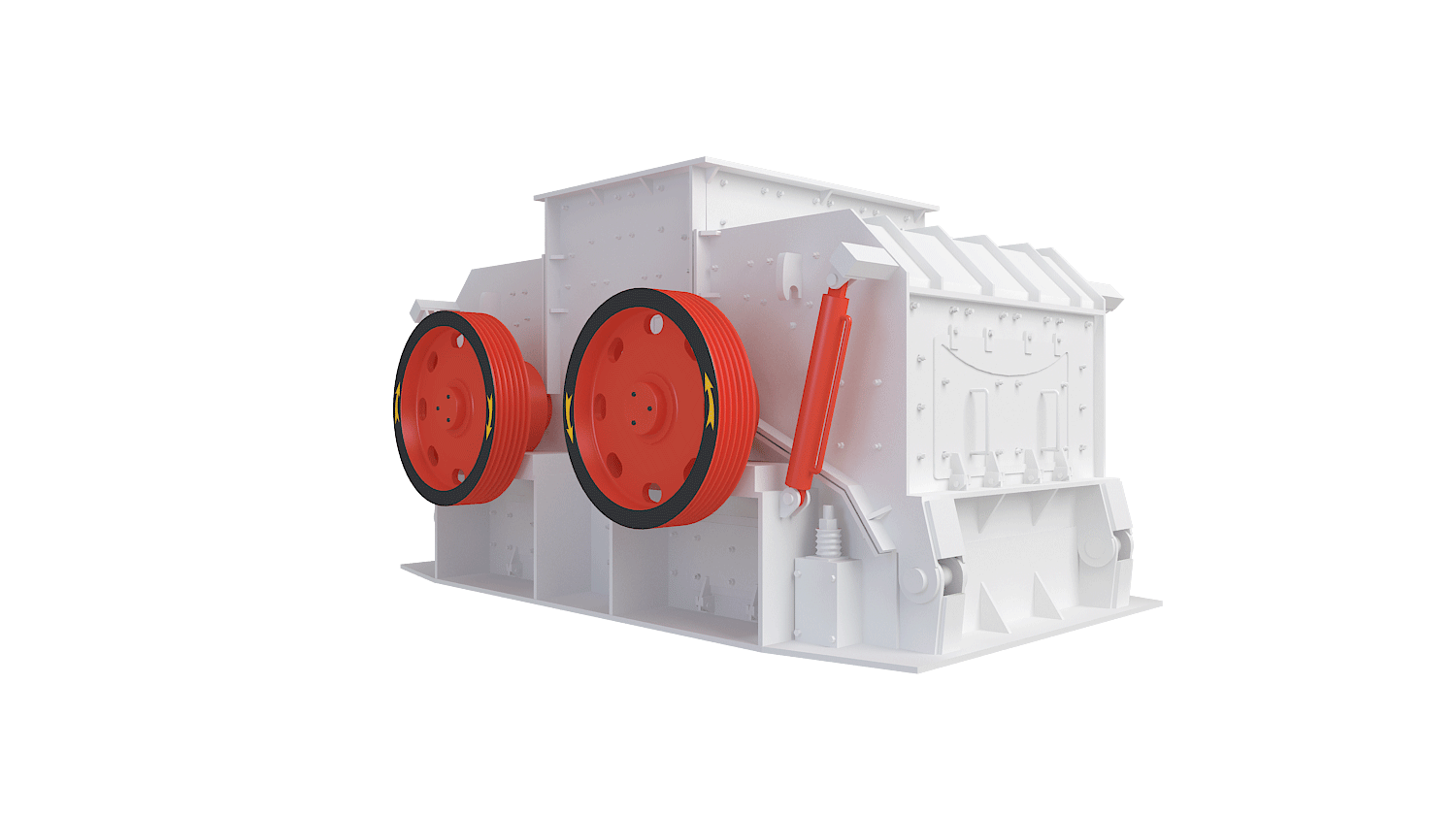

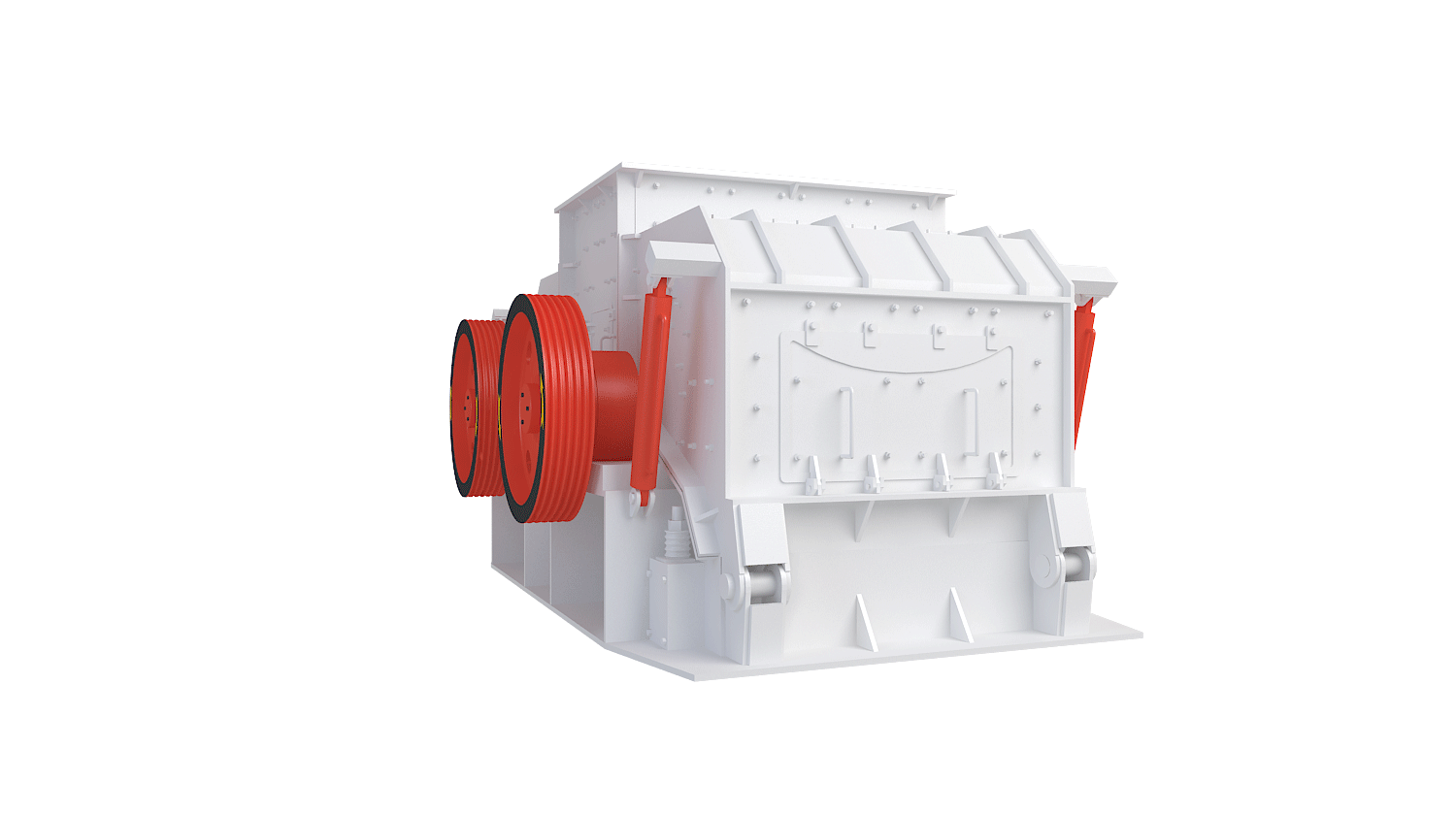

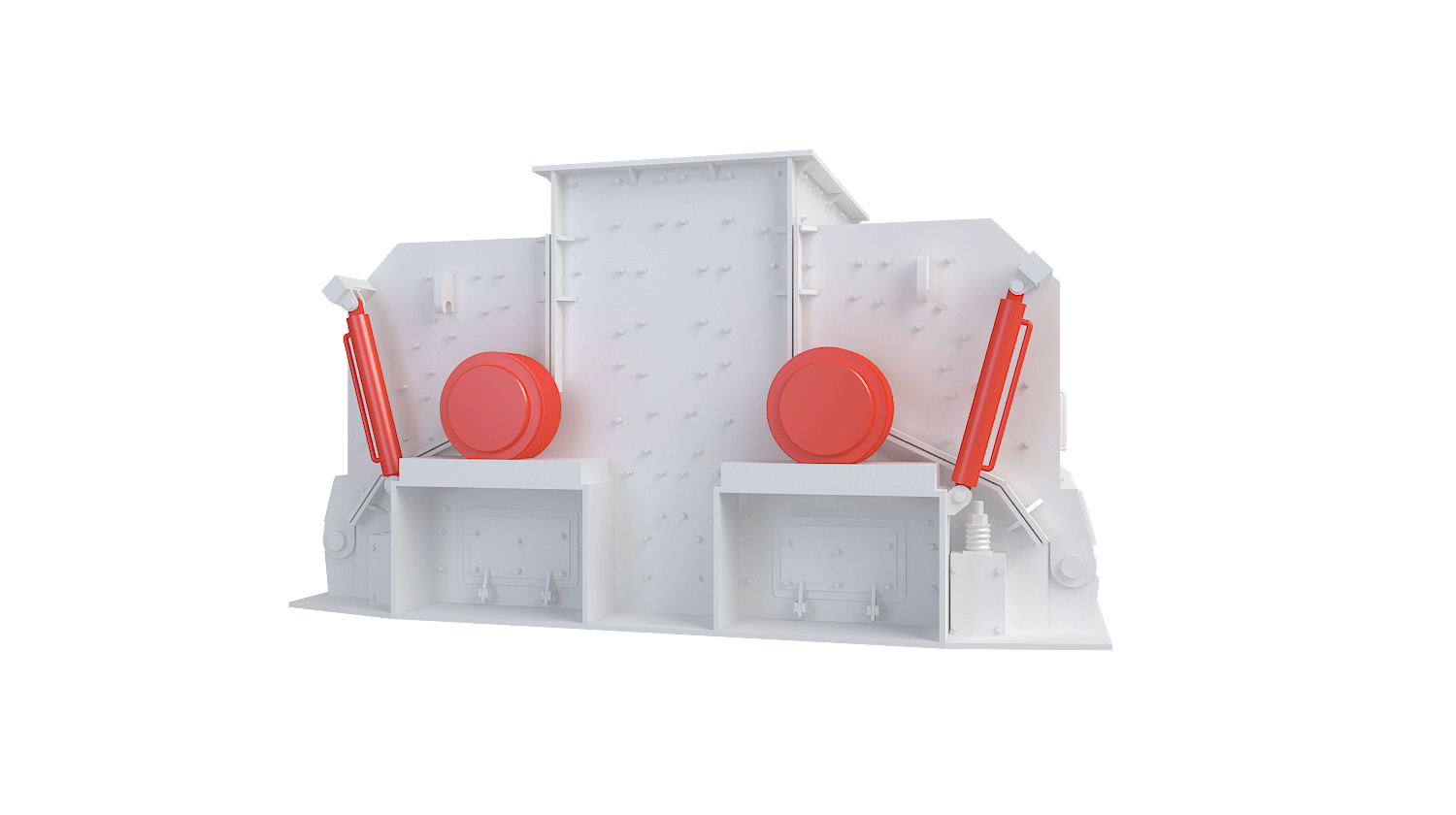

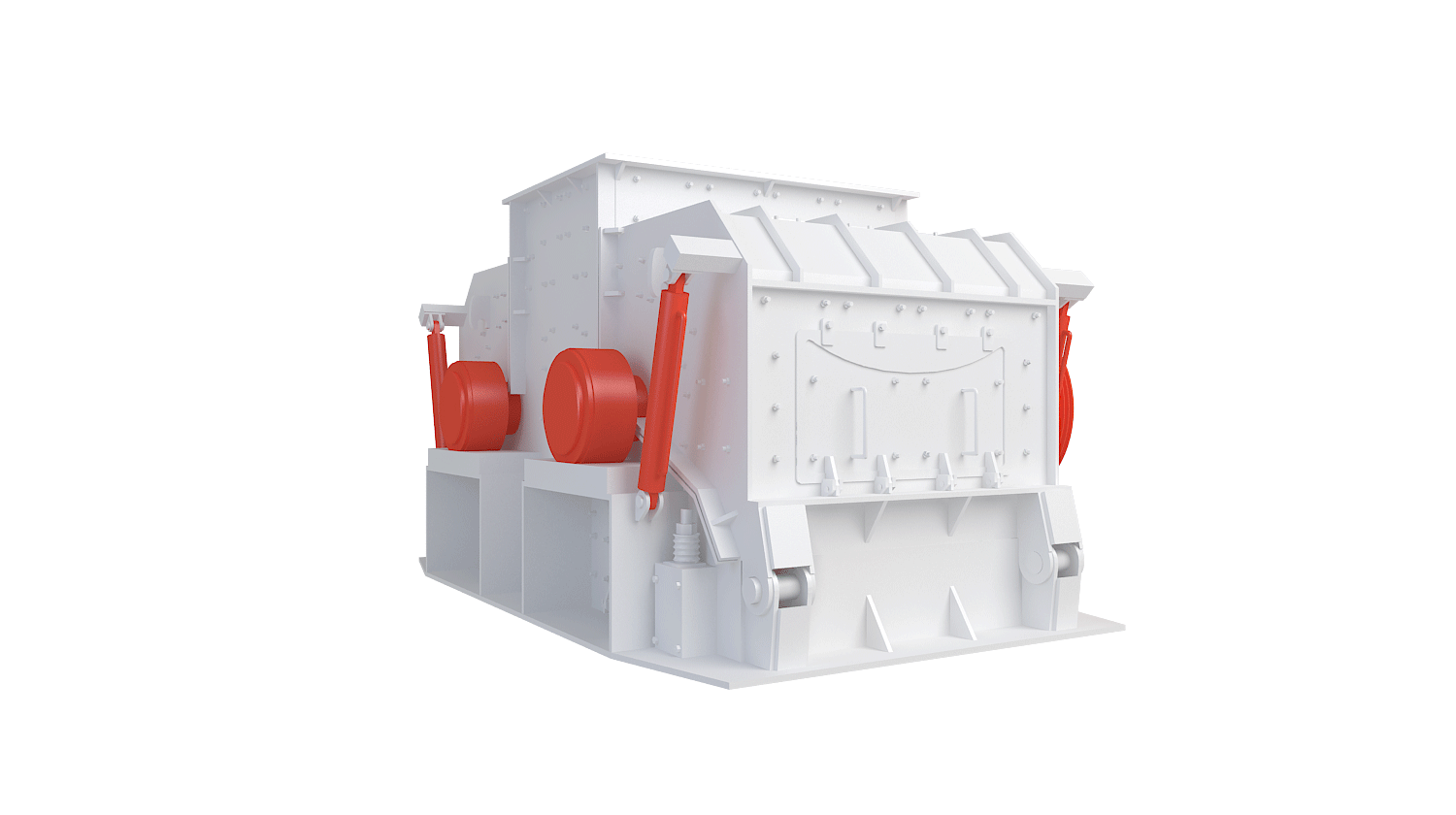

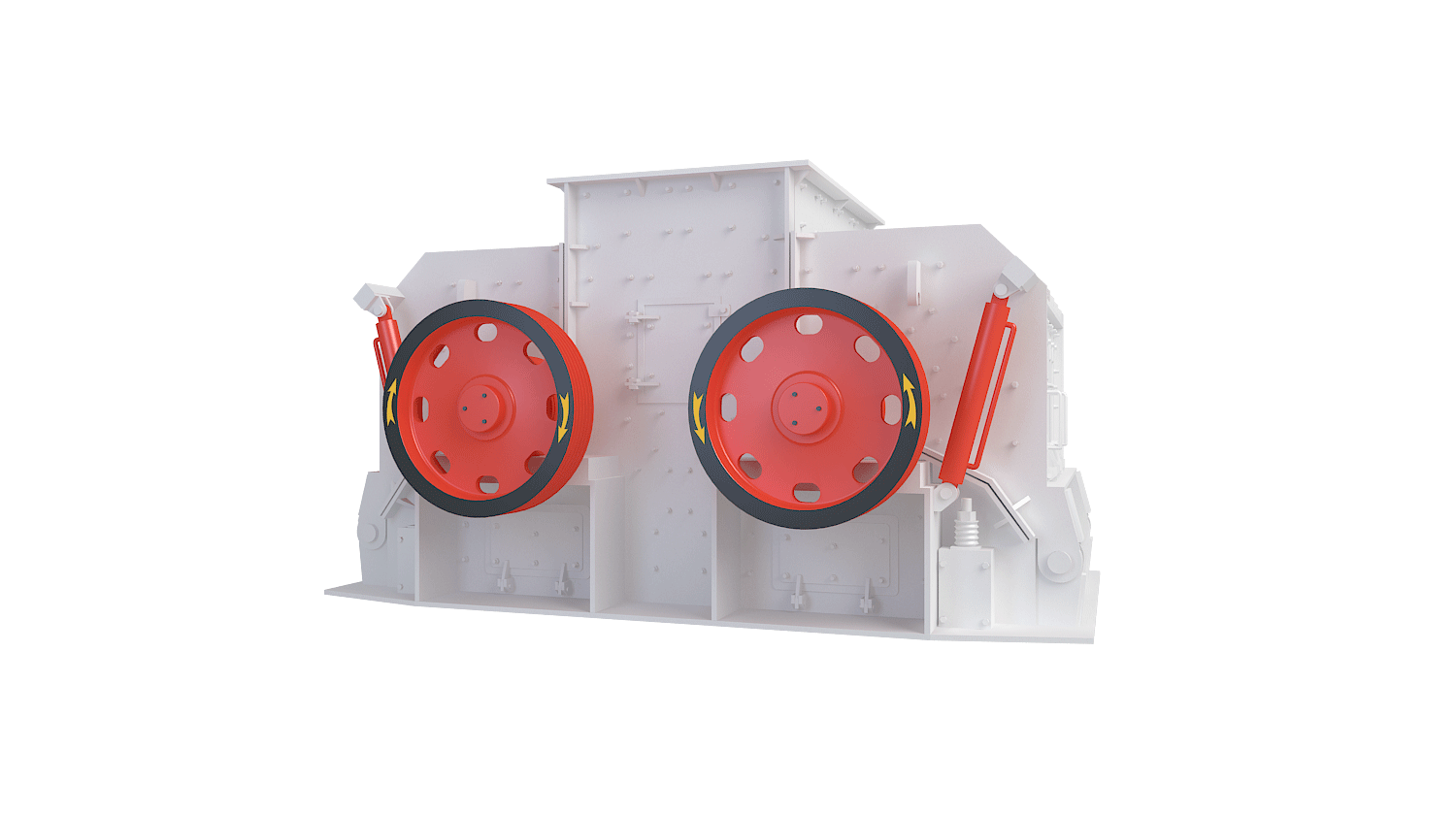

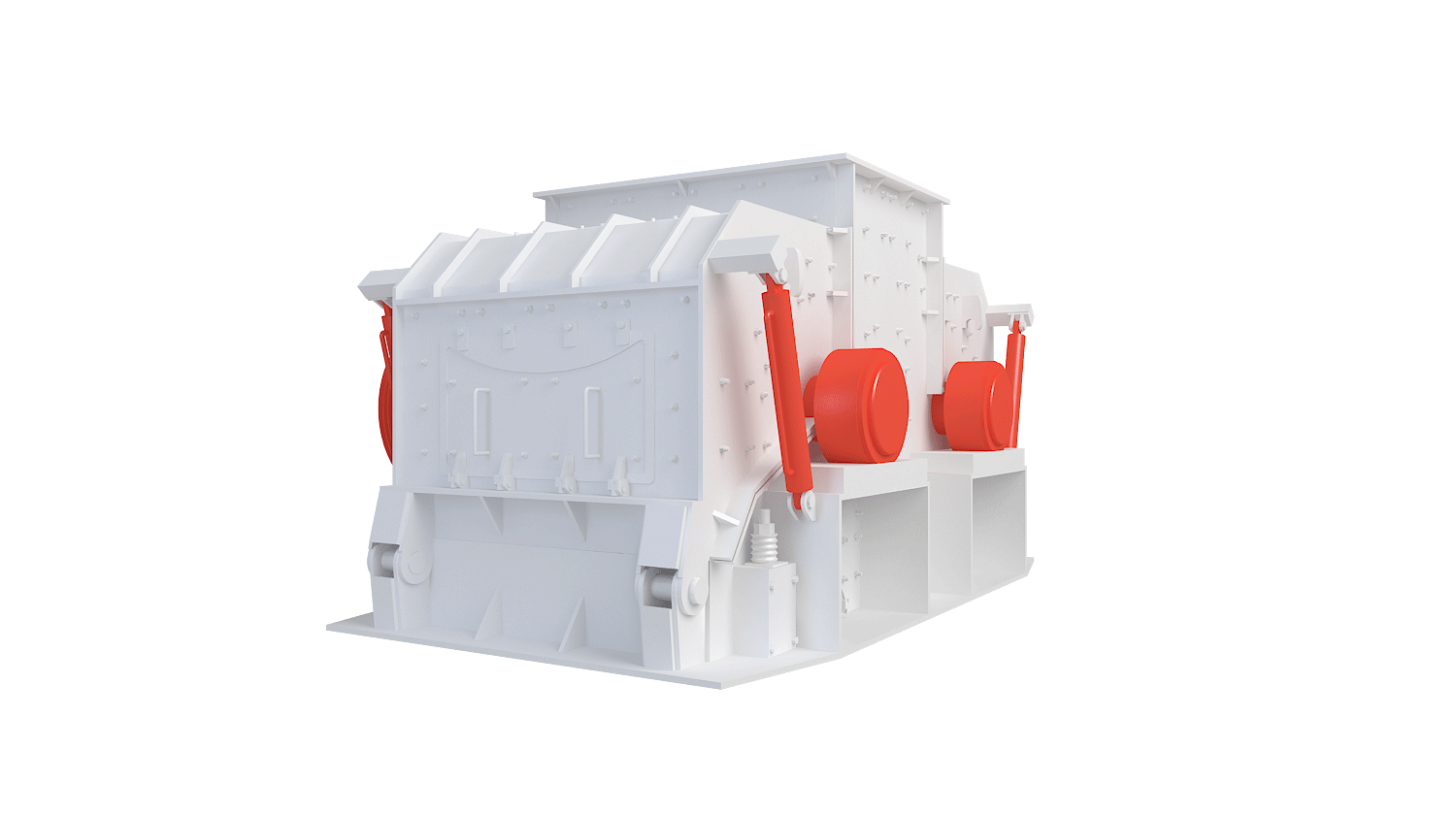

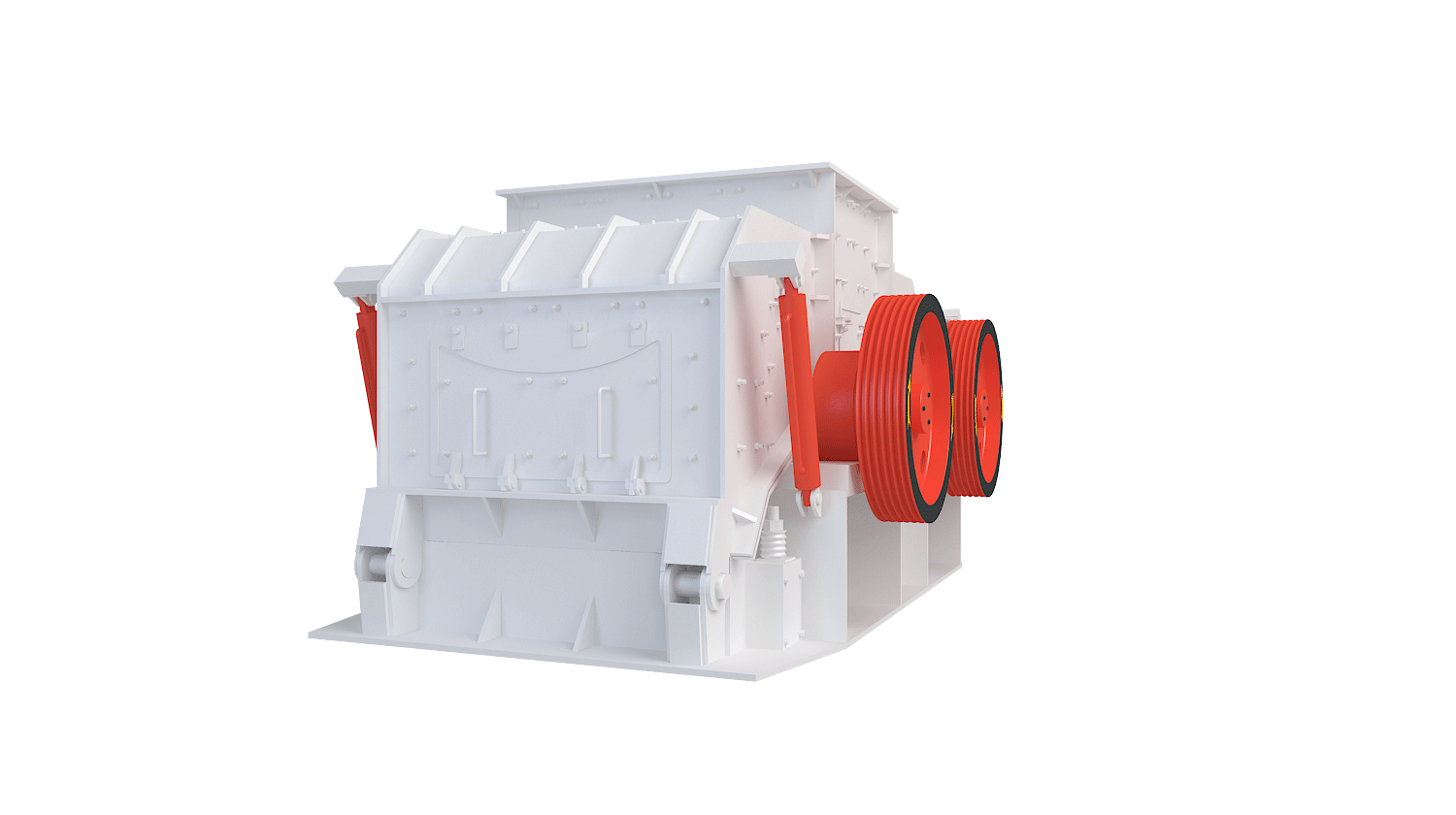

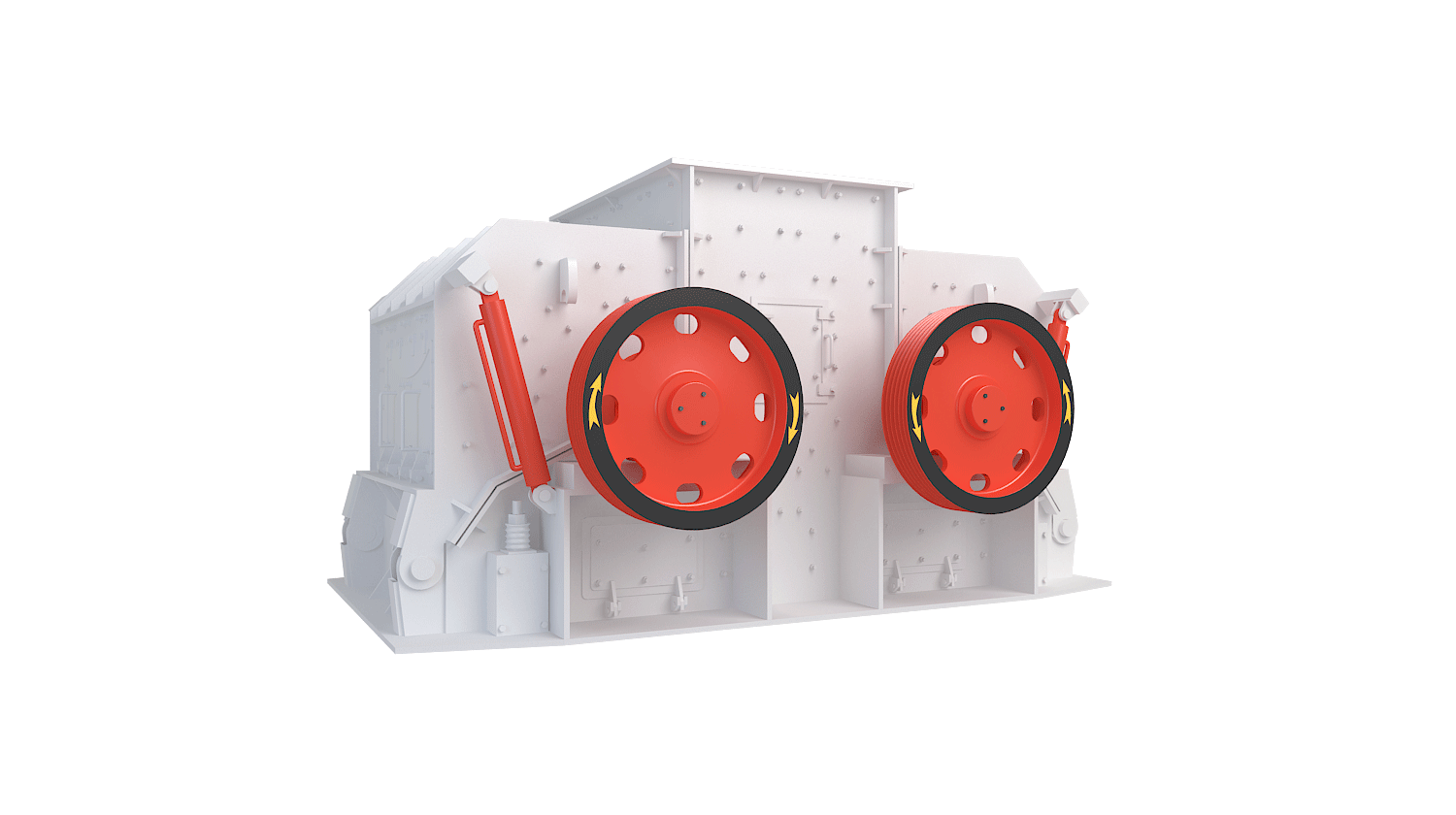

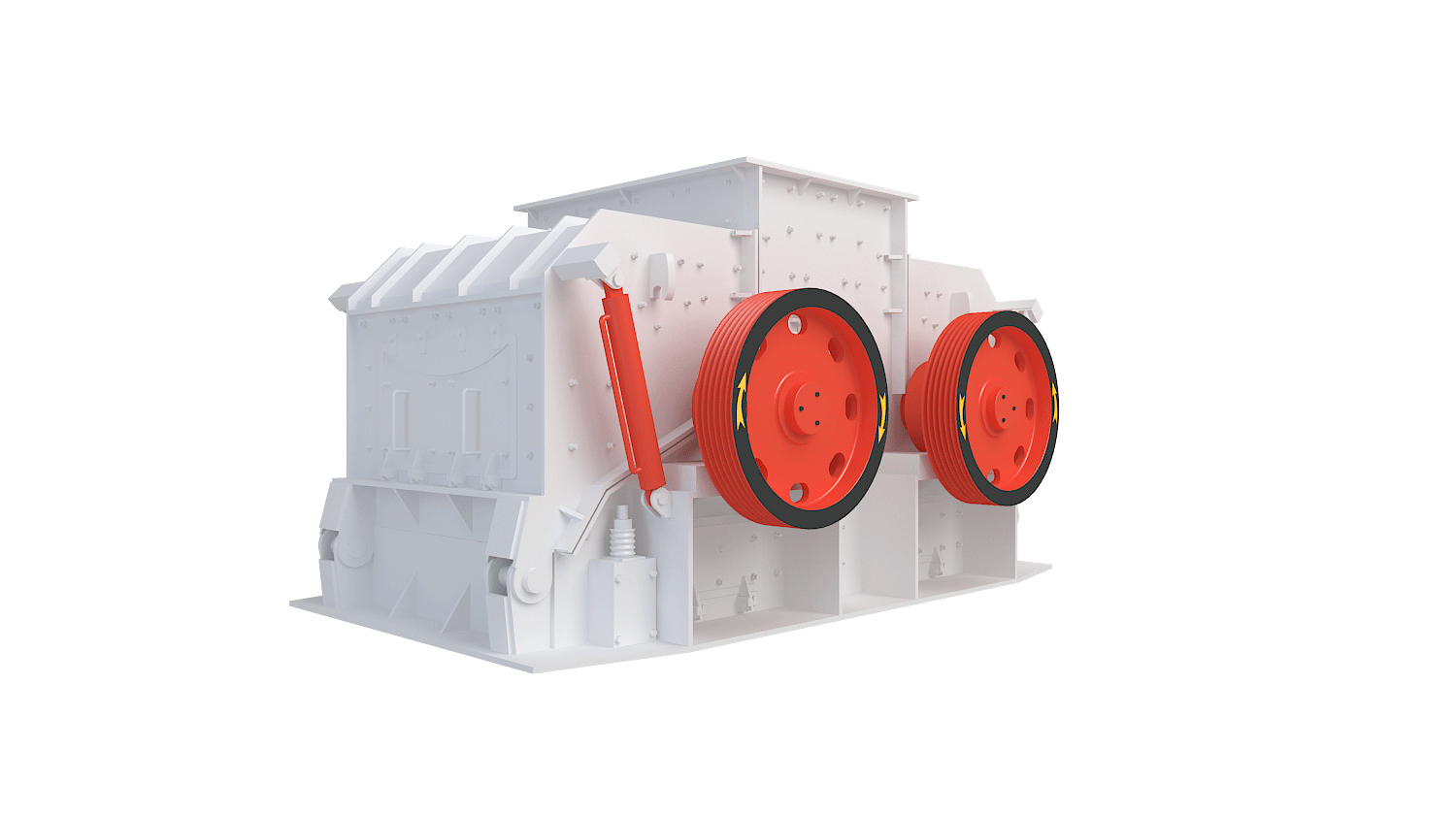

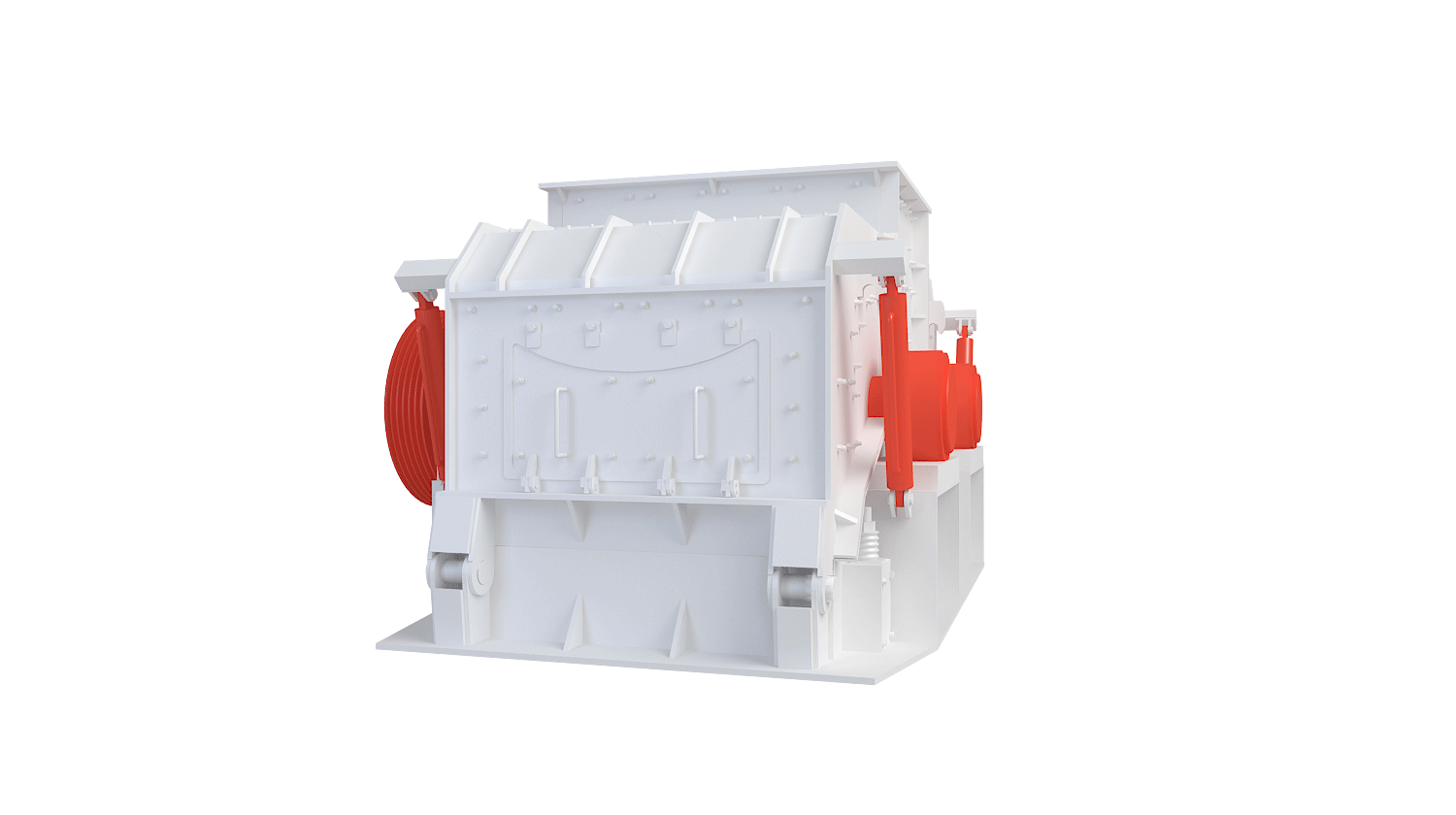

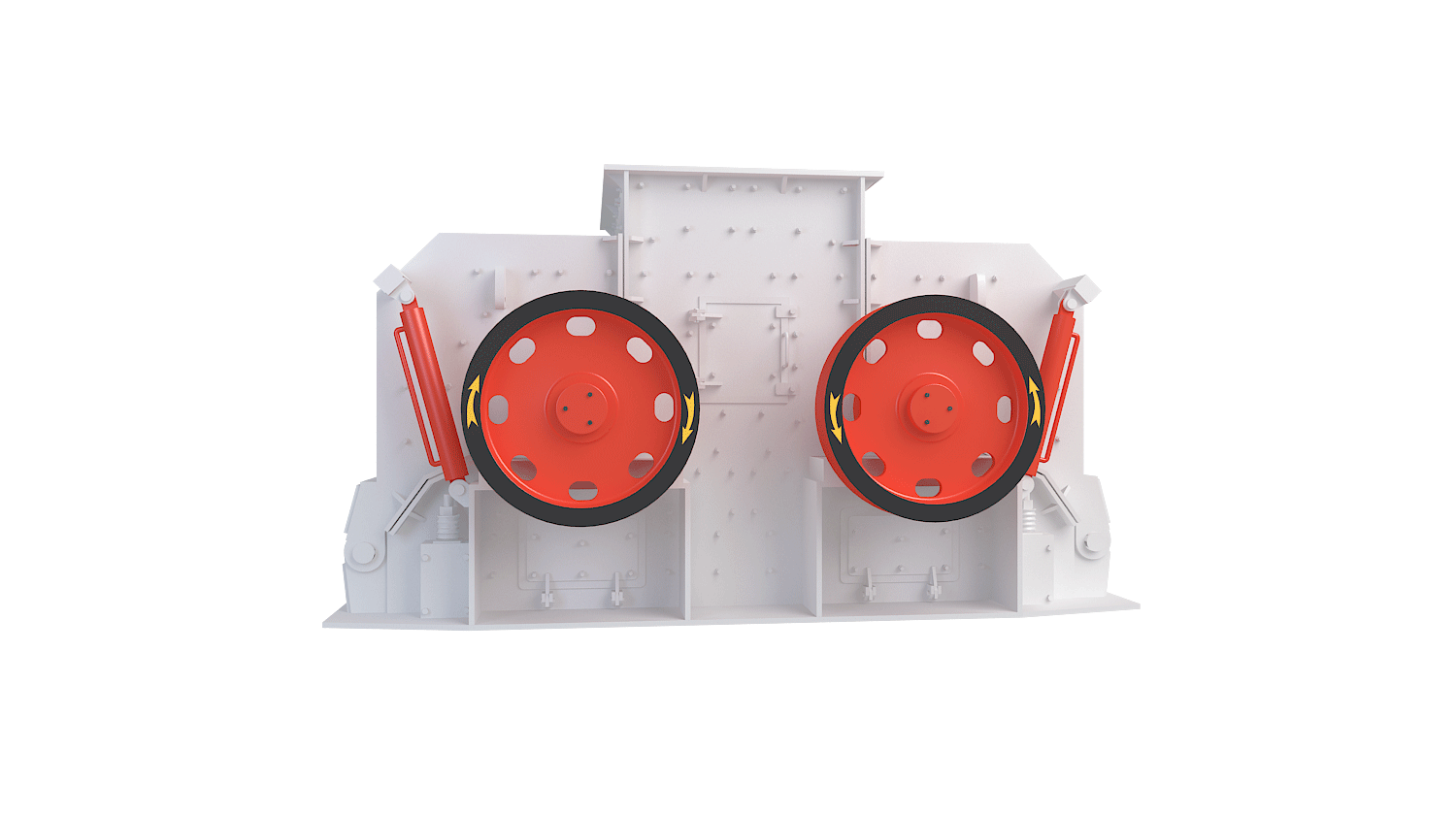

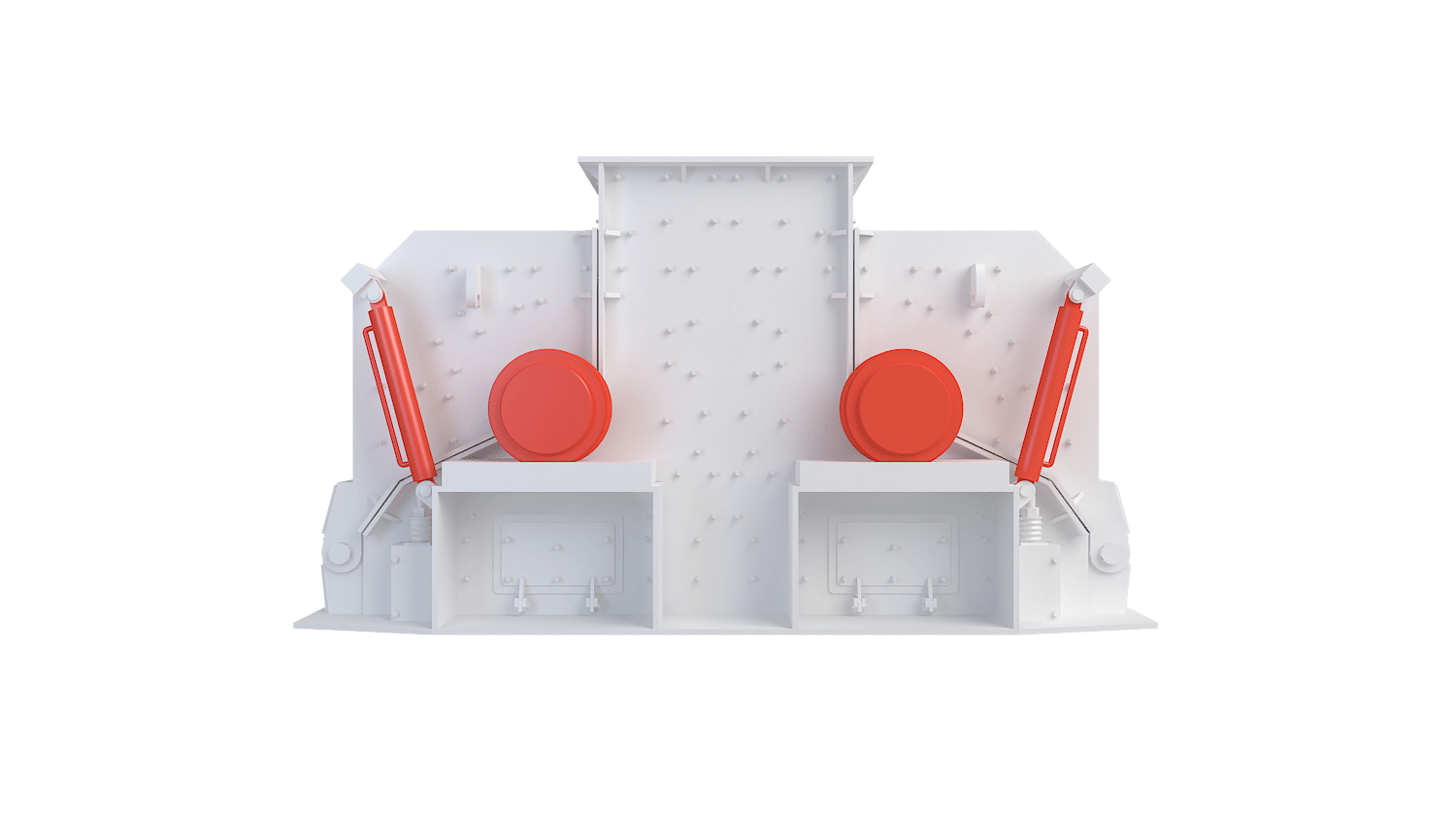

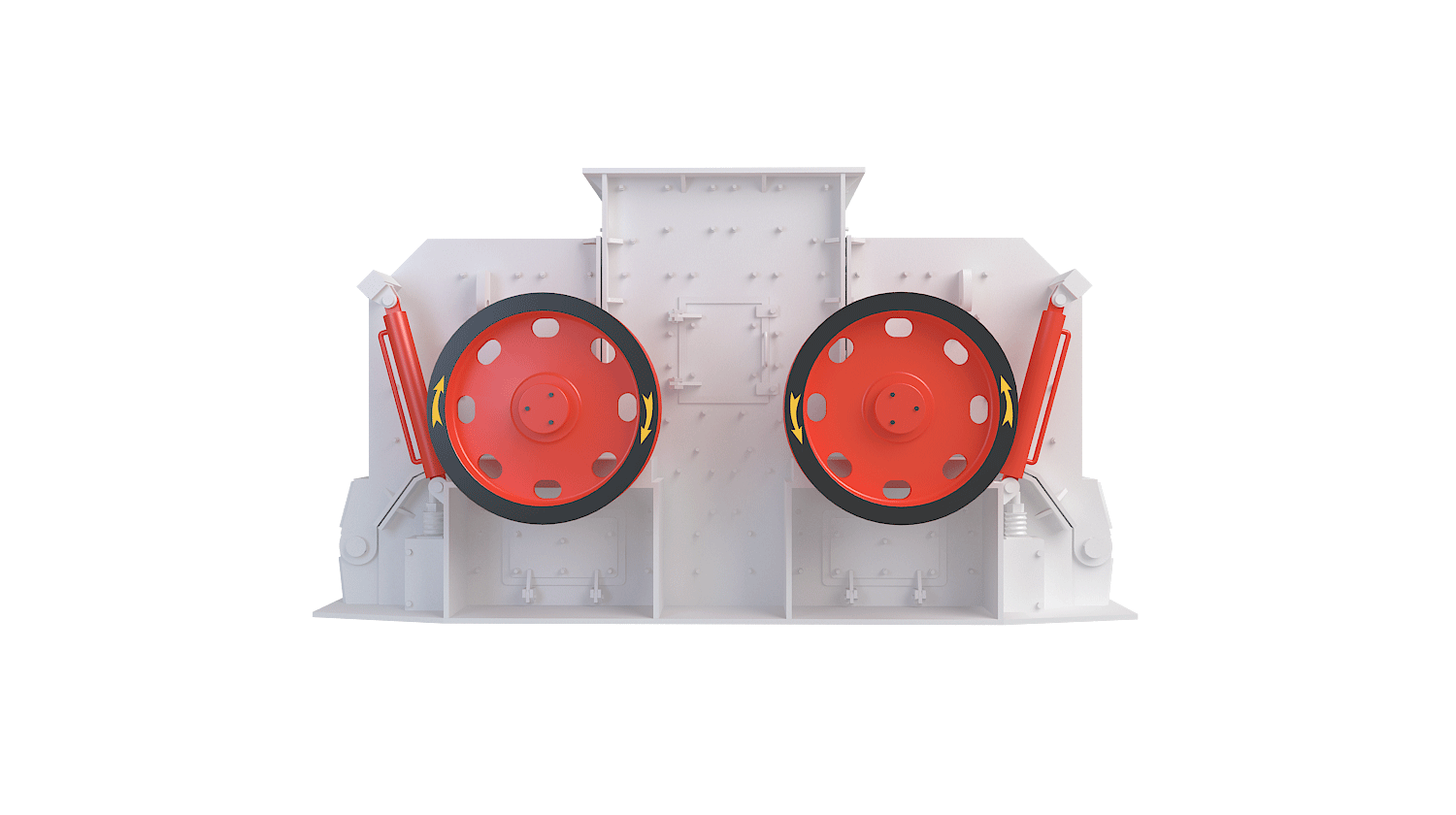

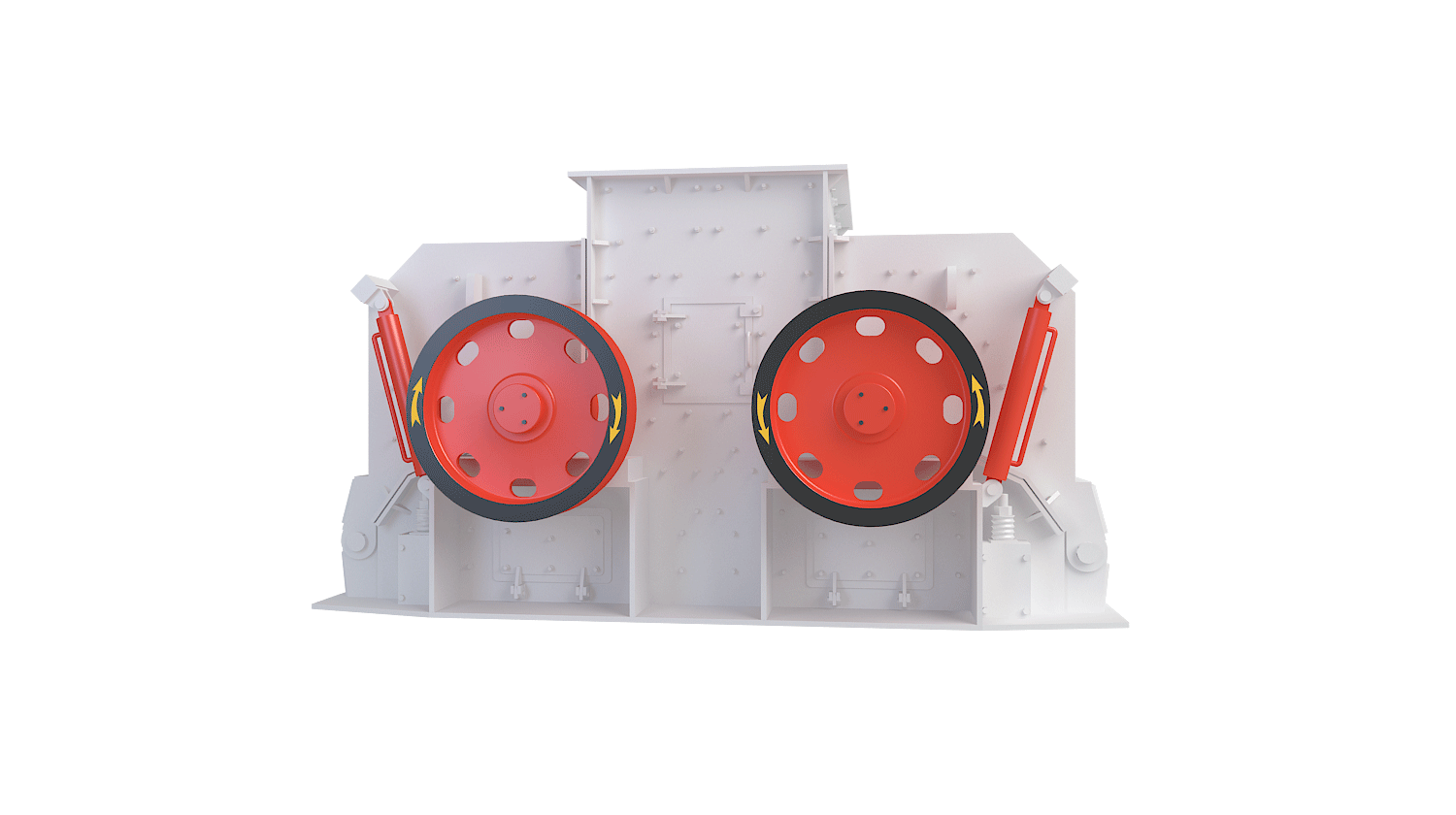

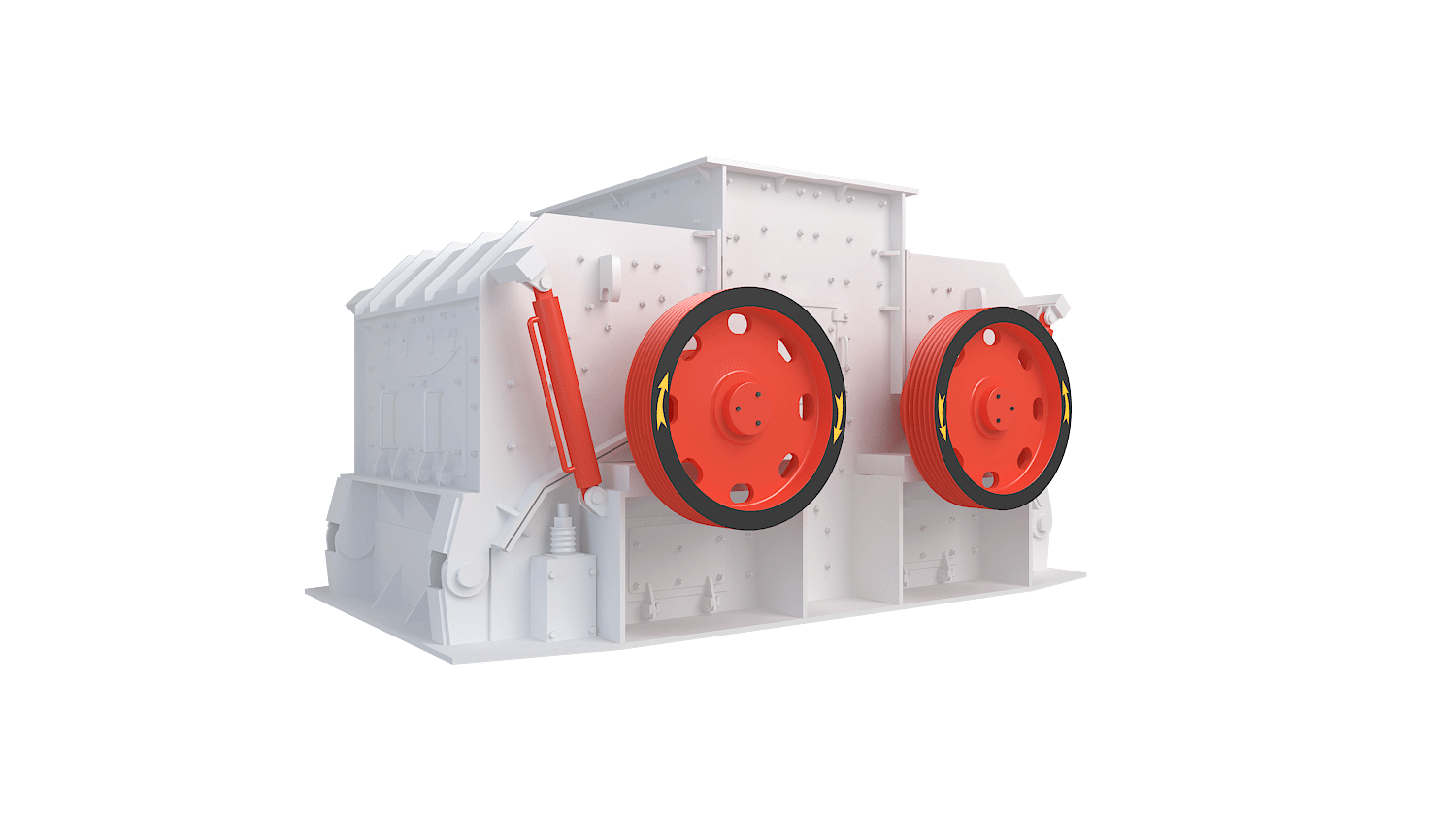

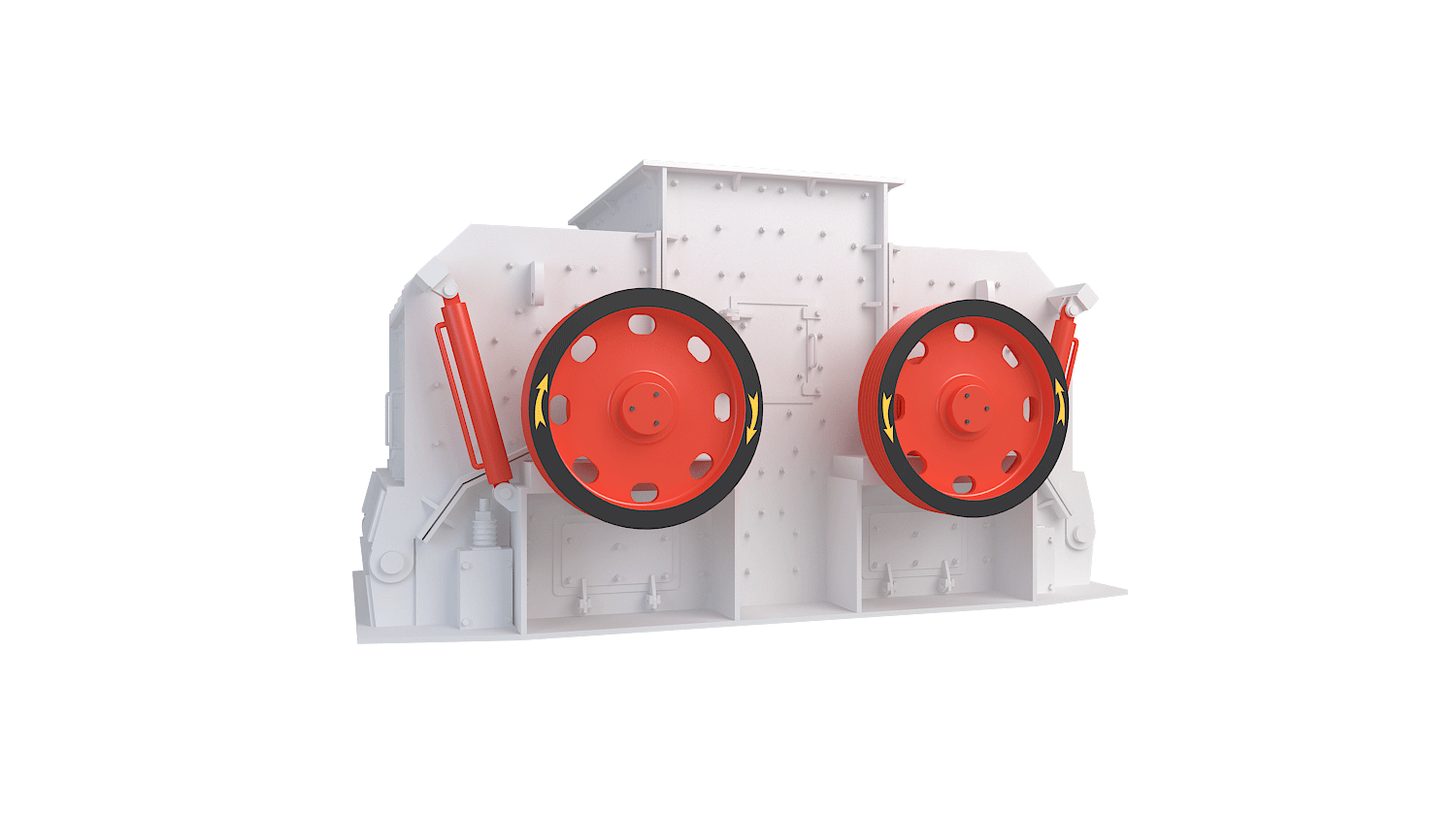

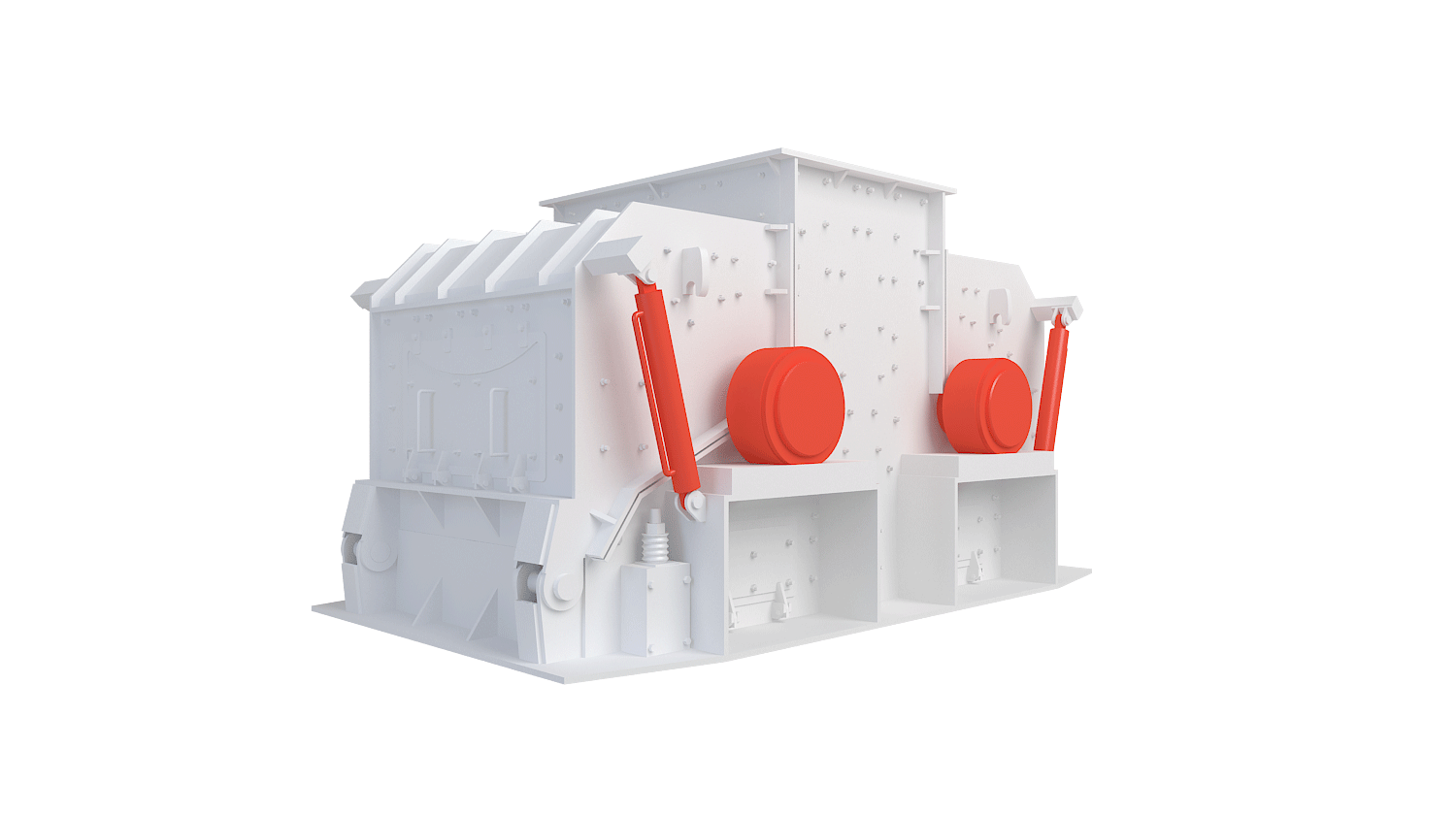

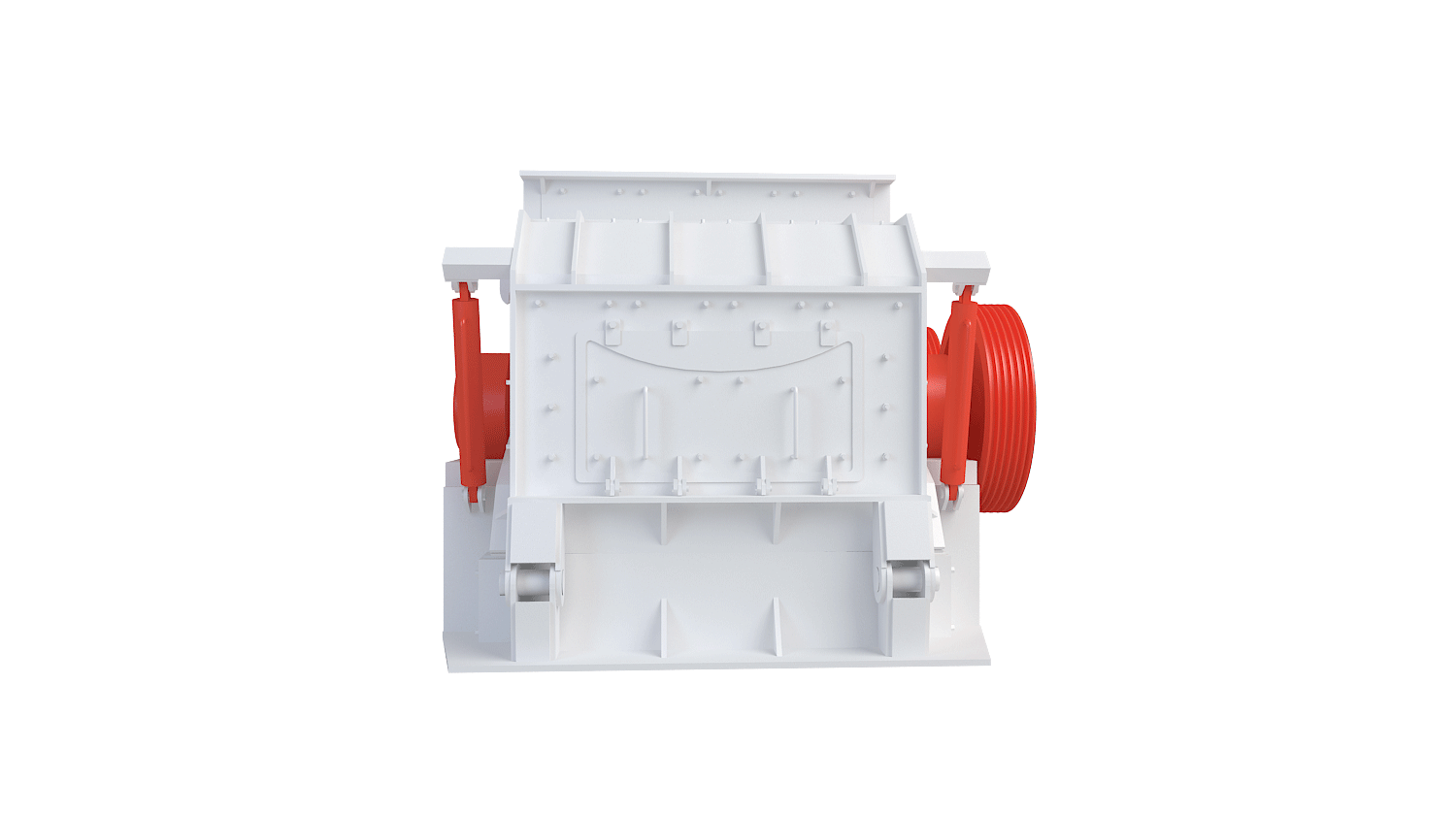

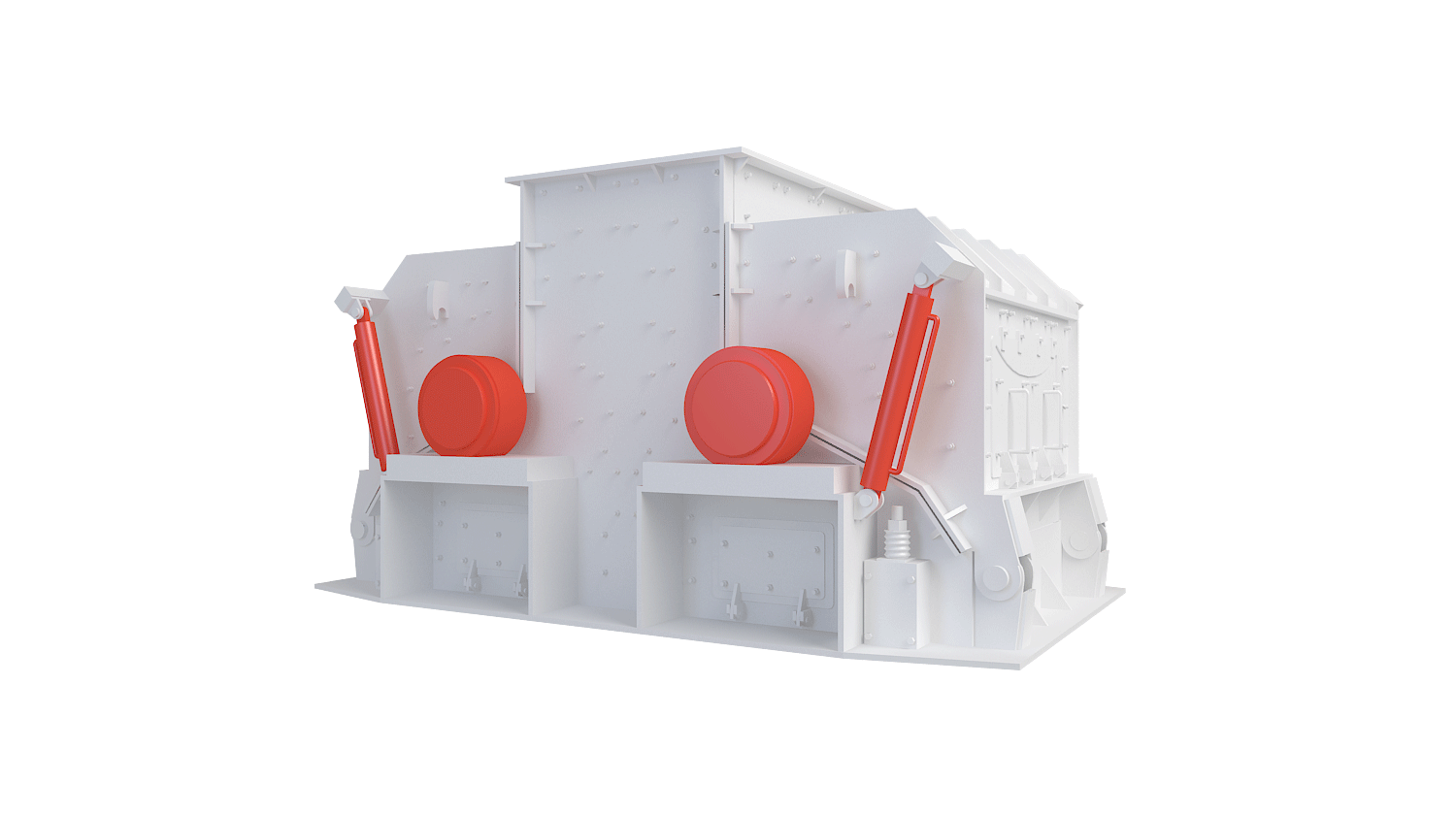

360° panoramic view of the product

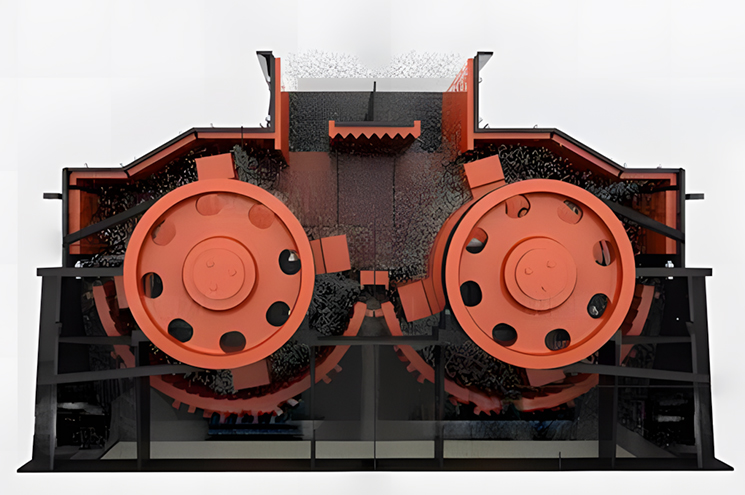

Working Principle

Working Principle

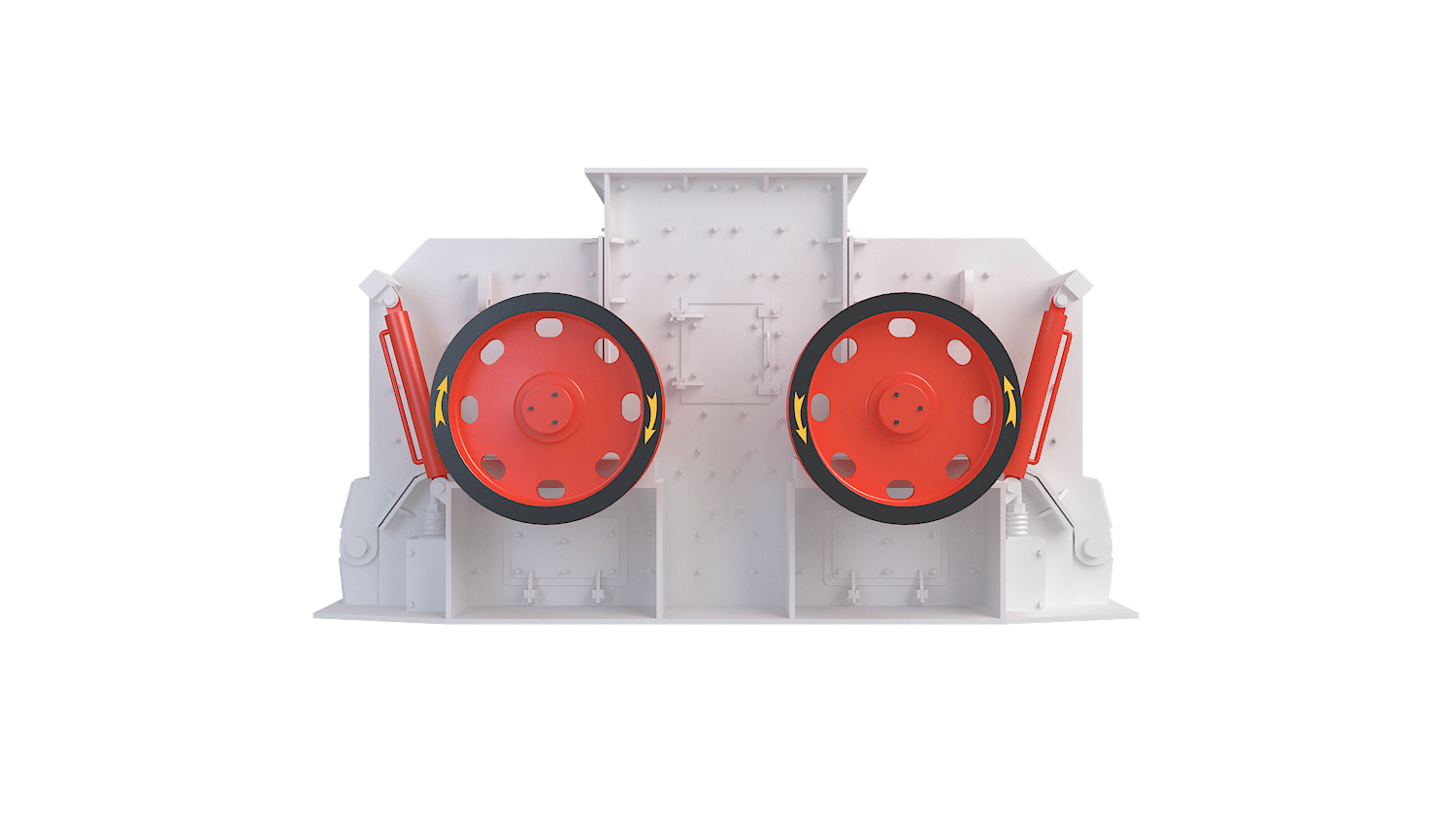

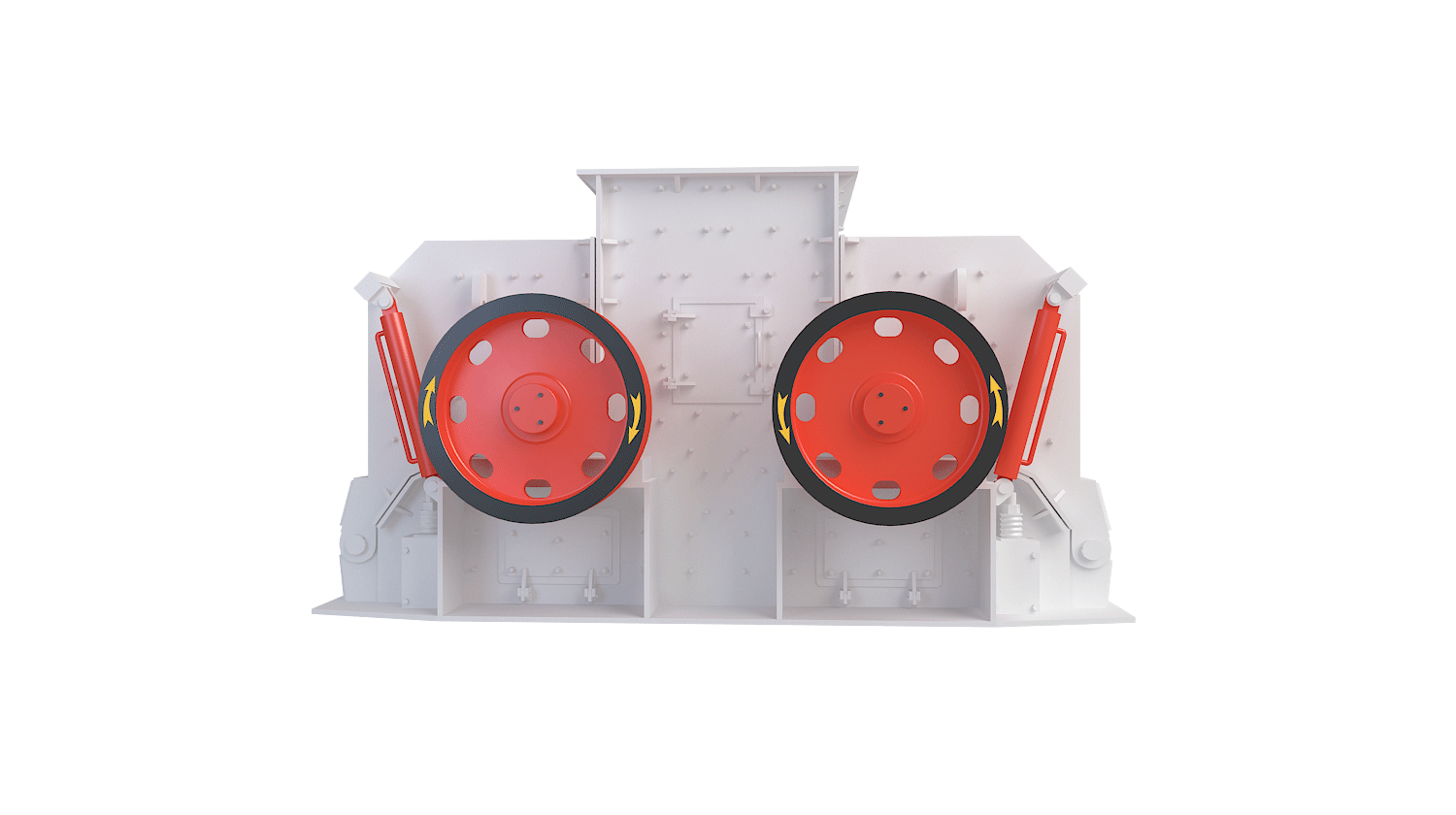

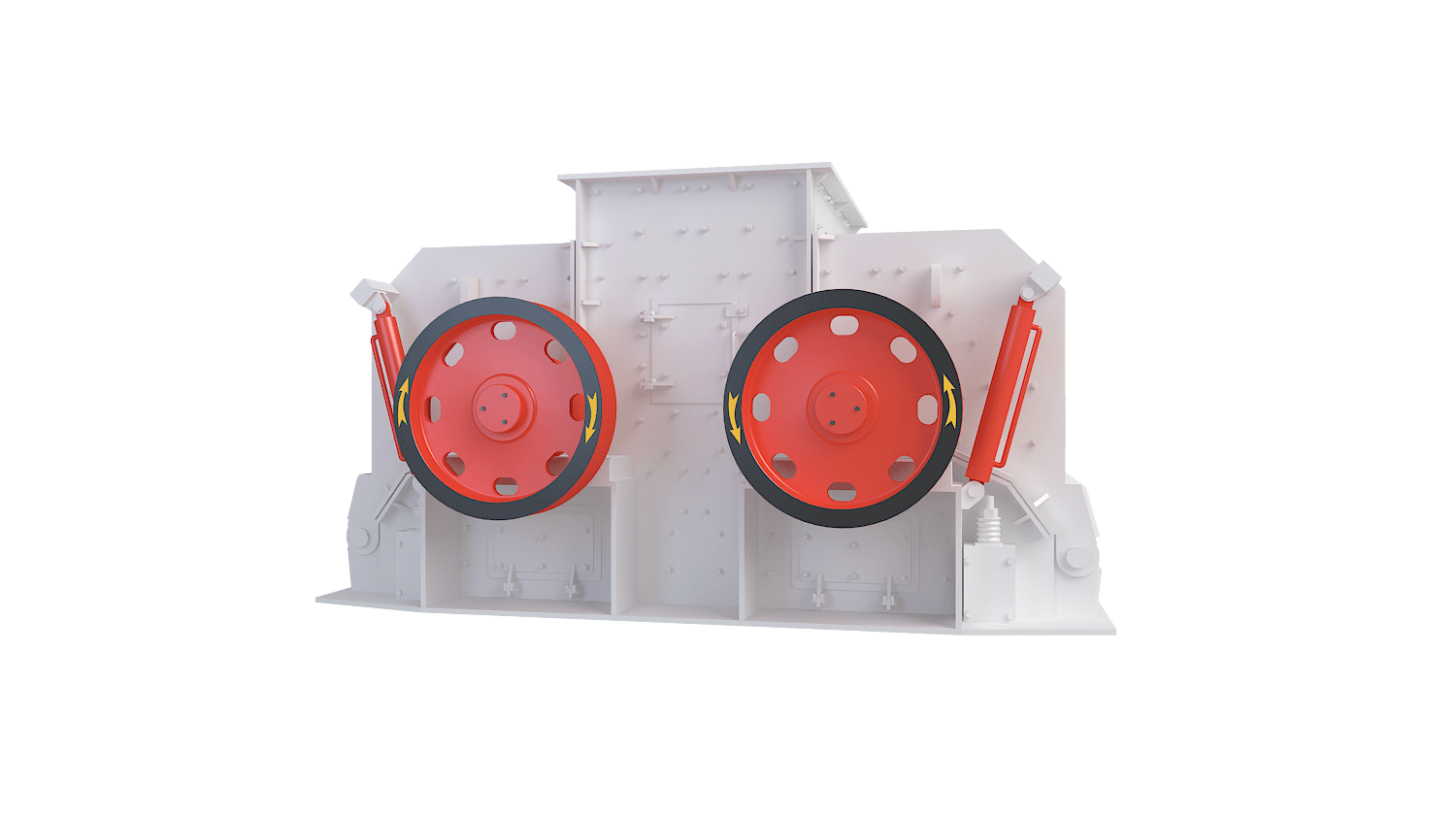

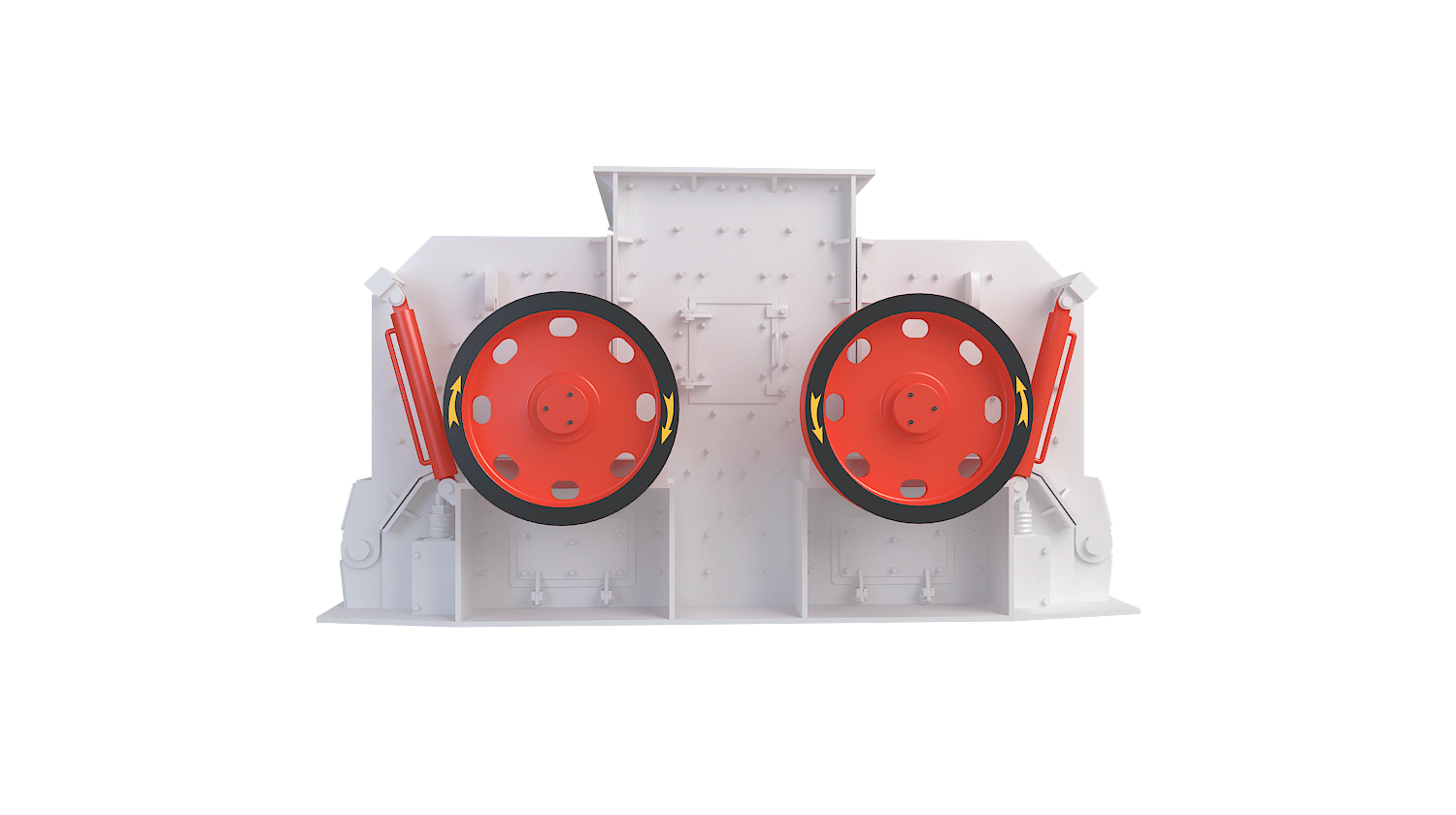

The Double Rotor Sand Maker operates using two rotors rotating in opposite or same direction at high speed. When raw materials are fed into the crushing cavity, they are first struck by the upper rotor and then further impacted by the lower rotor. The dual-impact process creates intense crushing forces that break down the material into fine particles. This repeated collision, shearing, and grinding ensure high reduction ratios and excellent particle shape. The design minimizes unqualified material and increases crushing efficiency, making it especially suitable for producing fine sand from medium-hard rocks and construction waste.
Features

Features

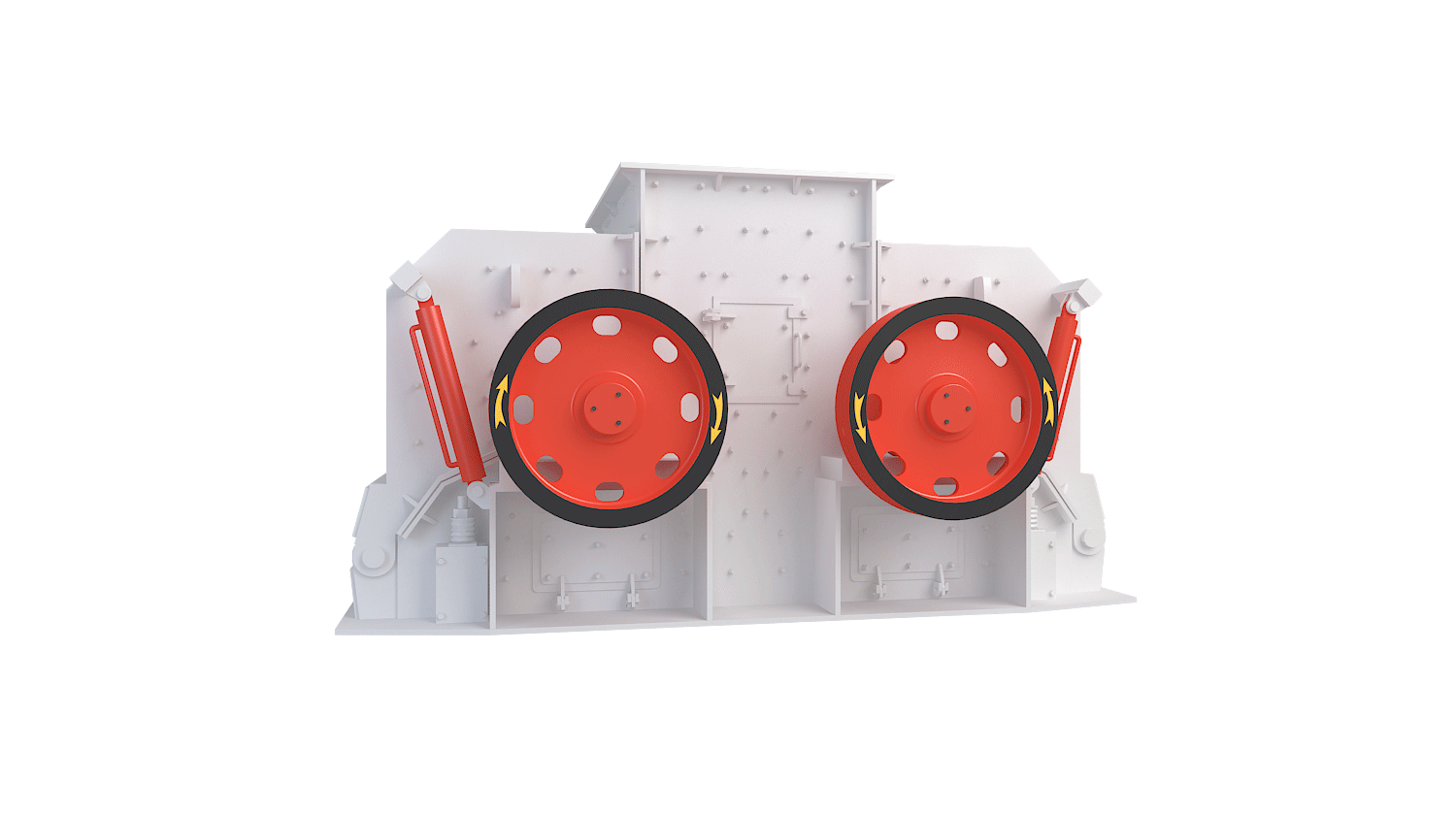

Double Rotor Structure
The two rotors rotate relative to each other to drive the materials in the crushing cavity to collide with each other

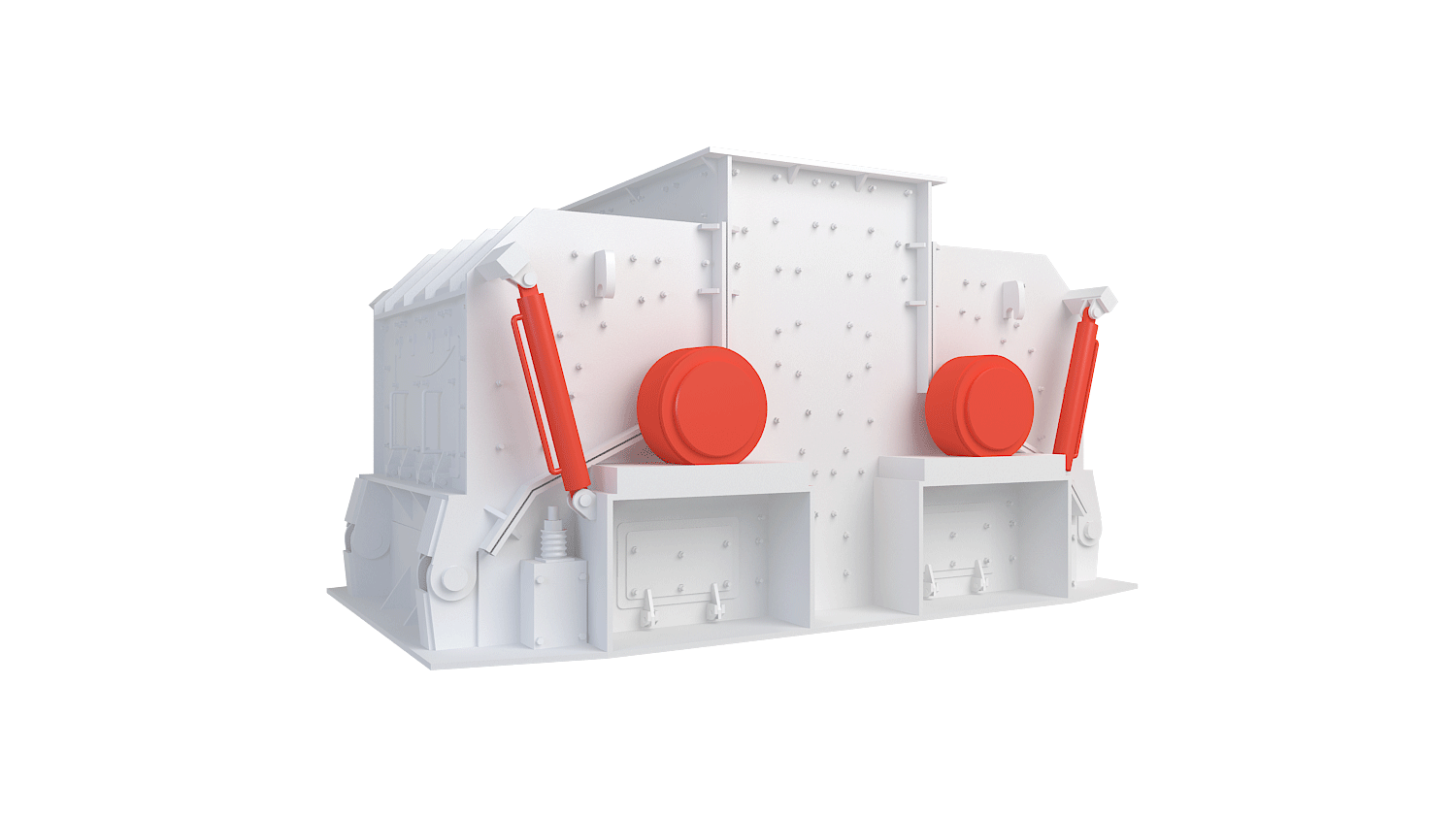

Observation Door

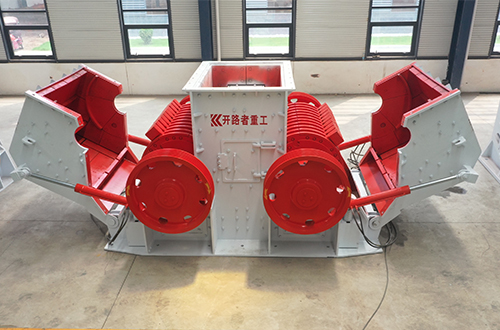

Equipped with observation doors around, it is convenient for inspection and repair at any time
Durable Accessories
The rotor is attached with a high manganese and high chromium protective sleeve, and the hammer shaft hole is equipped with a tungsten alloy steel sleeve, which is wear-resistant and impact-resistant
Customization
According to customer customization, the gap between the hammer head and the grate bar can be flexibly adjusted
dETAIL

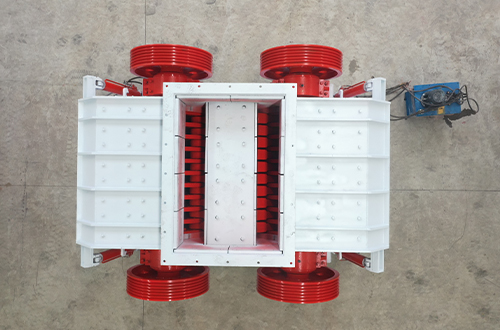

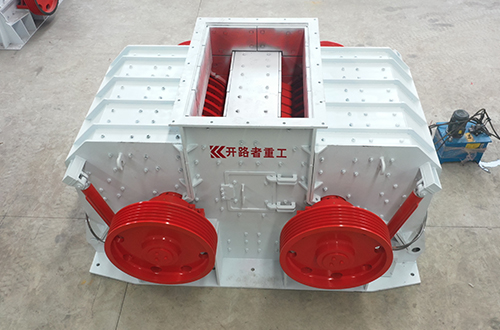

Product Detail Show

Fill Out The Enquiry Form And We Will Contact You Shortly

*

Related Products

Fine Sand Recovery Machine

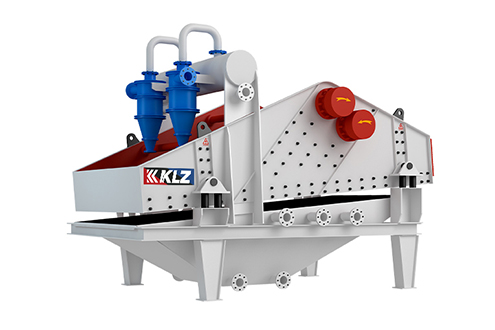

Fine Sand Recovery Machine

Fine Sand Recovery Machine is specialized equipment used to recover fine sand lost during sand washing process. It improves sand output and quality while reducing waste and environmental pollution. It is widely applied in sand production lines, gravel processing, and hydropower station projects.
Capacity
50-220t/h
Feeding Size
80-280m³/h

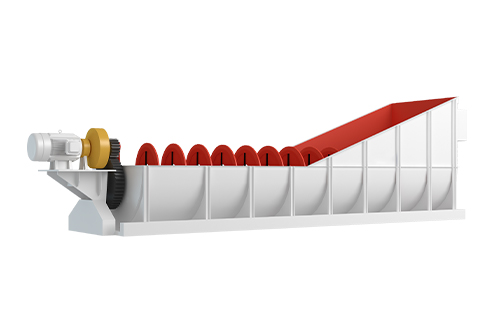

Spiral Sand Washing Machine

Spiral Sand Washing Machine

Spiral Sand Washing Machine is a highly efficient sand cleaning device that uses spiral blades to remove impurities and dust from sand. It is widely used in sand and gravel plants, mining, construction, and water conservancy projects to improve quality of finished sand.
Capacity
40-300t/h
Feeding Size
---
Roller Sand Making Machine

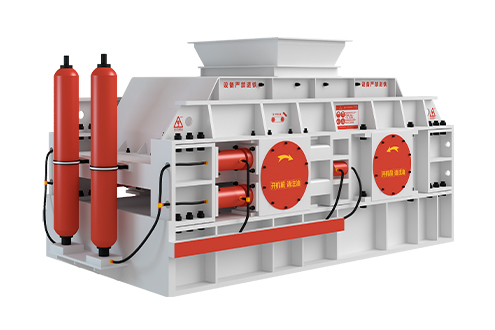

Roller Sand Making Machine

Roller Sand Making Machine is a highly efficient sand crushing equipment designed for producing high-quality fine aggregates. Utilizing twin counter-rotating rollers, it delivers uniform particle size distribution, low over-crushing rate, and excellent shaping performance. The machine is widely used in the production of construction sand, road base materials, and concrete aggregates. Its compact structure, simple operation, and low maintenance cost make it an ideal choice for small to medium-scale sand production lines. Optional hydraulic adjustment and automatic lubrication systems further enhance its performance and reliability.
Capacity
50-300t/h
Feeding Size
≤40mm

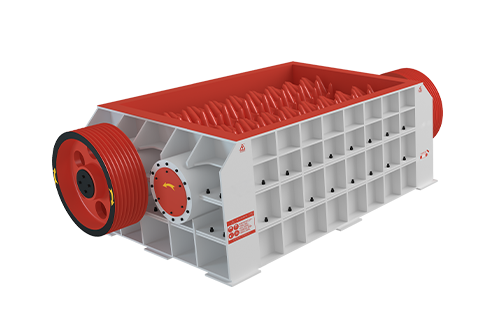

Double Toothed Roll Crusher

Double Toothed Roll Crusher

Double Toothed Roll Crusher is a robust crushing machine designed to handle medium to high hardness materials such as coal, limestone, shale, and clay. Equipped with two toothed rollers rotating in opposite directions, the machine delivers high crushing efficiency with minimal over-crushing and excellent size control. Its teeth design allows it to tear and crush materials effectively, making it ideal for industries like mining, cement, and power generation. The machine features simple structure, reliable operation, and low maintenance, with optional hydraulic adjustment and overload protection for safe, uninterrupted performance.
Capacity
300-1000t/h
Feeding Size
≤400mm

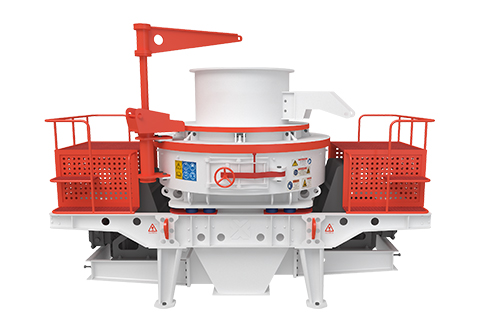

VSI Crusher

VSI Crusher

Vertical Shaft Impact Crusher is a high-efficiency crushing machine that uses high-speed rotor rotation and rock-on-rock or rock-on-steel impact principles to finely crush and shape materials. It is especially suitable for producing high-quality artificial sand and aggregates. With excellent particle shape, high reduction rate, and low operating cost, VSI crushers are widely used in sand making, mining, construction, and infrastructure projects.
Capacity
70-640t/h
Feeding Size
≤60mm

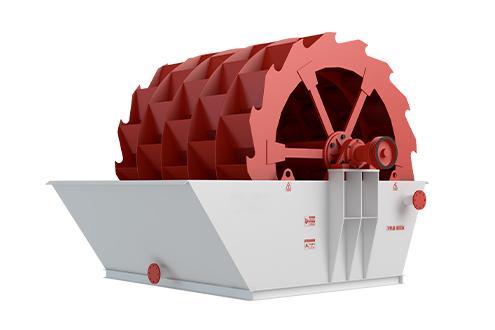

Wheel Sand Washing Machine

Wheel Sand Washing Machine

Wheel Sand Washing Machine is a high-efficiency sand cleaning device designed to remove impurities from sand and improve sand quality. With simple structure and stable performance, it is widely used in construction sites, sand and gravel plants, concrete dams, and hydropower stations.
Capacity
20-180t/h
Feeding Size
≤20mm
Sand Making Rod Mill

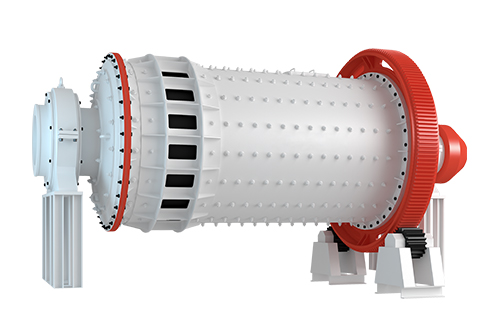

Sand Making Rod Mill

Sand Making Rod Mill is a highly efficient grinding machine specially designed for producing construction-grade sand. Using steel rods as grinding medium, it gently crushes and grinds medium-hard materials to achieve uniform and well-graded sand output. Ideal for manufacturing high-quality artificial sand from materials such as river pebbles, quartz, and granite.
Capacity
80-500t/h
Feeding Size
≤30mm
single rotor sand maker

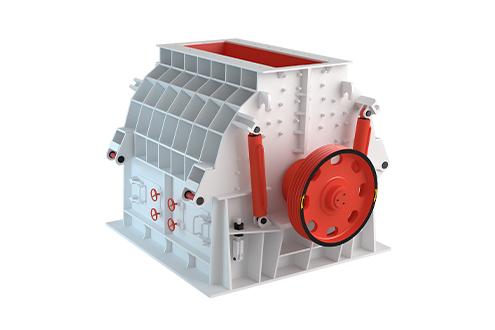

Single Rotor Sand Maker
