Introduction

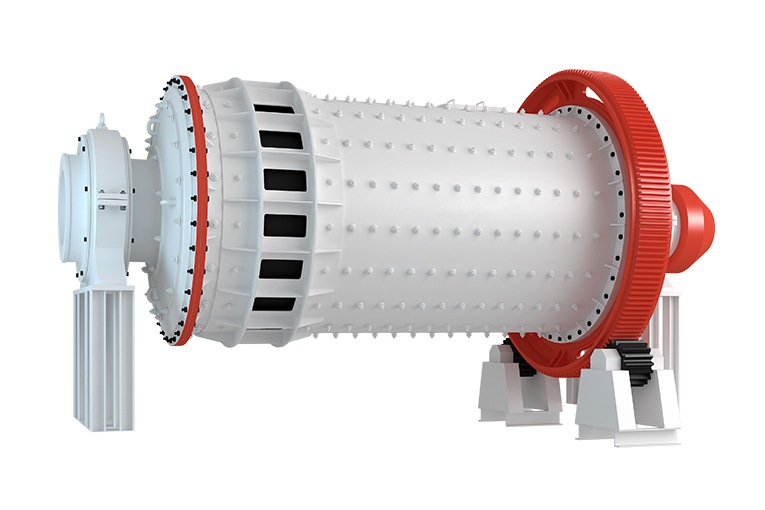

Sand Making Rod Mill

Sand Making Rod Mill is a specialized grinding device tailored for production of high-quality artificial sand. Unlike traditional crushers that rely on impact or pressure, this machine uses a rotating cylinder filled with steel rods to grind raw materials through gentle abrasion and selective crushing. This process helps retain natural texture of sand, reduce flaky particles, and produce uniform grain sizes.
Especially suitable for hard and abrasive materials like river pebbles, quartz sand, and granite tailings. Widely used in fields of building materials, water conservancy projects, and concrete aggregate preparation, Sand Making Rod Mill offers stable operation, low energy consumption, and high sand-forming efficiency. Its simple structure and ease of maintenance make it a popular choice in sand production lines.

Technical Parameters

Model	Cyinder Specfication (mm)		Cylinder speed (r/min)	Rod quantity (t)	Feeding size (mm)	Discharge size (mm)	Capacity (t/h)	Motor Power (kw)	Weight (t)
Model	Diameter	Length	Cylinder speed (r/min)	Rod quantity (t)	Feeding size (mm)	Discharge size (mm)	Capacity (t/h)	Motor Power (kw)	Weight (t)
BMJ1224	1200	2400	27-34	6.5	≤25	0.16-5	5-13	37	11.8
BMJ1530	1500	3000	26.5-29.5	11.5	≤25	0.16-5	6-25	75	17.2
BMJ1545	1500	4500	26.5-29.5	14	≤25	0.16-5	10-35	90	22
BMJ1830	1800	3000	21.6-22.8	17.5	≤25	0.16-5	12-40	155	29.5
BMJ1855	1800	5500	21.6-22.8	23	≤25	0.16-5	12-60	185	33
BMJ2130	2100	3000	19-21	23.2	≤25	0.16-5	20-80	210	37
BMJ2155	2100	5500	19-21	26	≤25	0.16-5	25-100	280	45
BMJ2430	2400	3000	18-20	32	≤25	0.16-5	30-130	280	60
BMJ2455	2400	5500	18-20	46	≤25	0.16-5	50-180	380	79
BMJ2755	2700	5500	17.2-18.5	51	≤25	0.16-5	80-250	560	112
BMJ3055	3000	5500	17-18	62	≤25	0.16-5	120-300	630	123
BMJ3255	3200	5500	16.5-18	70	≤25	0.16-5	150-380	800	138
BMJ3660	3600	6000	16-18	93	≤25	0.16-5	200-580	1600	210

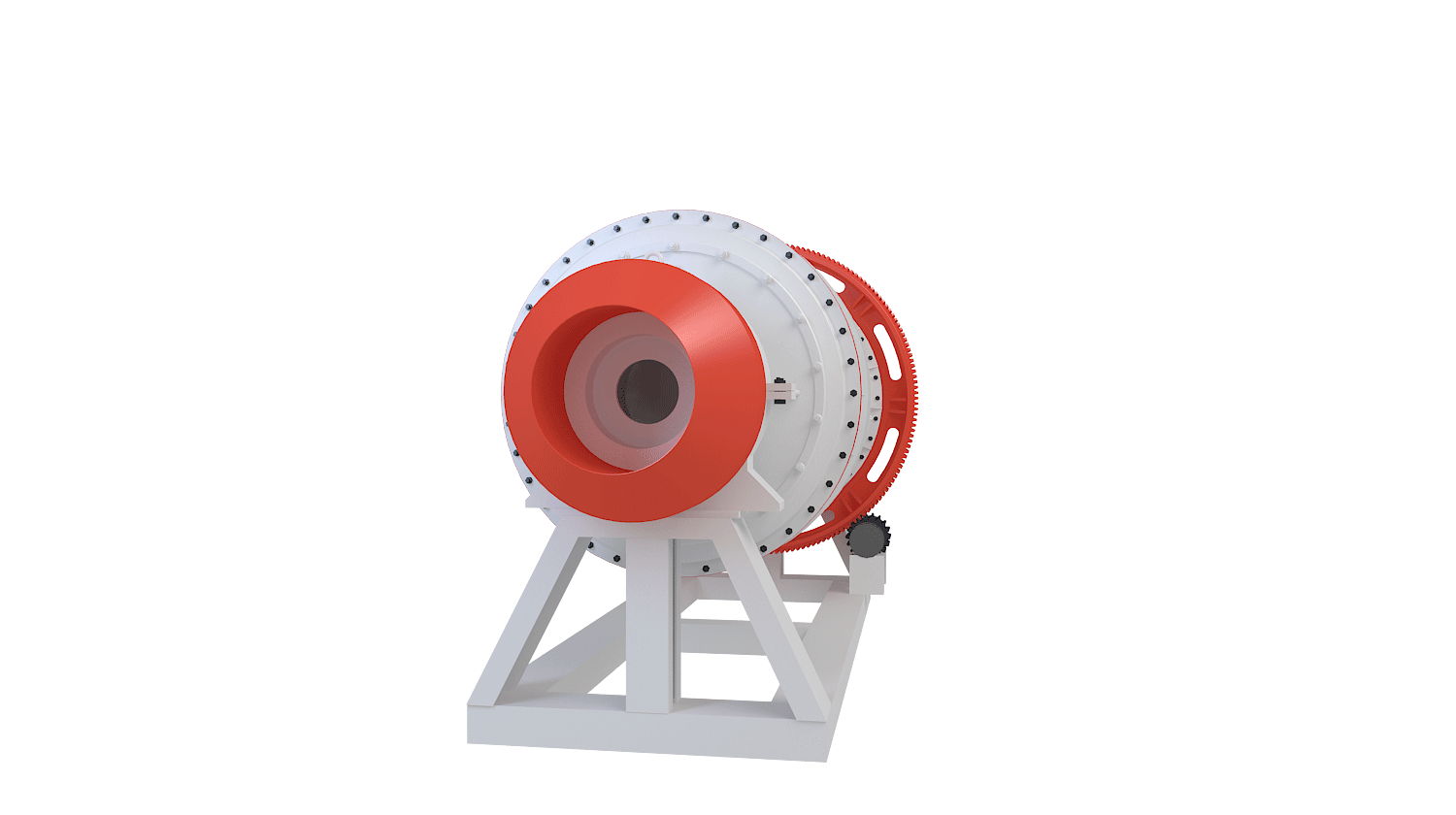

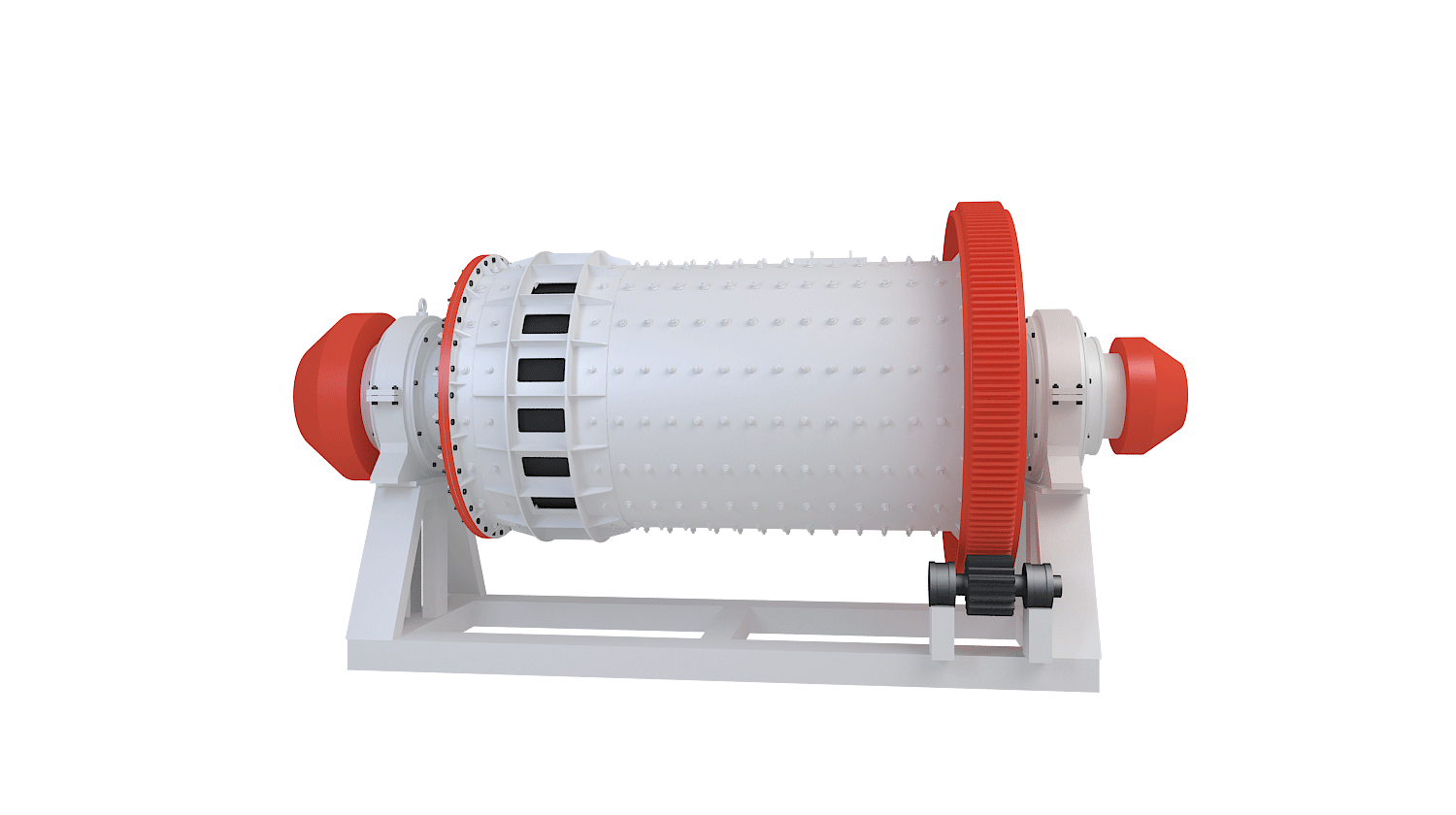

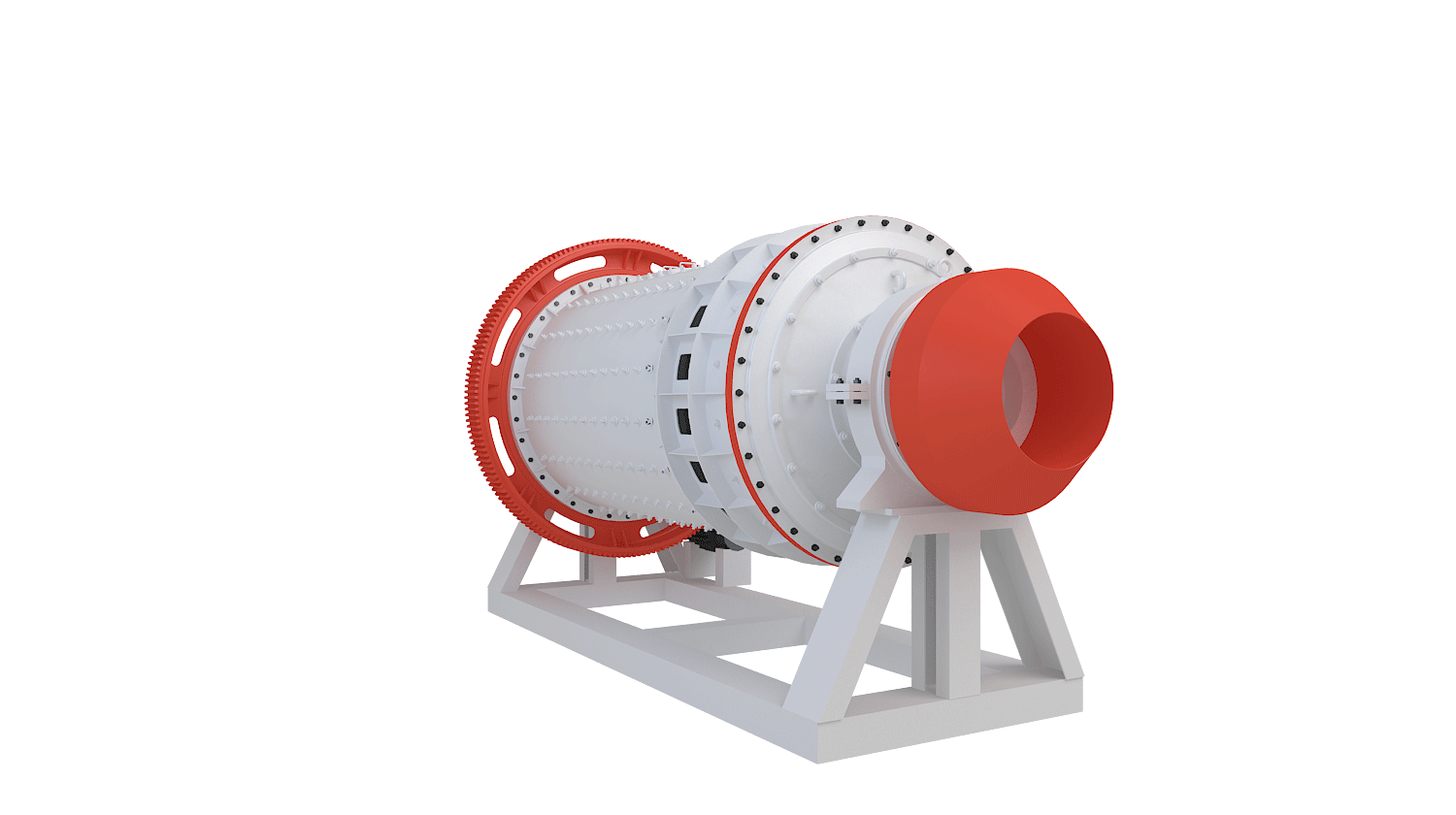

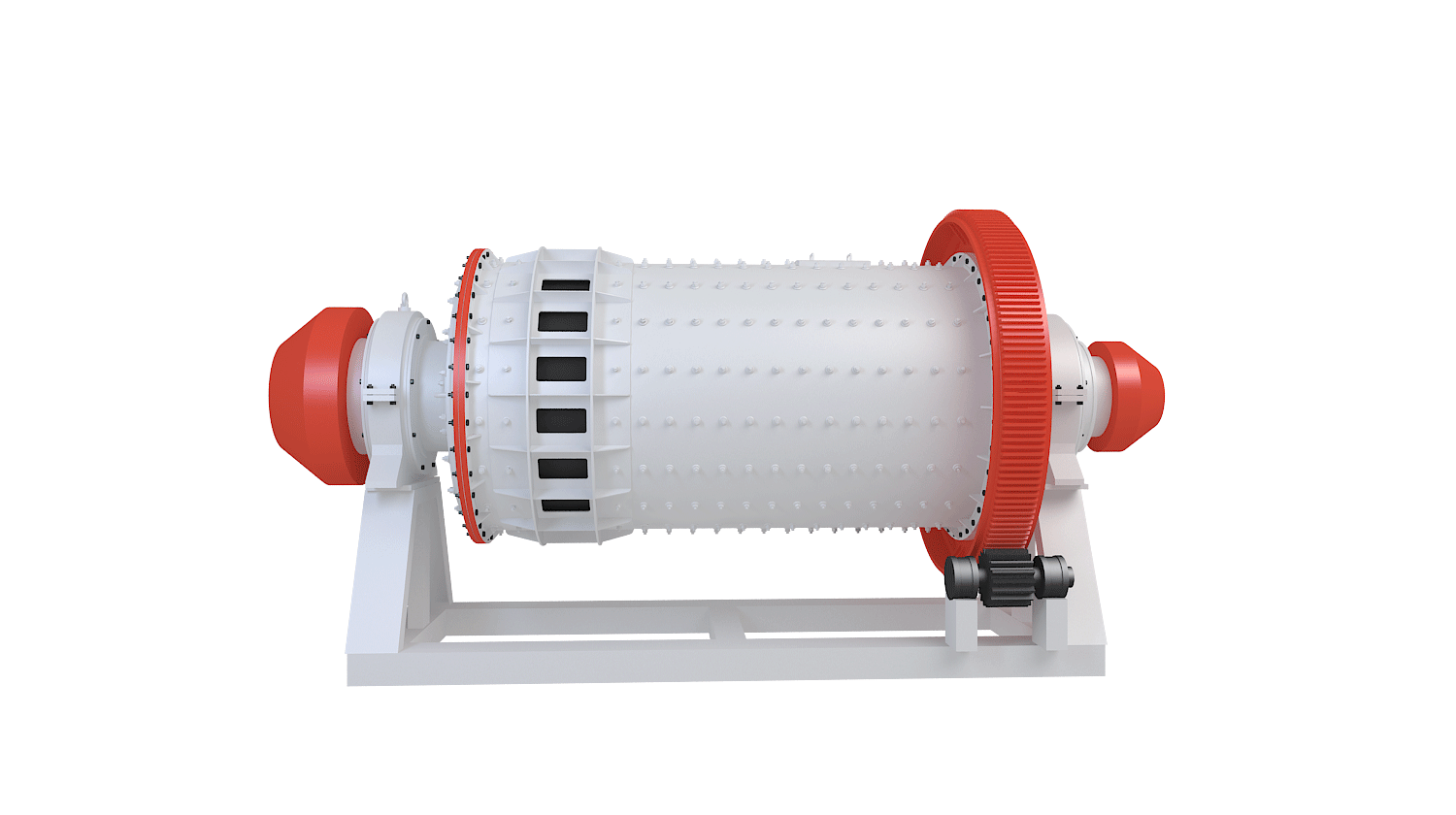

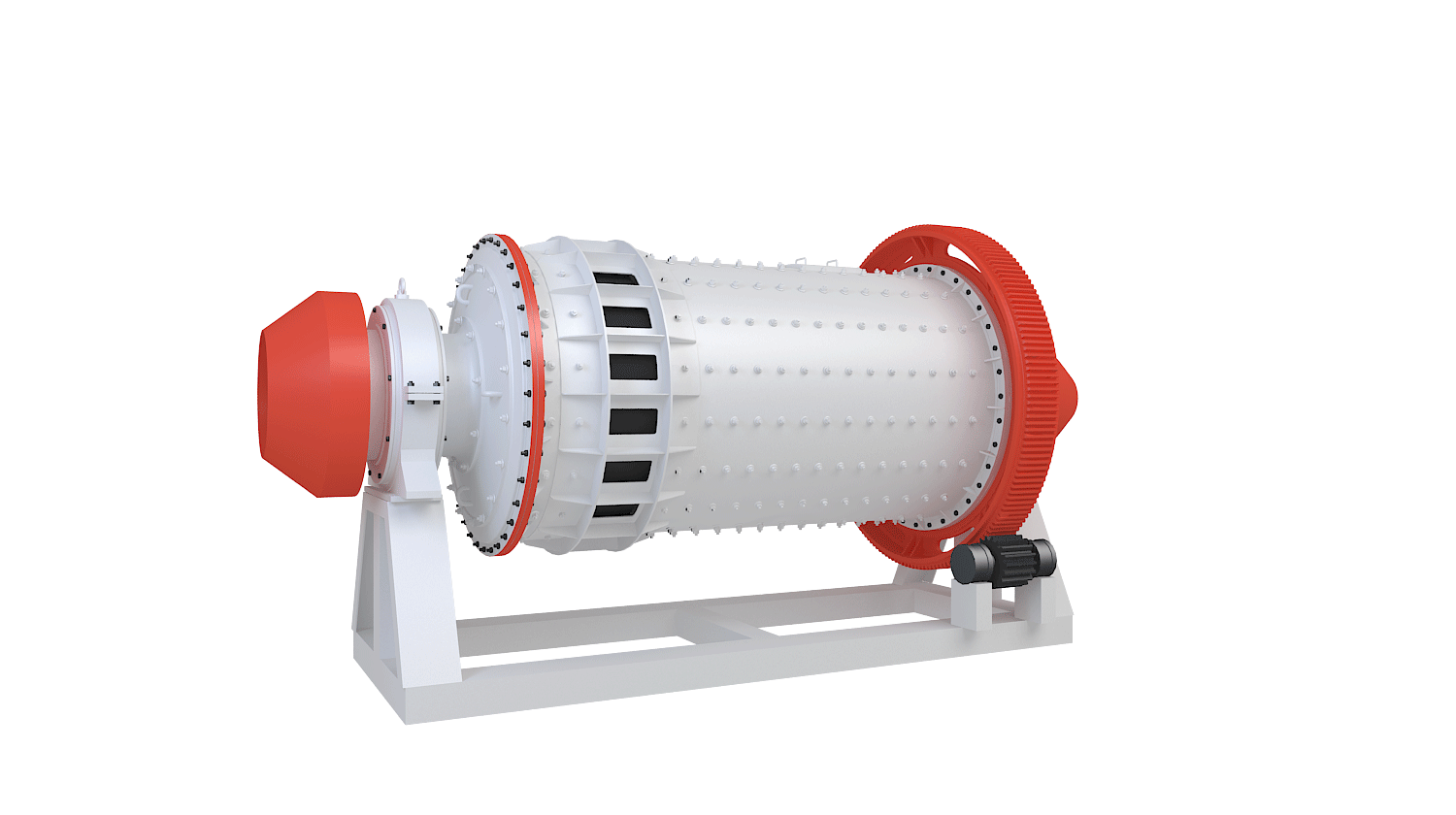

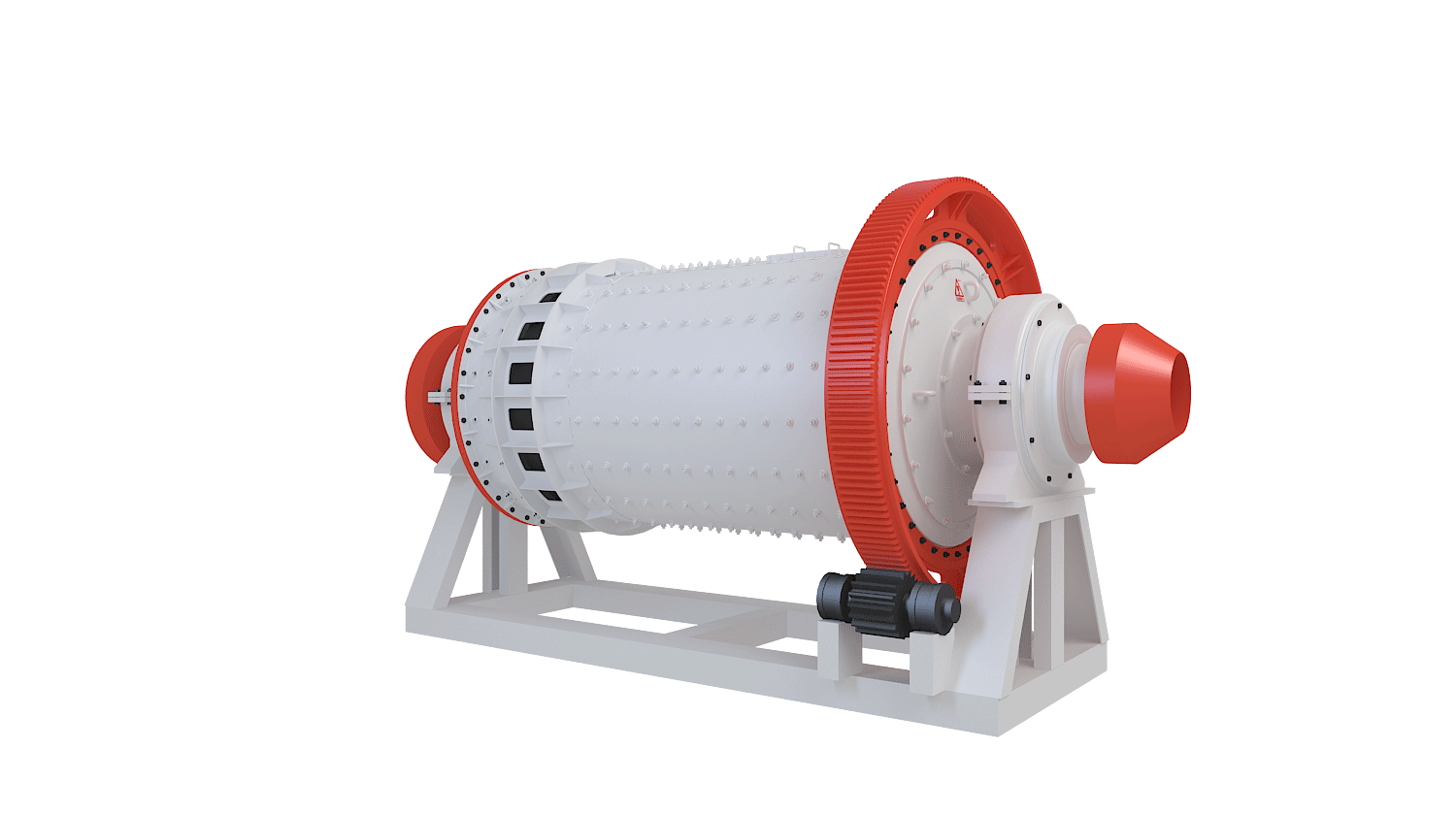

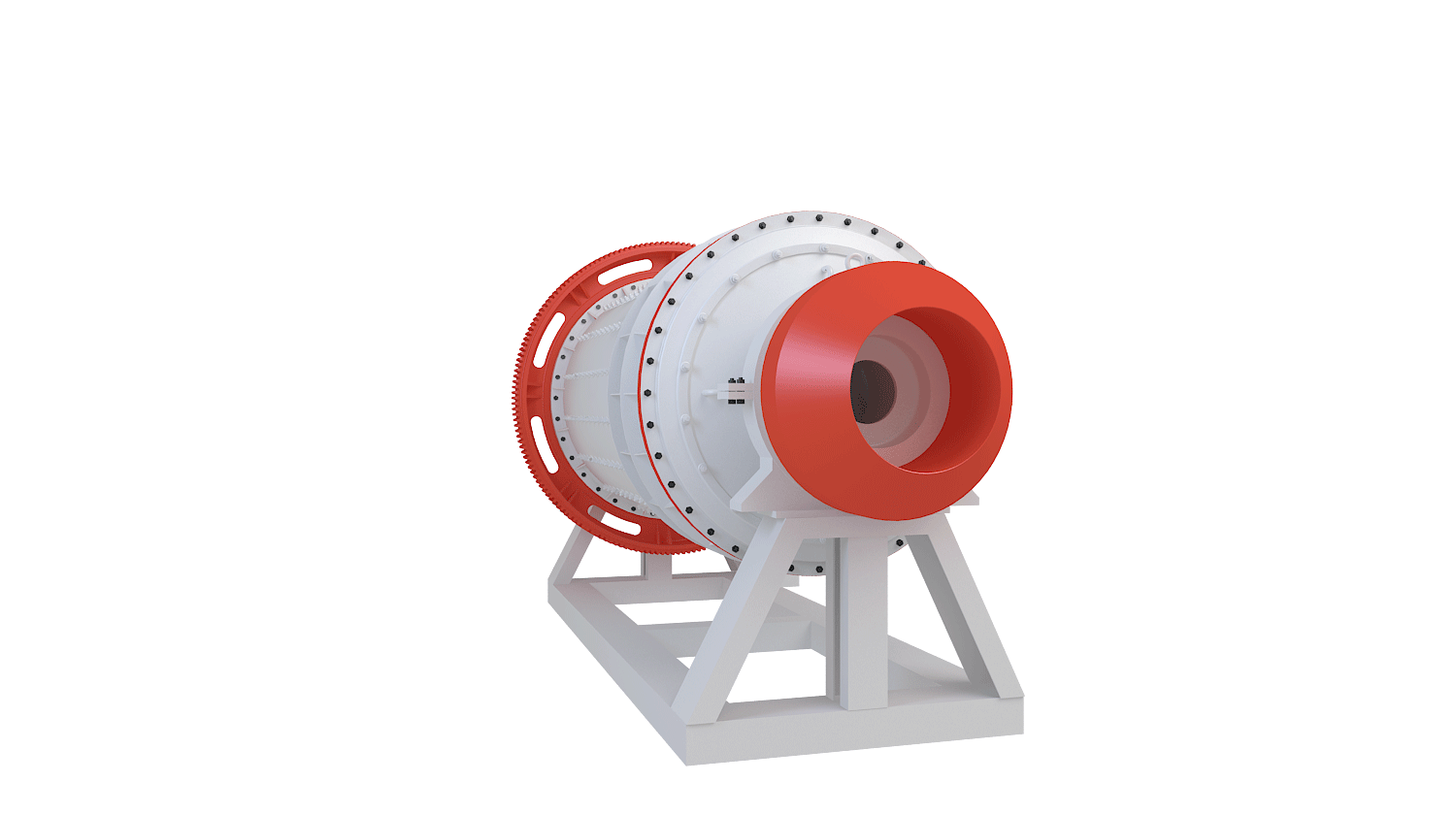

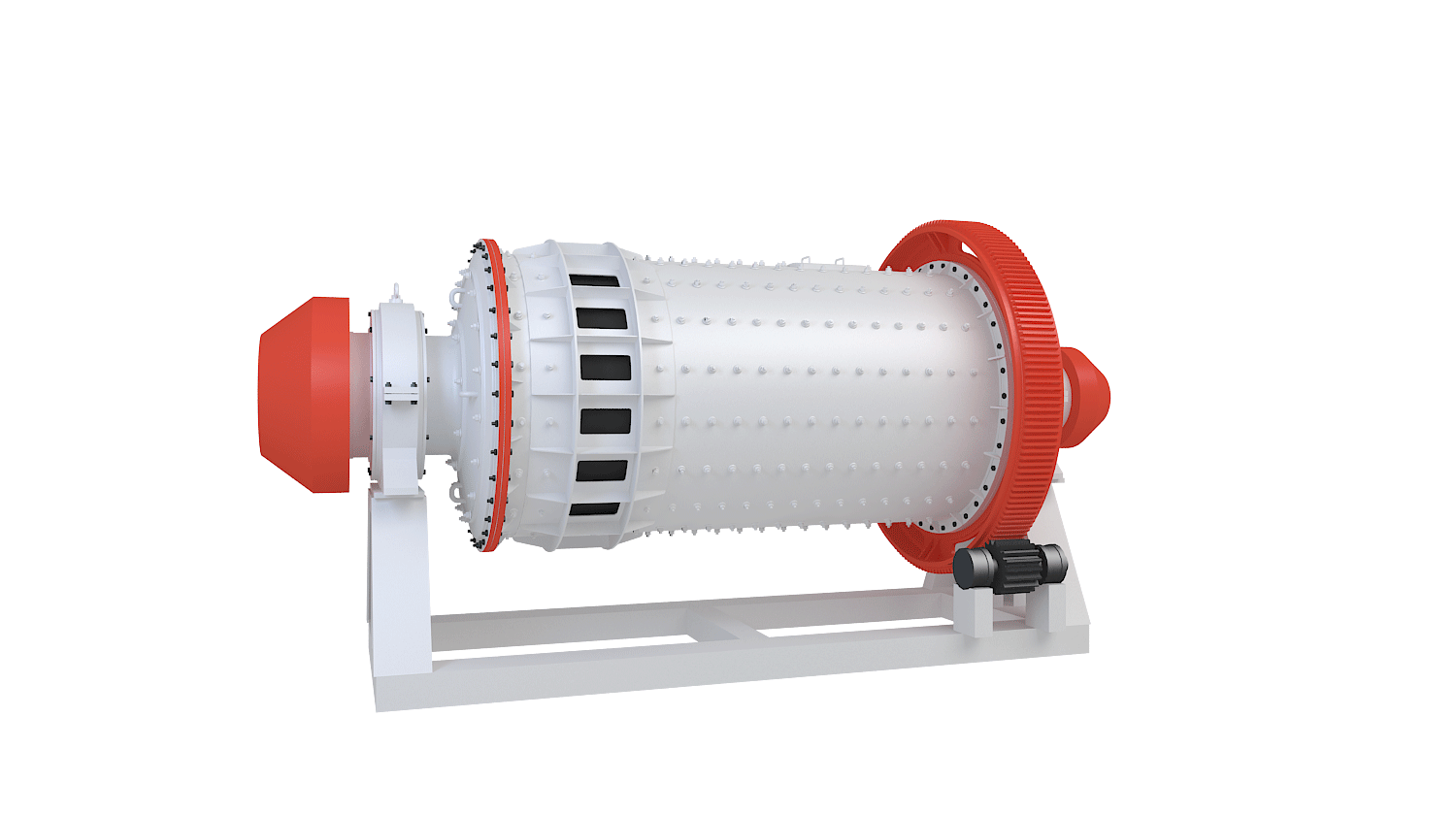

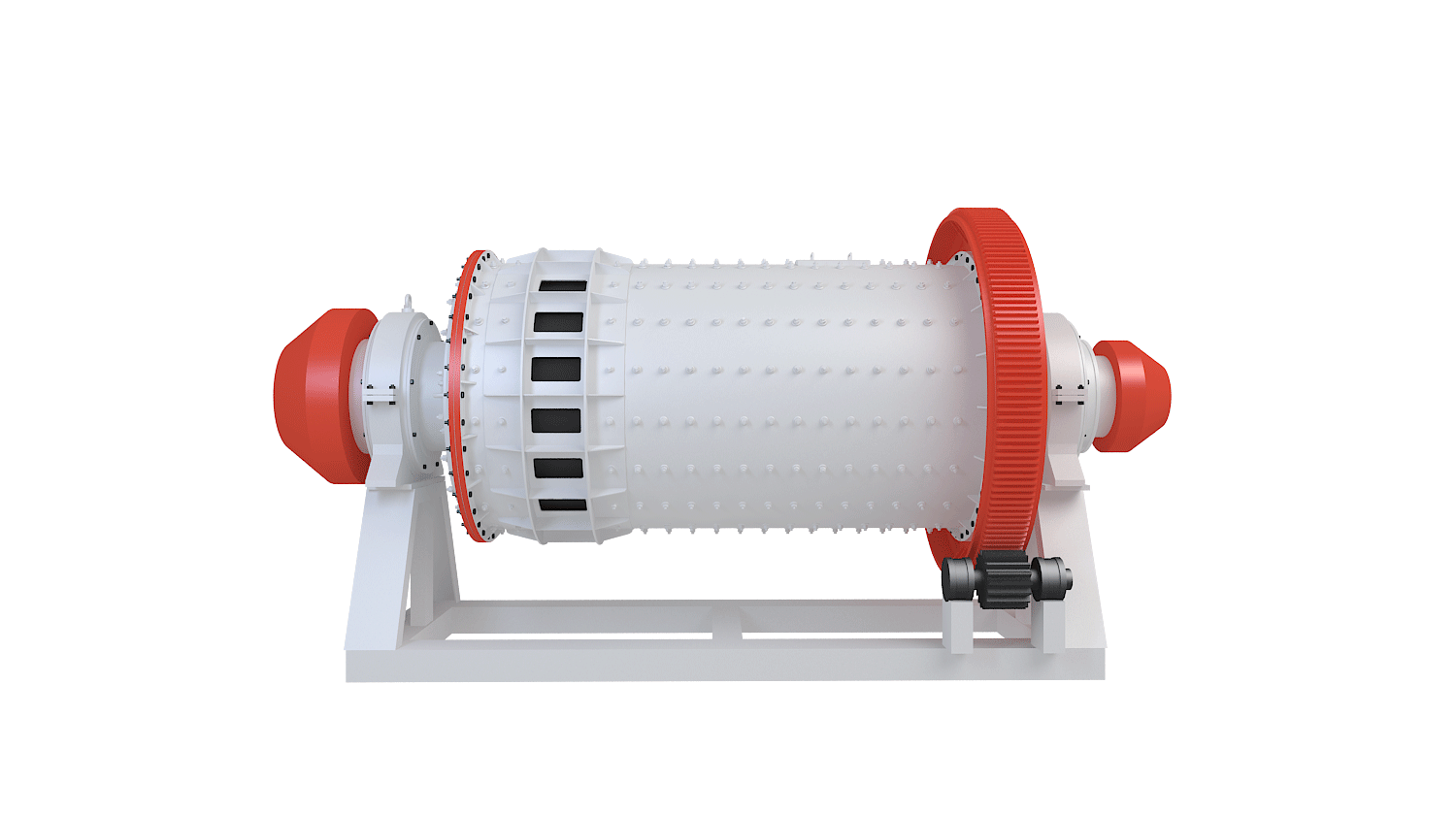

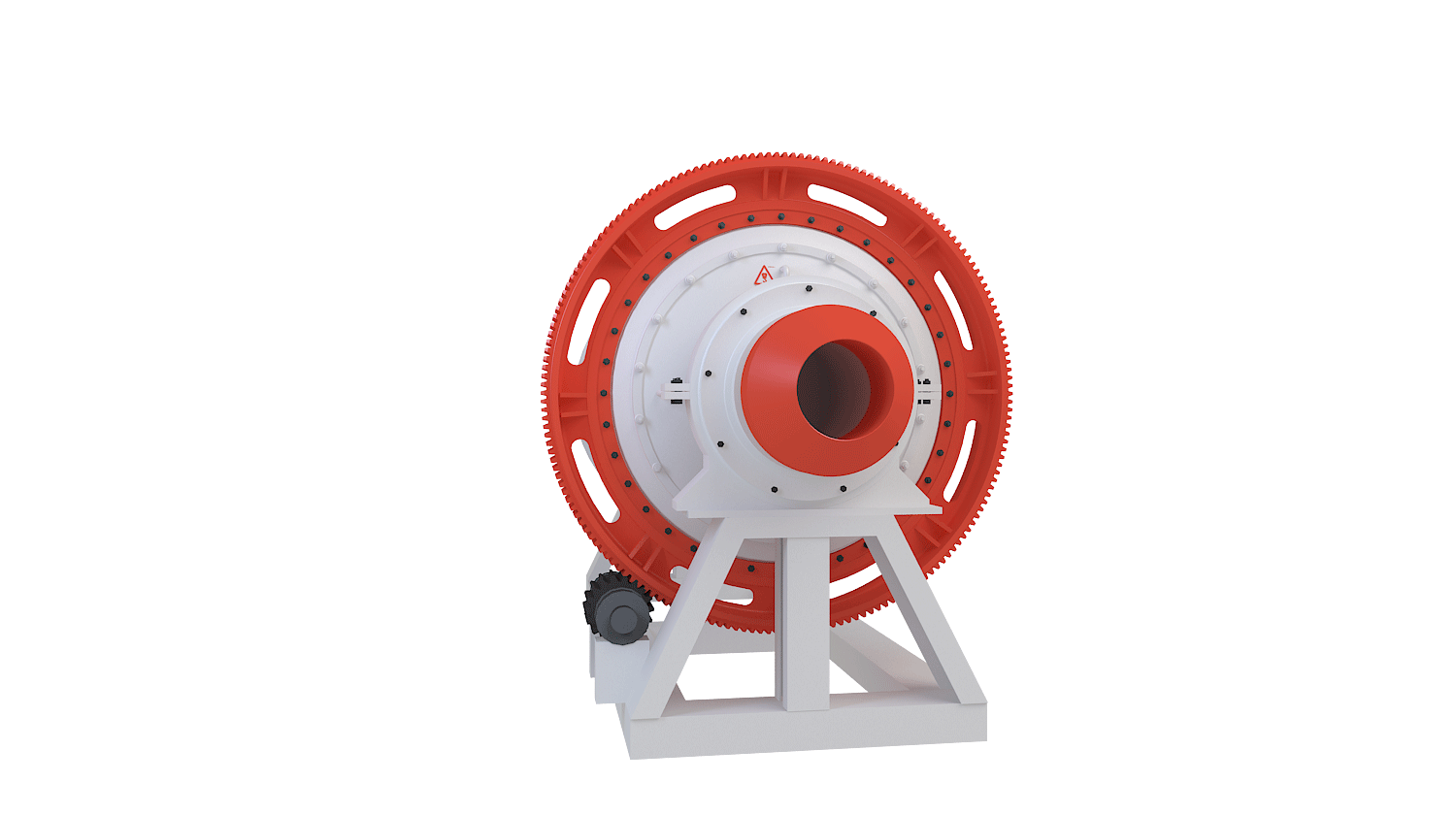

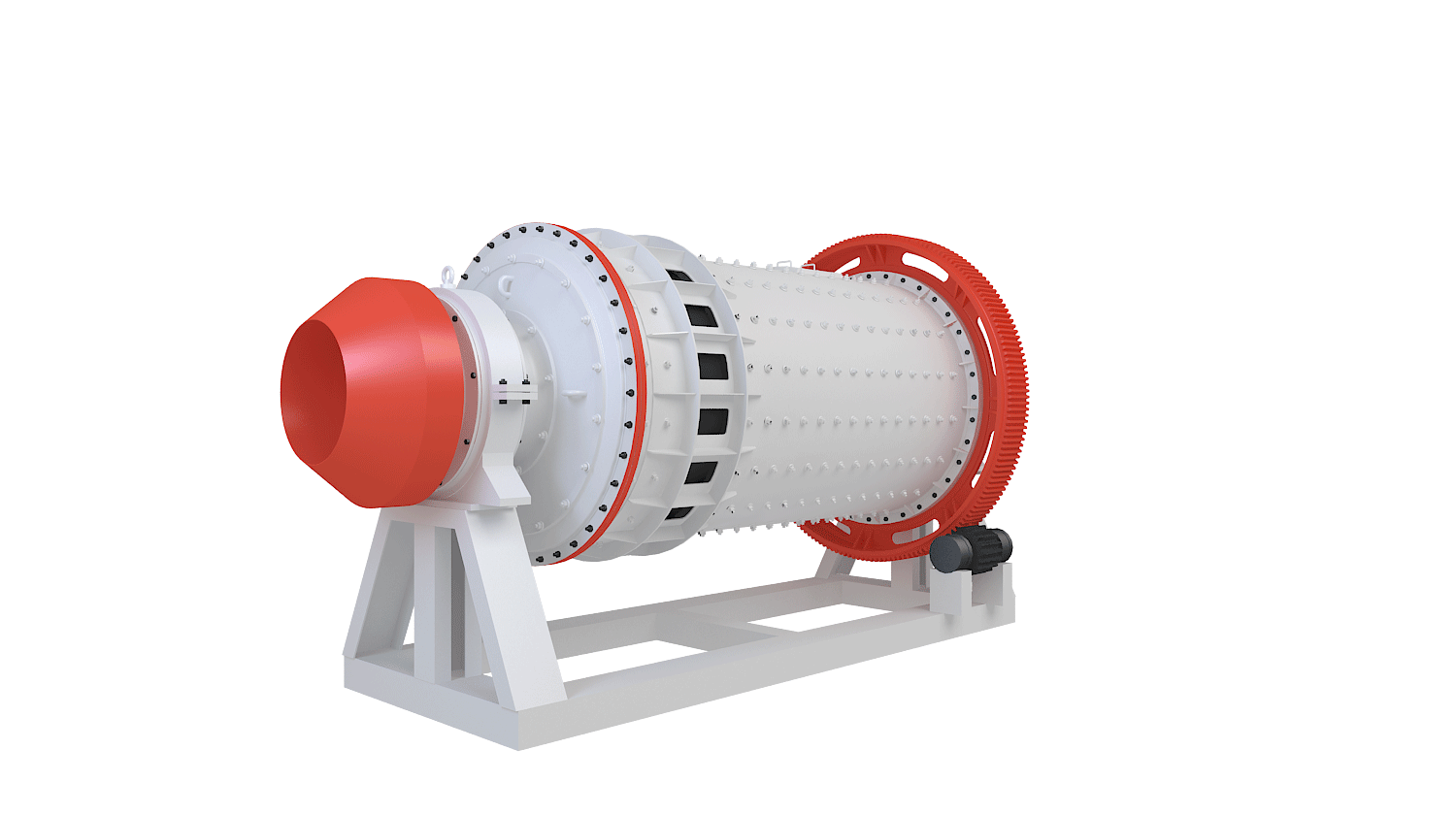

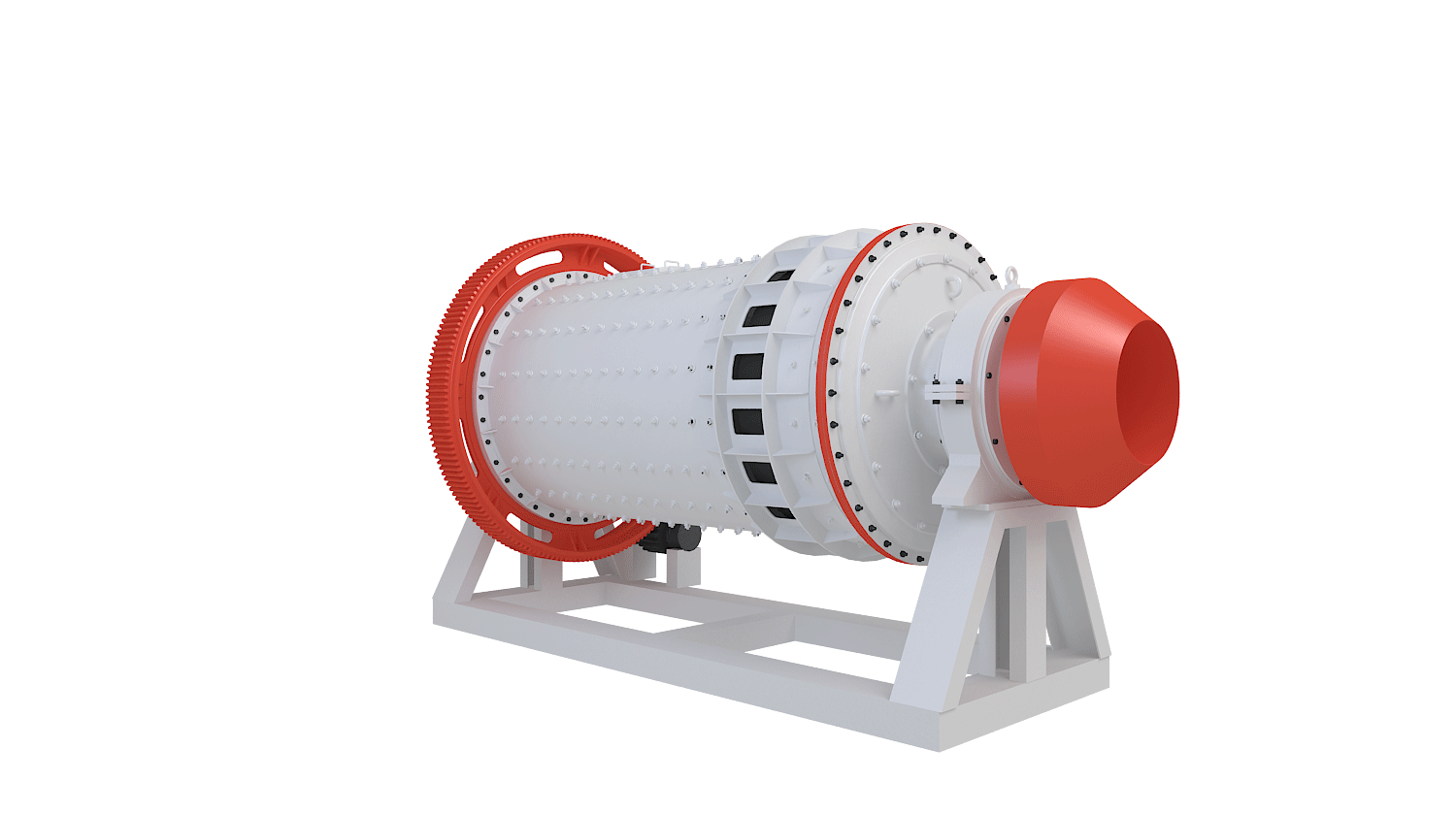

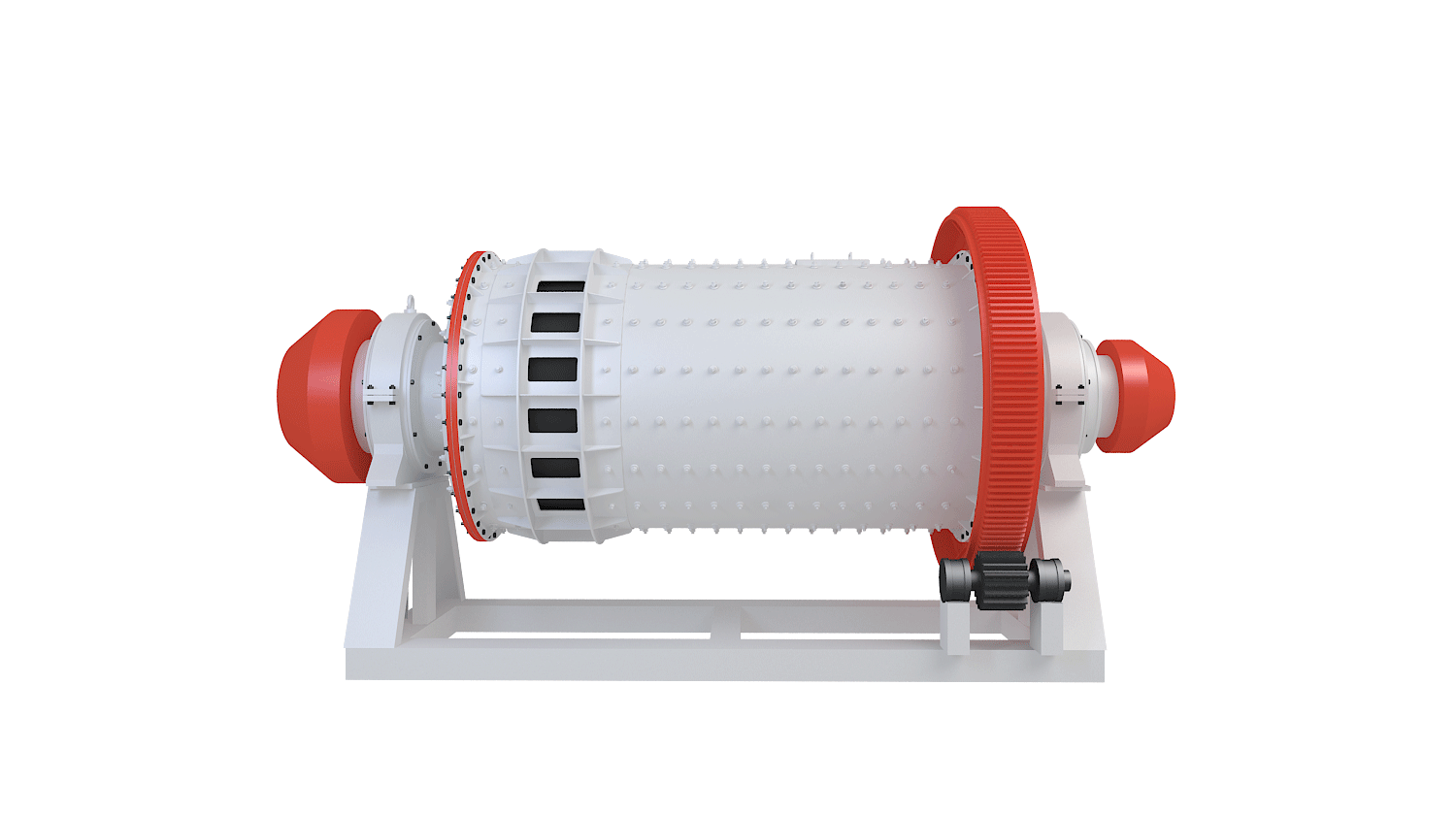

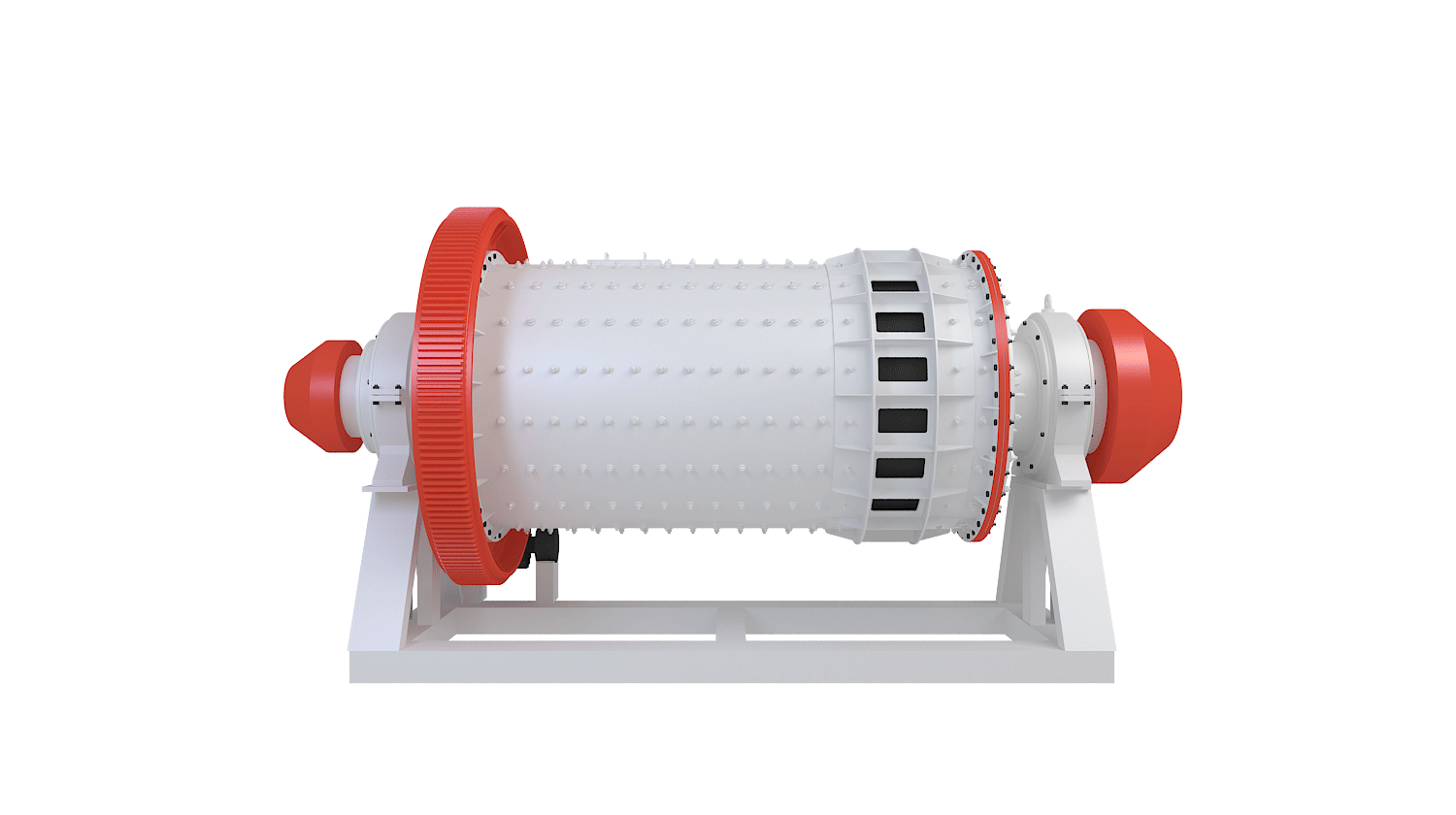

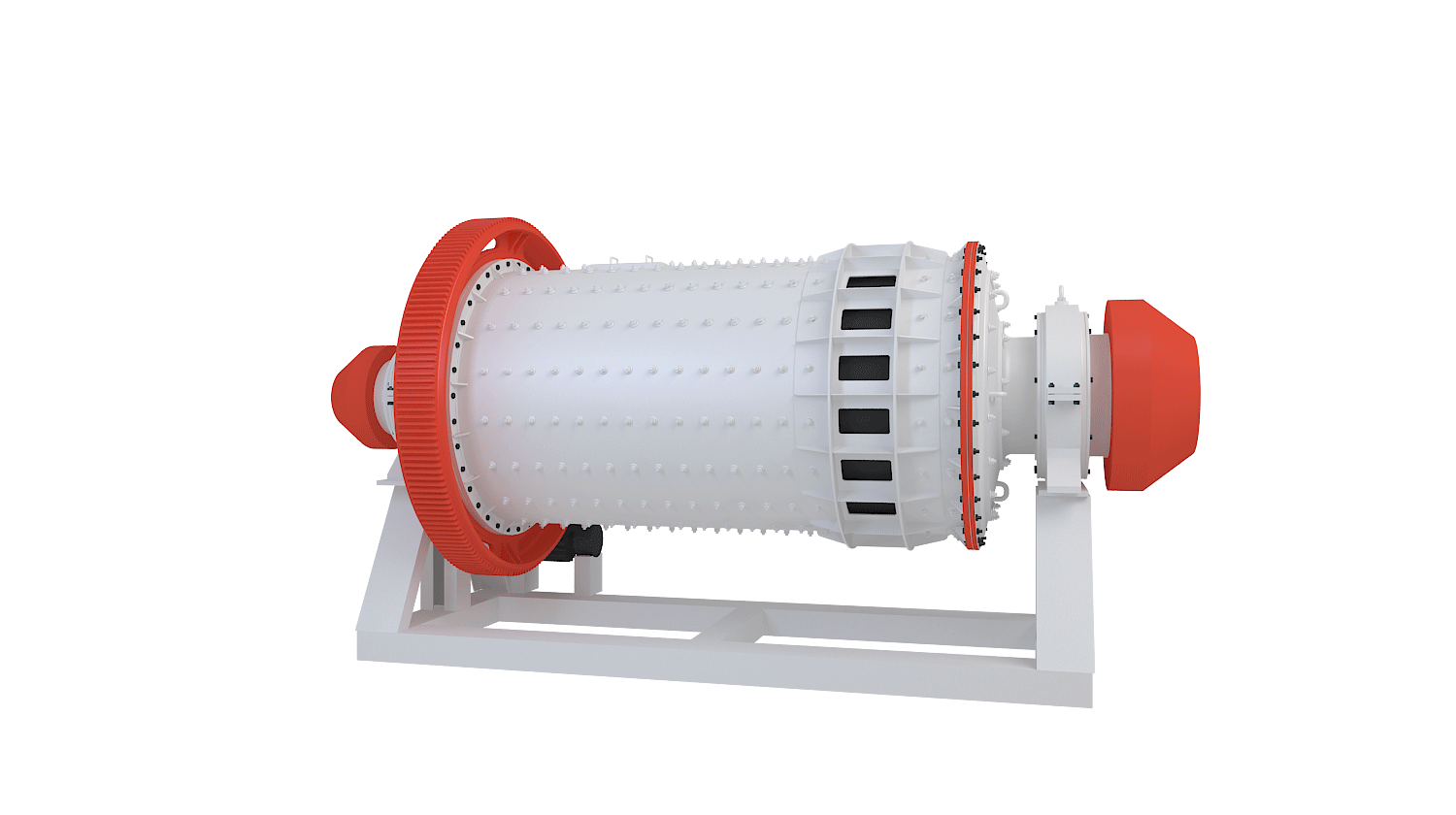

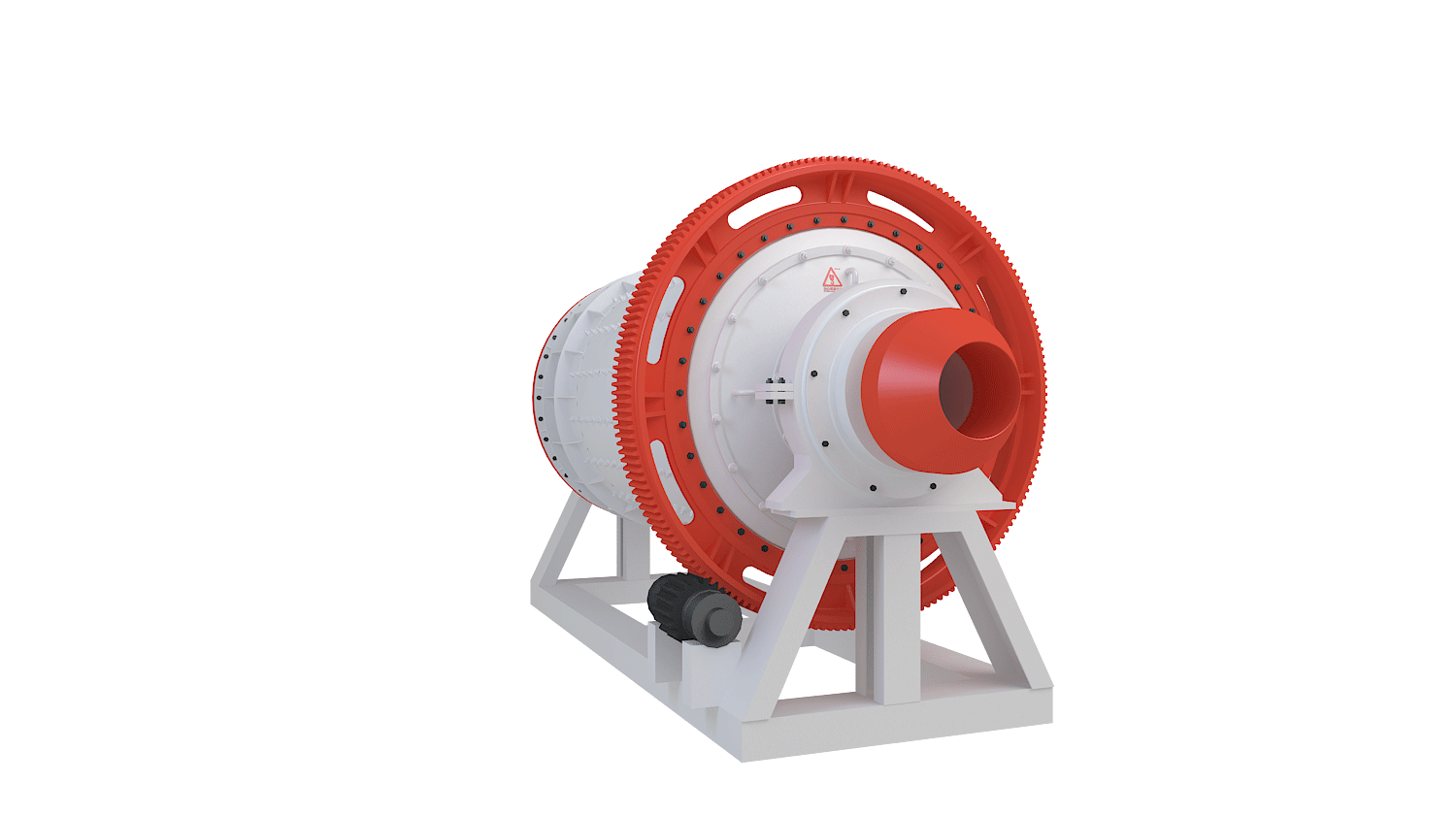

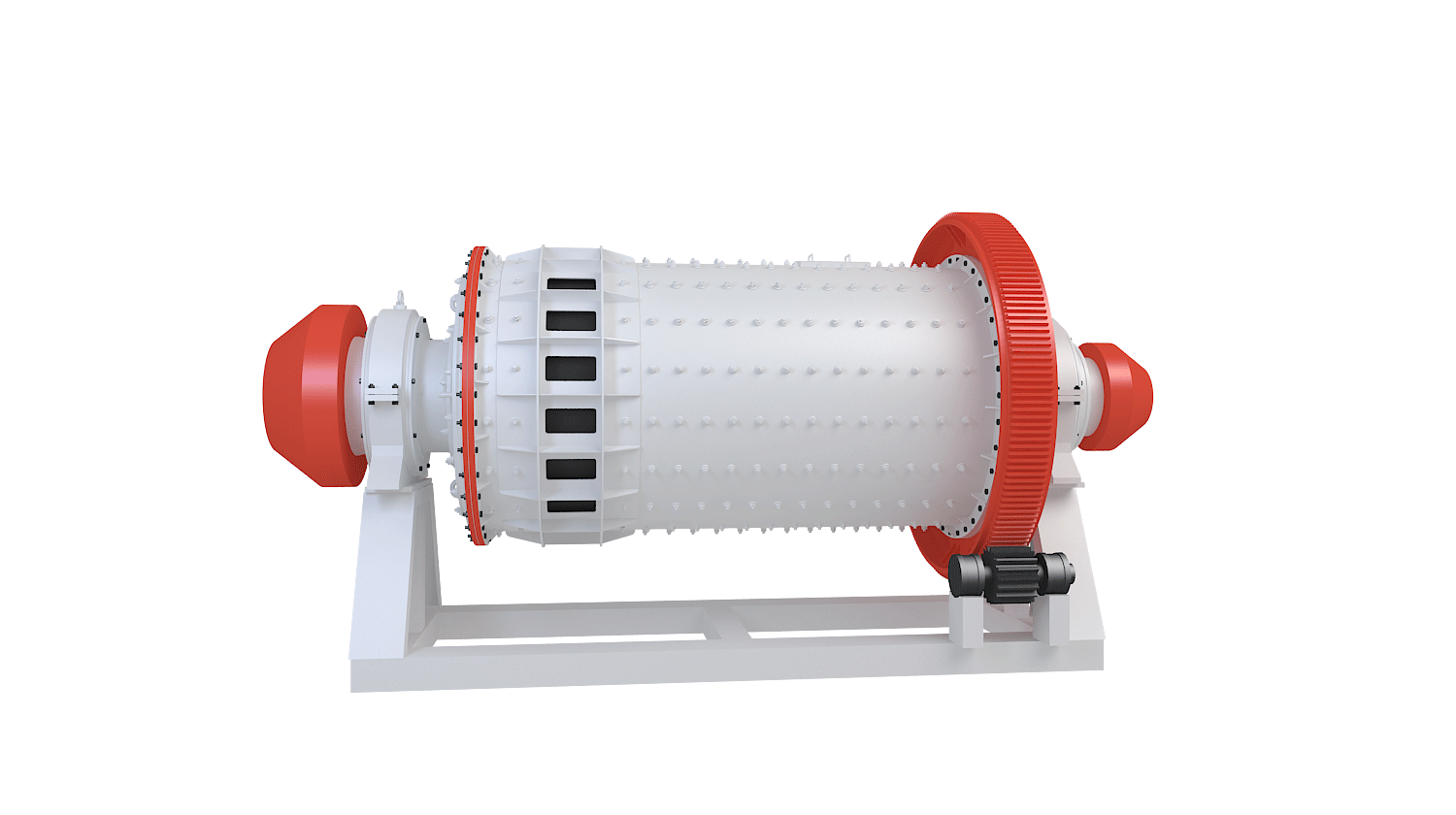

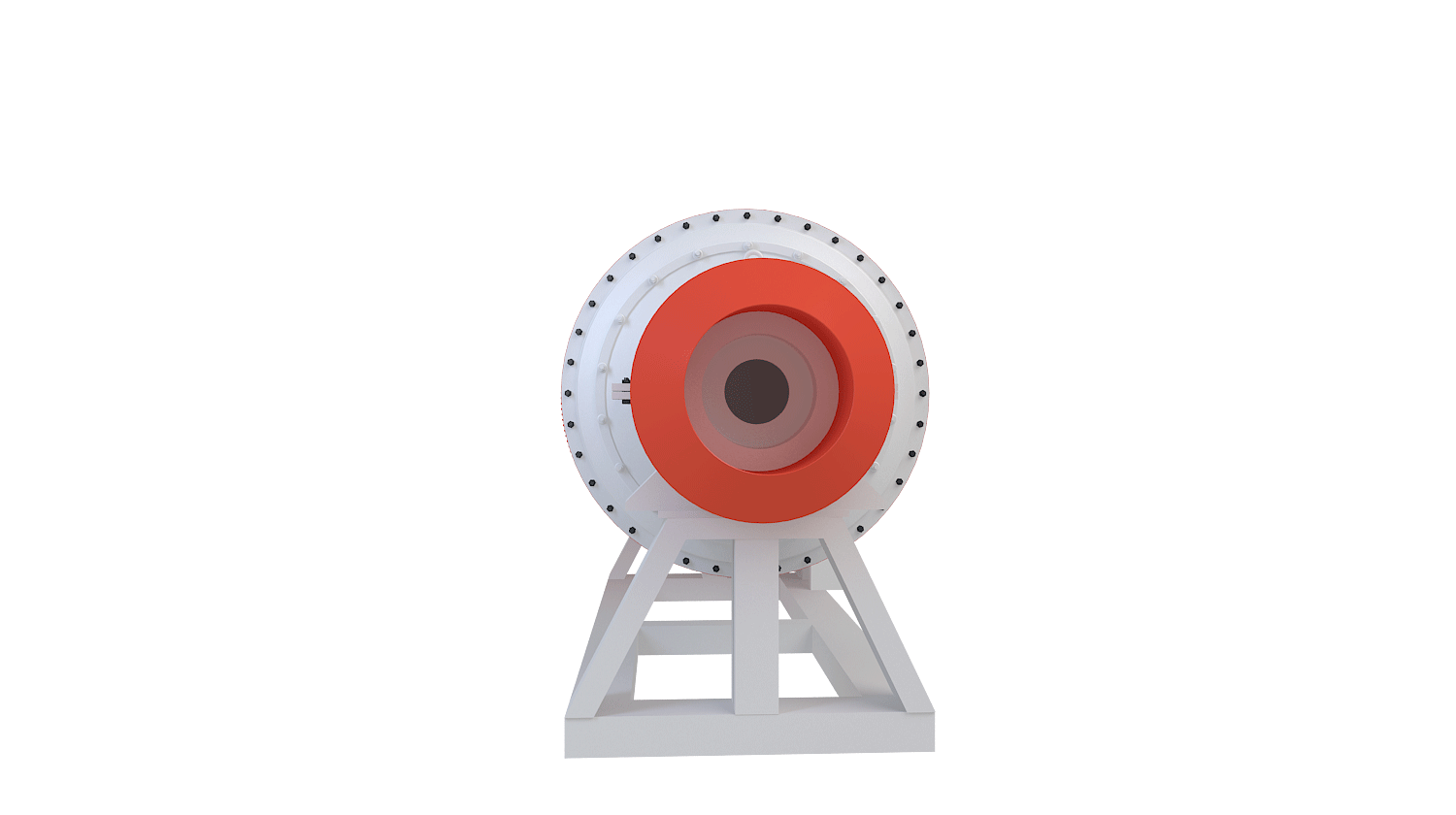

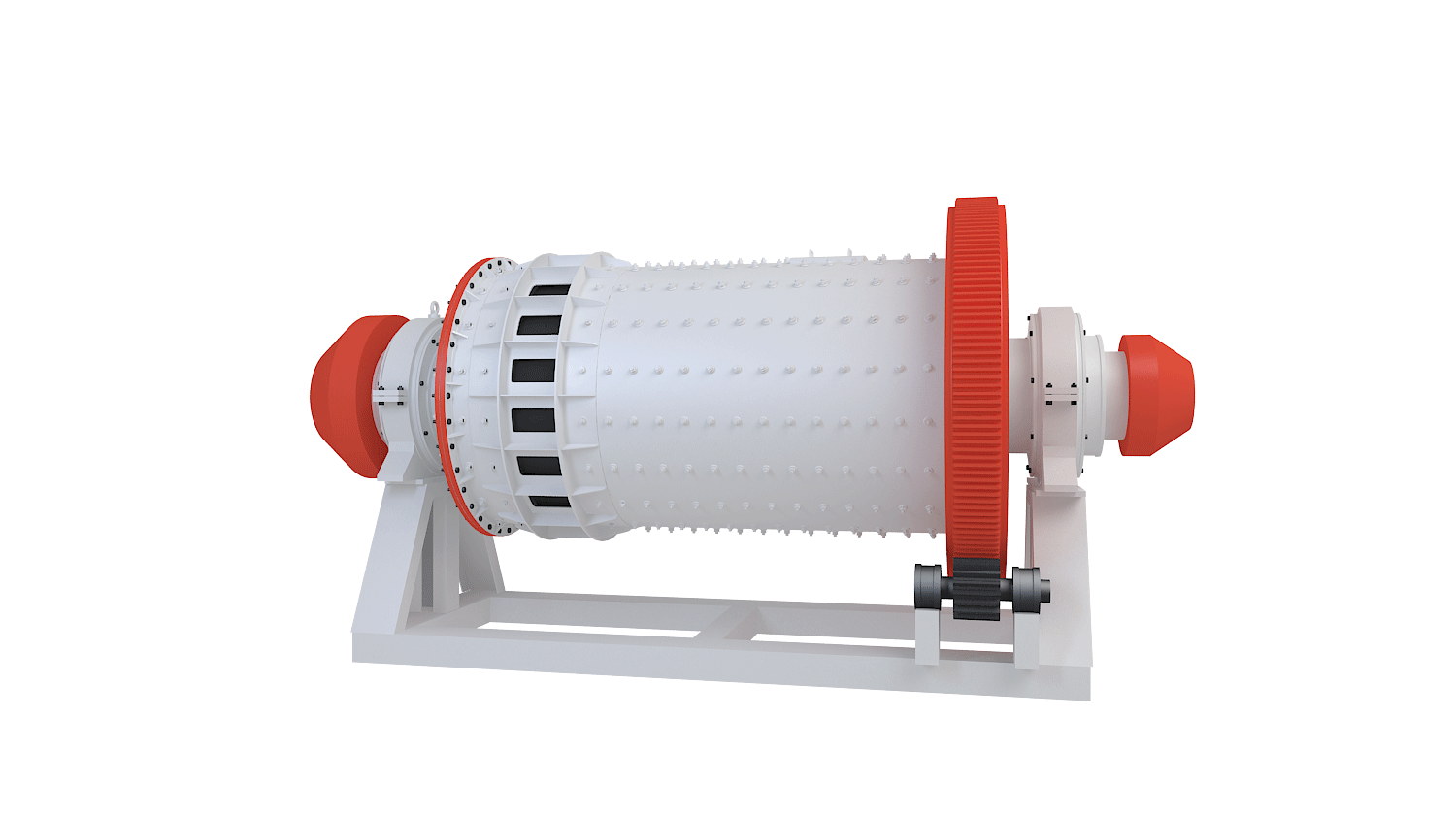

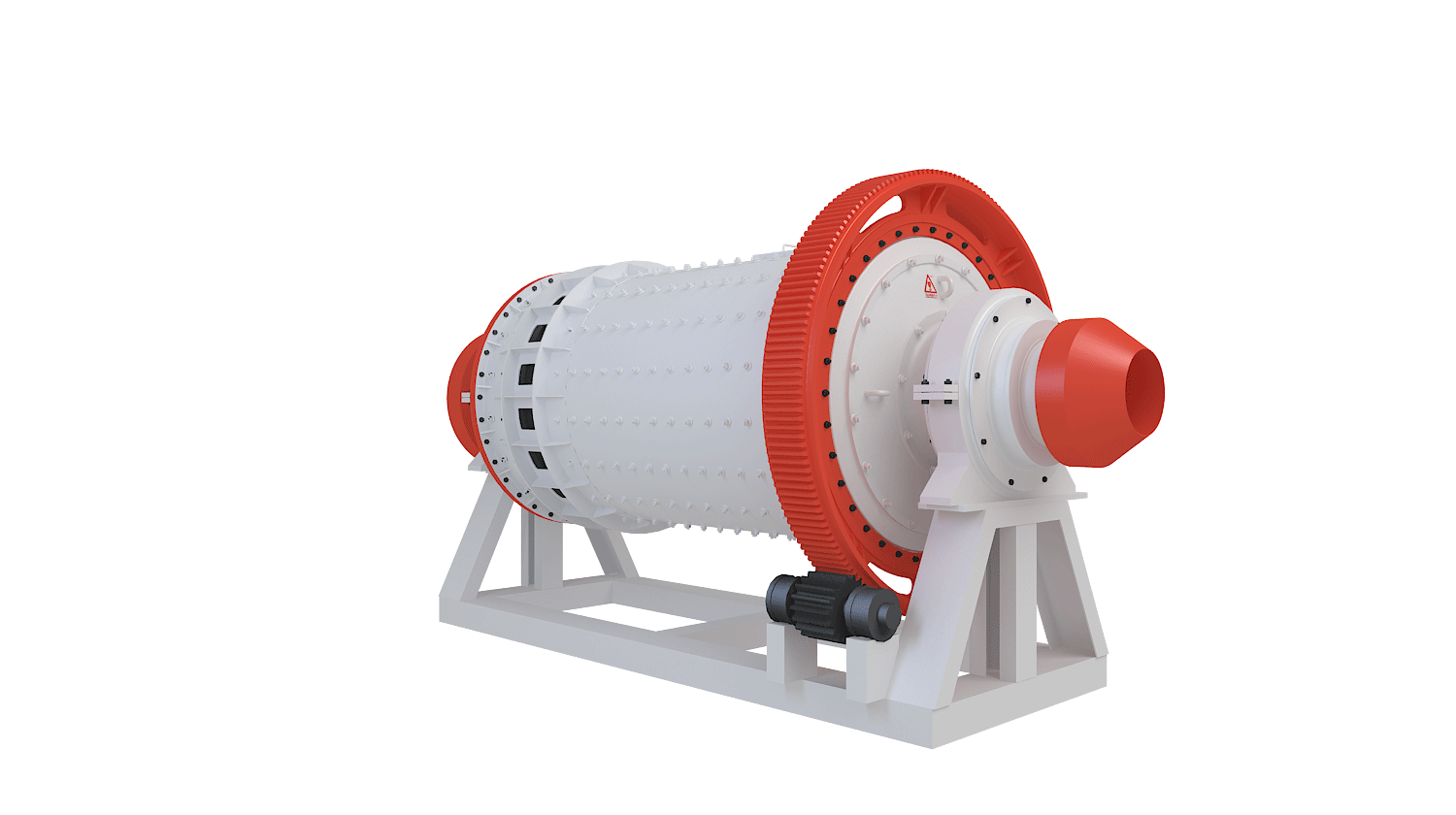

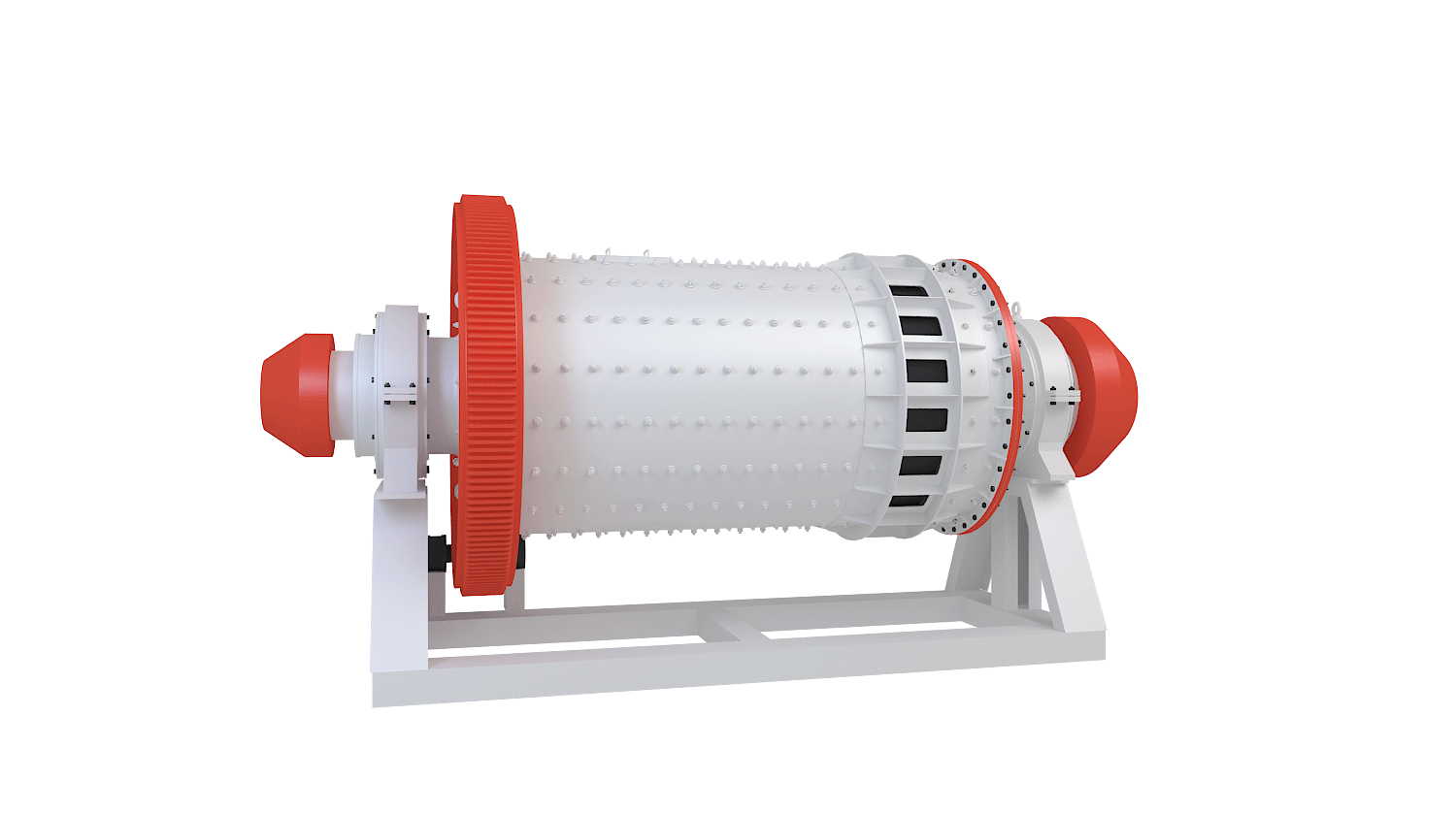

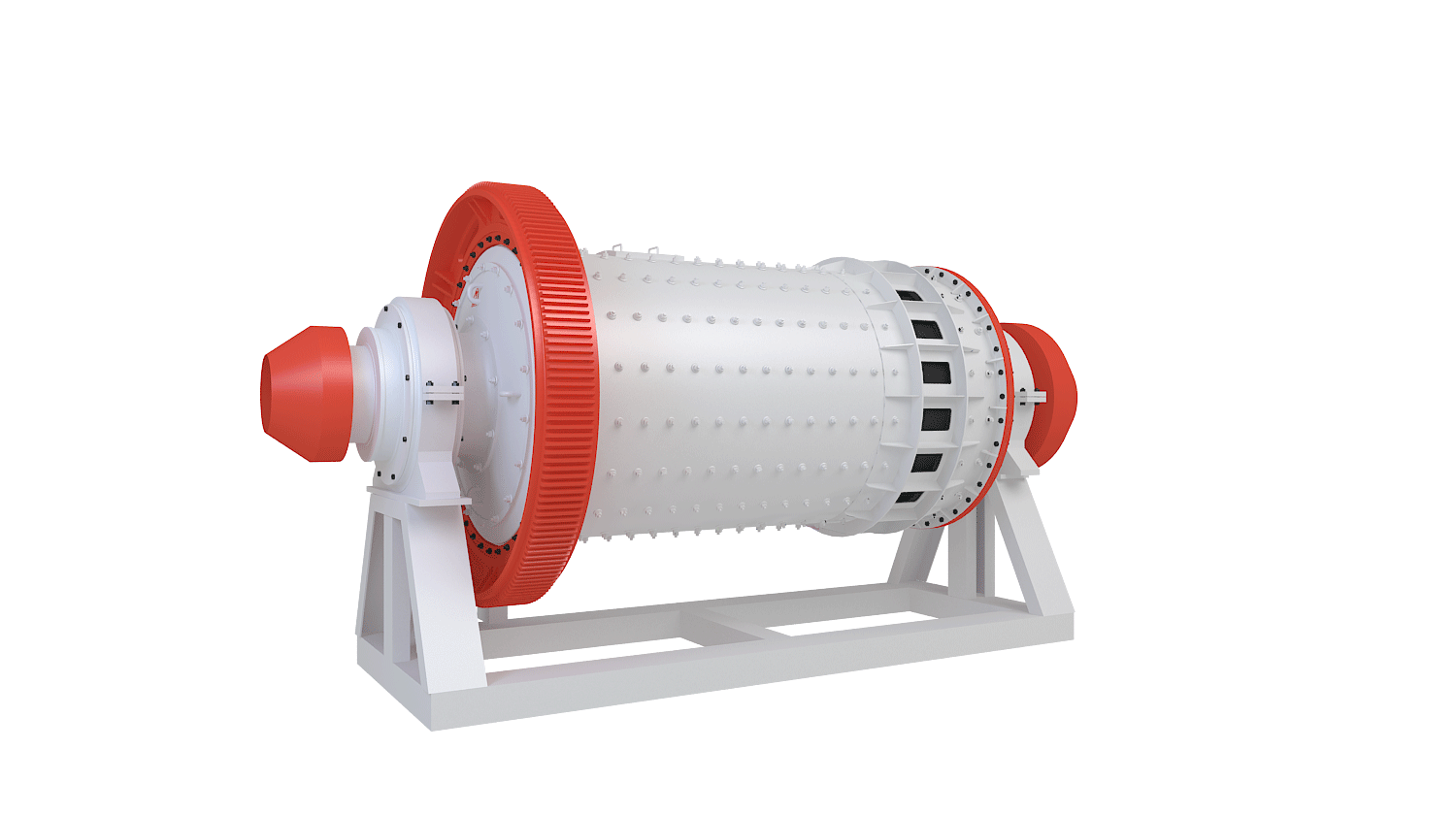

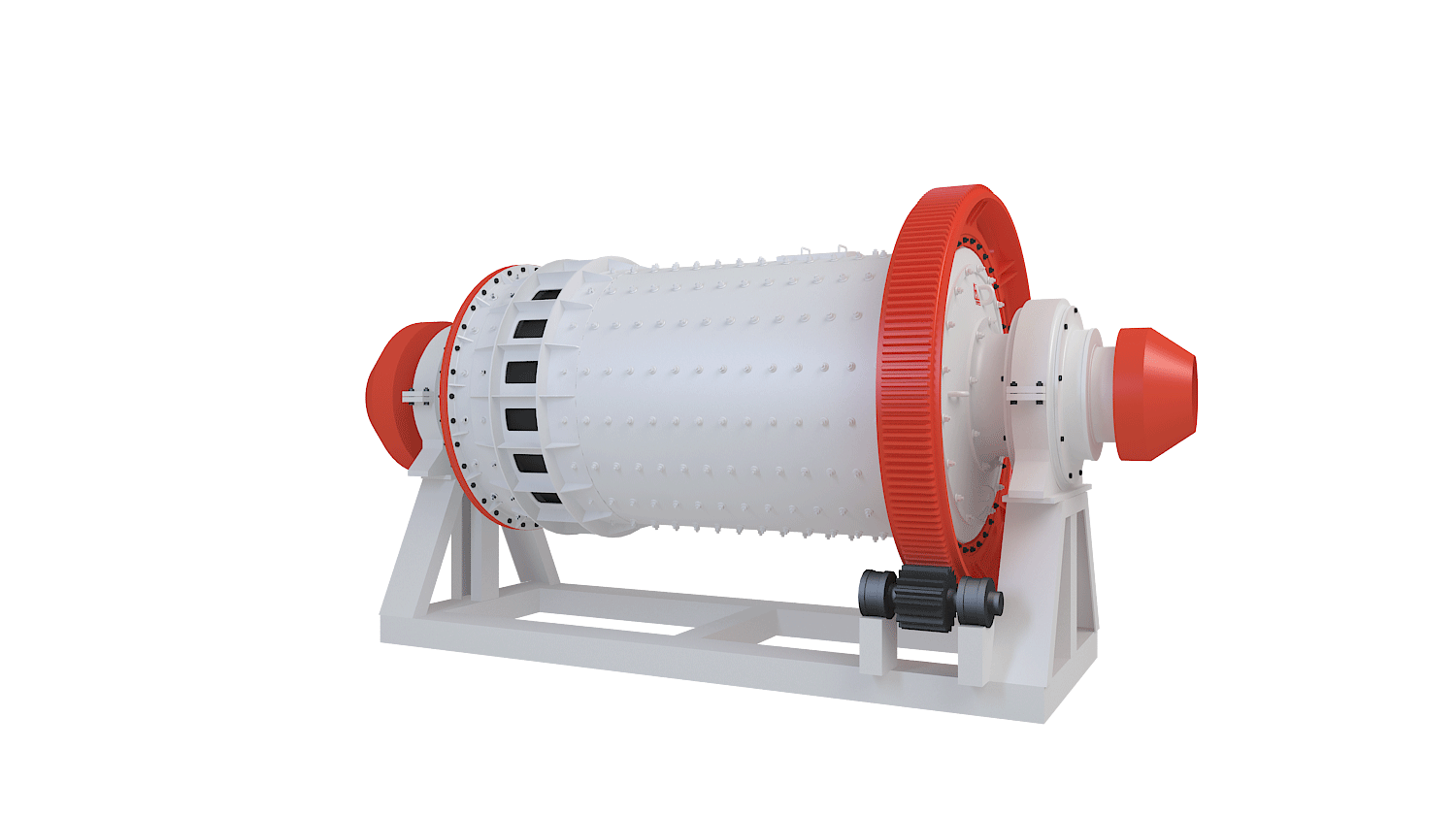

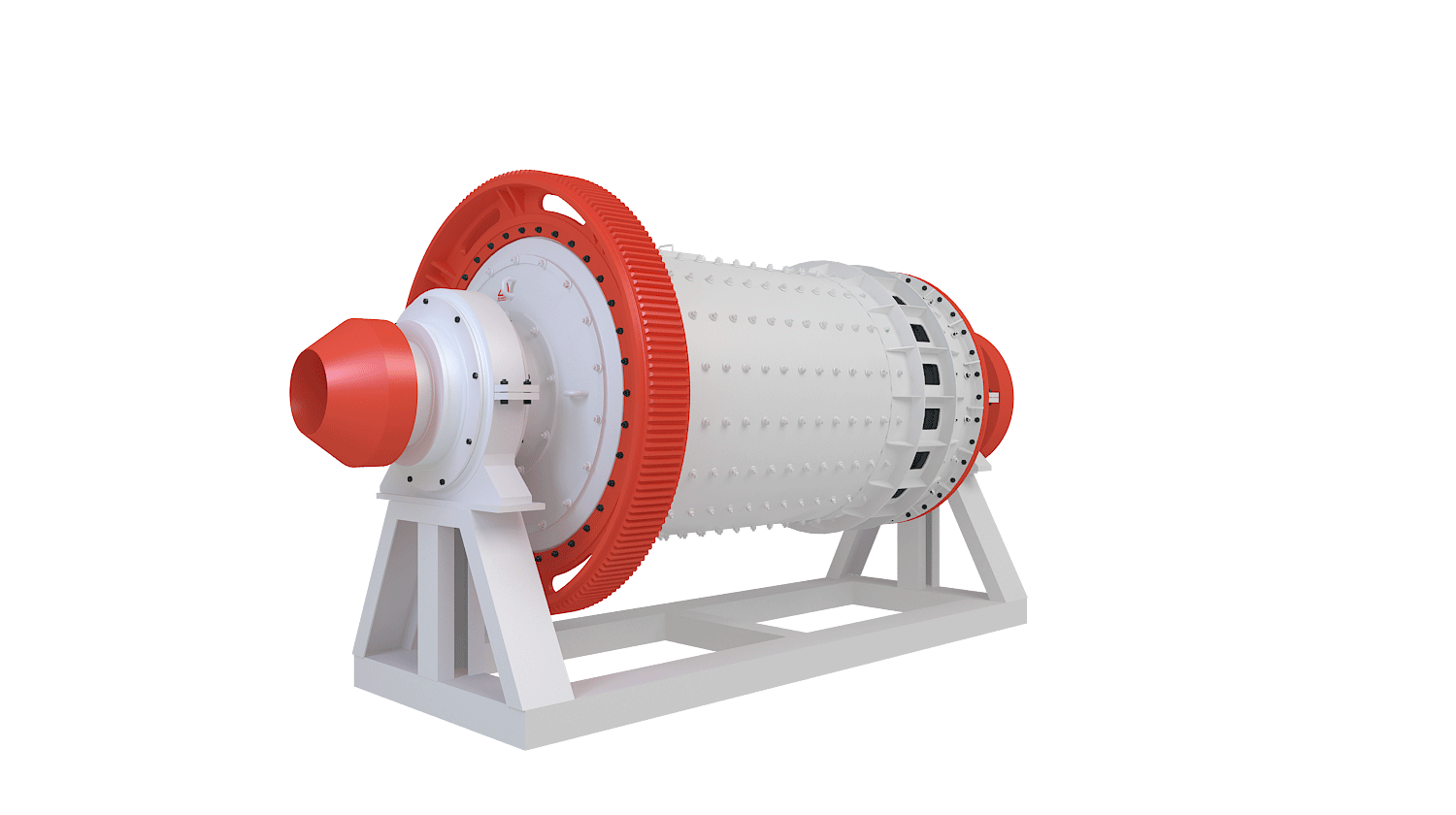

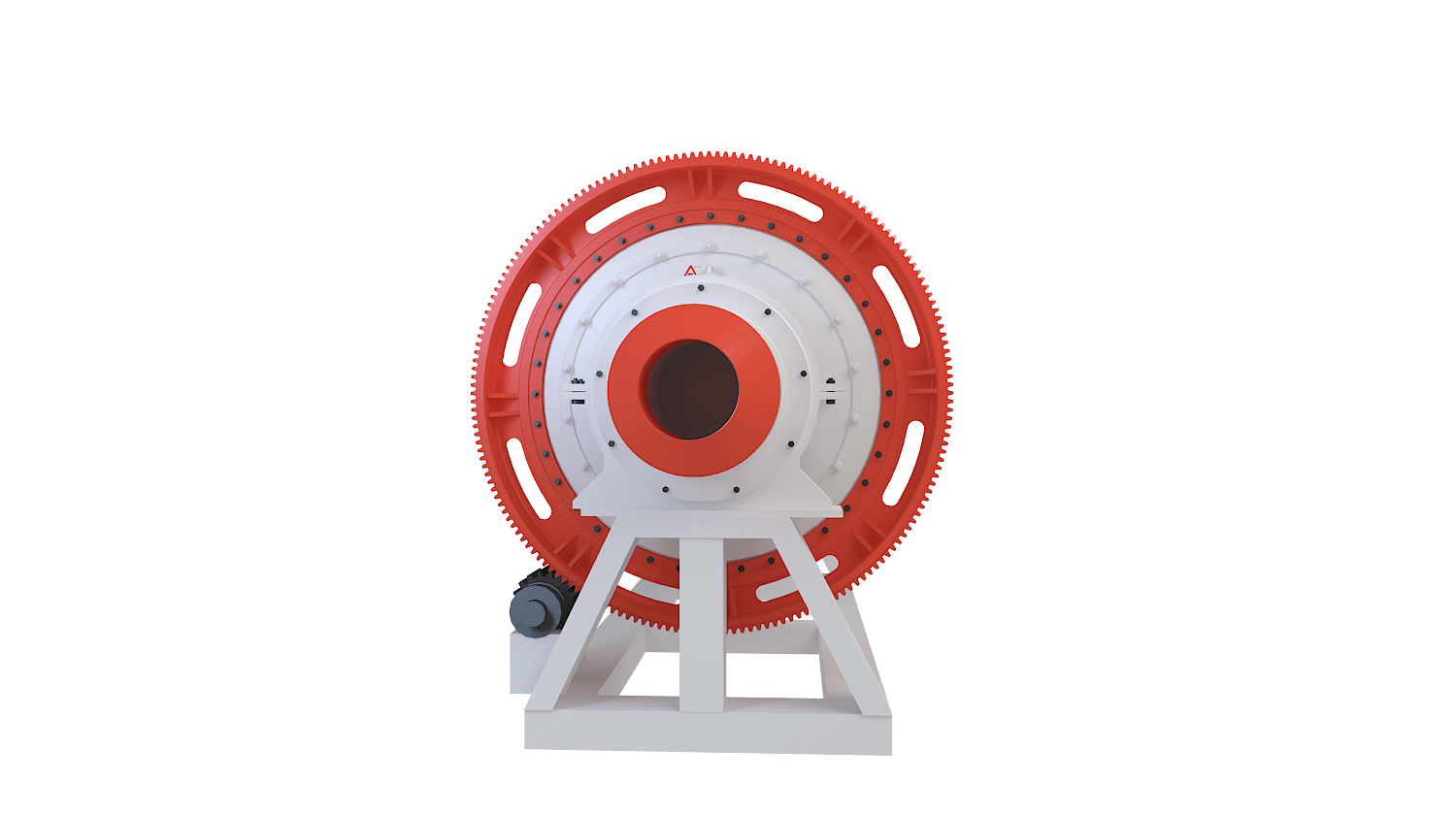

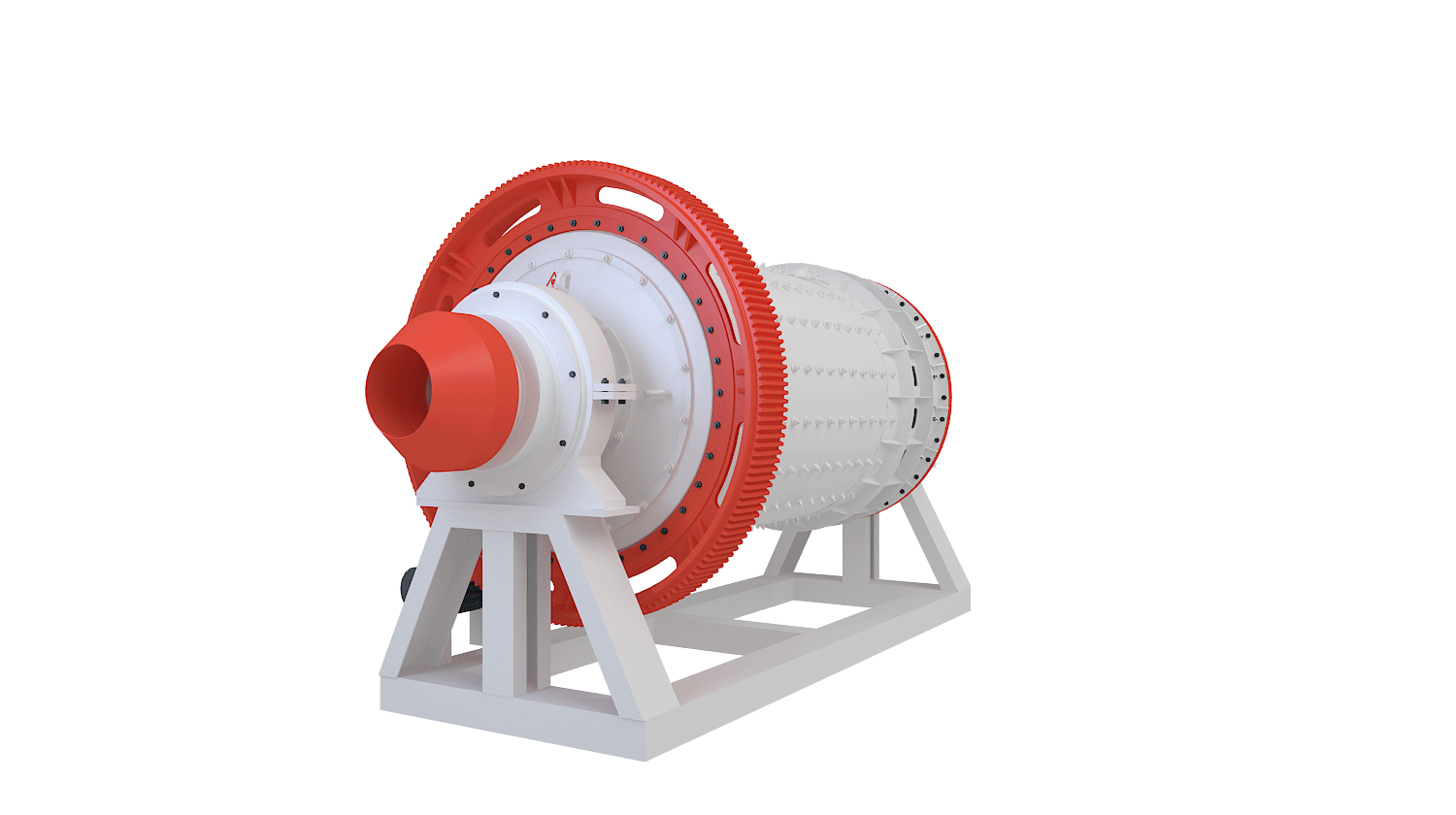

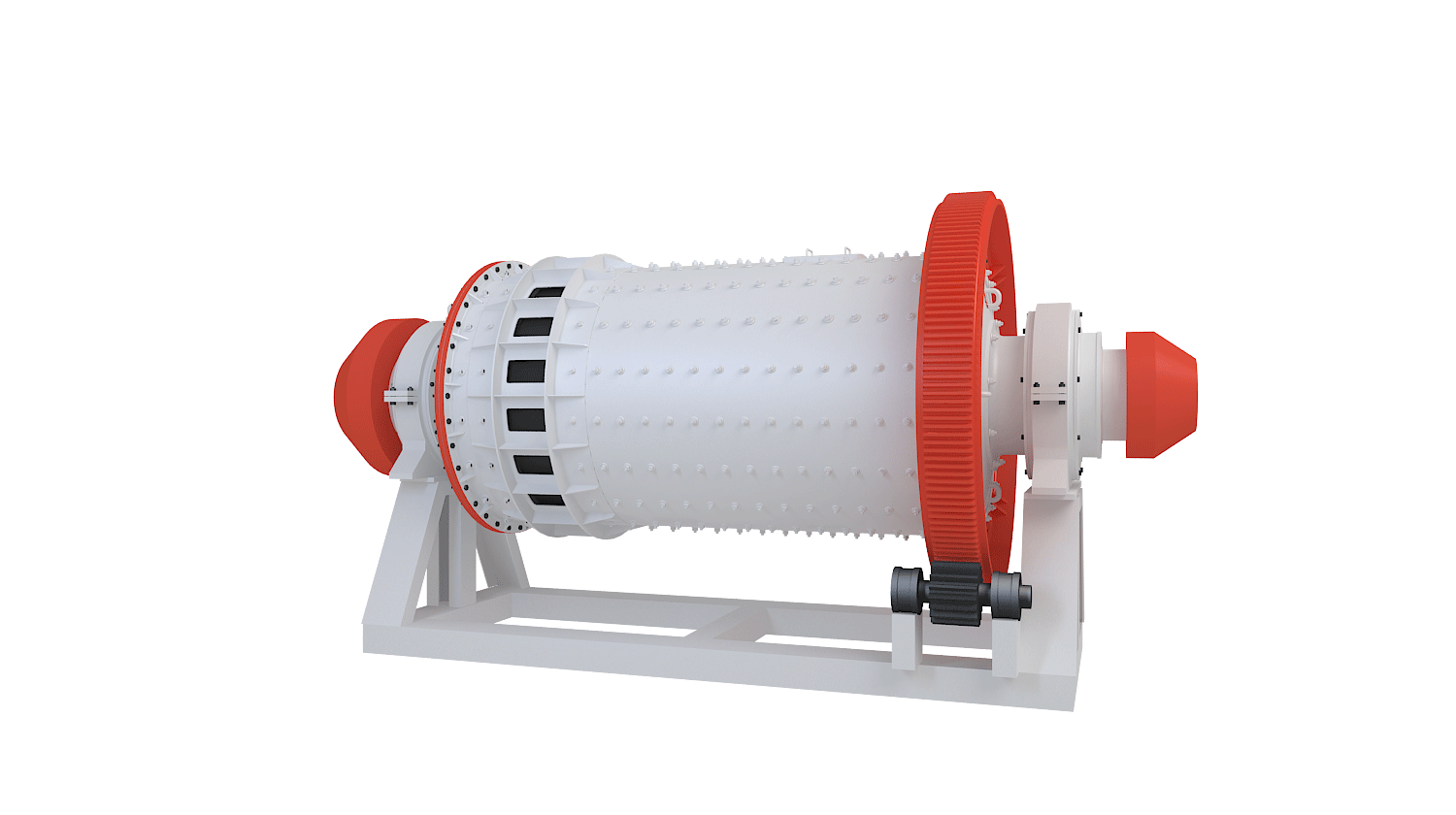

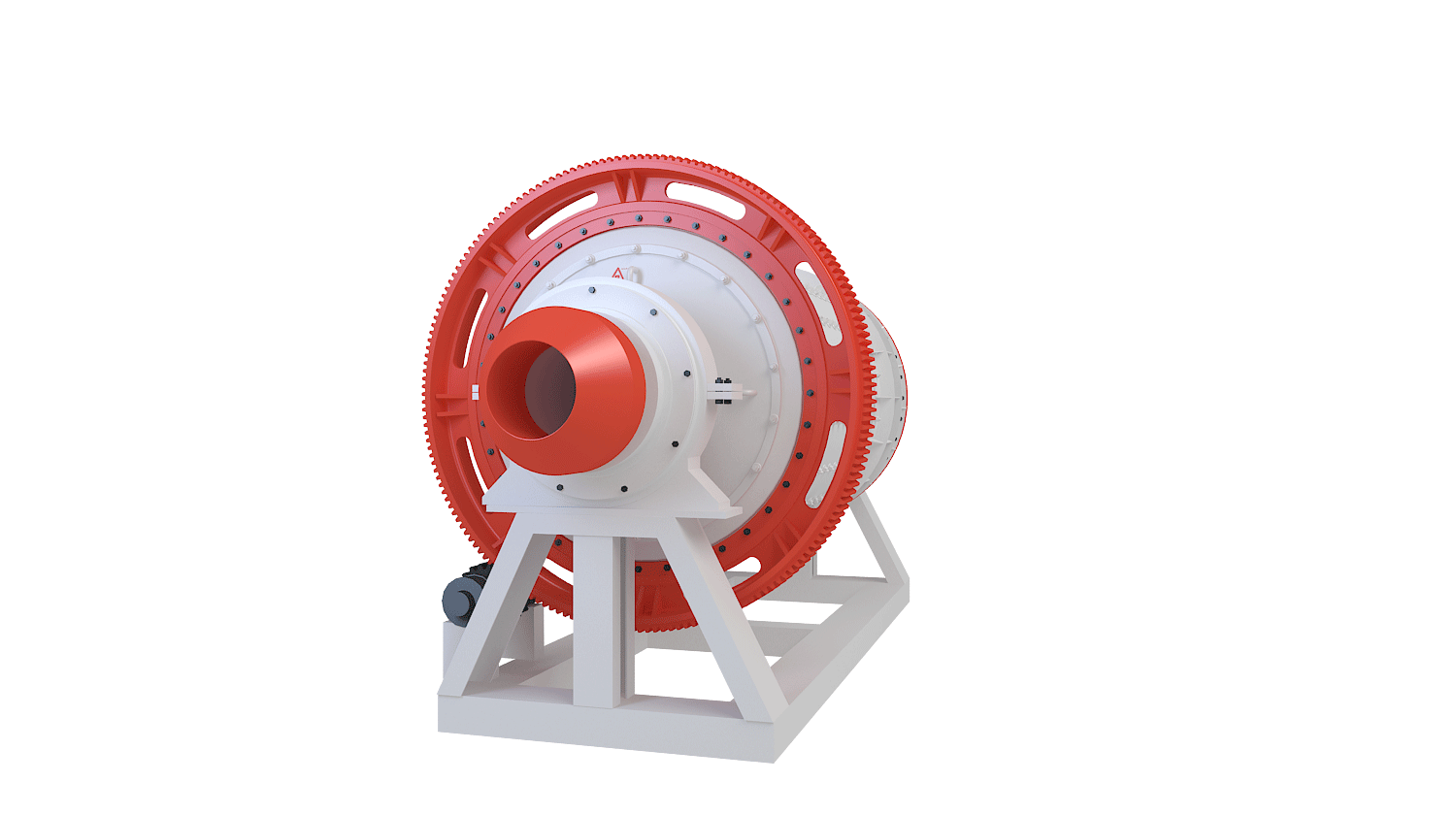

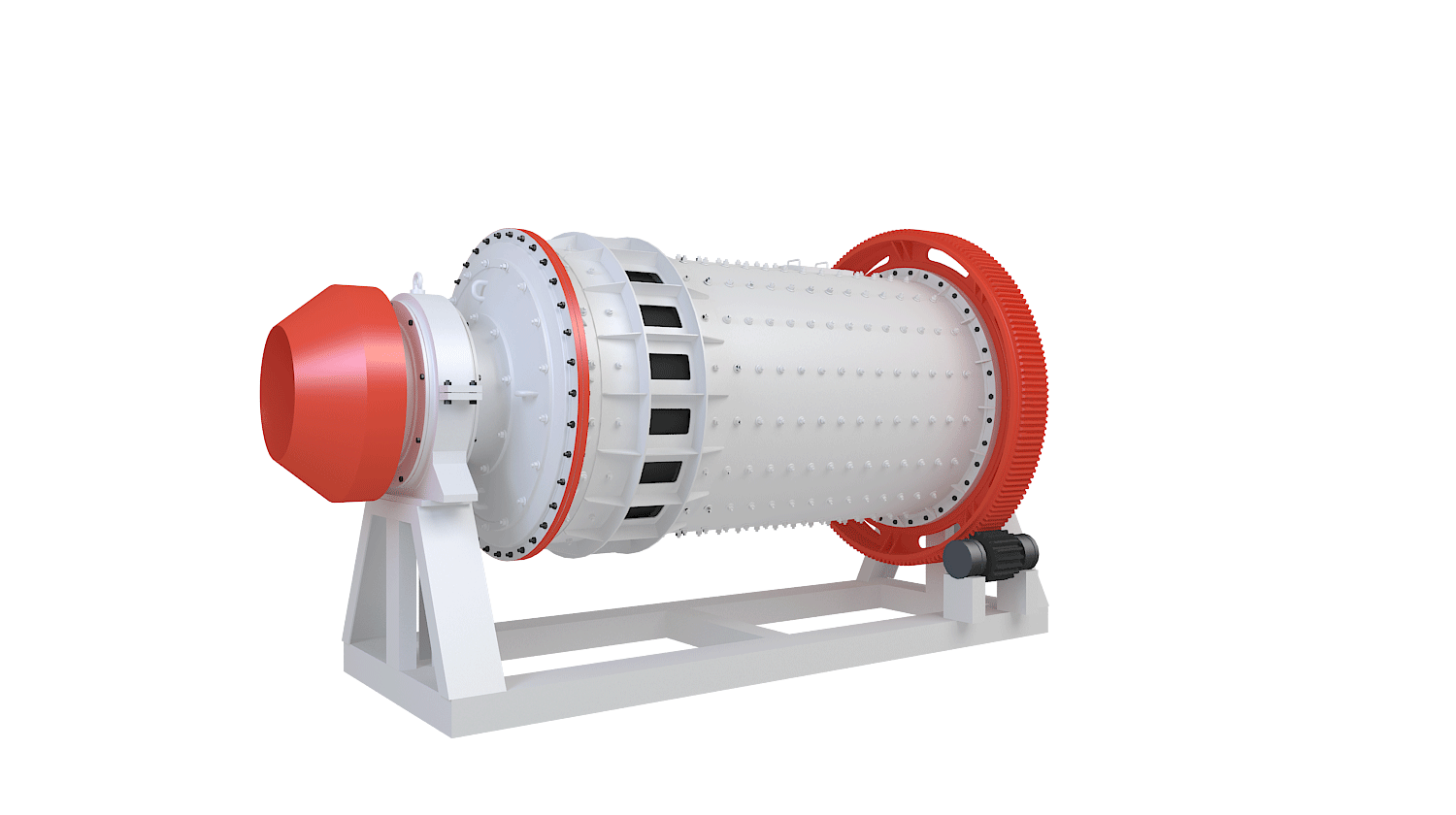

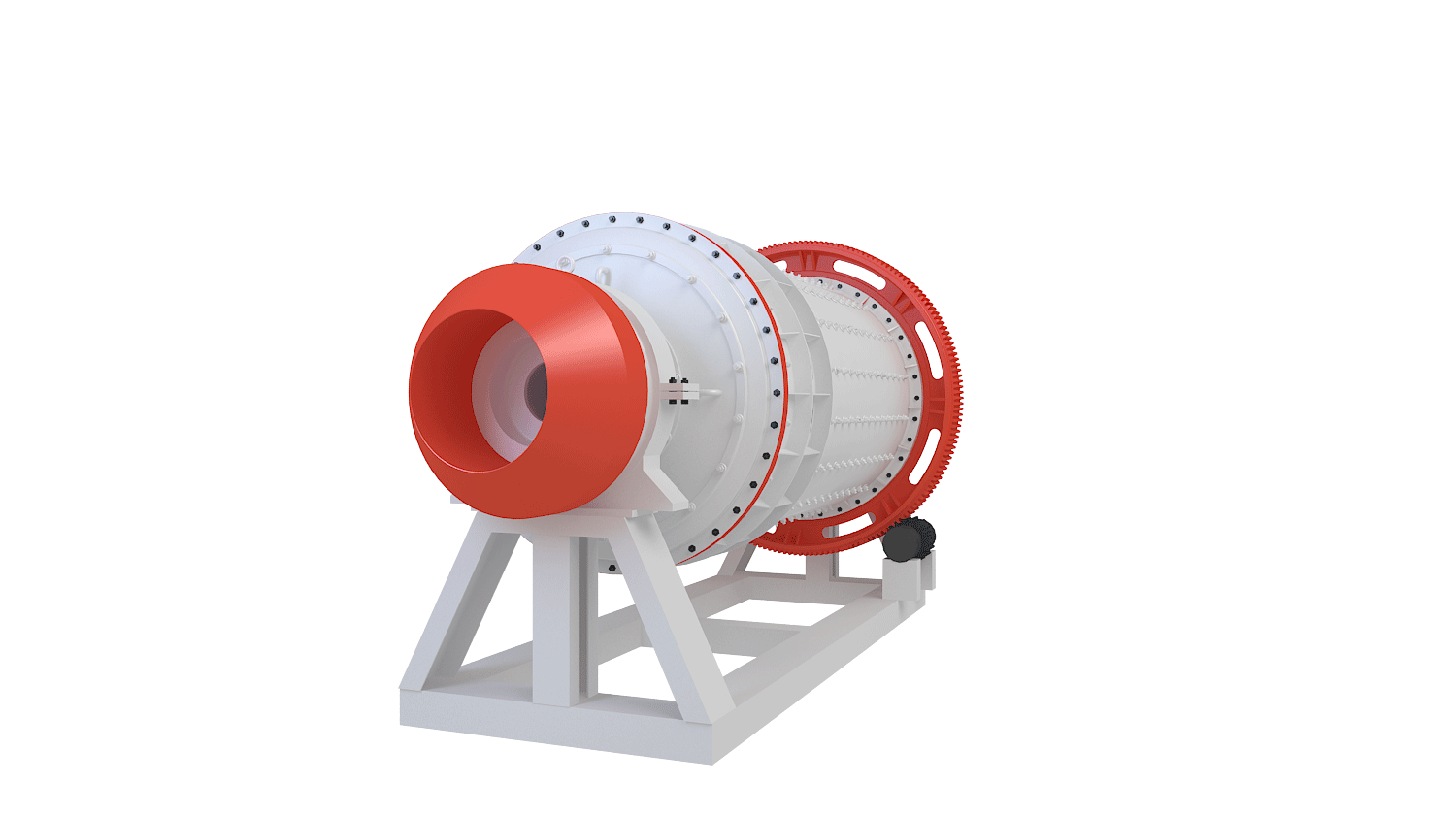

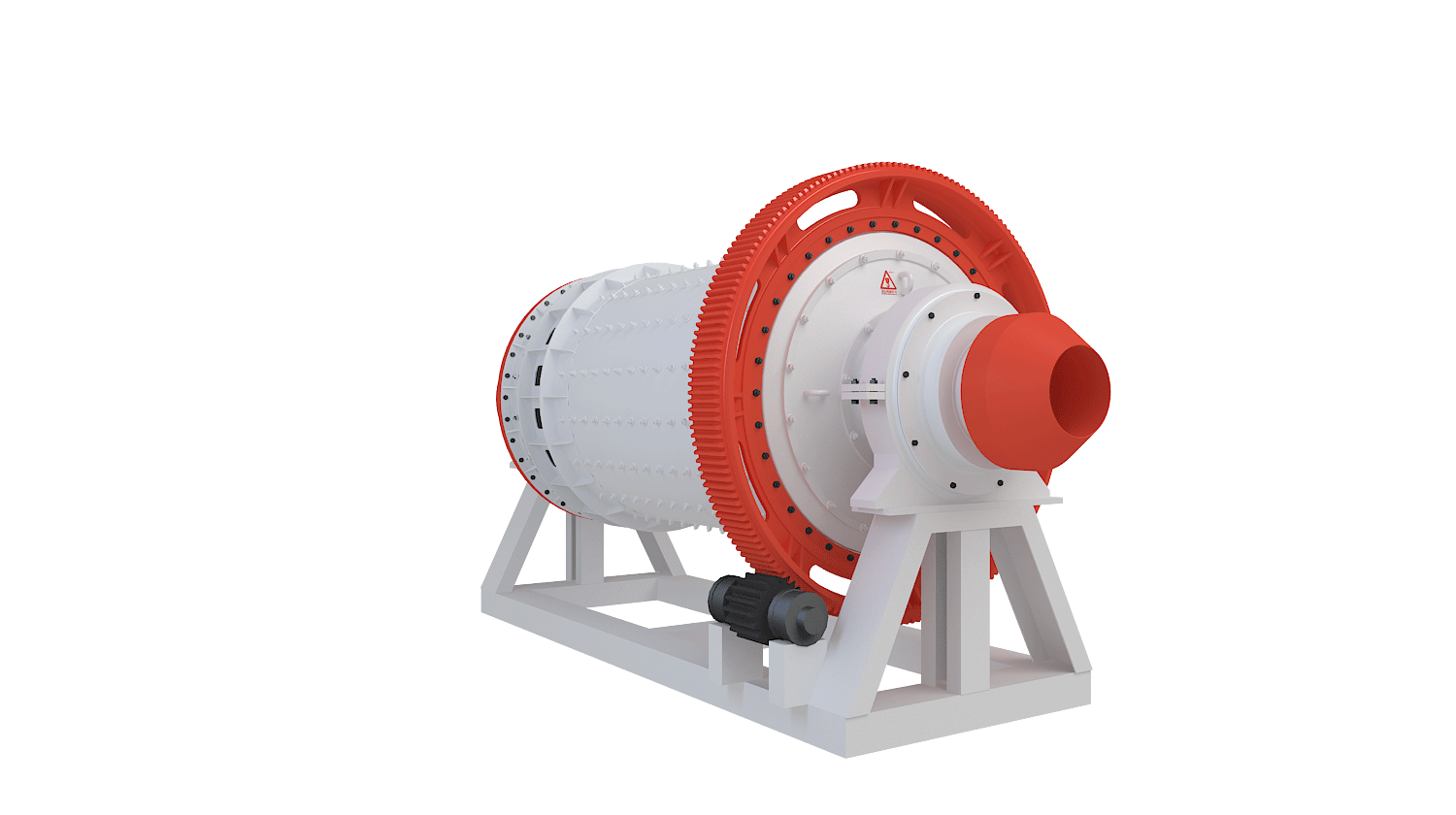

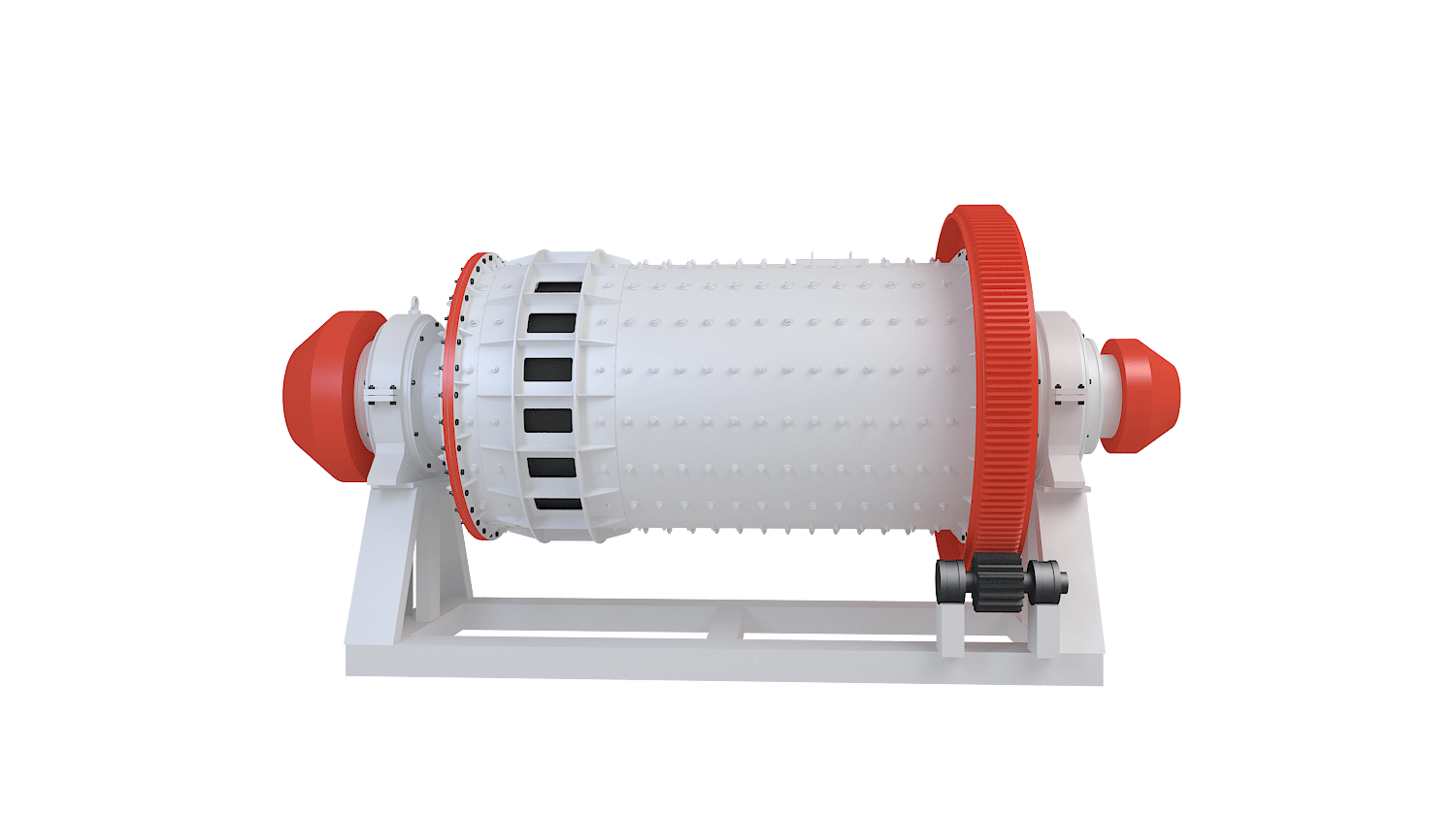

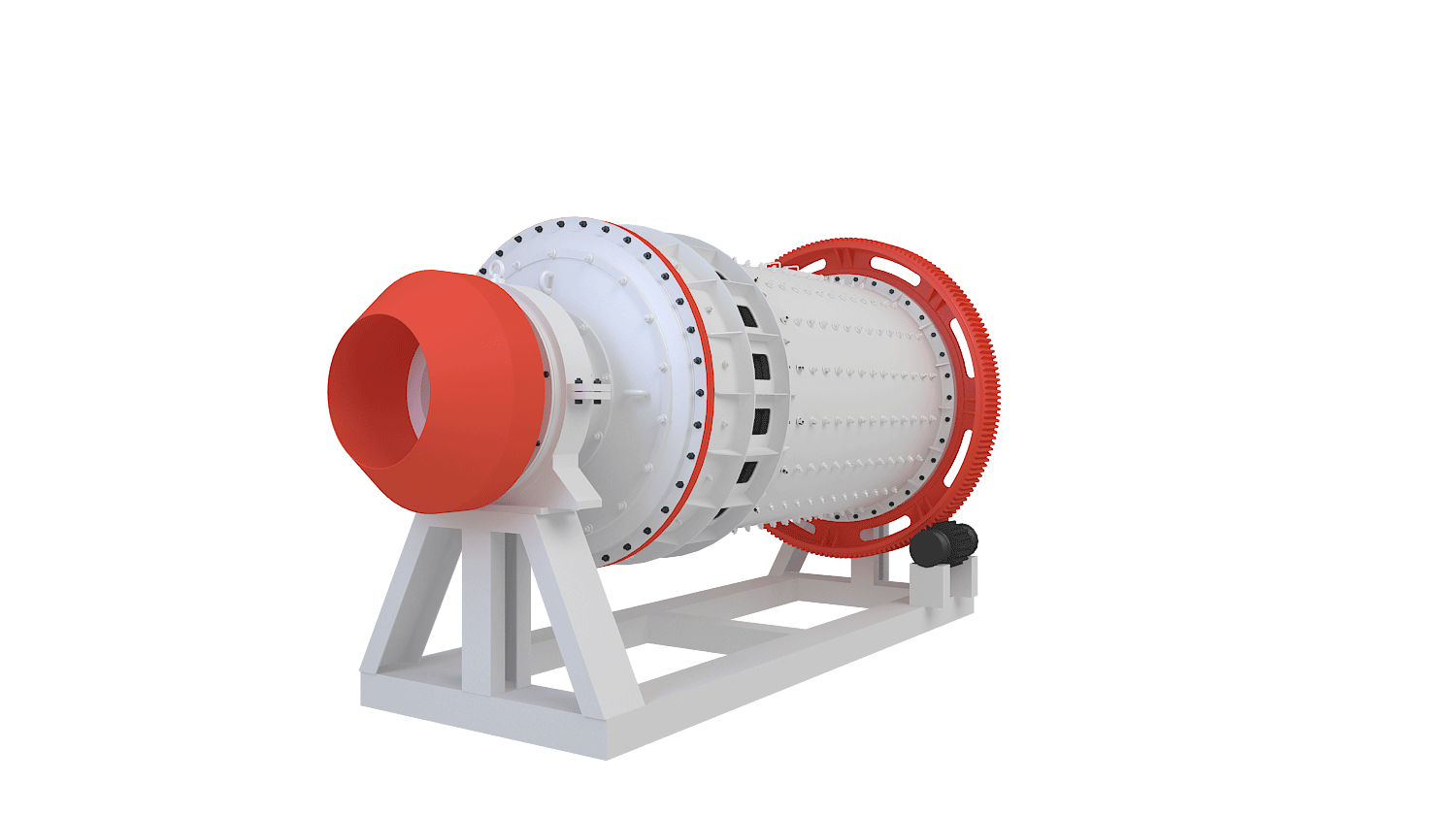

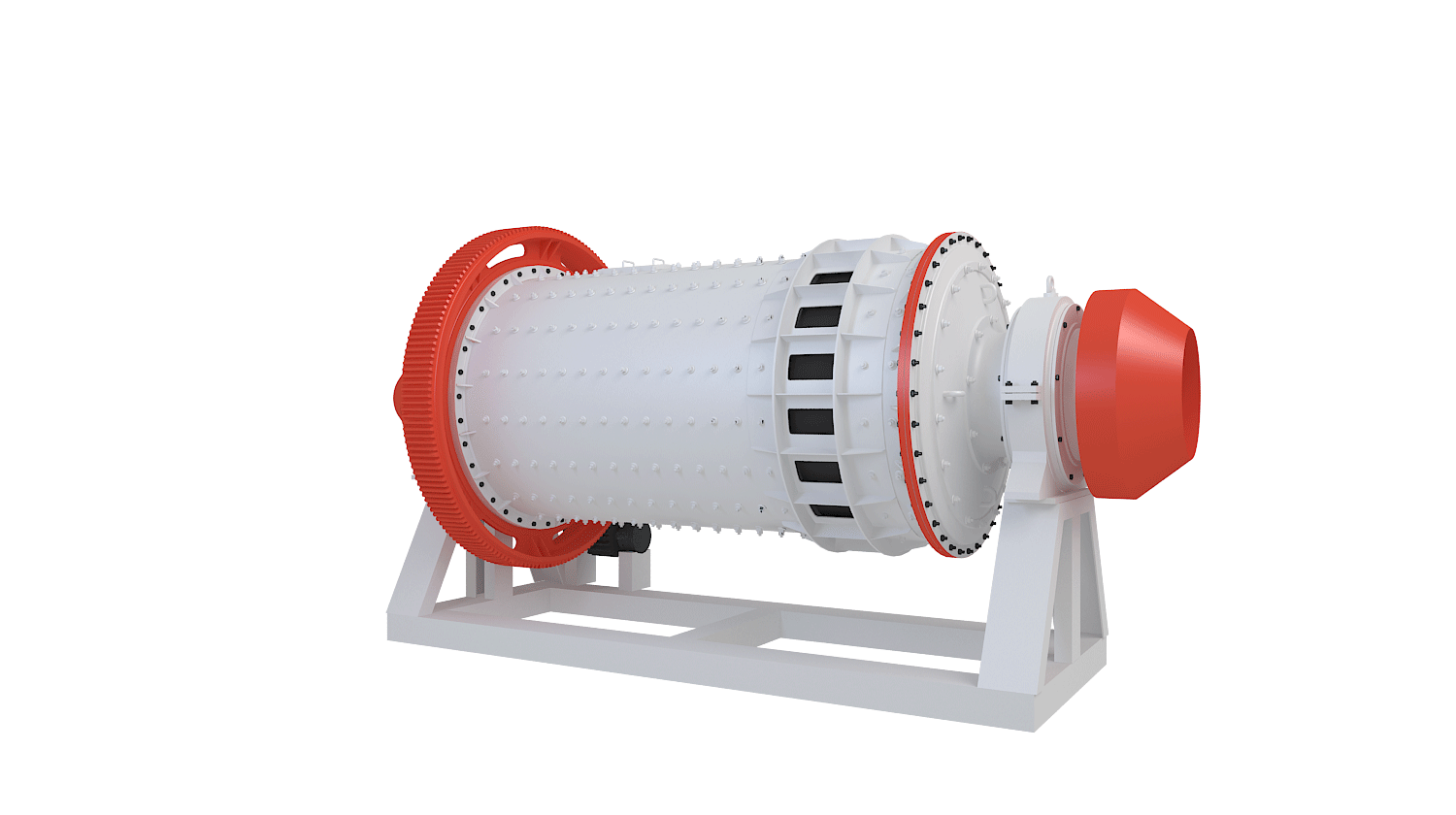

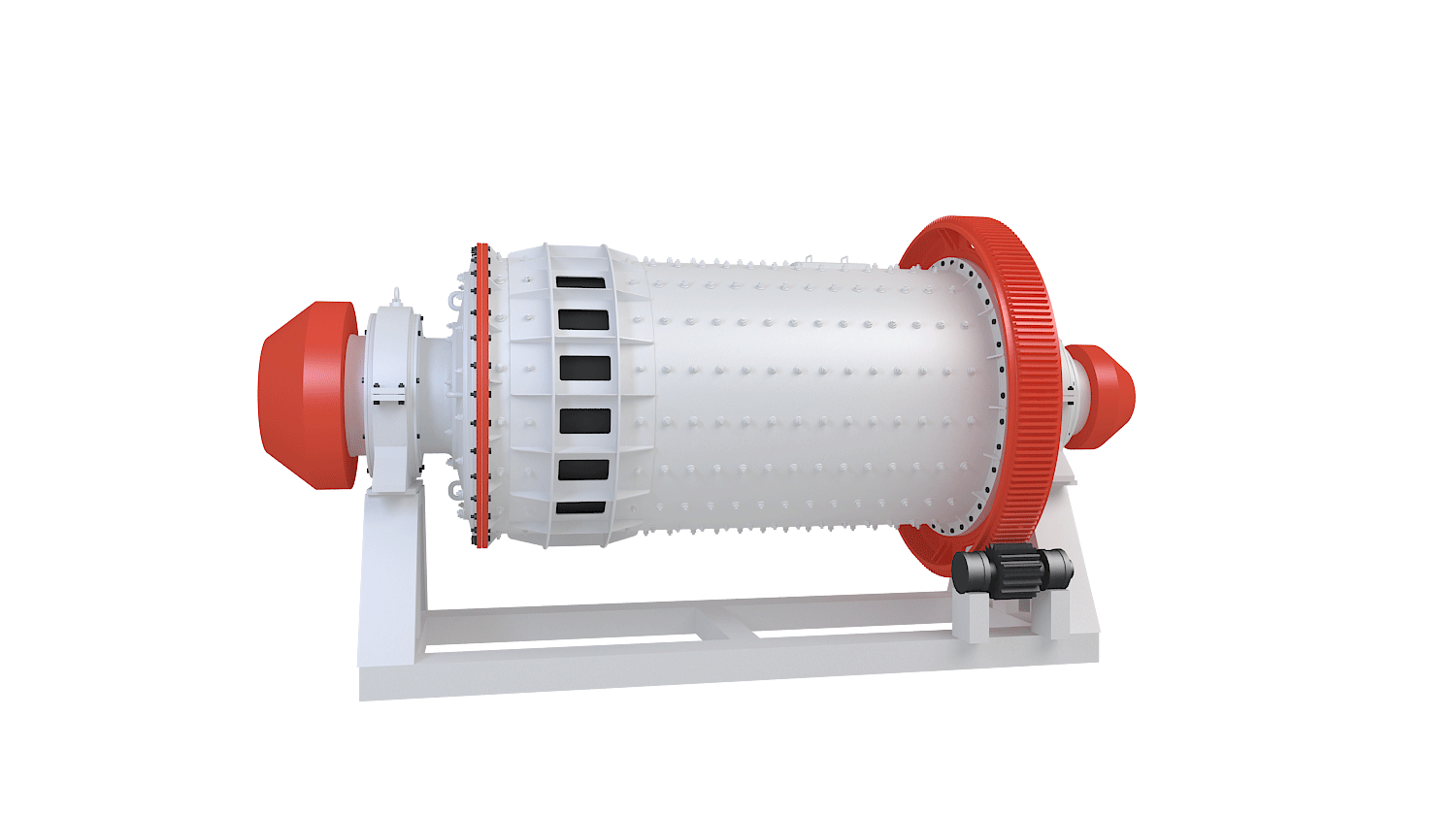

360° panoramic view of the product

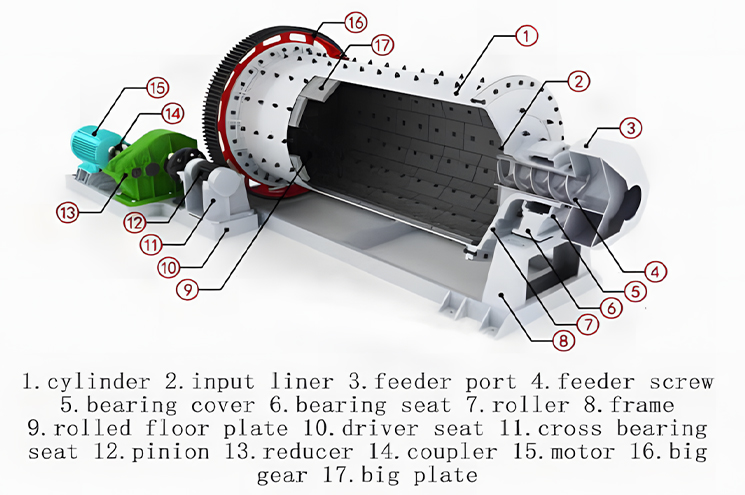

Working Principle

Sand Making Rod Mill works by placing steel rods inside a rotating cylindrical drum. As drum rotates at controlled speed, rods tumble and grind material fed into mill. Grinding action is achieved through linear contact between rods and particles, reducing over-crushing and producing more uniform and rounded sand grains.
Material gradually moves from feeding end to discharge end due to rotation and inclination of drum. During this process, rods selectively grind material into fine sand, making machine especially suitable for shaping and sizing in sand production applications.

Features

Save Energy

40% less power than traditional models, and improved operating efficiency

Automation

Low energy consumption in production reduces cost input in production

Adjustable Output Fineness

The discharge granularity can be changed, the built-in fineness control device, and the discharge can be equipped with a screening device

Wide Range Of Applications

It adopts advanced controllable feeding and discharging materials, which is suitable for ores with different hardness

dETAIL

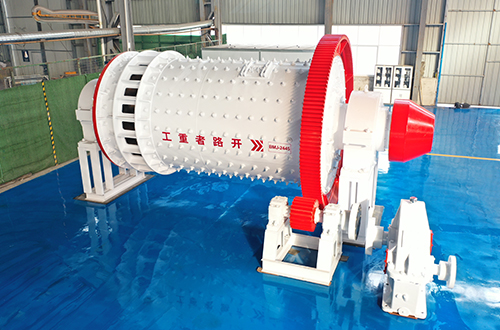

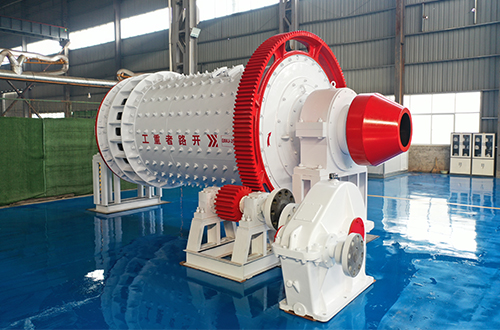

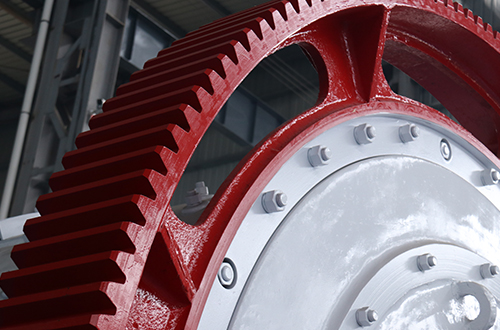

Product Detail Show
