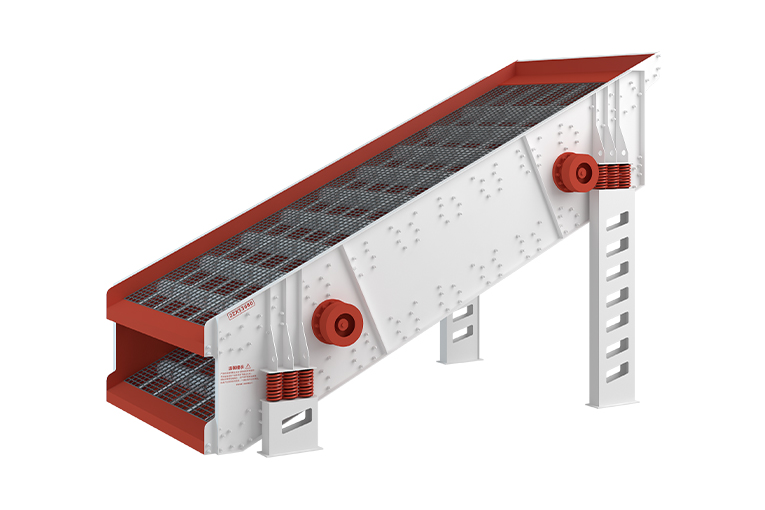

YKZ Vibrating Screen

Vibrating Screen is a highly efficient material classification machine designed to separate bulk materials into different particle size fractions. It operates through linear or circular vibration generated by vibration motors or exciter mechanisms, driving the screen deck to vibrate and stratify materials. The vibration accelerates material movement across the screen surface, ensuring fast and accurate separation.

Available in single or multi-deck configurations, Vibrating Screen is suitable for handling ores, coal, crushed stones, sand, chemicals, and other granular or powdered materials. Screen decks are customizable with various mesh types including woven wire, polyurethane, and perforated plates, making the machine adaptable to different material properties and screening goals.

This equipment features compact structure, easy maintenance, low noise, and high throughput. With its ability to efficiently classify, dewater, or deslime materials, Vibrating Screen plays a critical role in modern material processing lines across various industries.

Technical Parameters

Model	Sieve mesh layer number	Sieve mesh surface area (㎡)	Vibration amplitude (mm)	Vibration frequency (r/min)	Motor power (kw)	Capacity (tph)
2YKZ2060	2	12	6-9	980	30	180-280
3YKZ2060	3	12	6-9	980	30	180-280
4YKZ2060	4	12	6-9	980	45	240-300
3YKZ2270	3	15.4	6-9	980	45	240-320
4YKZ2270	4	15.4	6-9	980	45	200-260
1YKZ2460	1	14.4	6-9	970	22	300-350
2YKZ2460	2	14.4	6-9	980	30	240-300
3YKZ2460	3	14.4	6-9	980	30	240-300
4YKZ2460	4	14.4	6-9	980	45	240-300
2YKZ2670	2	18.2	6-9	980	37	280-400
3YKZ2670	3	18.2	6-9	980	45	280-400
4YKZ2670	4	18.2	6-9	990	75	280-400
2YKZ3080	2	21	6-9	980	37	450-550
3YKZ3080	3	21	6-9	980	55	400-500
4YKZ3080	4	21	6-9	990	75	450-550
2ZXS3280	2	25.6	6-9	970	45*2	600-800
3ZXS3280	3	25.6	6-9	970	55*2	600-800
2ZXS3680	2	28.8	6-9	970	55*2	600-800
3ZXS3680	3	28.8	6-9	970	75*2	600-800
2ZXS10400	2	40	6-9	980	75*2	800-1000
3ZXS10400	3	40	6-9	960	90*2	800-1000

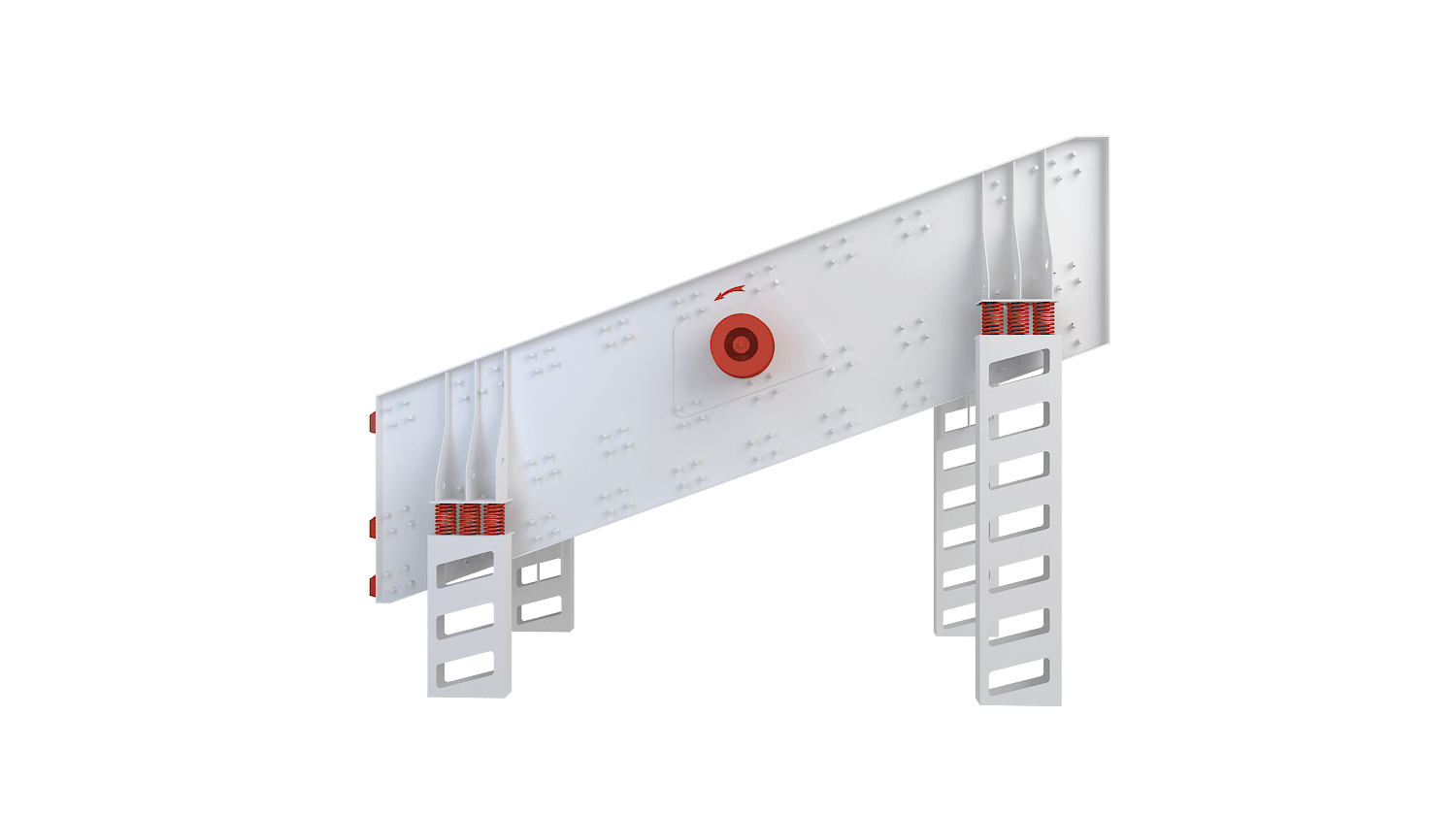

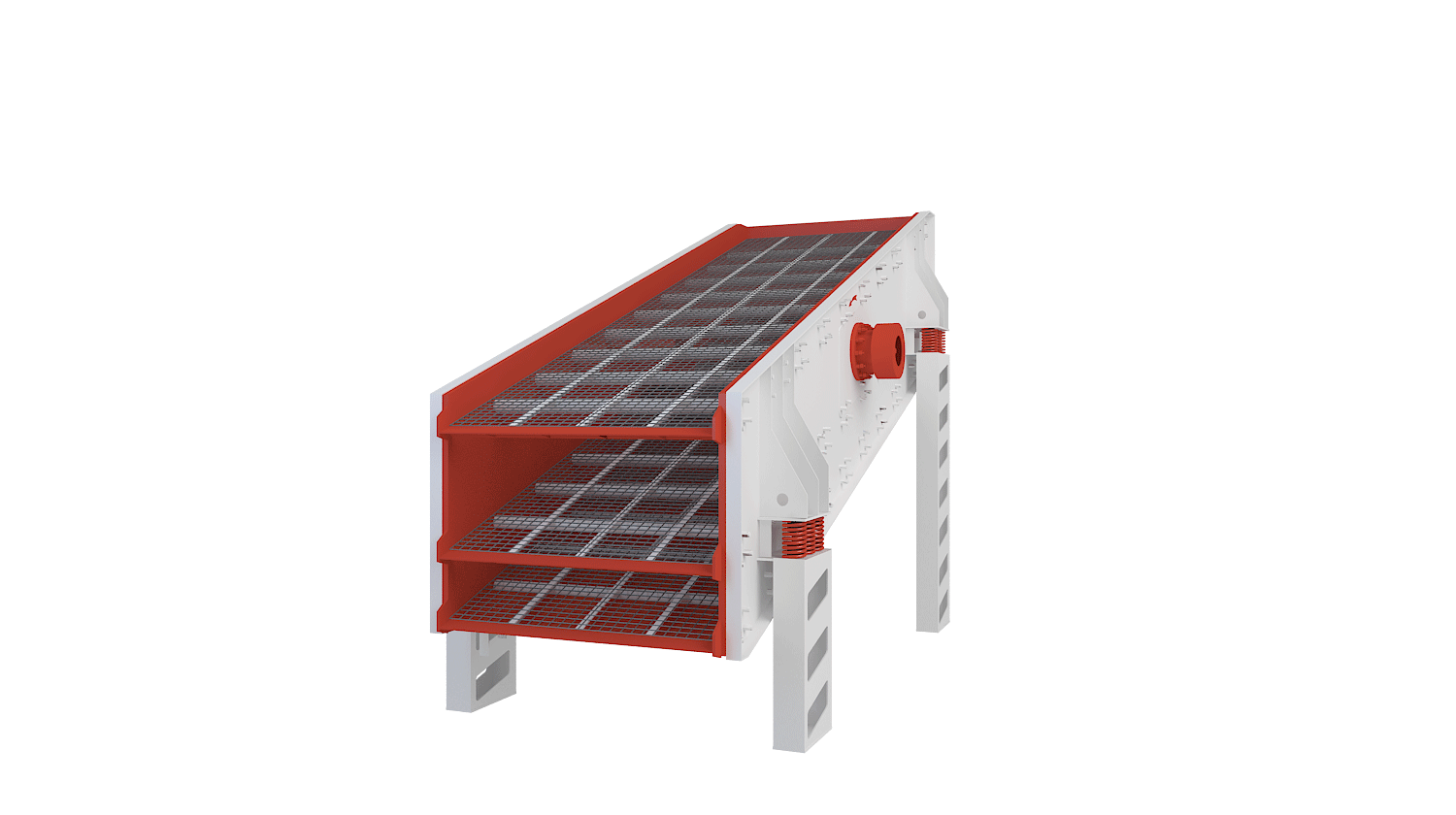

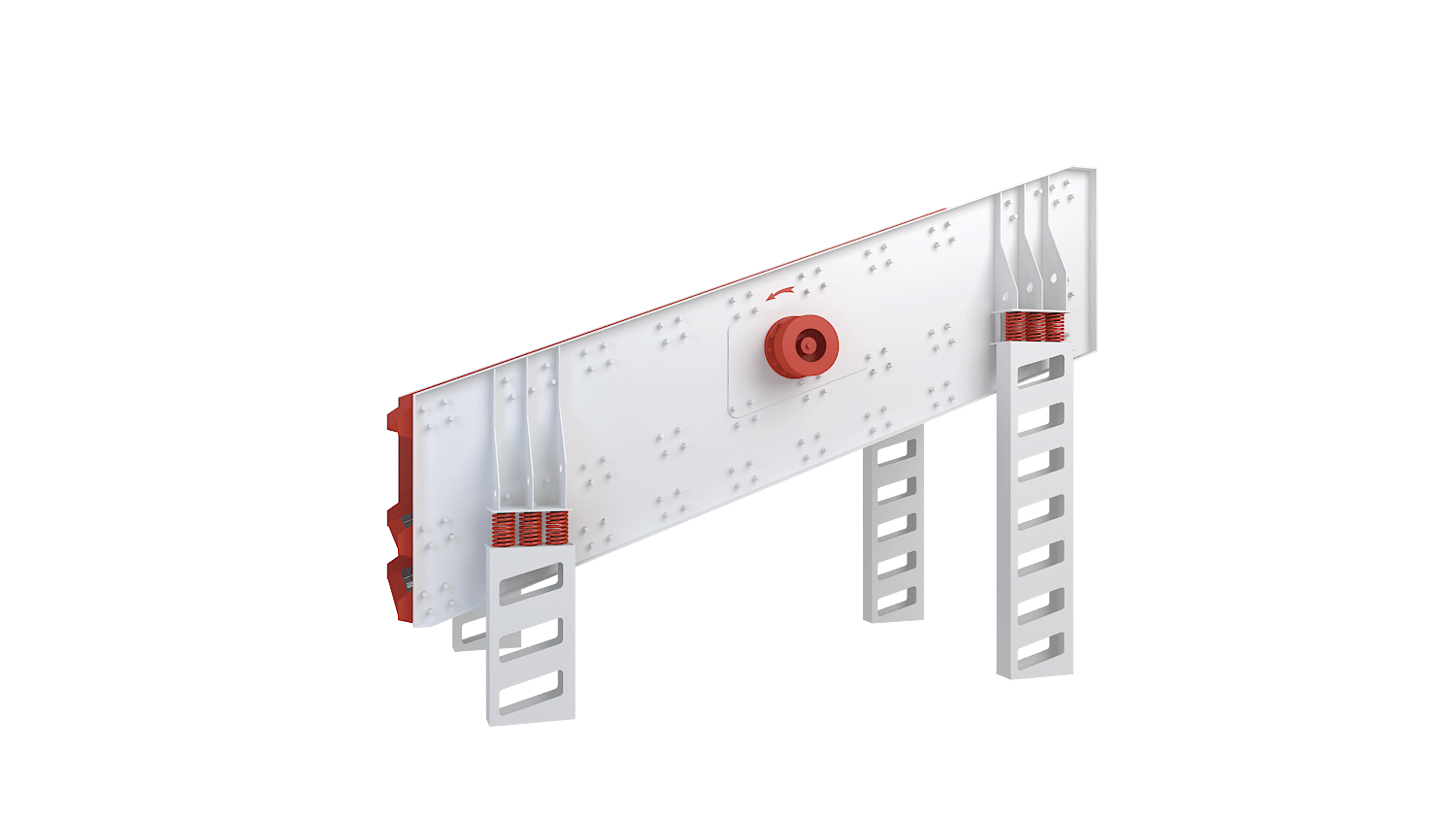

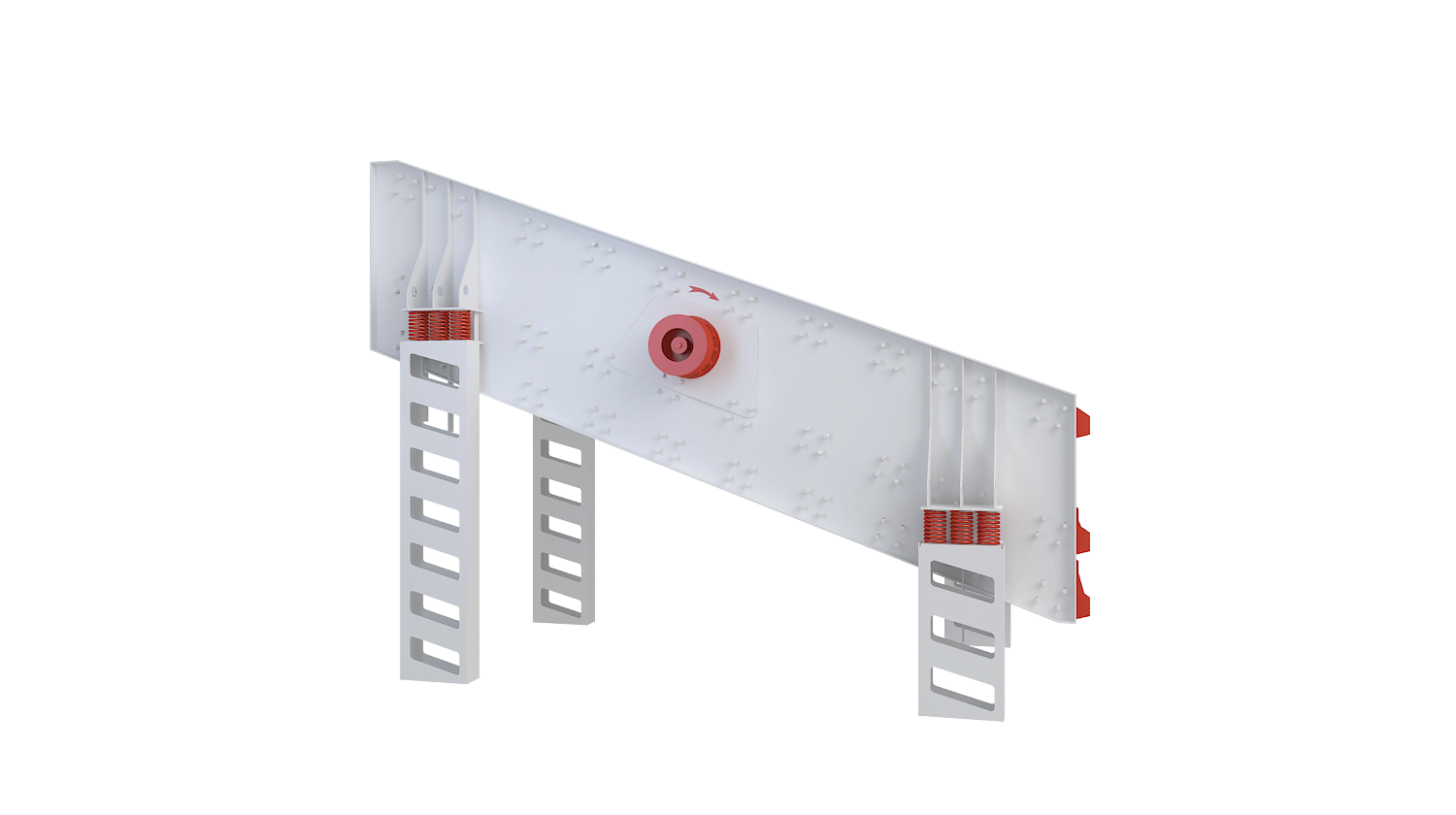

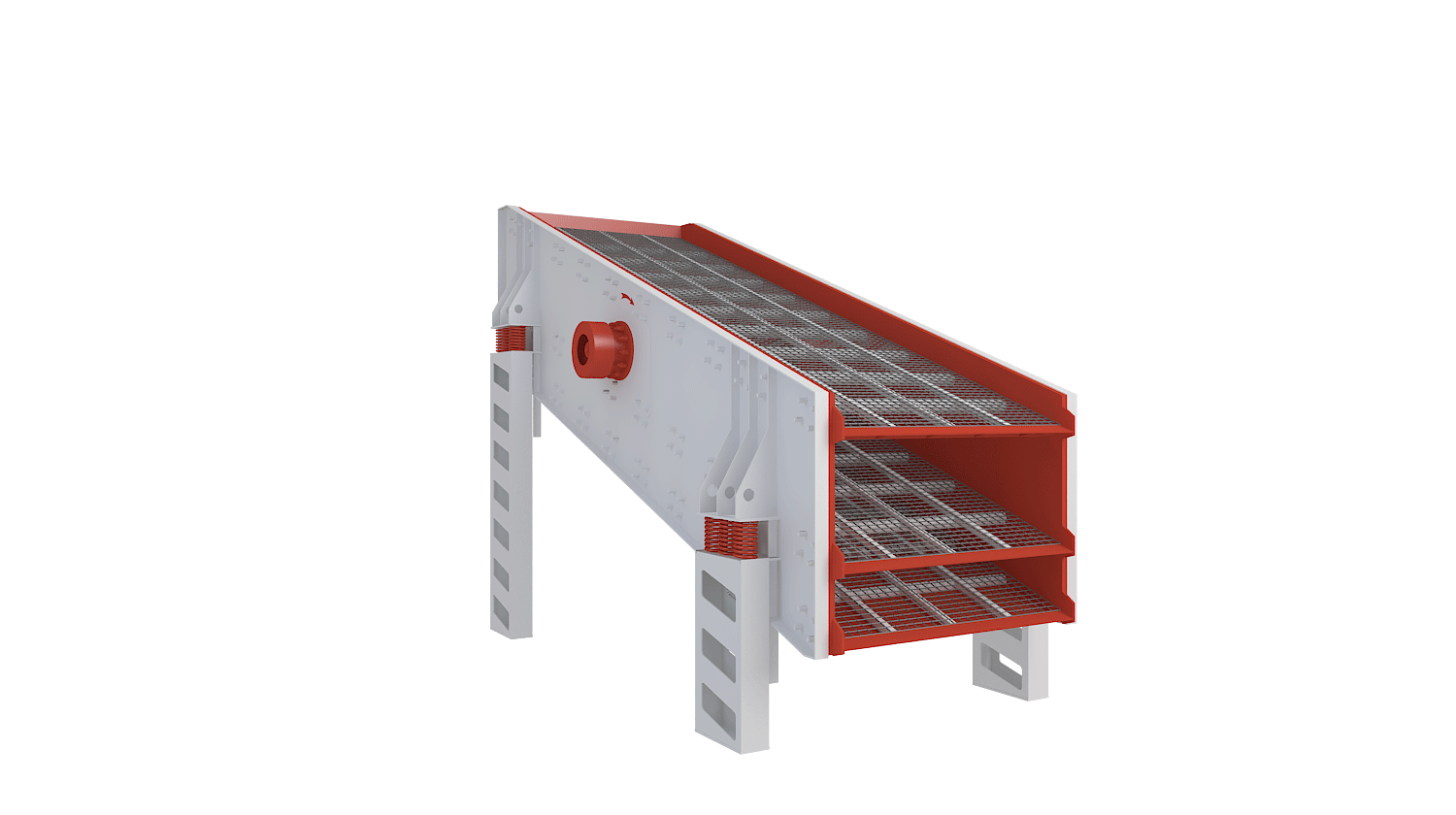

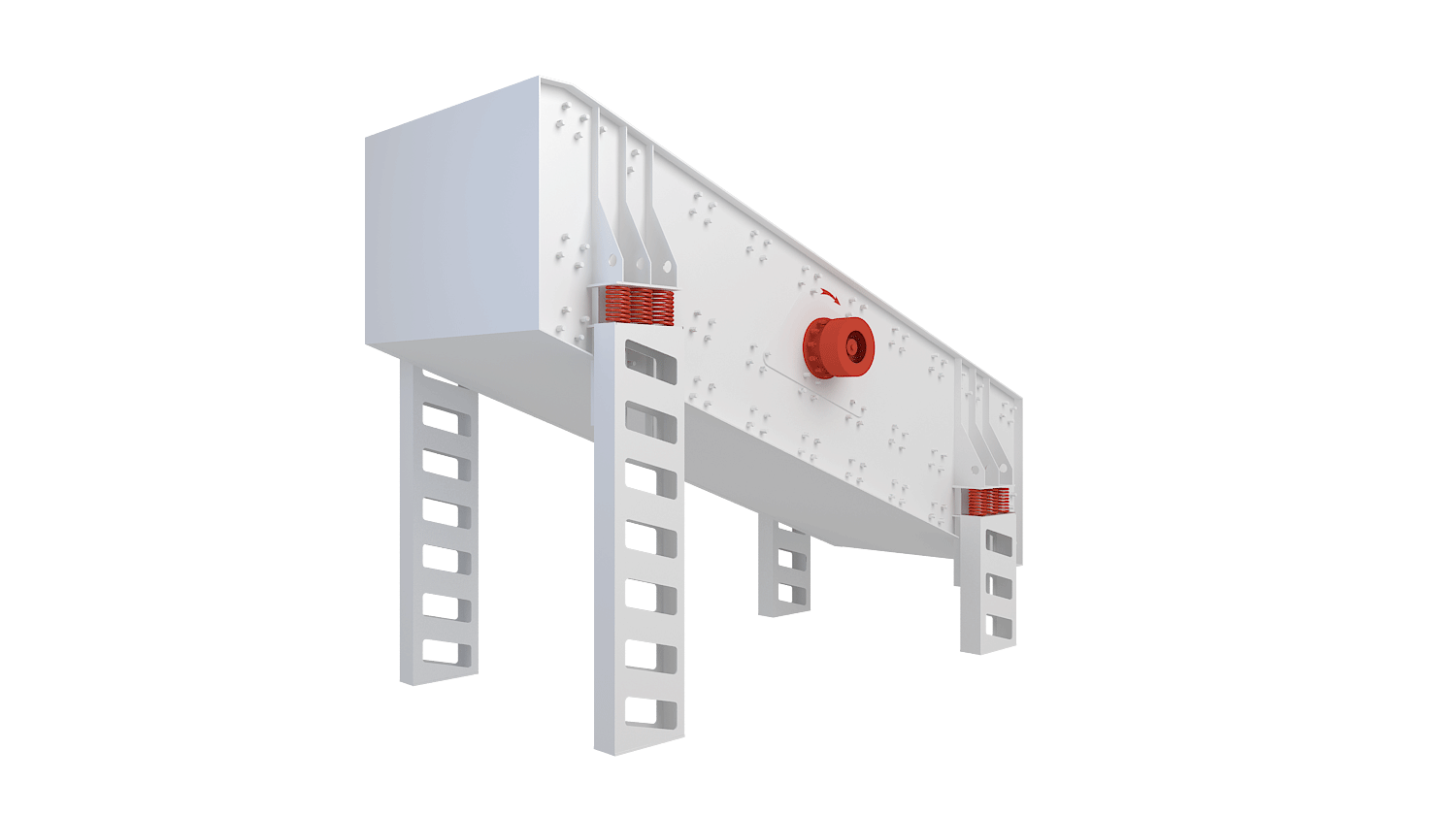

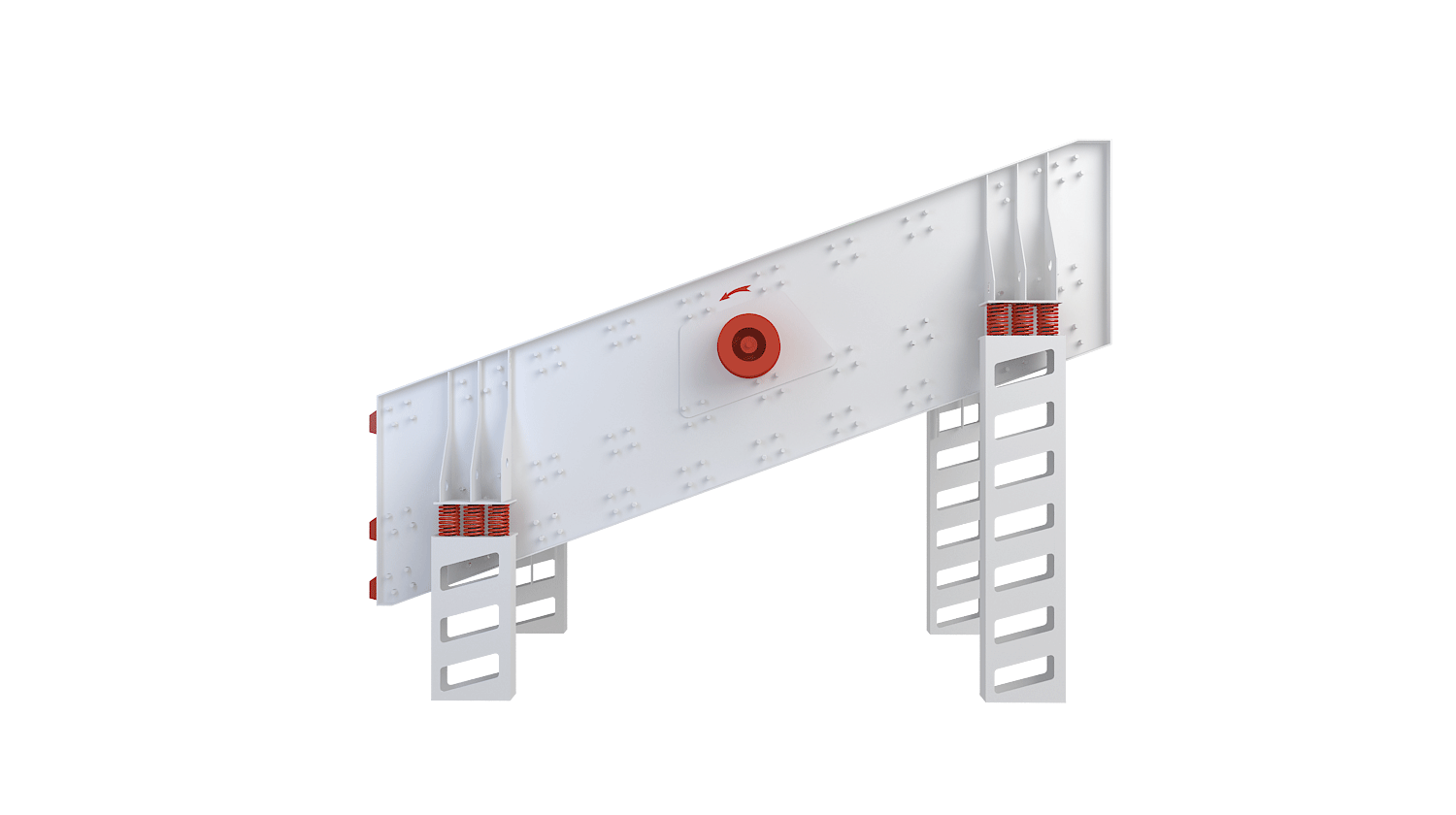

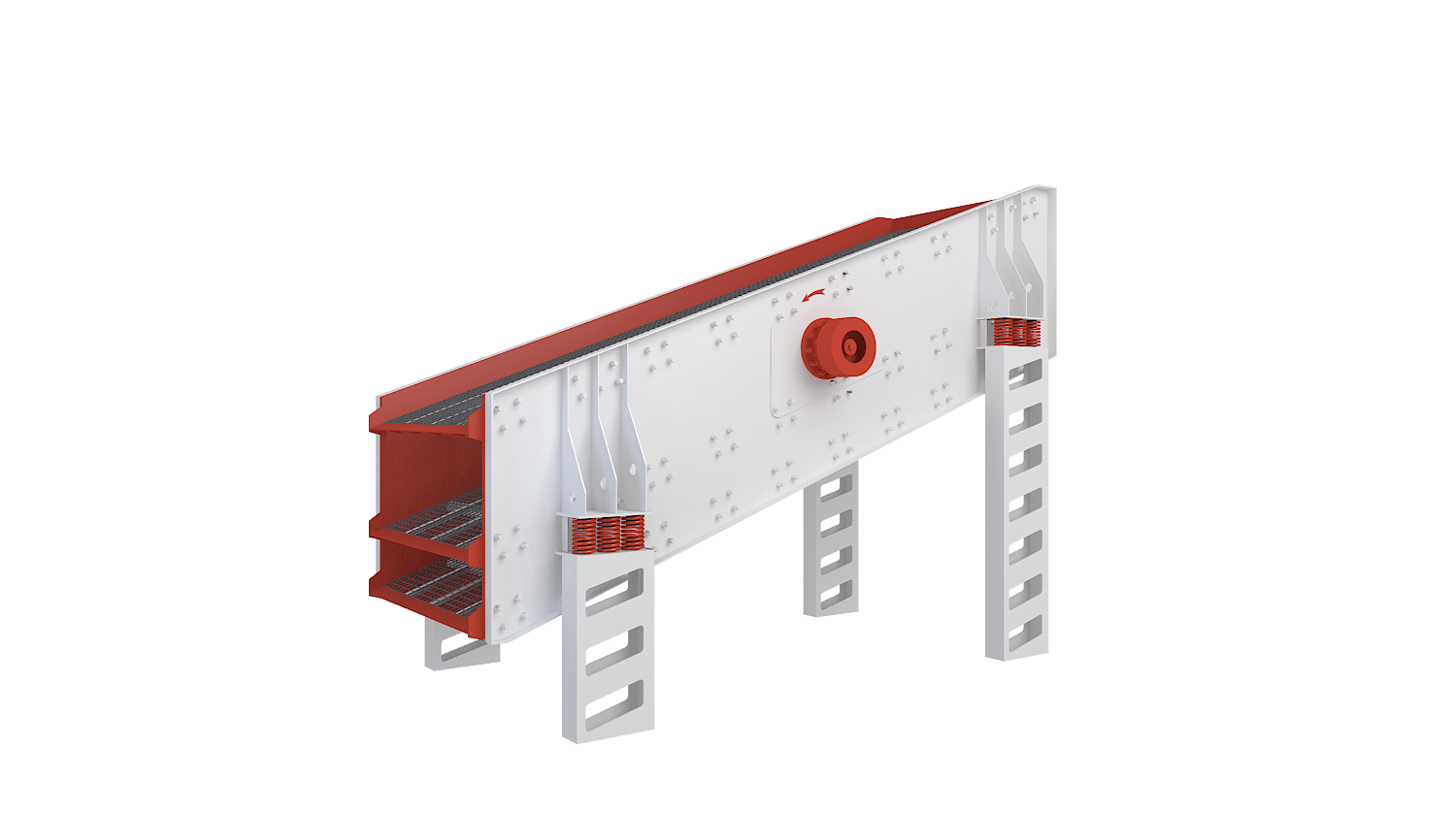

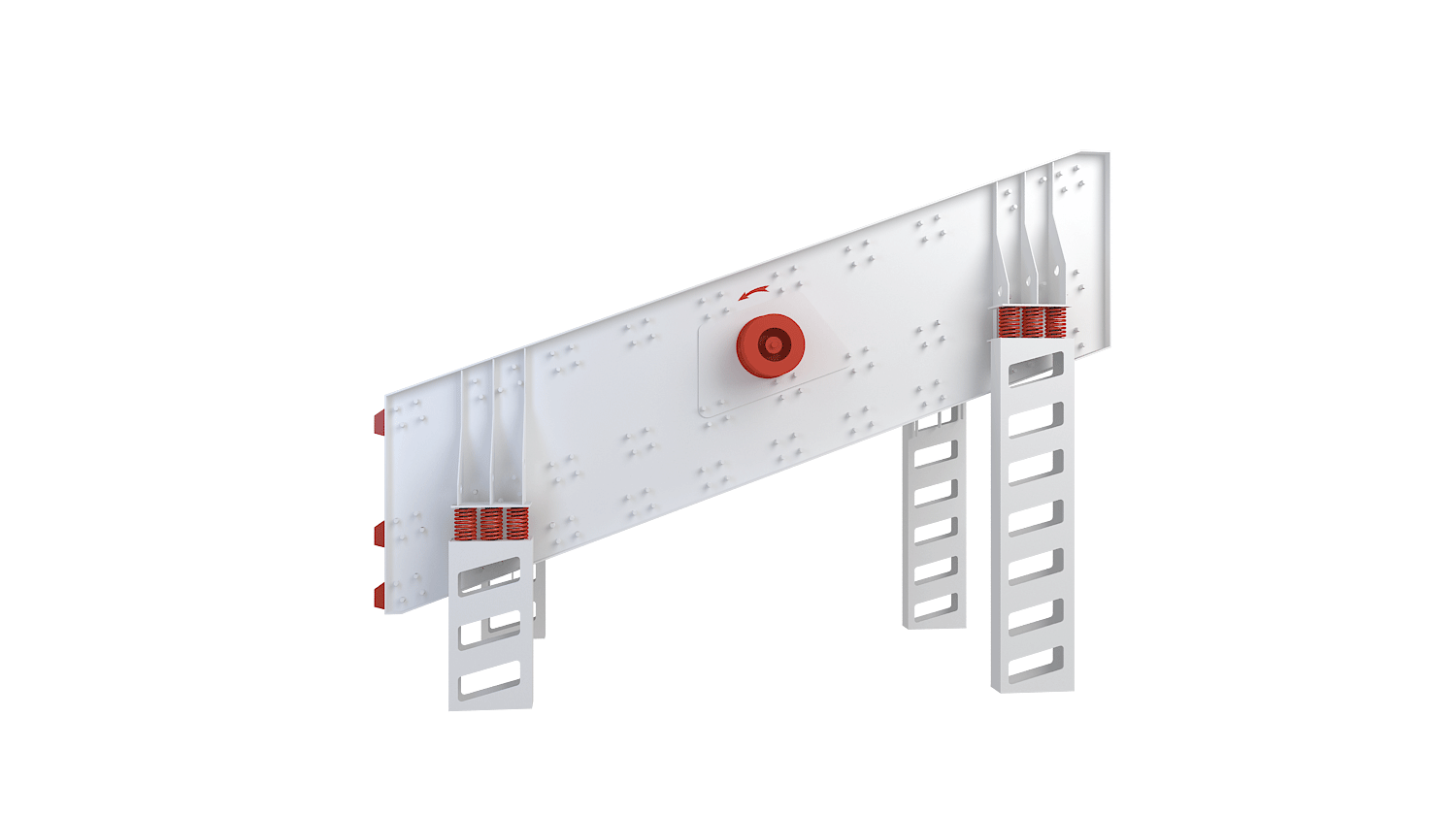

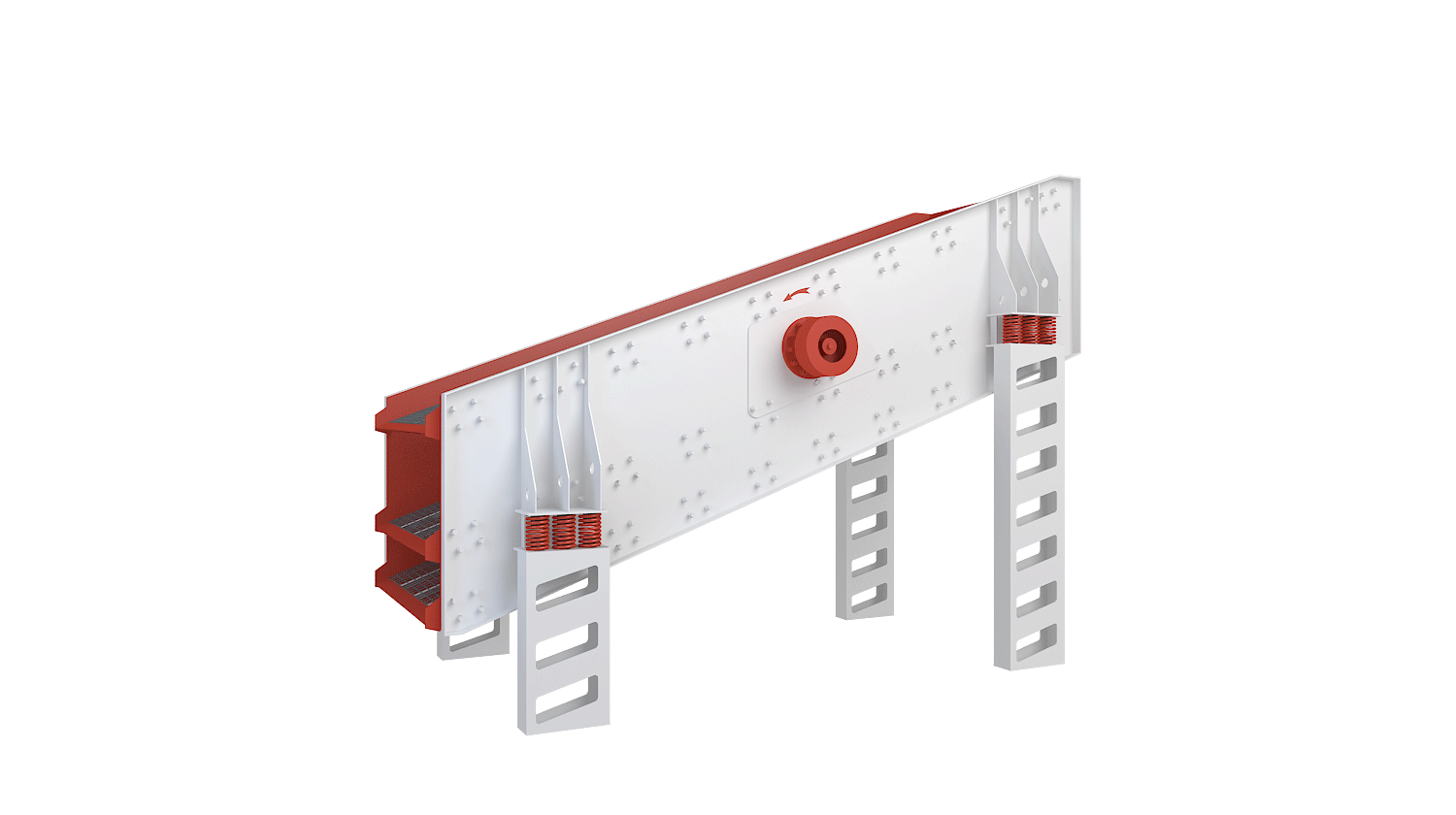

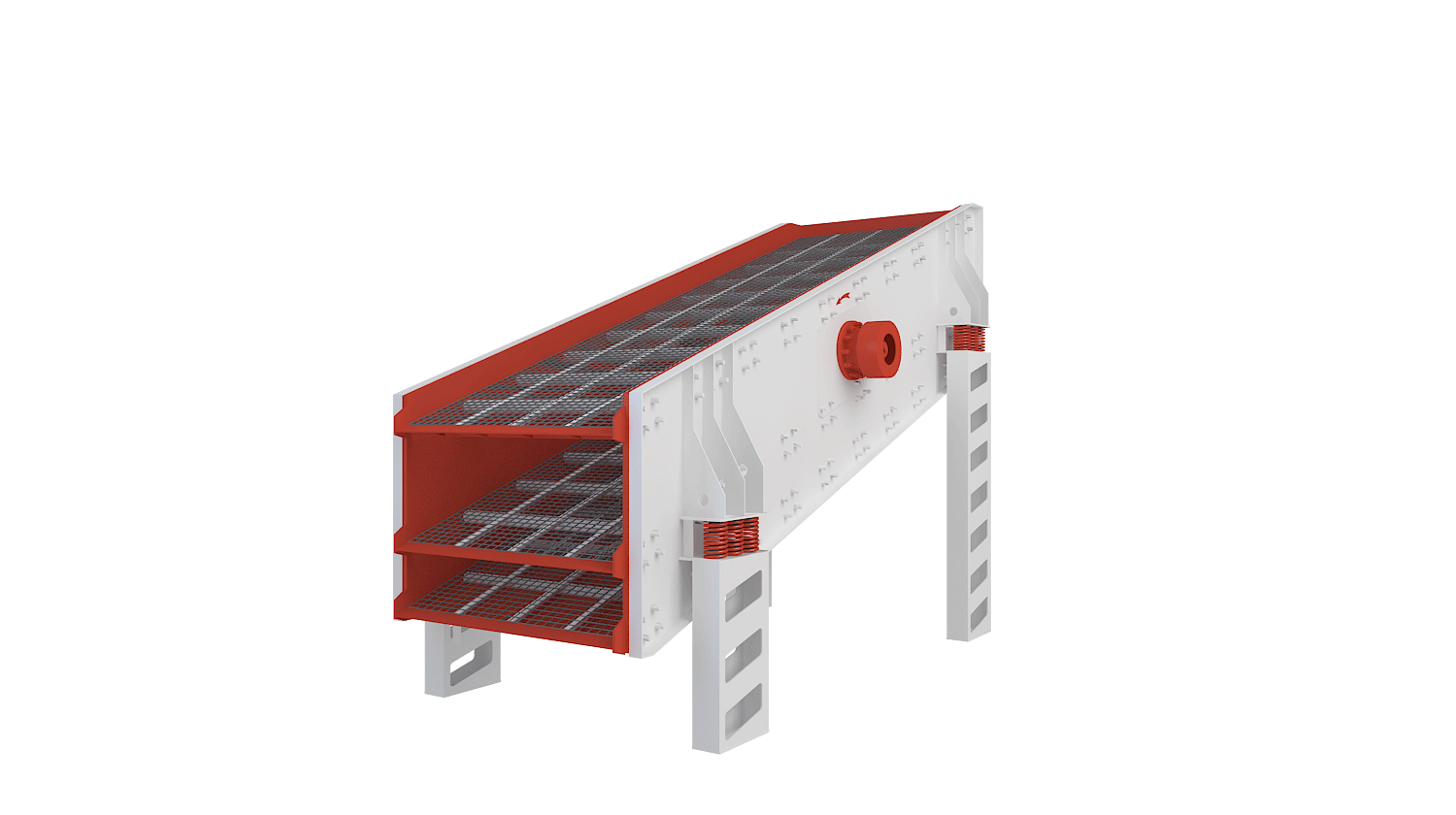

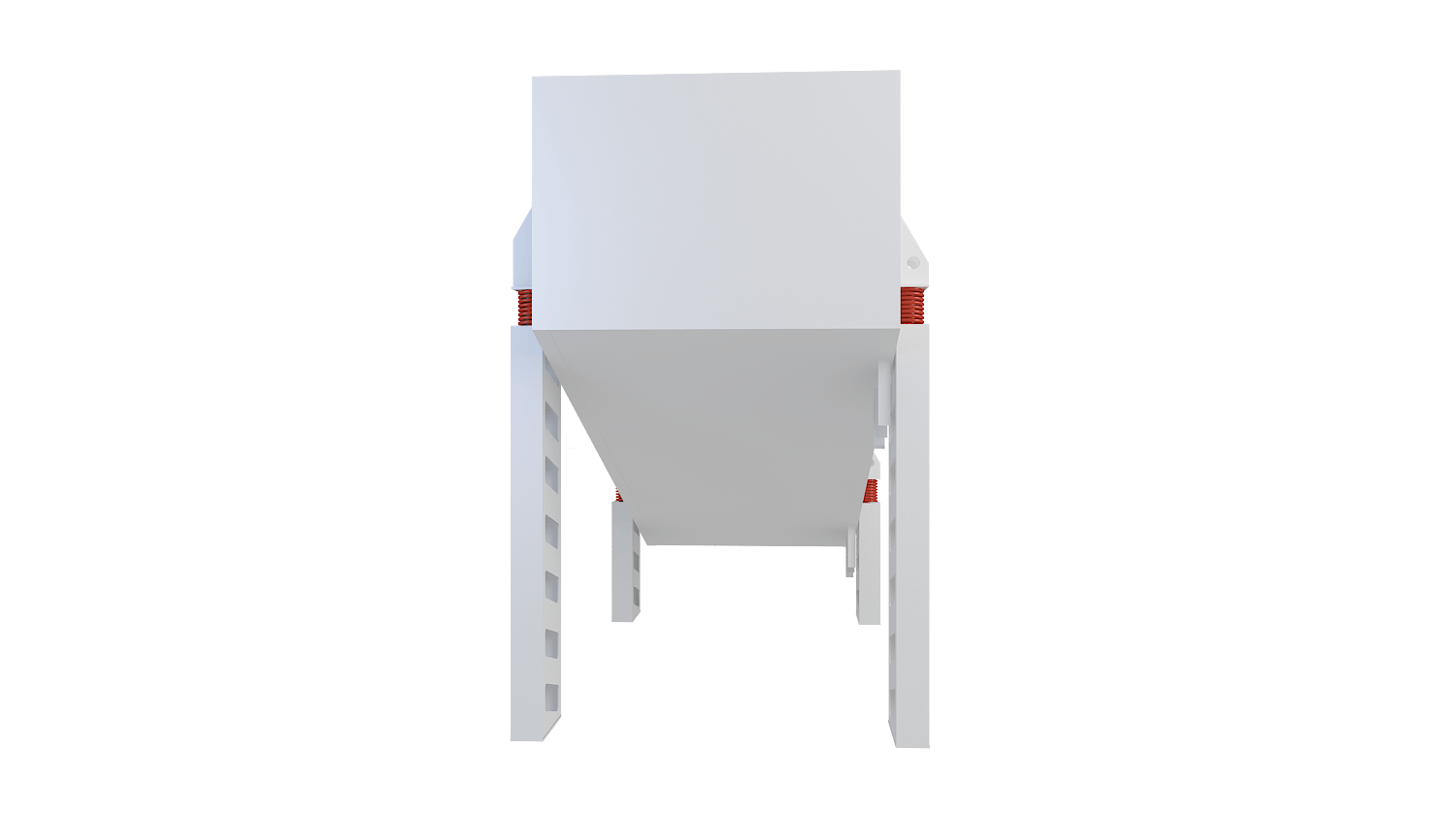

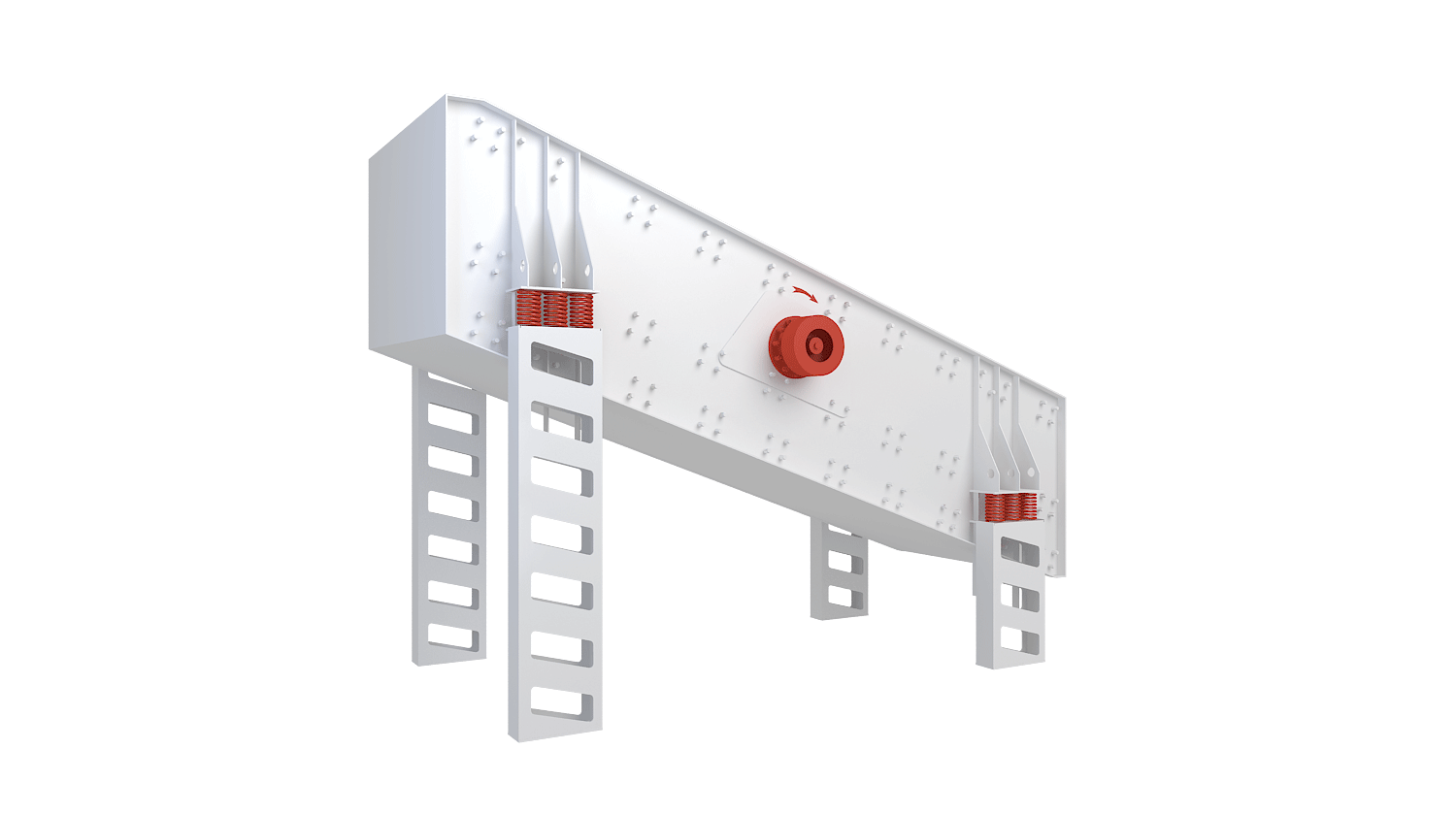

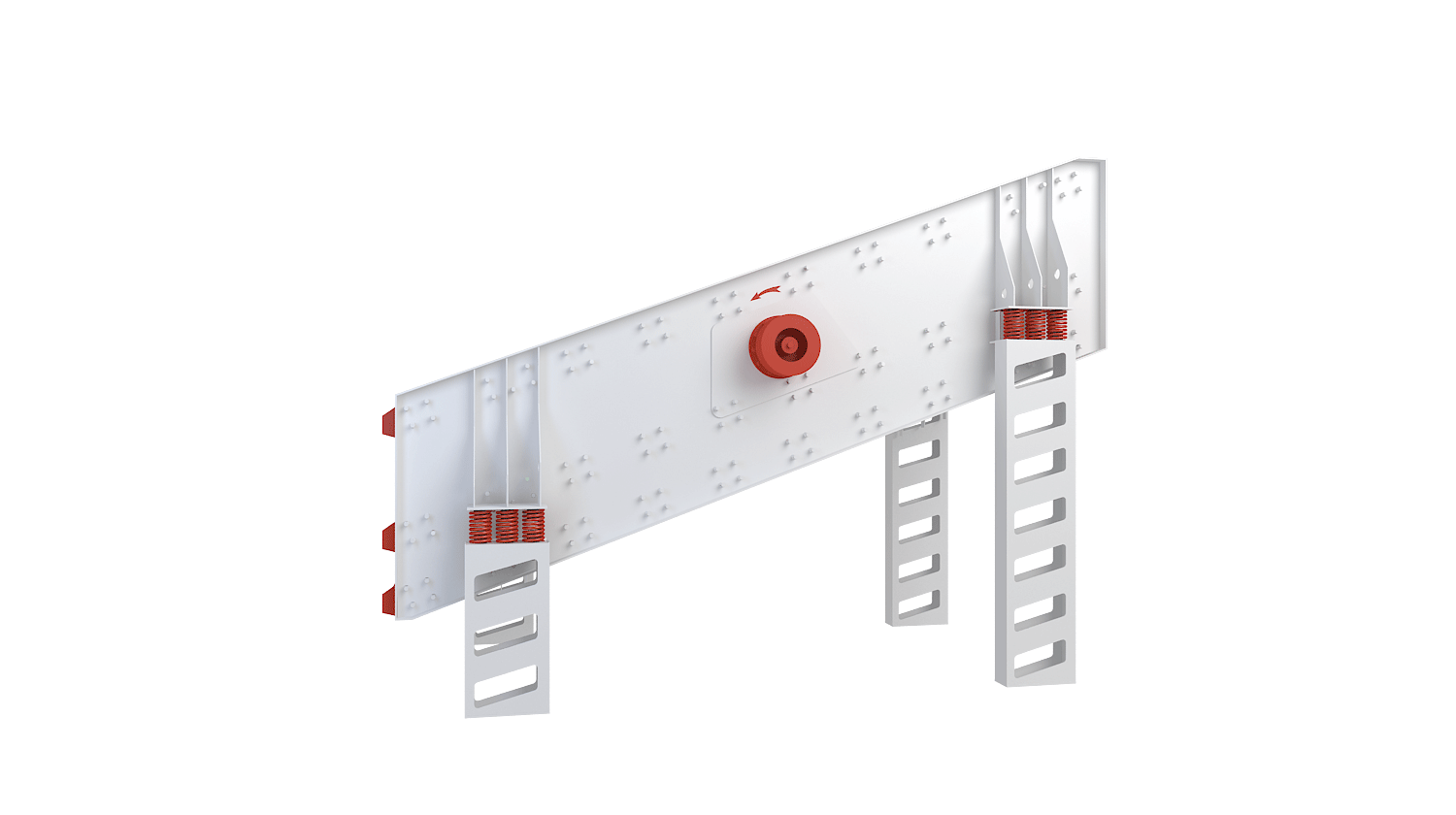

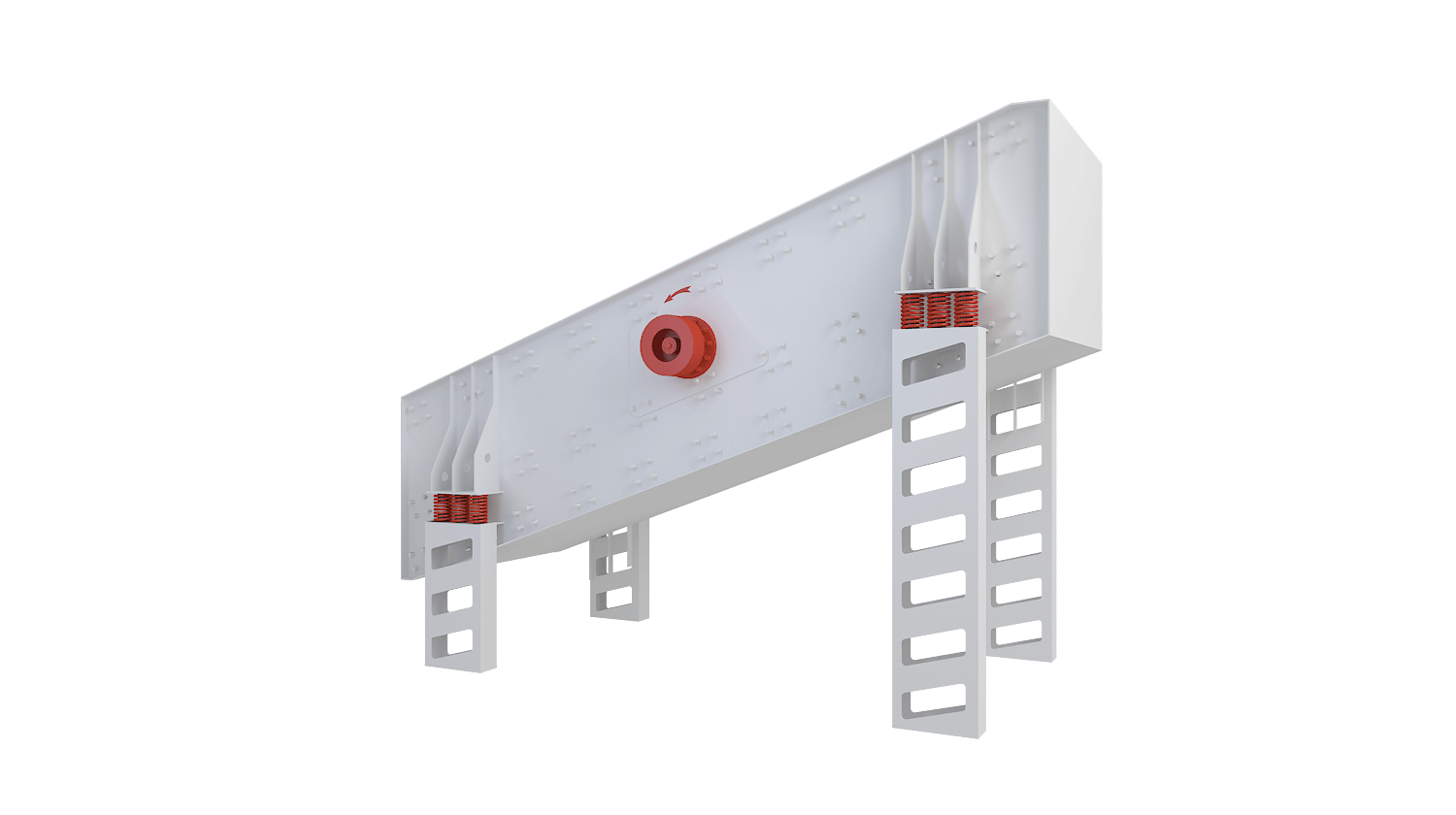

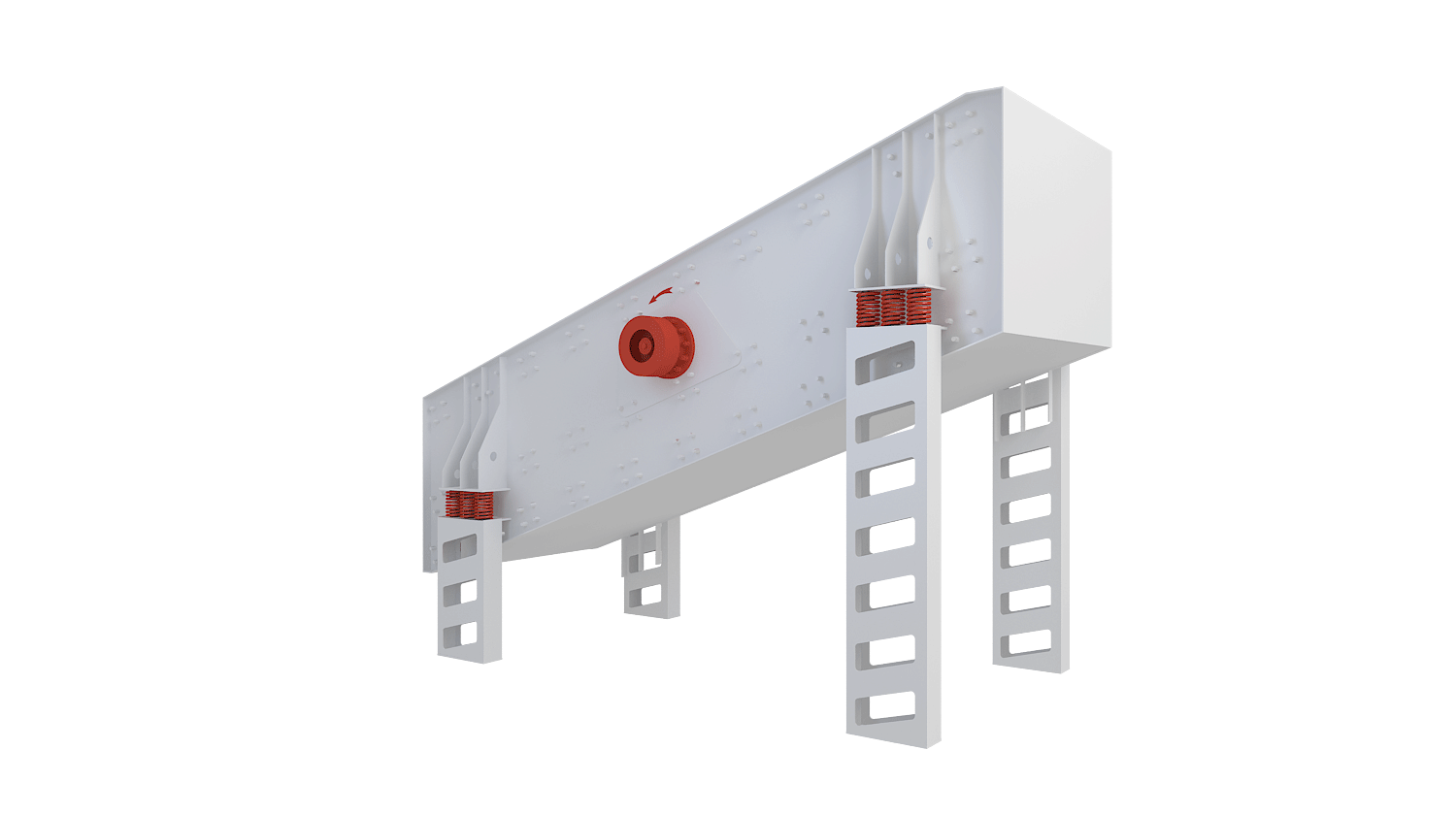

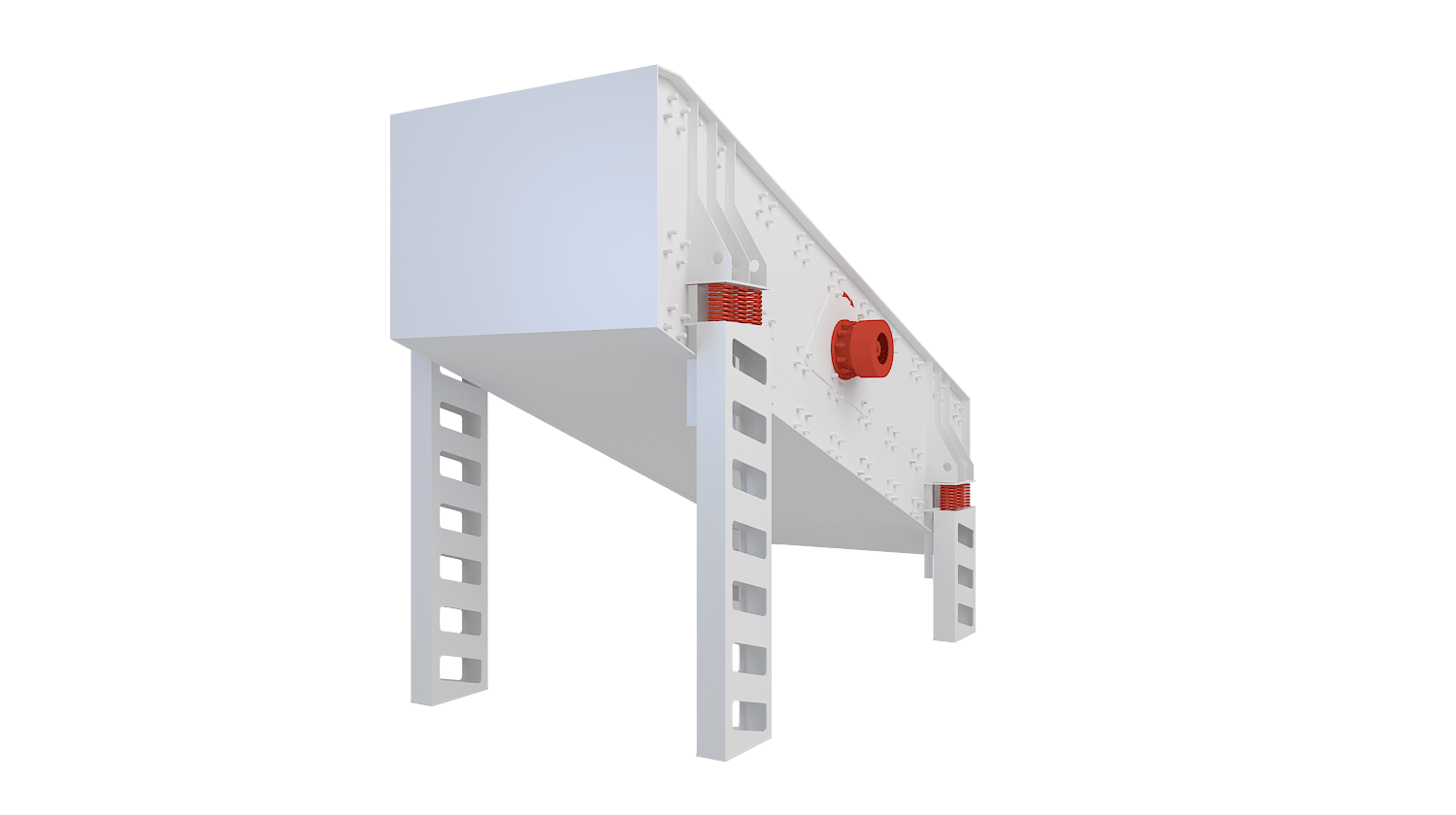

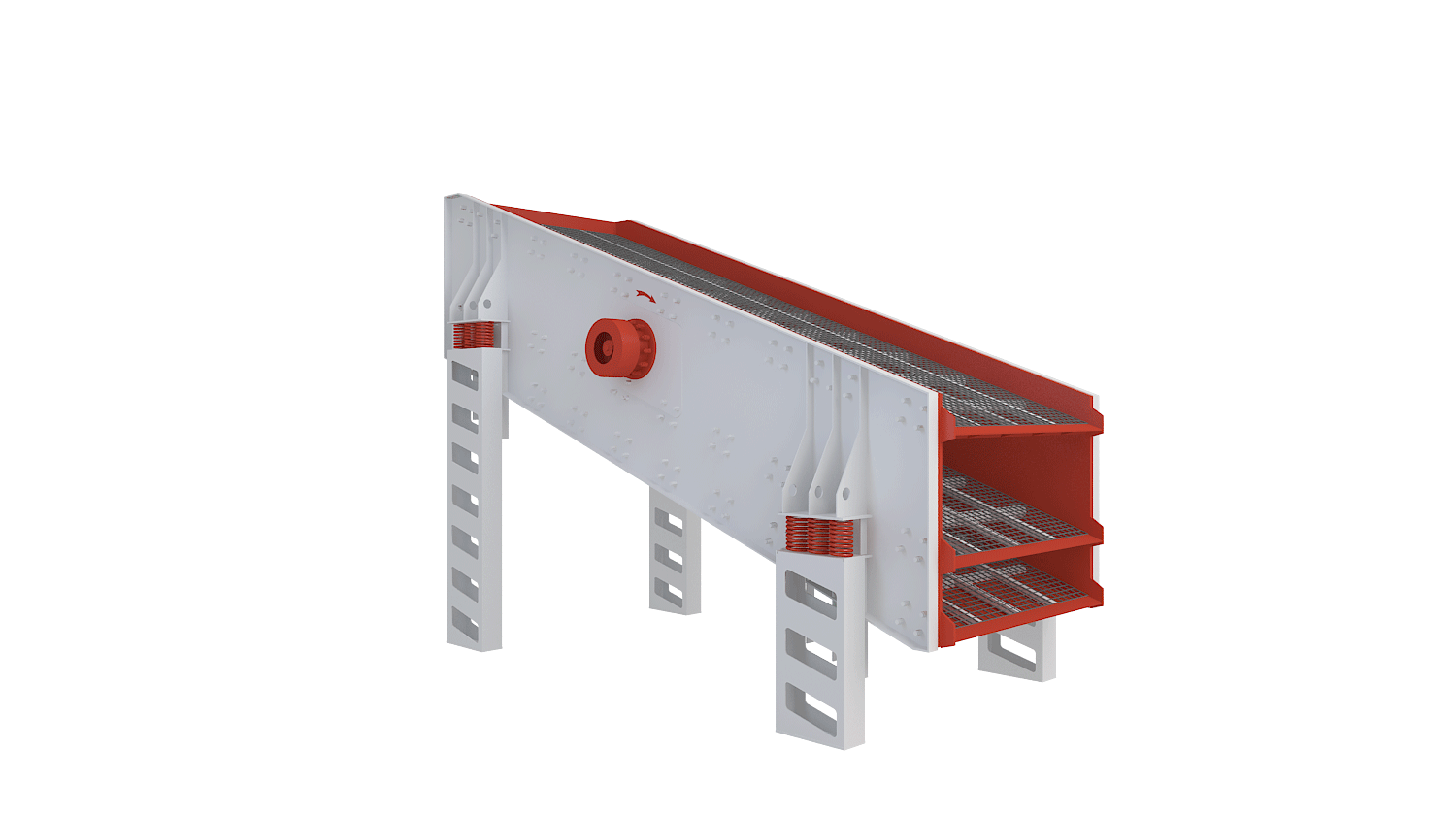

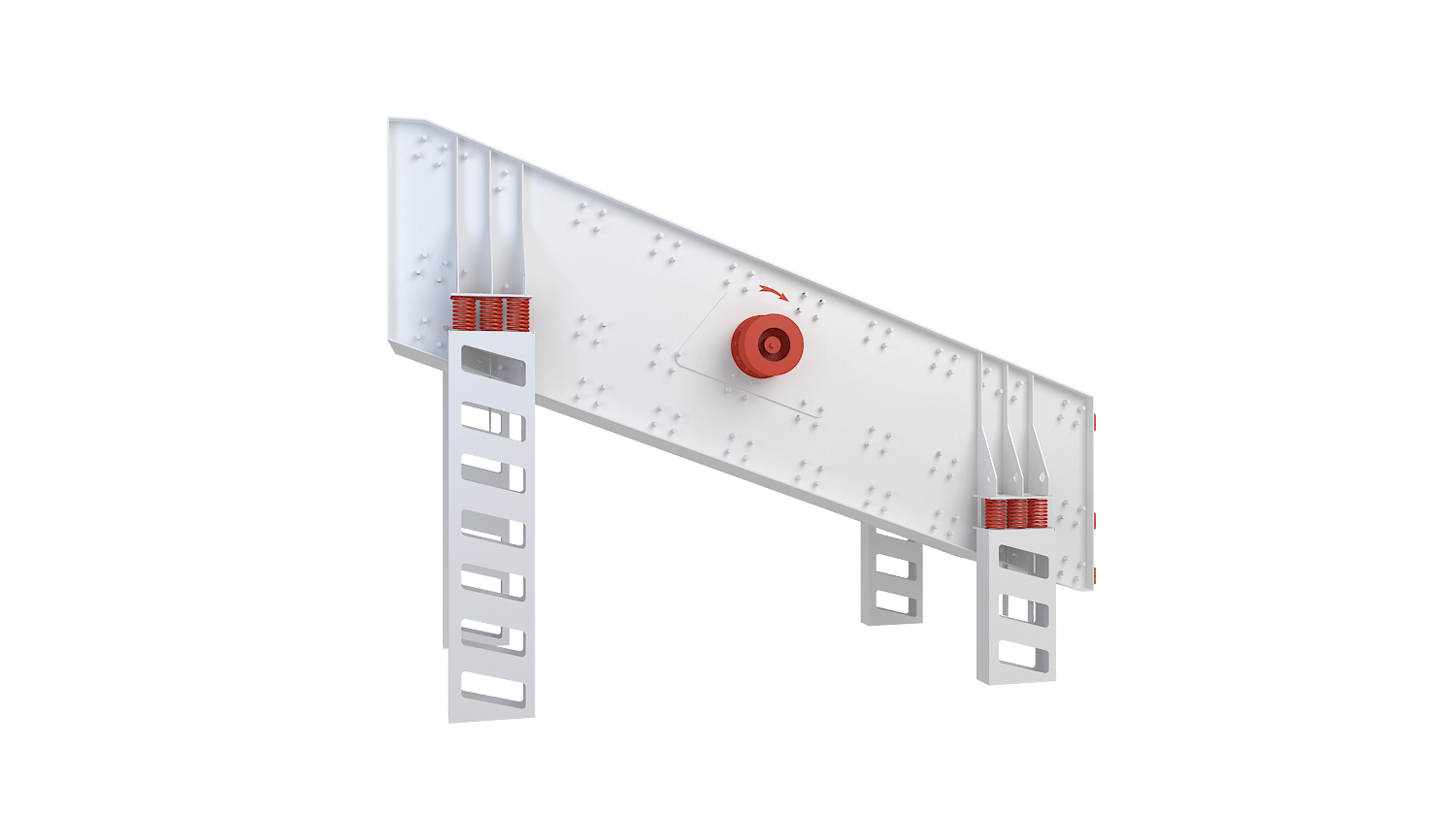

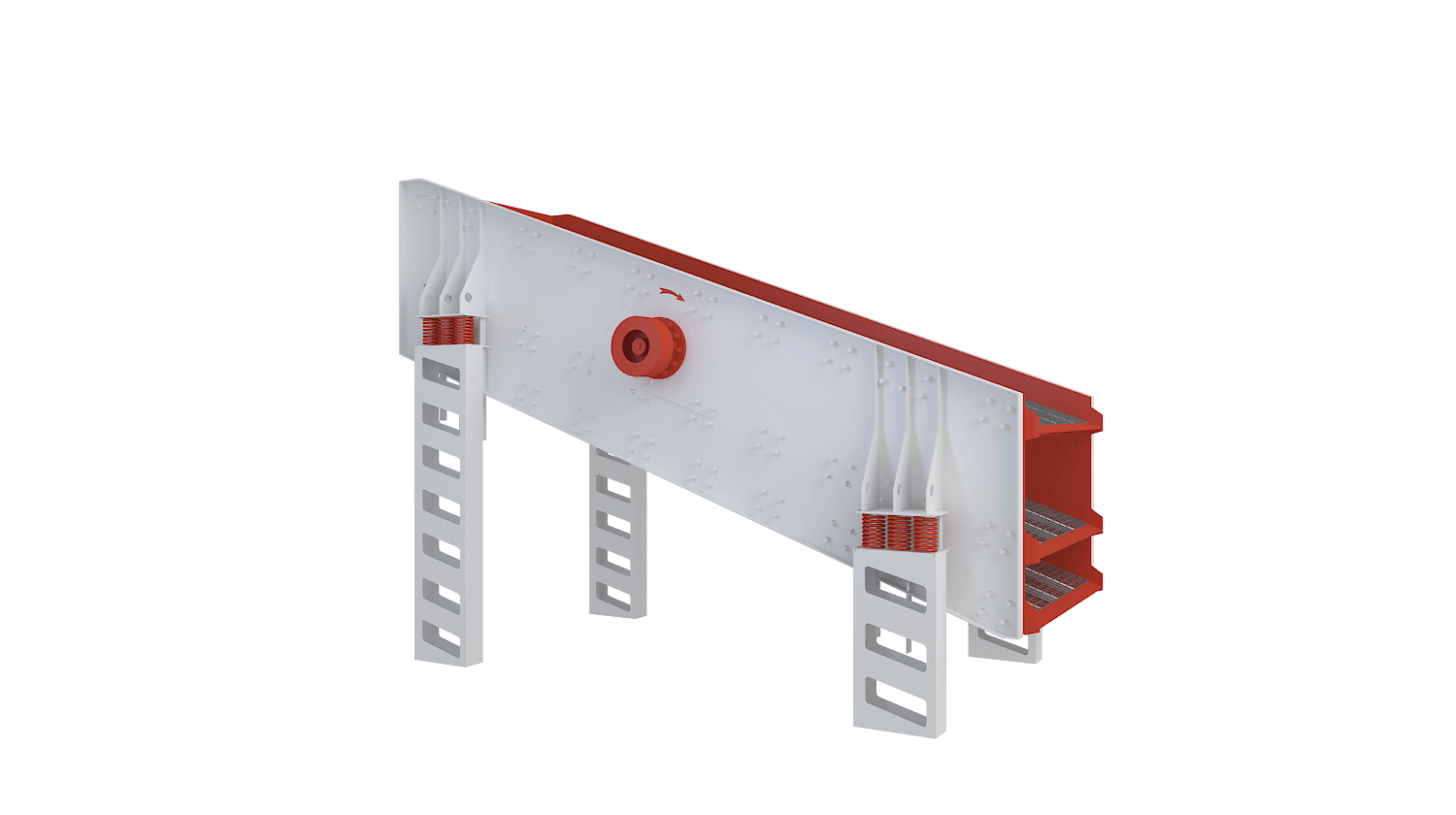

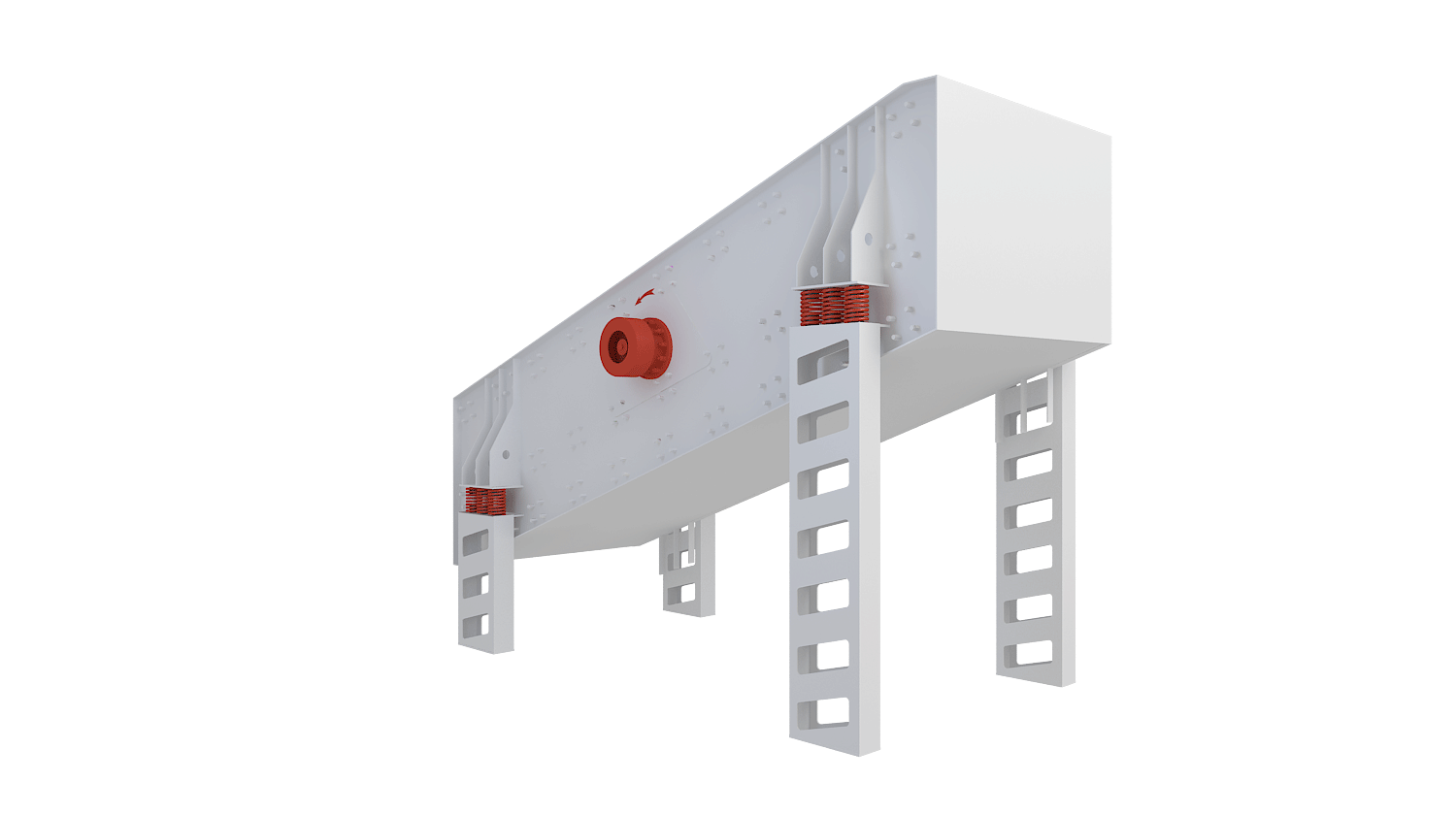

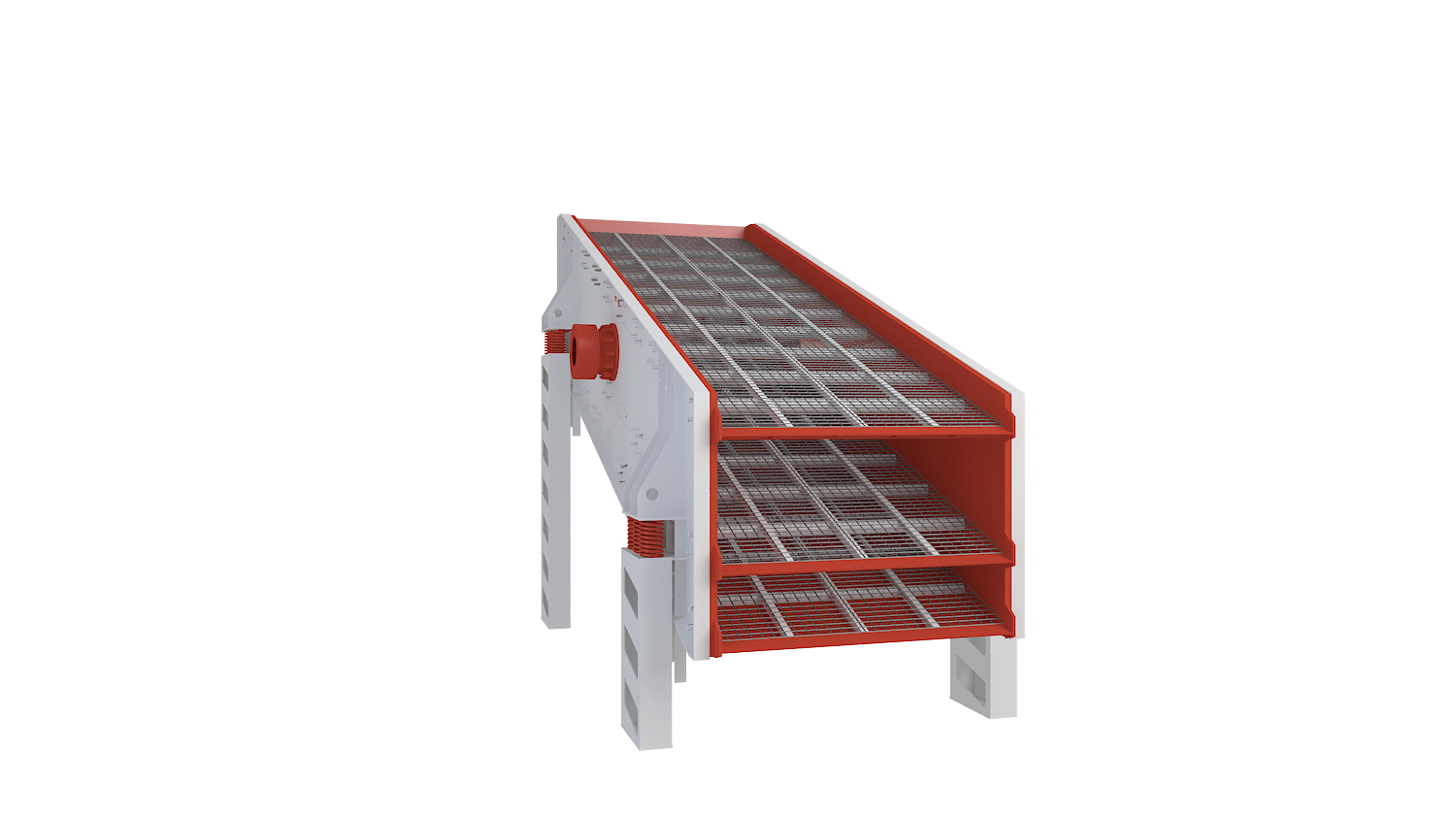

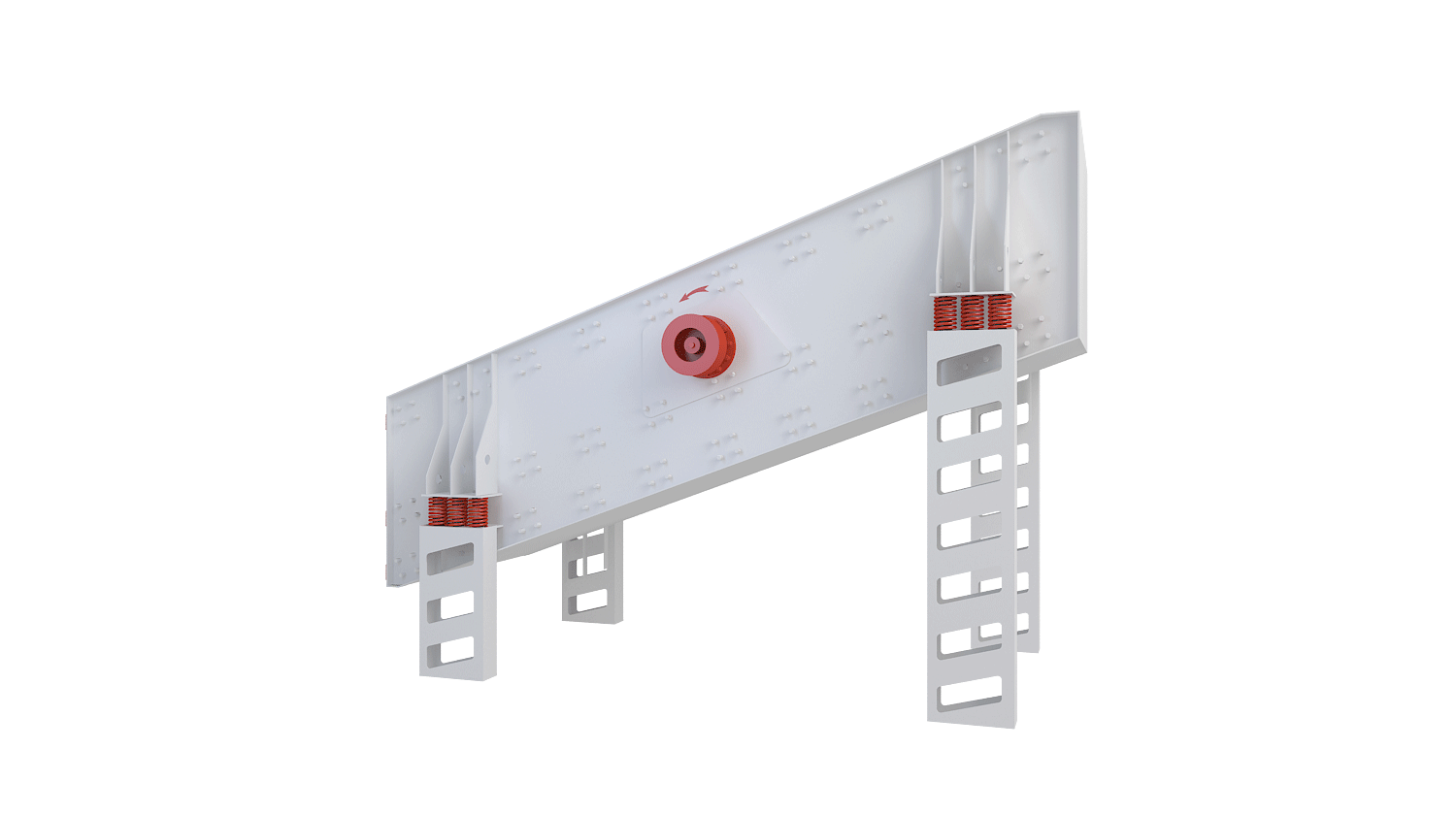

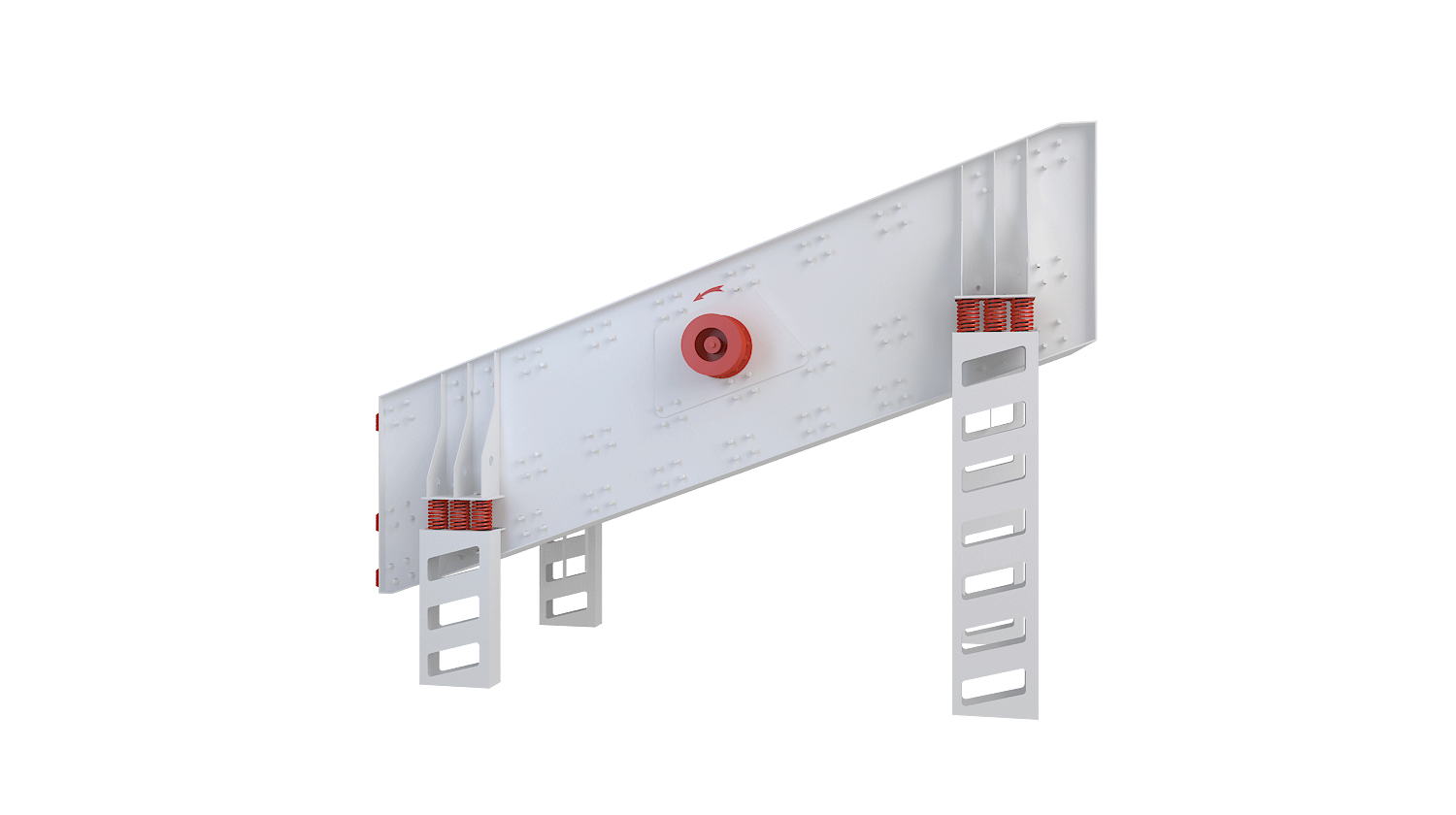

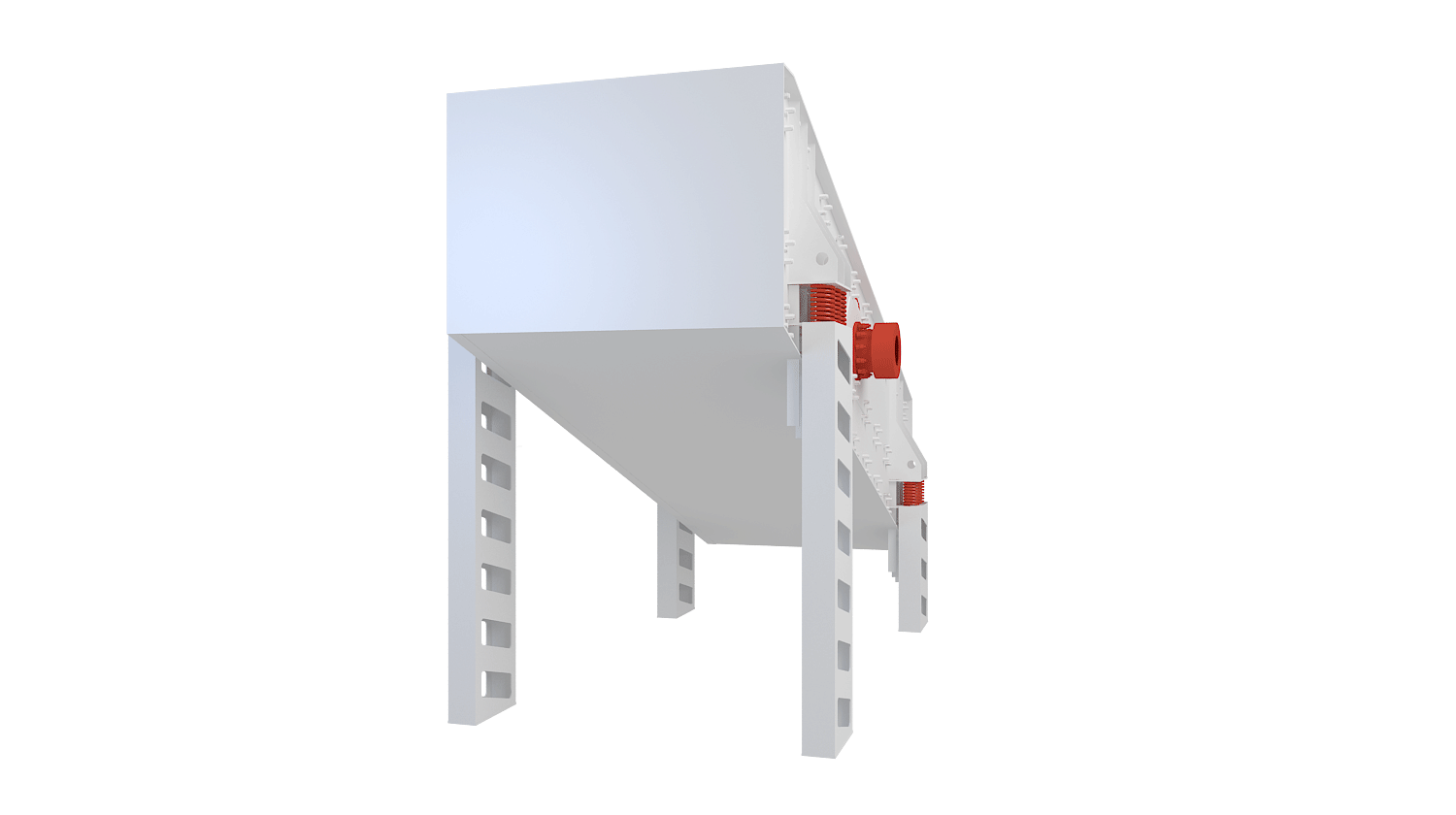

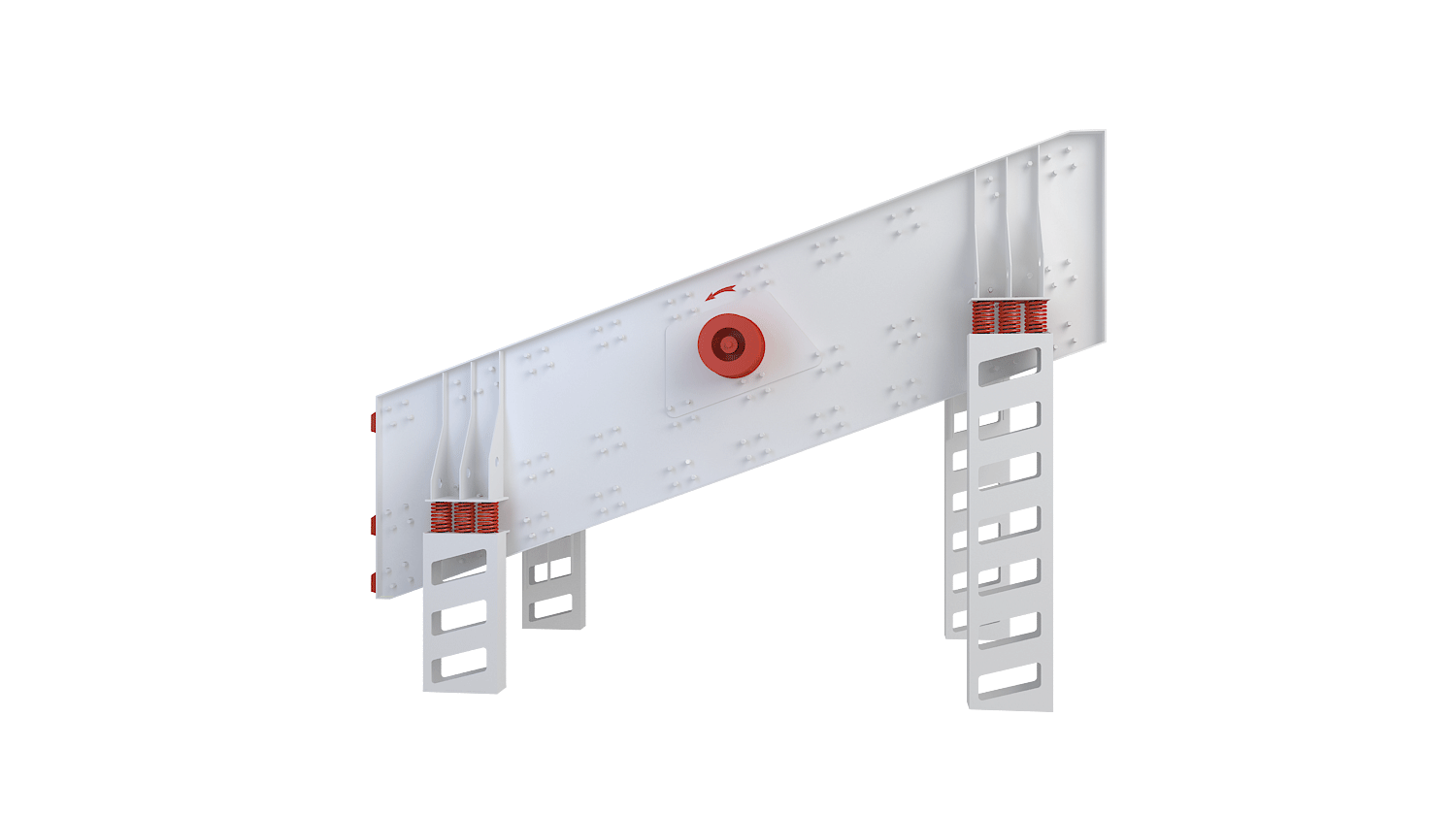

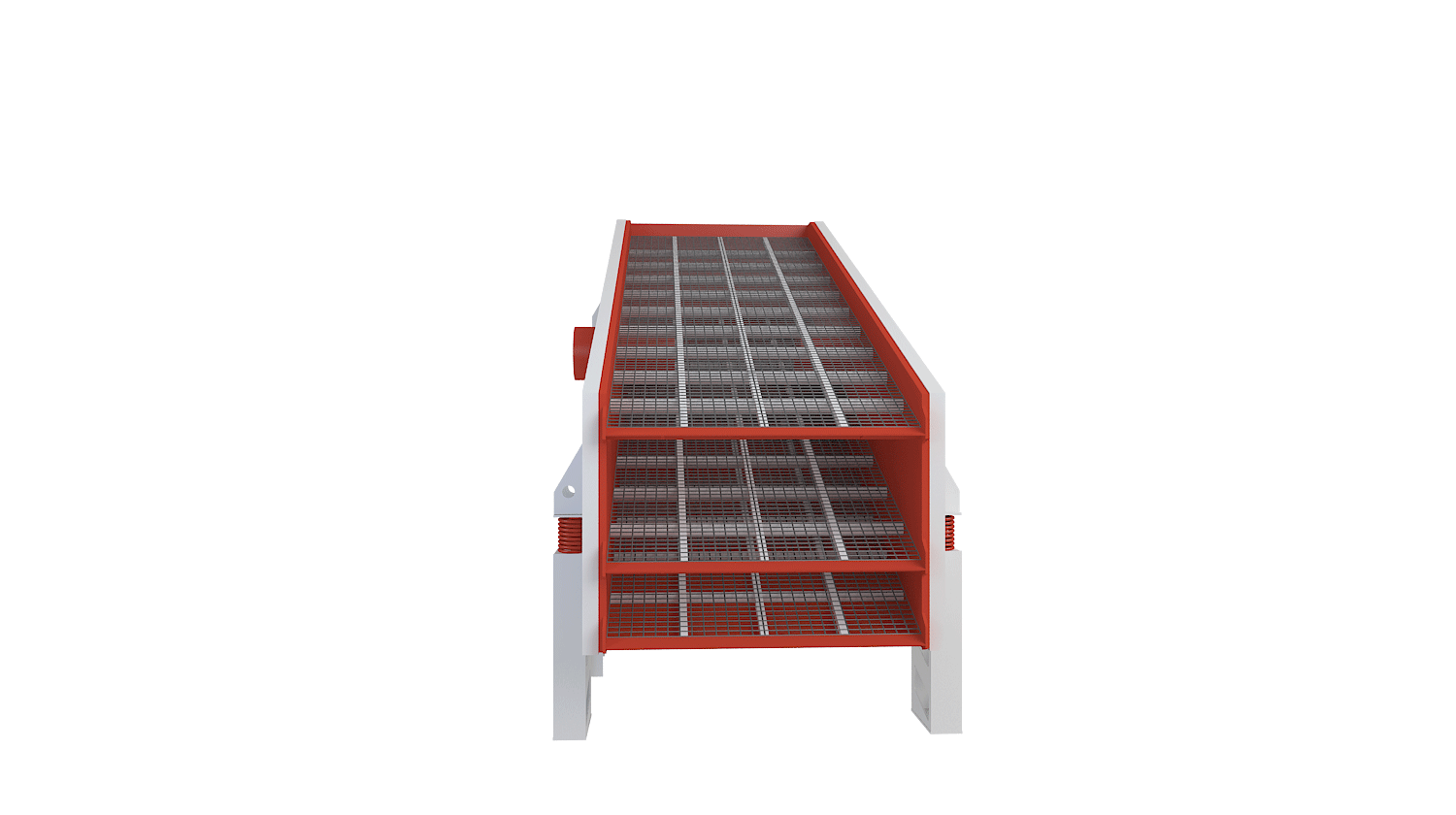

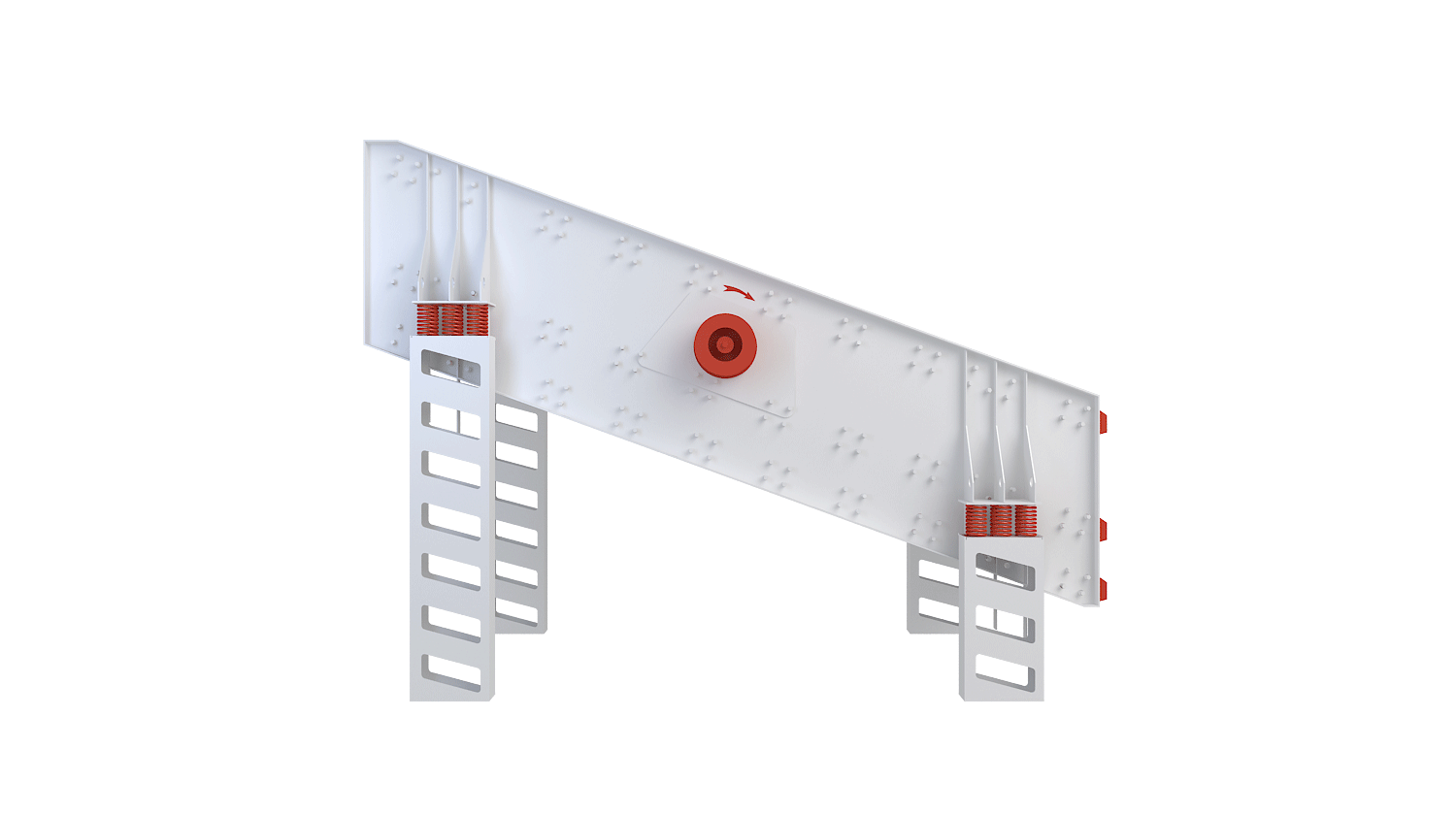

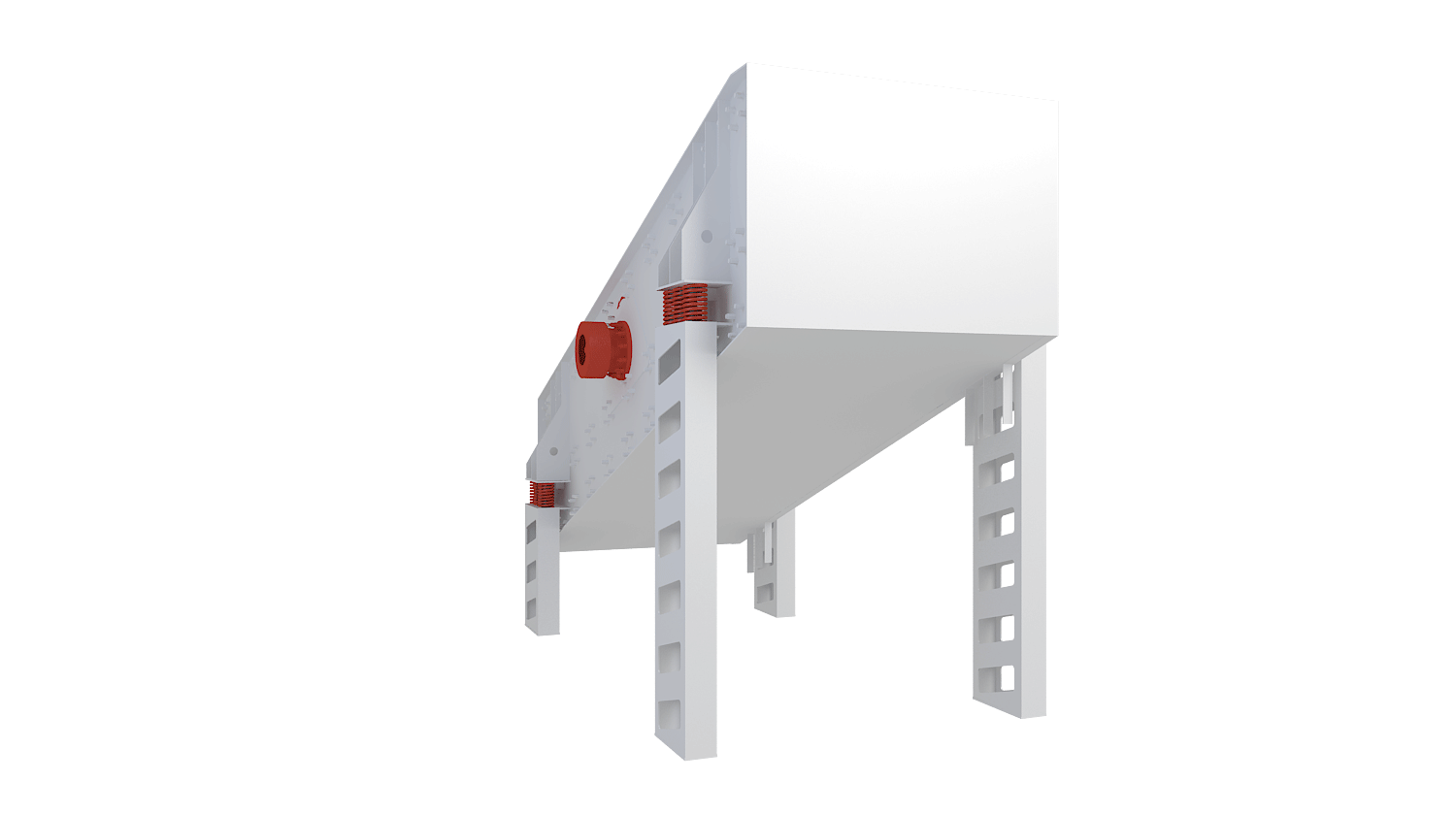

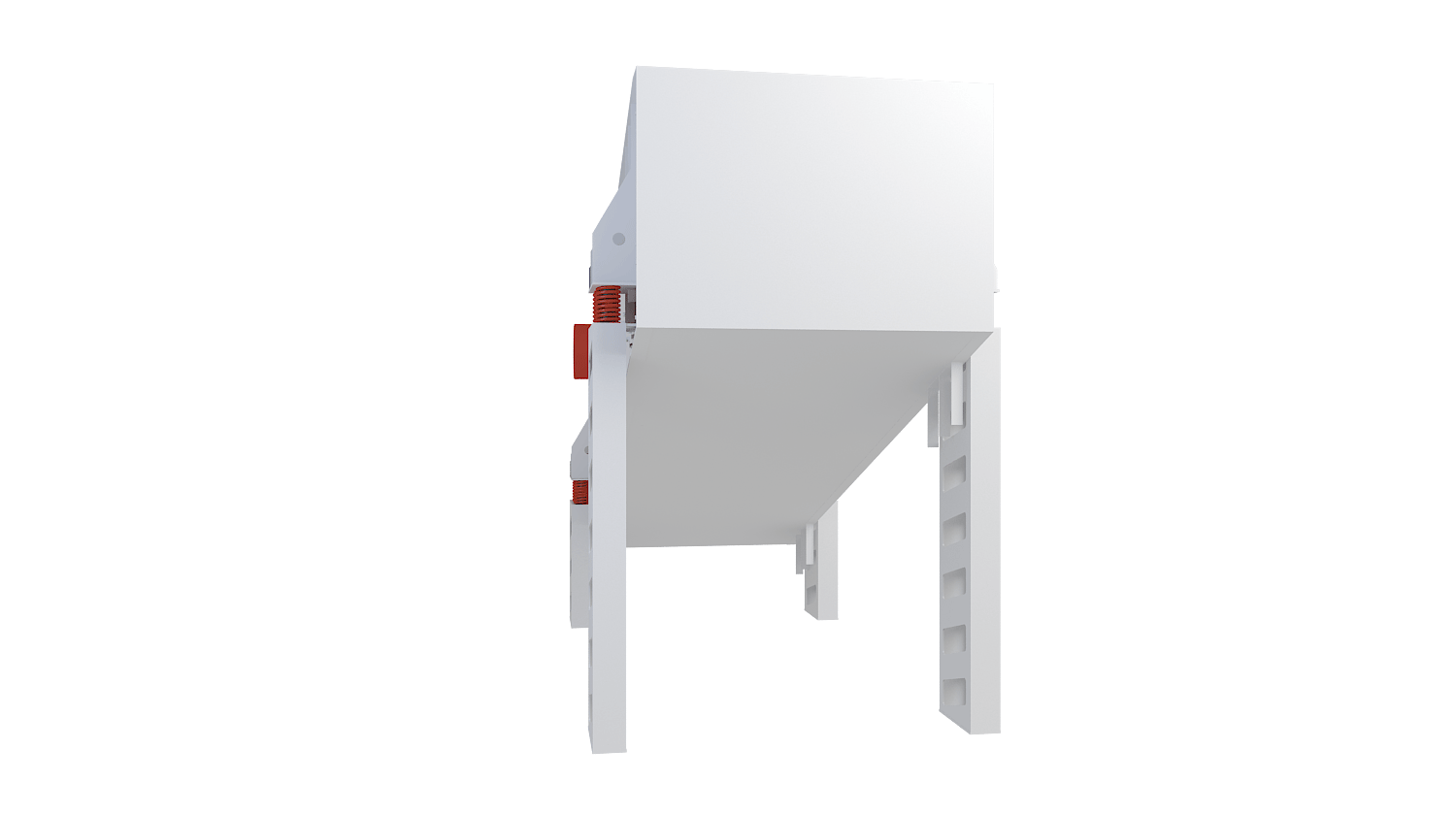

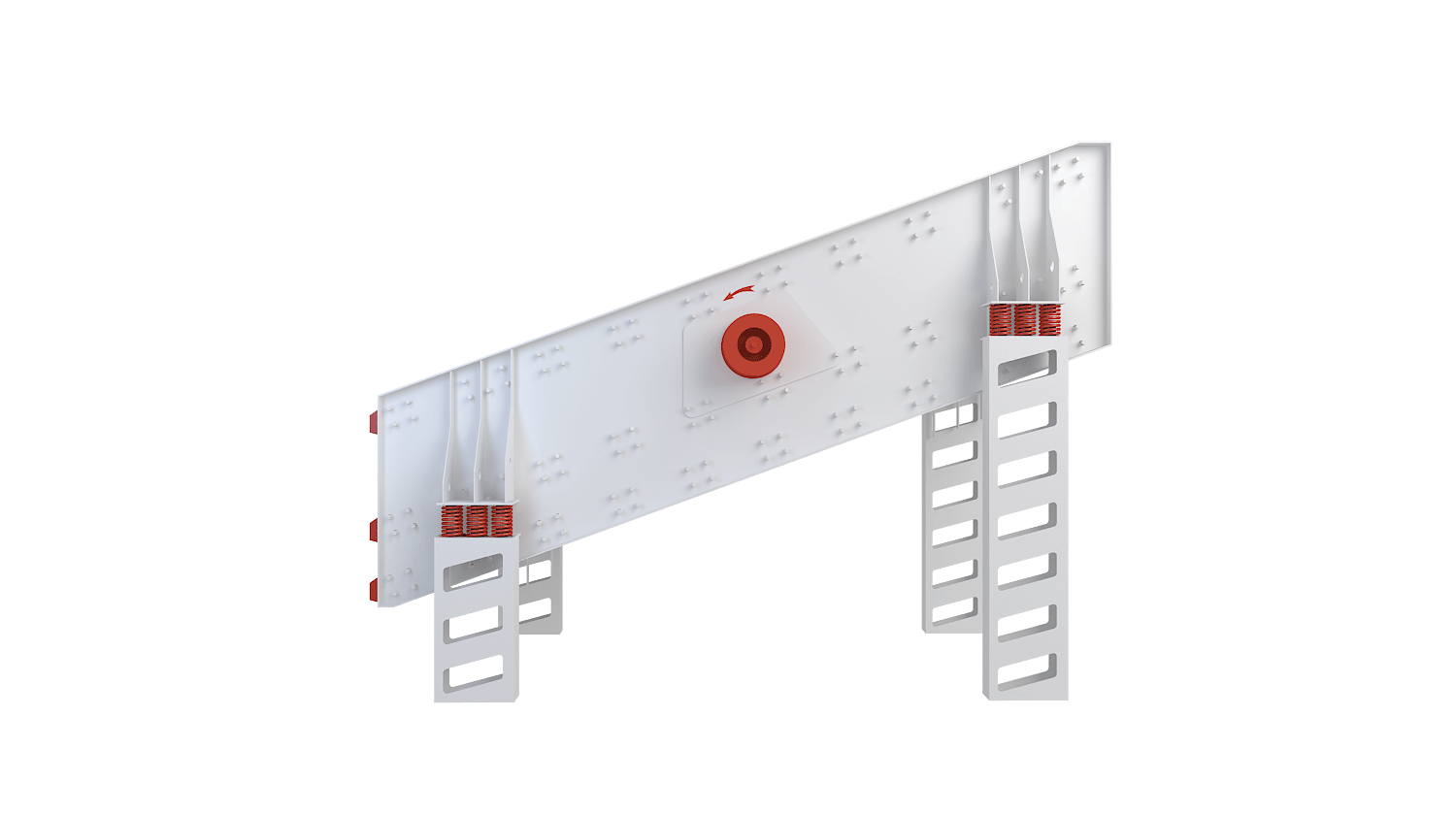

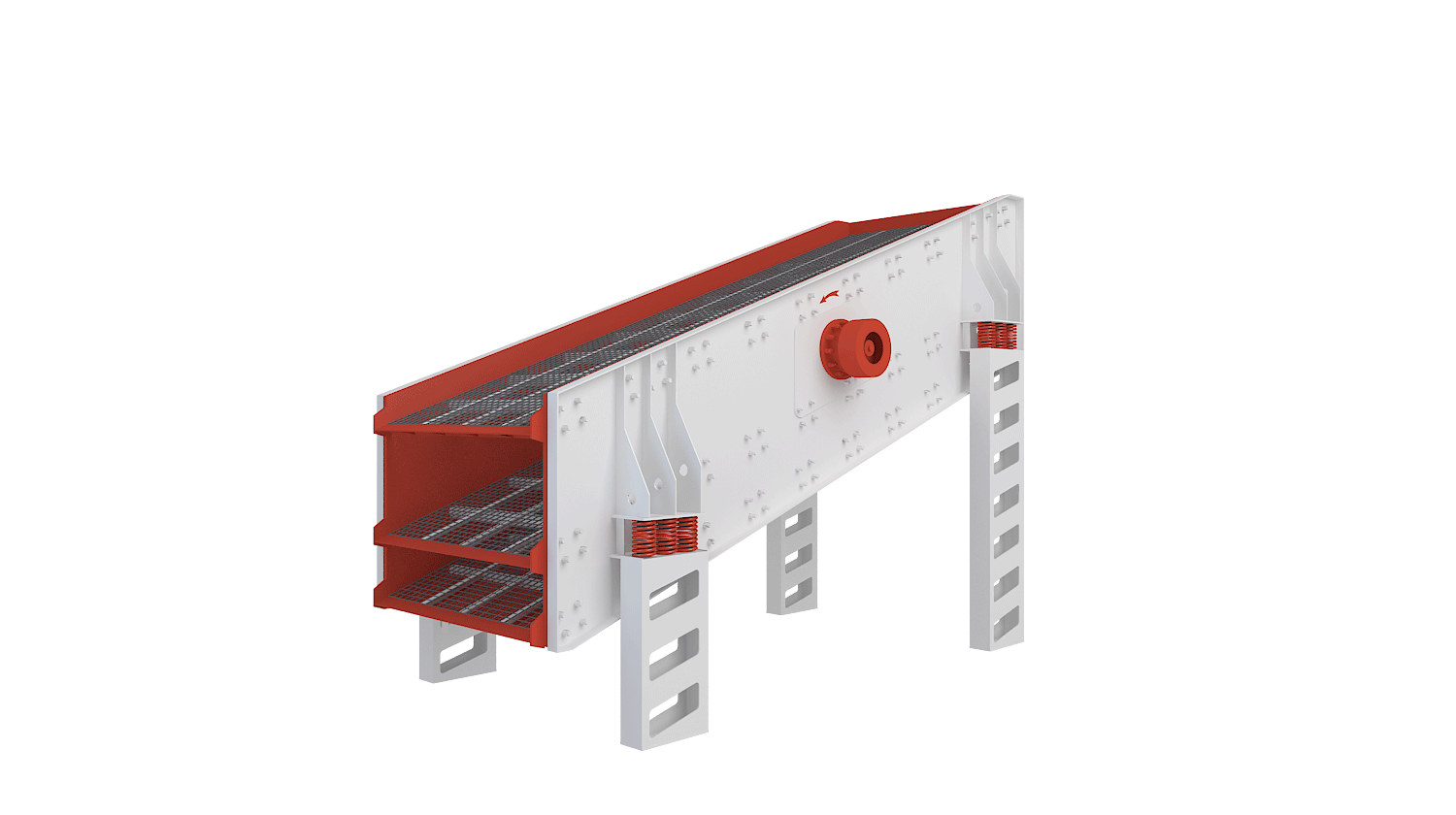

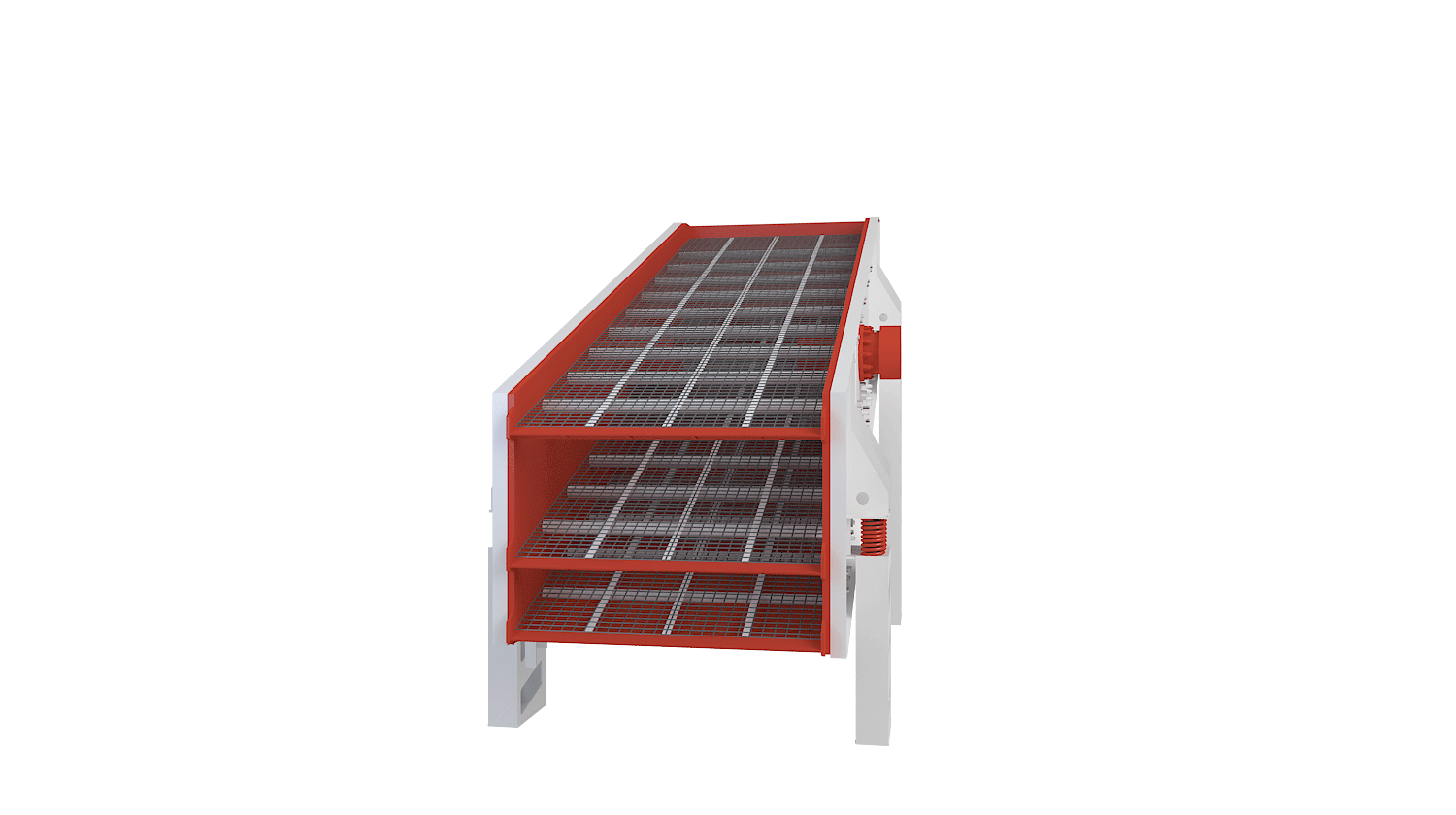

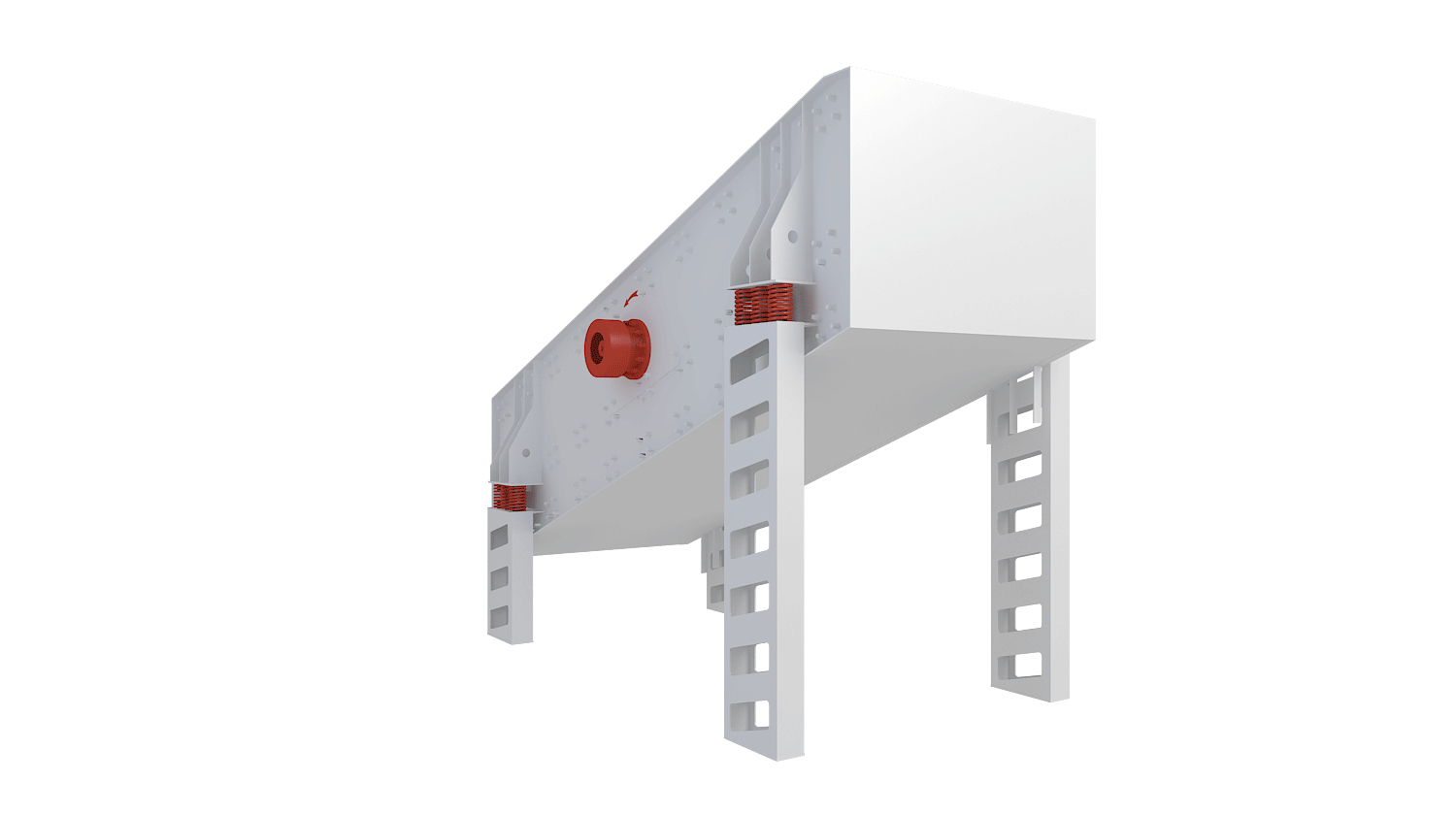

360° panoramic view of the product

Features

Amplitude Adjustable

The excitation force is adjusted by adjusting the number of counterweights, and the exciters are linked by universal joint couplings

Rubber Compound Spring

The support adopts rubber composite spring for vibration reduction, stable operation and low noise

High Strength Rivets

The side plate and the beam are connected by high-strength ring groove rivets, there is no stress relay, and distortion and deformation are effectively avoided

Output Controllable

It is convenient to replace the screen, and the screen can be customized

dETAIL

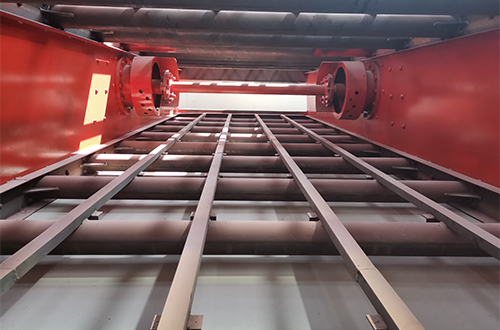

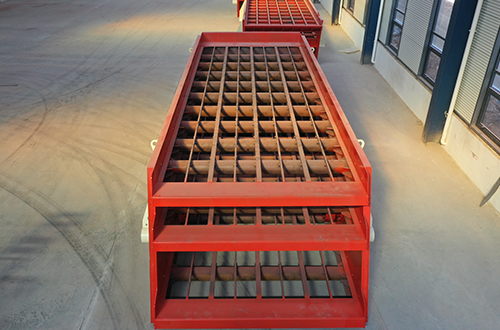

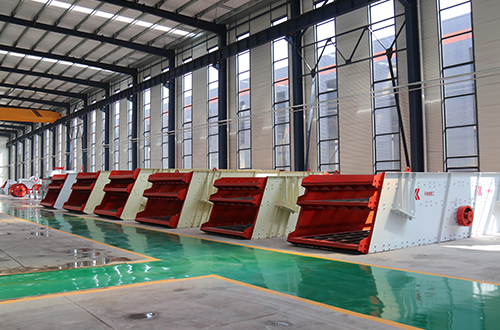

Product Detail Show

Related Products

YKQ Vibrating Screen

Vibrating Screen is an essential screening equipment used to separate materials by particle size. Utilizing vibrating motors or exciter systems, it ensures efficient screening performance for various dry and wet materials. Commonly applied in mining, aggregates, metallurgy, coal, and building materials industries, it offers high screening efficiency, strong durability, and customizable mesh options.

Capacity

100-500t/h

Feeding Size

≤300mm

Chat Now >>

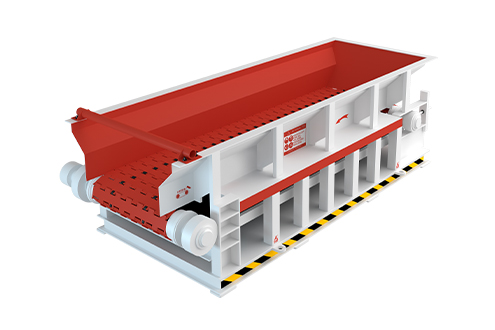

Apron Feeder
