YKQ Vibrating Screen

Vibrating Screen is a highly efficient material classification machine designed to separate bulk materials into different particle size fractions. It operates through linear or circular vibration generated by vibration motors or exciter mechanisms, driving the screen deck to vibrate and stratify materials. The vibration accelerates material movement across the screen surface, ensuring fast and accurate separation.

Available in single or multi-deck configurations, Vibrating Screen is suitable for handling ores, coal, crushed stones, sand, chemicals, and other granular or powdered materials. Screen decks are customizable with various mesh types including woven wire, polyurethane, and perforated plates, making the machine adaptable to different material properties and screening goals.

This equipment features compact structure, easy maintenance, low noise, and high throughput. With its ability to efficiently classify, dewater, or deslime materials, Vibrating Screen plays a critical role in modern material processing lines across various industries.

Technical Parameters

Model	Sieve mesh layer number	Sieve mesh surface area (㎡)	Vibration amplitude (mm)	Vibration frequency (r/min)	Motor power (kw)	Capacity (t/h)
2YKQ1545	2	6.75	5-7	980	11	100-200
3YKQ1545	3	6.75	5-7	980	15	100- 200
2YKQ1860	2	10.8	5-7	980	15	160-220
3YKQ1860	3	10.8	5-7	980	22	160-200
4YKQ1860	4	10.8	5-7	980	22	160-200
2YKQ2060	2	12	5-7	980	22	150-250
3YKQ2060	3	12	5-7	980	22	150-250
4YKQ2060	4	12	5-7	980	30	150-250
2YKQ2460	2	14.4	5-7	980	22	150-280
3YKQ2460	3	14.4	5-7	980	30	150-280
4YKQ2460	4	14.4	5-7	980	37	150-280
2YKQ2470	2	16.8	5-7	980	22	240-300
3YKQ2470	3	16.8	5-7	980	37	240-300
4YKQ2470	4	16.8	5-7	980	37	240-300
2YKQ3080	2	21	5-7	980	30	400-500
3YKQ3080	3	21	5-7	980	37	400-500
4YKQ3080	4	21	5-7	980	55	400-500

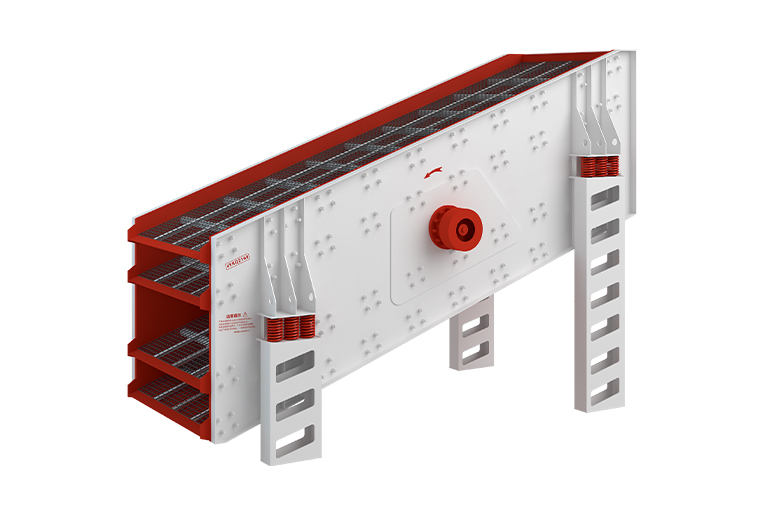

360° panoramic view of the product

Features

Amplitude Adjustable

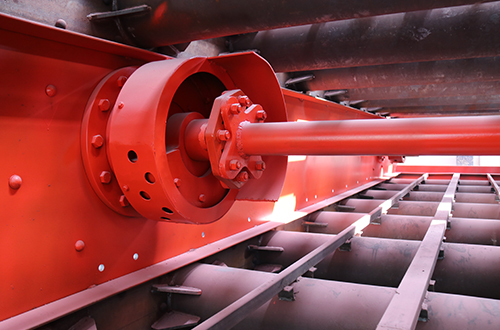

The excitation force is adjusted by adjusting the number of counterweights, and the exciters are linked by universal joint couplings

Rubber Compound Spring

The support adopts rubber composite spring for vibration reduction, stable operation and low noise

High Strength Rivets

The side plate and the beam are connected by high-strength ring groove rivets, there is no stress relay, and distortion and deformation are effectively avoided

Output Controllable

It is convenient to replace the screen, and the screen can be customized

dETAIL

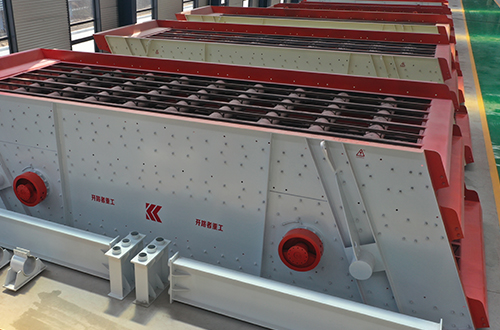

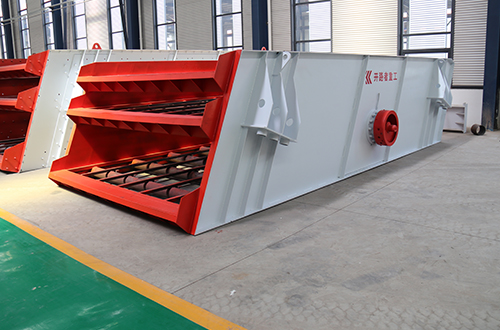

Product Detail Show
