Introduction

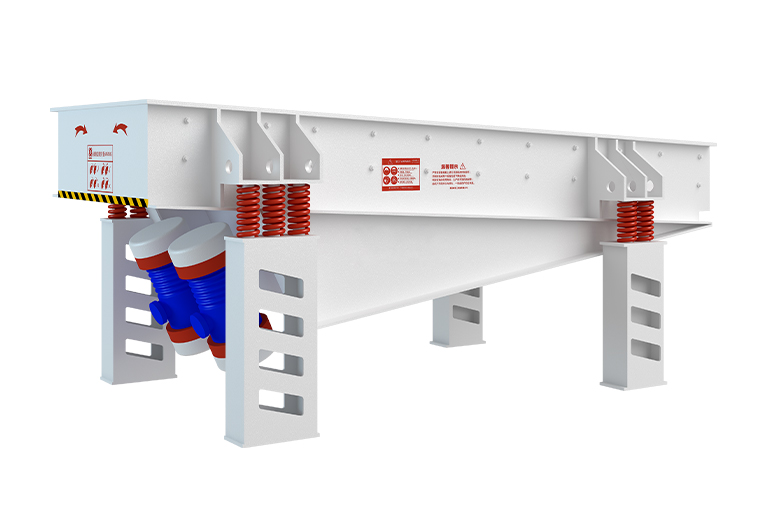

Vibrating Feeder

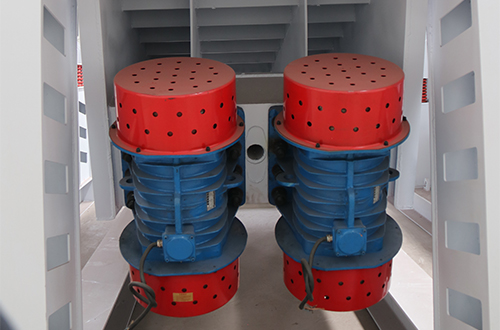

Vibrating Feeder is a vital piece of equipment in material handling systems, engineered to deliver consistent and controlled flow of bulk materials. It consists of a vibrating trough supported by springs and driven by a pair of counter-rotating vibrating motors or an exciter. The vibration causes the material to move forward in a controlled manner, preventing blockages and ensuring steady feeding.

This machine is suitable for feeding materials to jaw crushers, impact crushers, or screening equipment. It handles various types of bulk solids, including ore, rock, coal, aggregates, and chemical granules. The feeding rate is adjustable via motor speed control, allowing for precise process control.

Vibrating Feeder offers advantages such as strong adaptability to harsh environments, low energy consumption, minimal maintenance, and extended service life. It plays a crucial role in automated material handling and is widely used in mineral processing, quarrying, building materials, and recycling applications.

Technical Parameters

Model	Trough size (mm)	Feed size (mm)	Capacity (t/h)	Motor model	Motor power (kw)
ZGCX0938	900*3800	≤500	150-200	YZU-40-6	3.7*2
ZGCX1038	1000*3800	≤500	160-210	YZU-40-6	3.7*2
ZGCX1238	1200*3800	≤750	250-380	YZU-65-6	4.2*2
ZGCX1250	1200*5000	≤750	250-380	YZU-100-6	7.5*2
ZGCX1538	1500*3800	≤1000	400-500	YZU-85-6	5.5*2
ZGCX1550	1500*5000	≤1000	400-600	YZU-120-6	10*2
ZGCX2038	2000*3800	≤1200	500-800	YZU-120-6	10*2
ZGCX2050	2000*5000	≤1200	800-1200	Y180L-6	15*2
ZGCX2560	2500*6000	≤1600	2000-3000	YE2-250M-6	37*2
ZGCW0928	850*2800	≤500	80-120	YZU-40-6	3*2
ZGCW1028	1000*2800	≤600	150-200	YZU-40-6	3*2
ZGCW1228	1200*2800	≤700	220-300	YZU-50-6	3.7*2
ZGCW1328	1255*2800	≤750	250-300	YZU-50-6	3.7*2
ZGCW1428	1350*2800	≤800	260-320	YZU-75-6	5.5*2
ZGCW1528	1500*2800	≤1000	300-400	YZU-75-6	5.5*2
ZGCW2028	2000*2800	≤1200	500-800	YZU-100-6	7.5*2
ZGXG1020	1000*2000	≤200	150-250	YZH-20-6	1.5*2
ZGXG1220	1200*2000	≤200	250-350	YZH-30-6	2.2*2
ZGXG1420	1400*2000	≤200	400-600	YZU-30-6	3*2

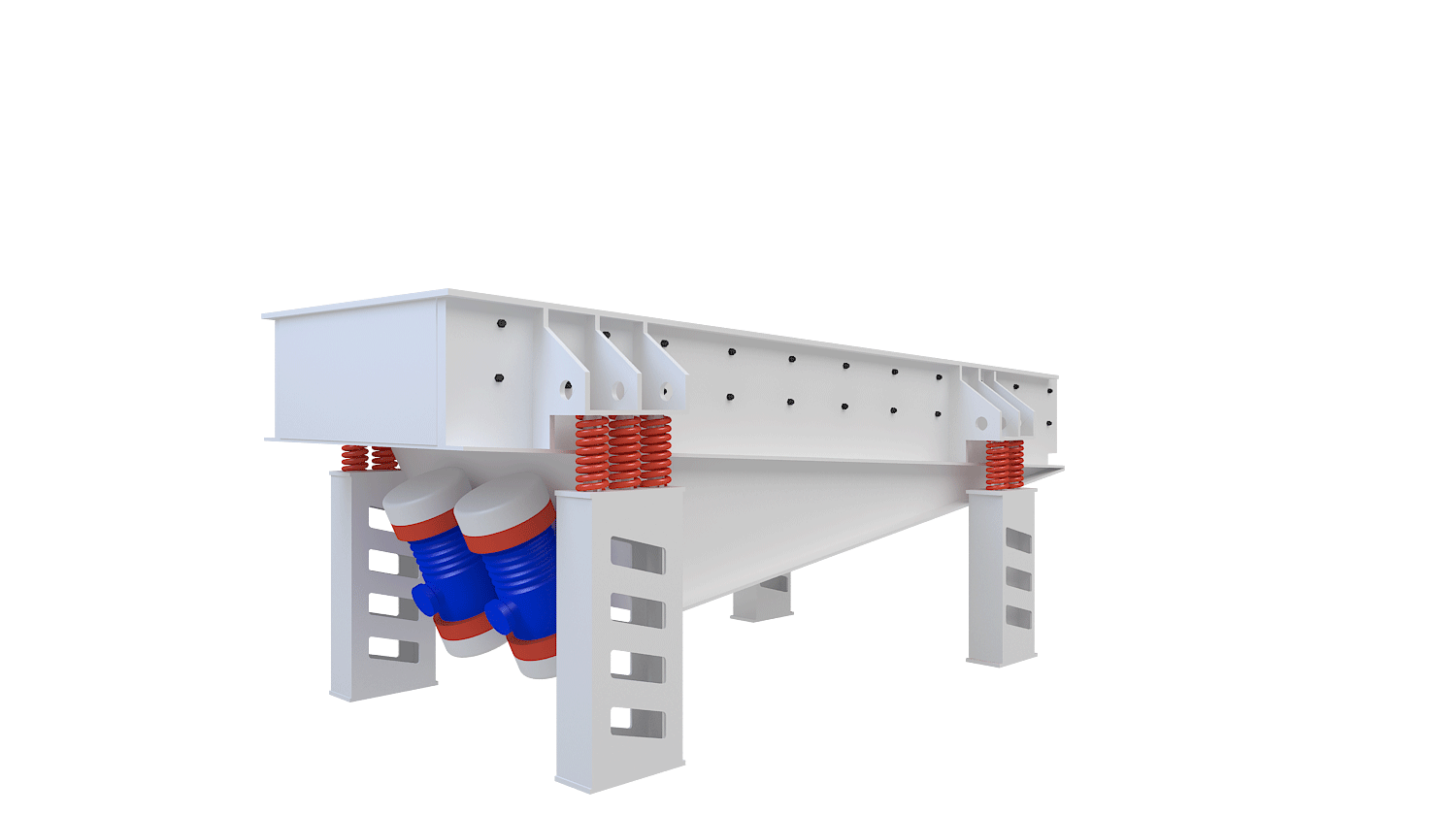

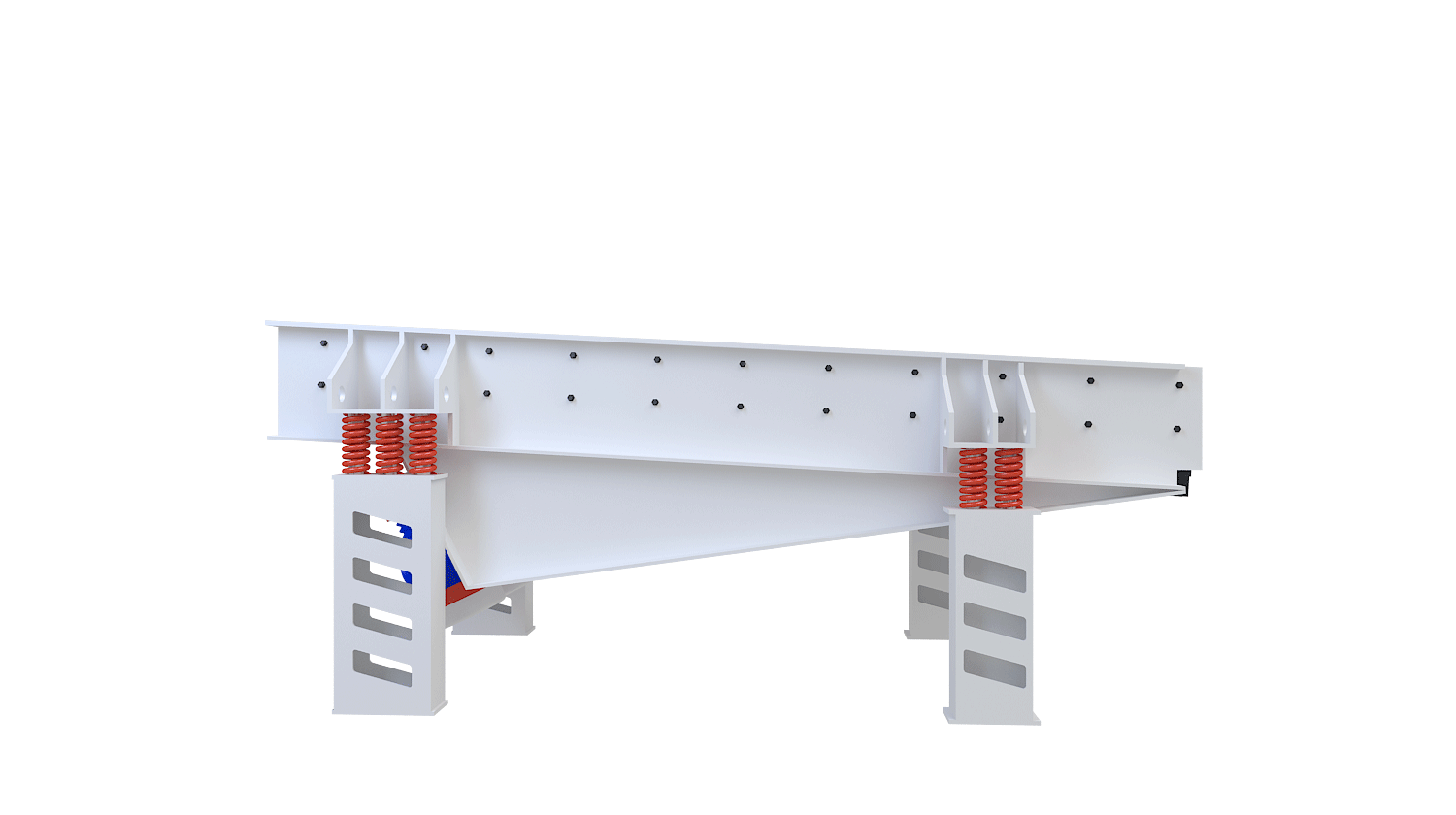

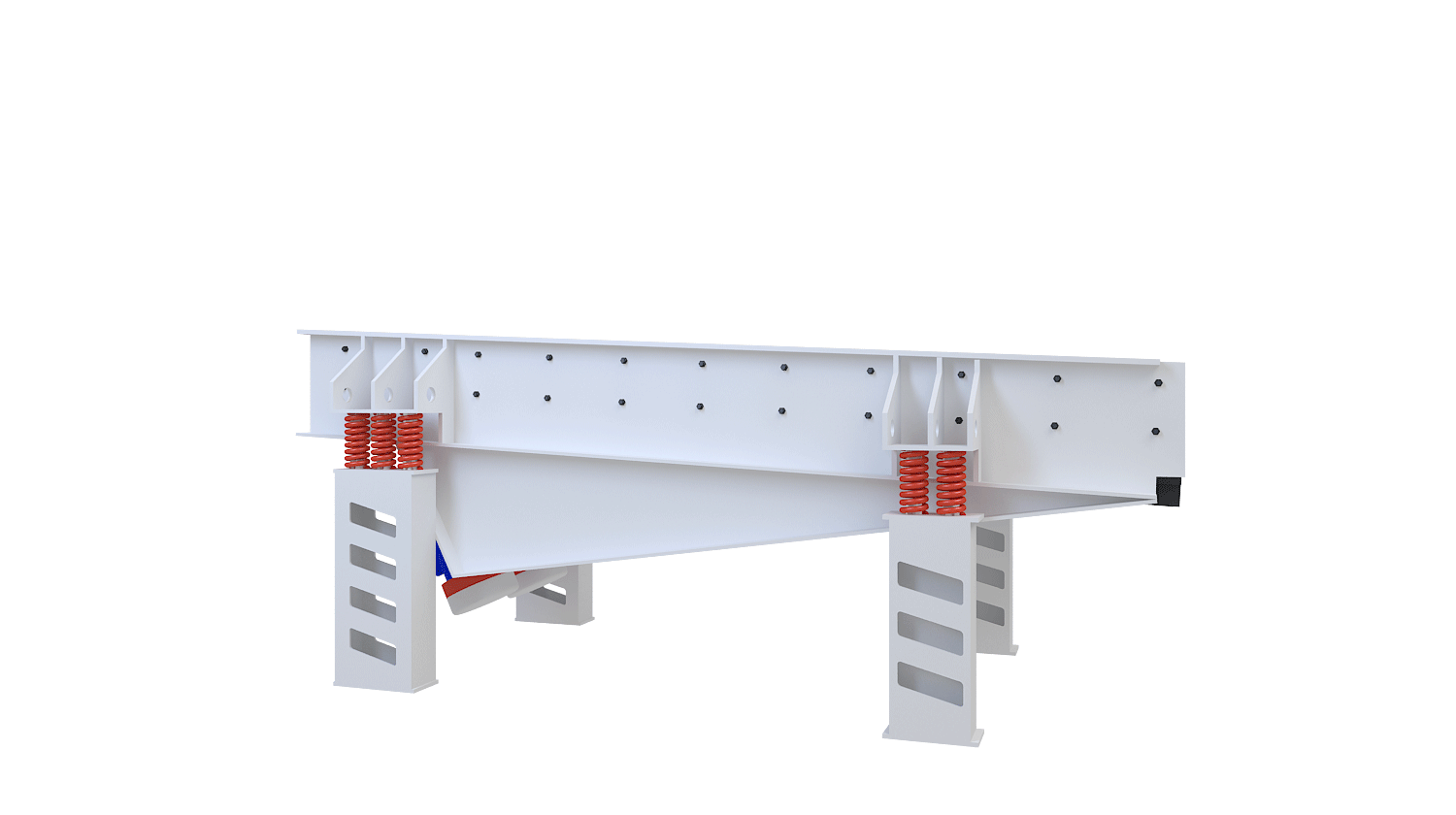

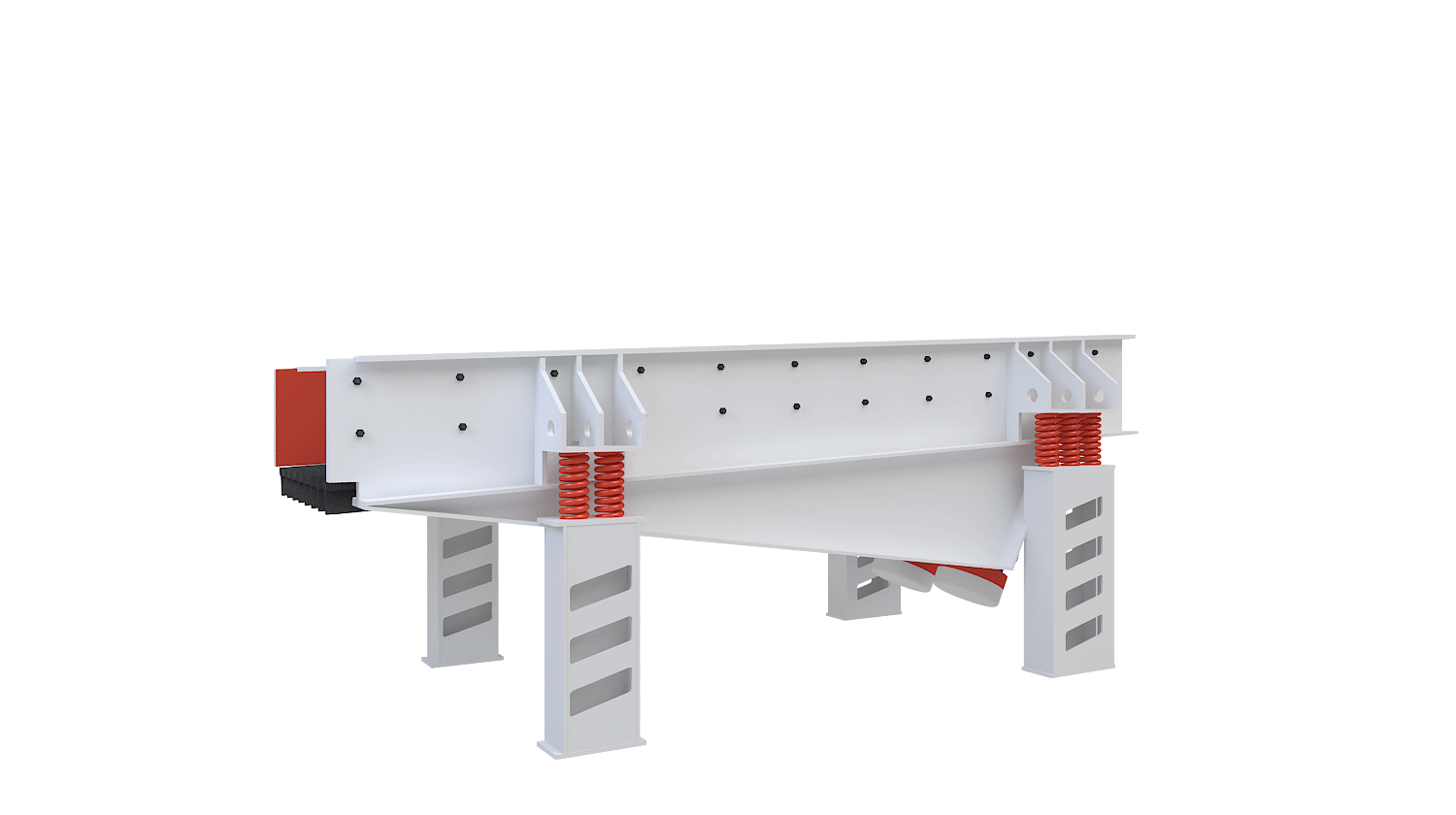

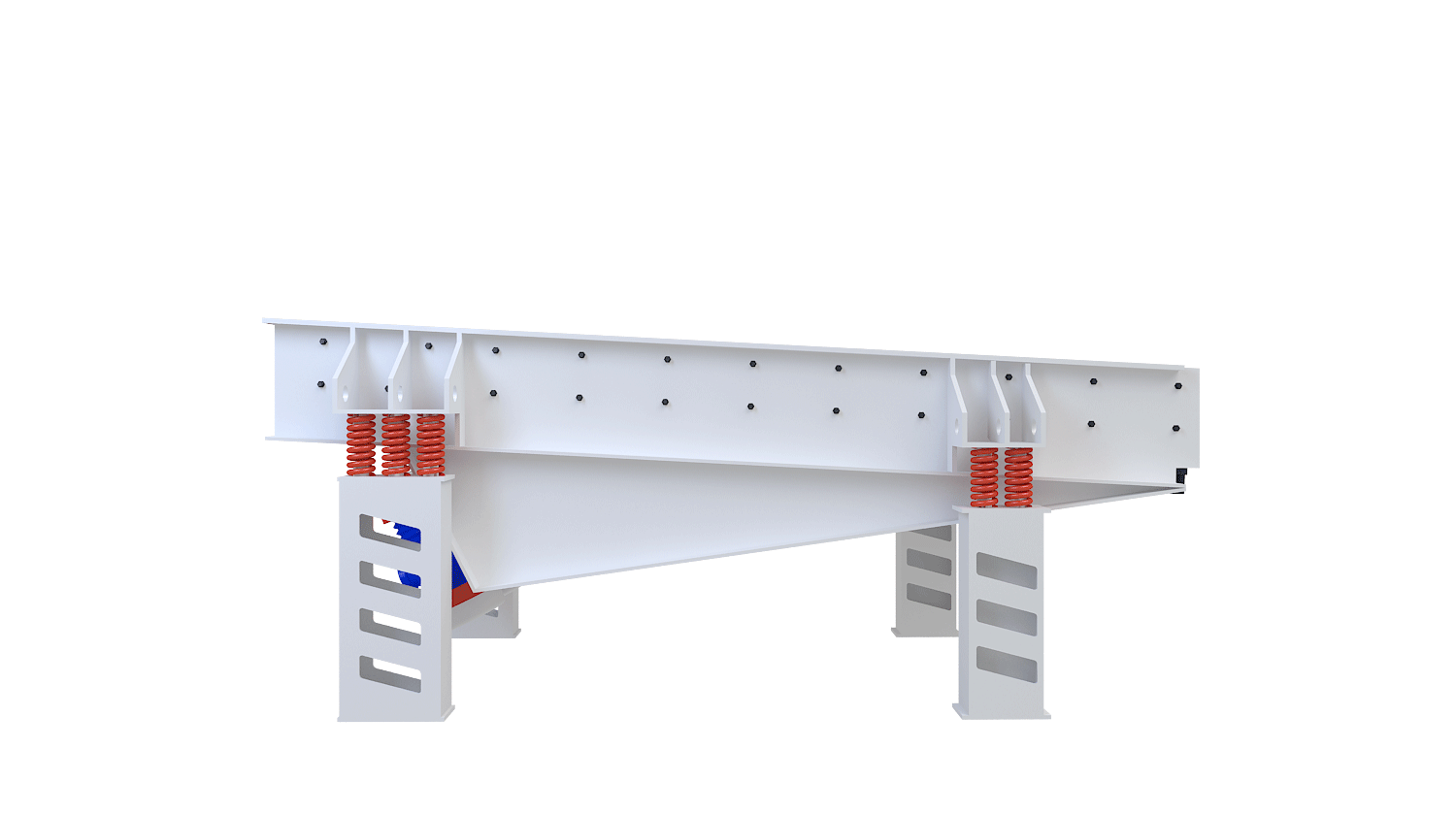

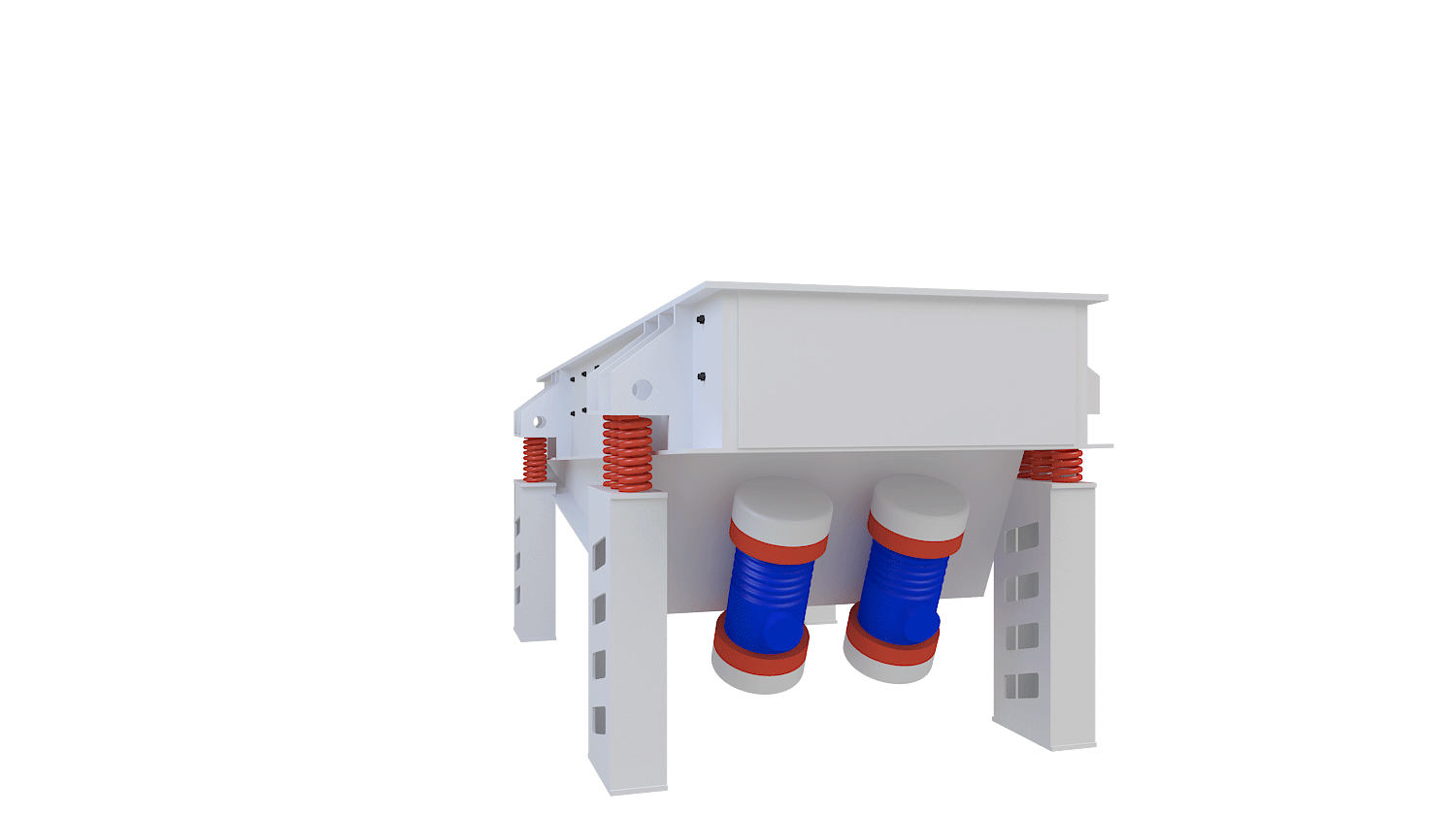

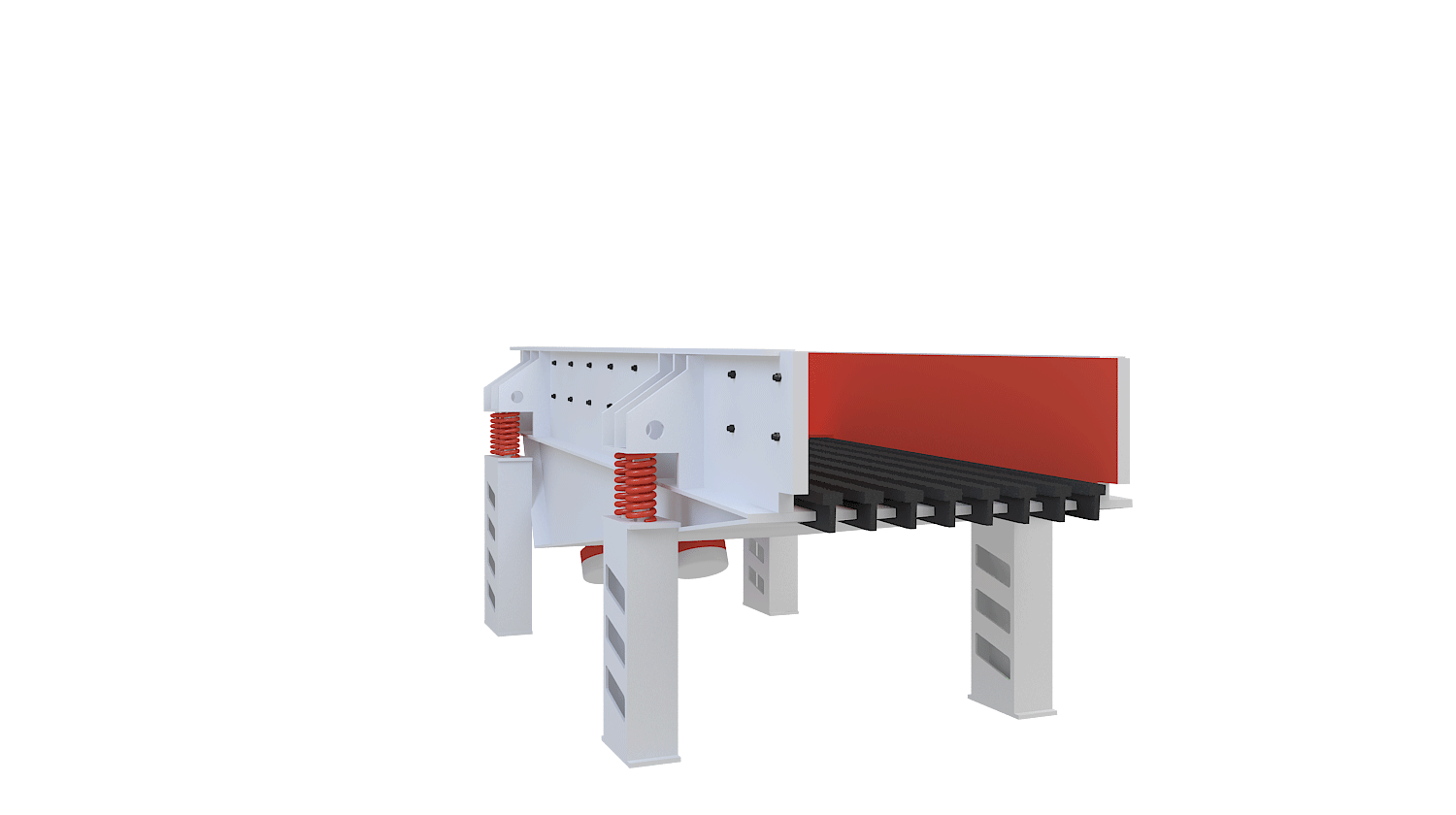

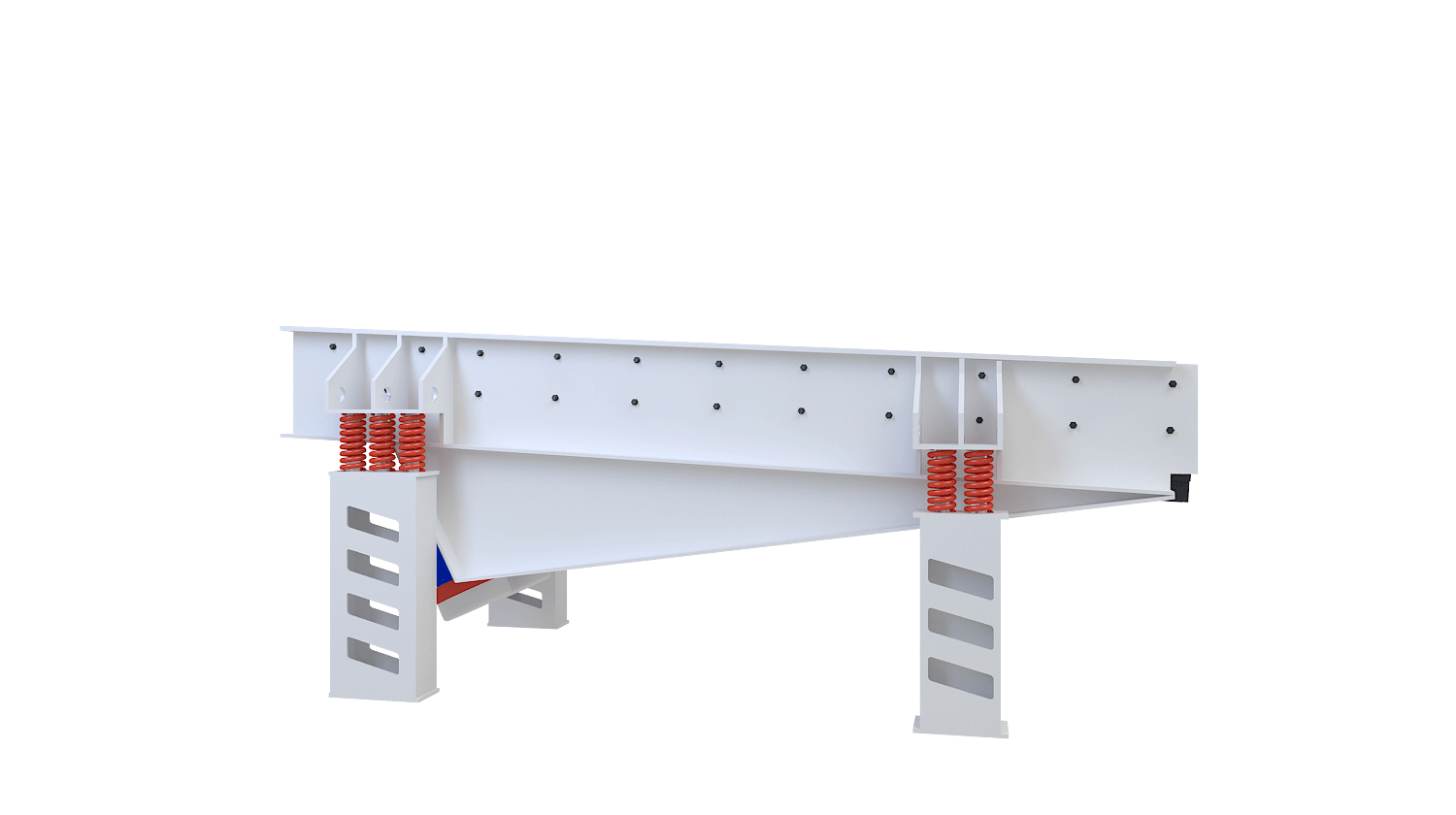

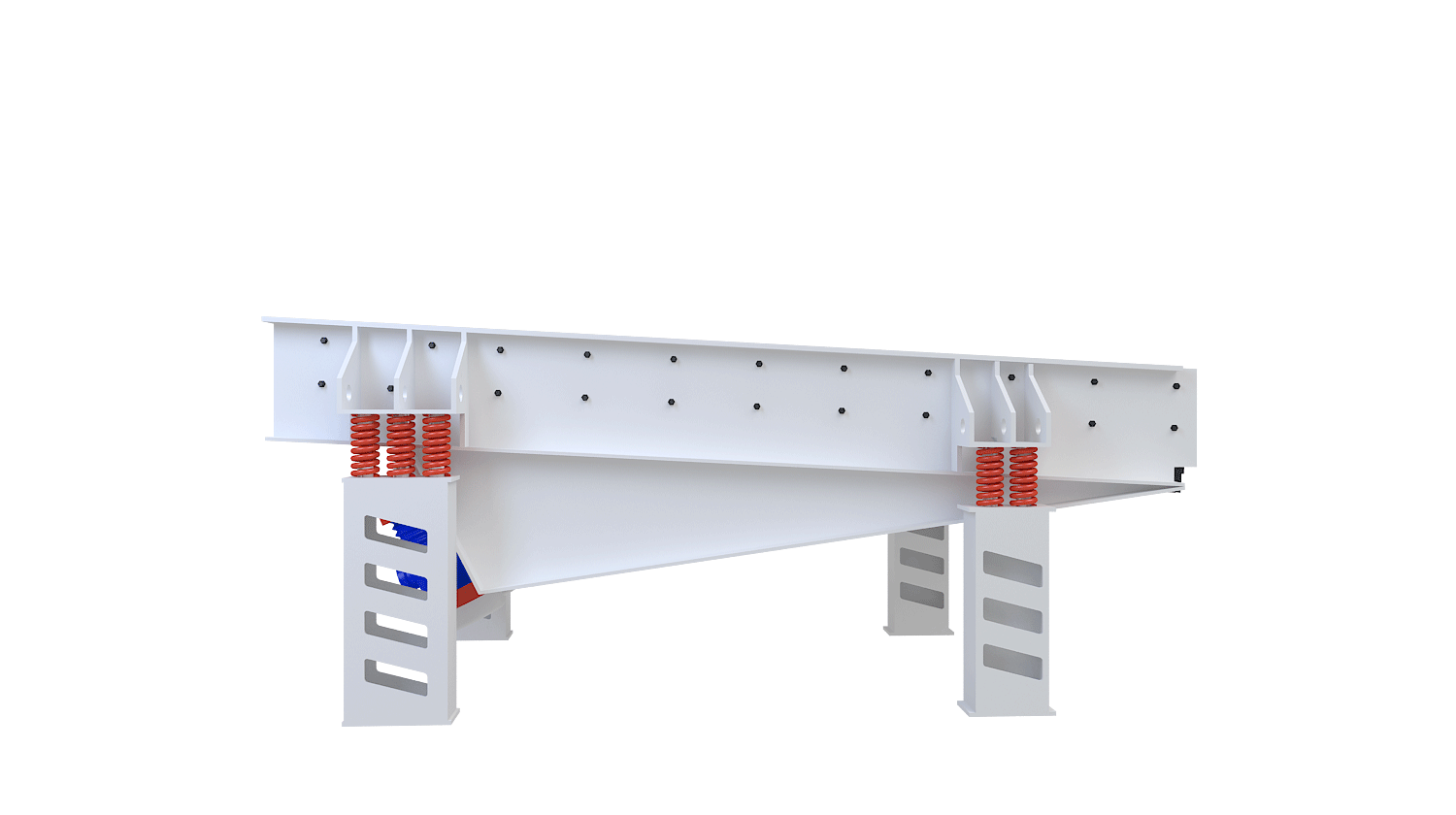

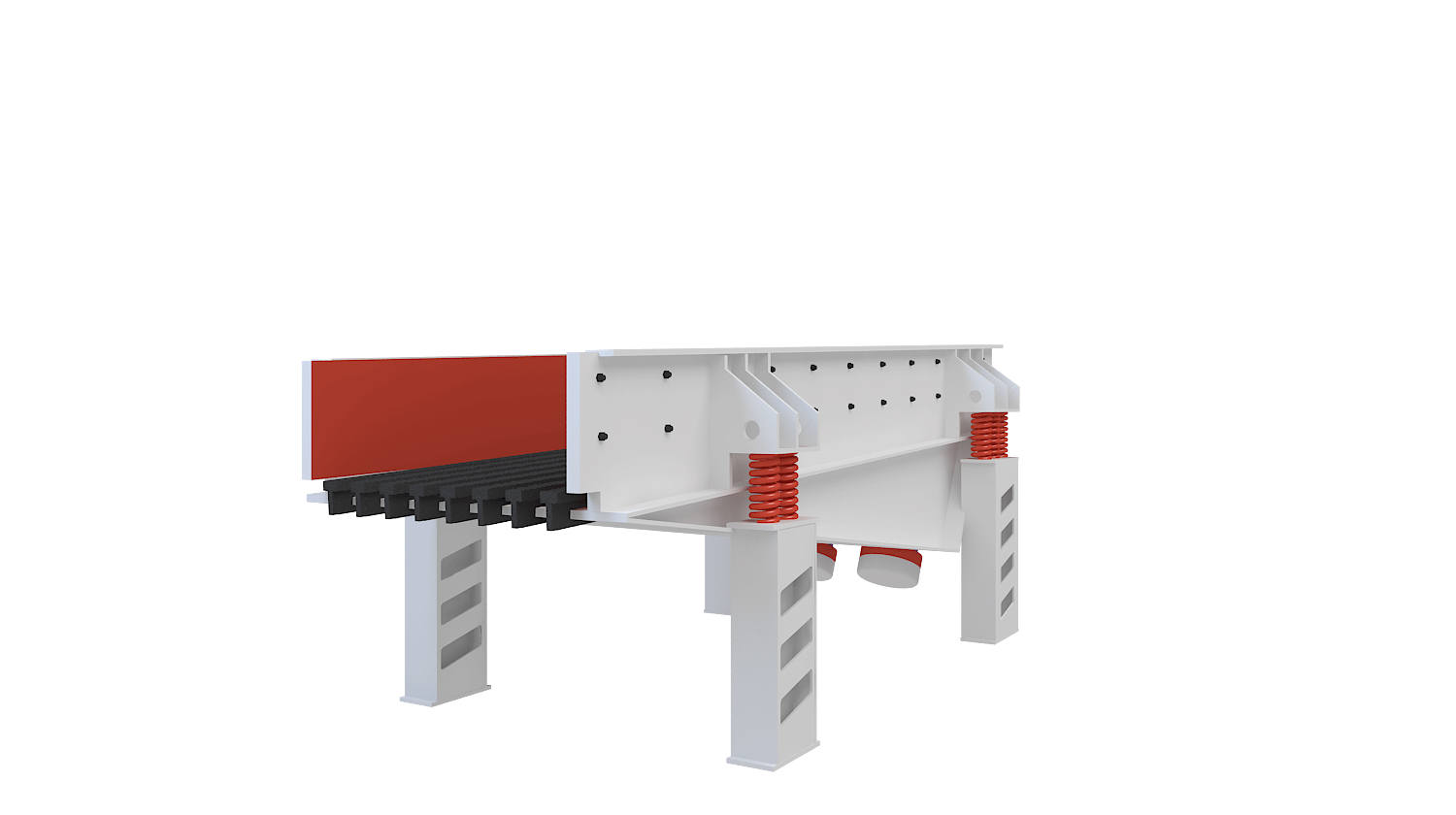

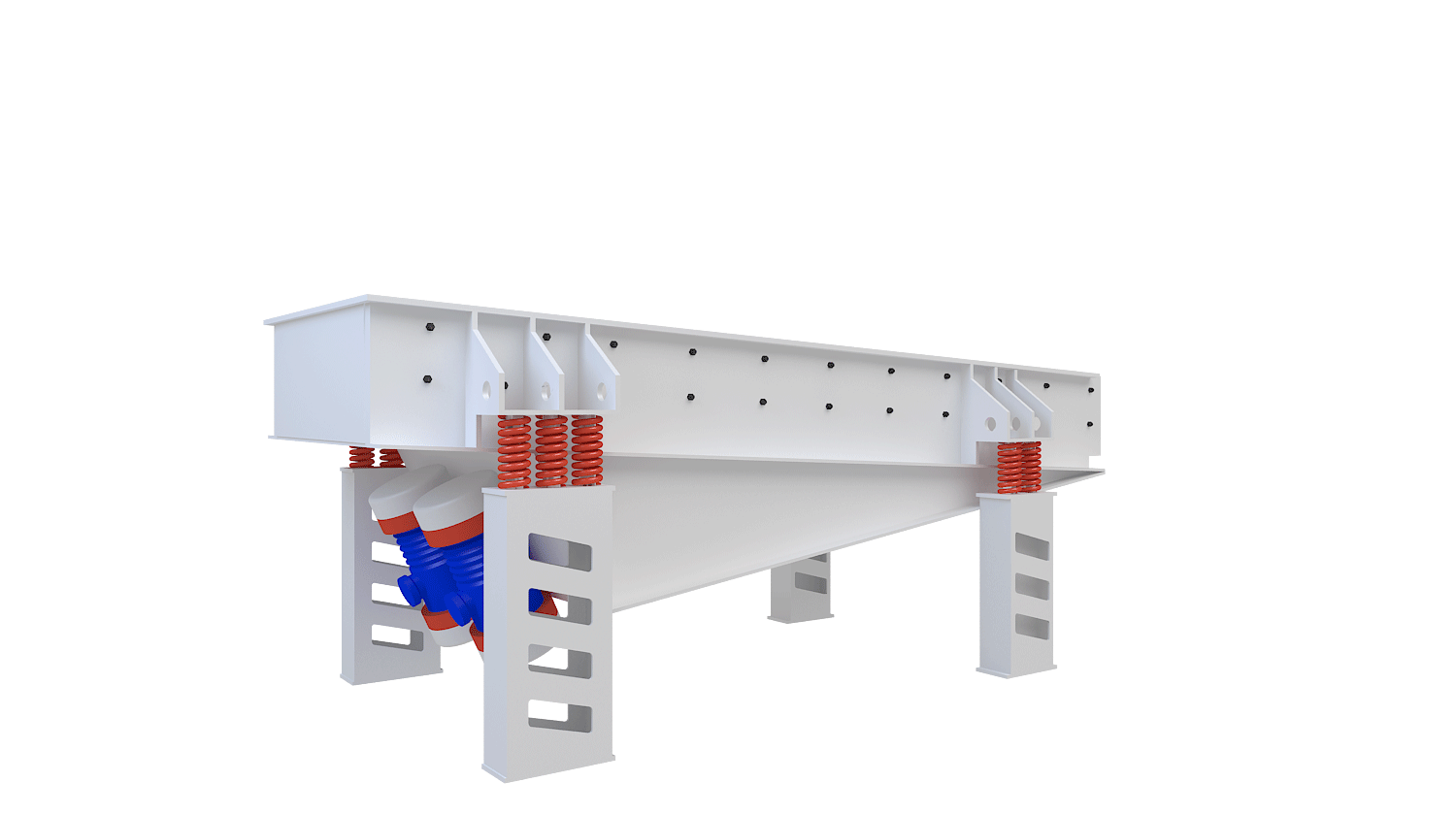

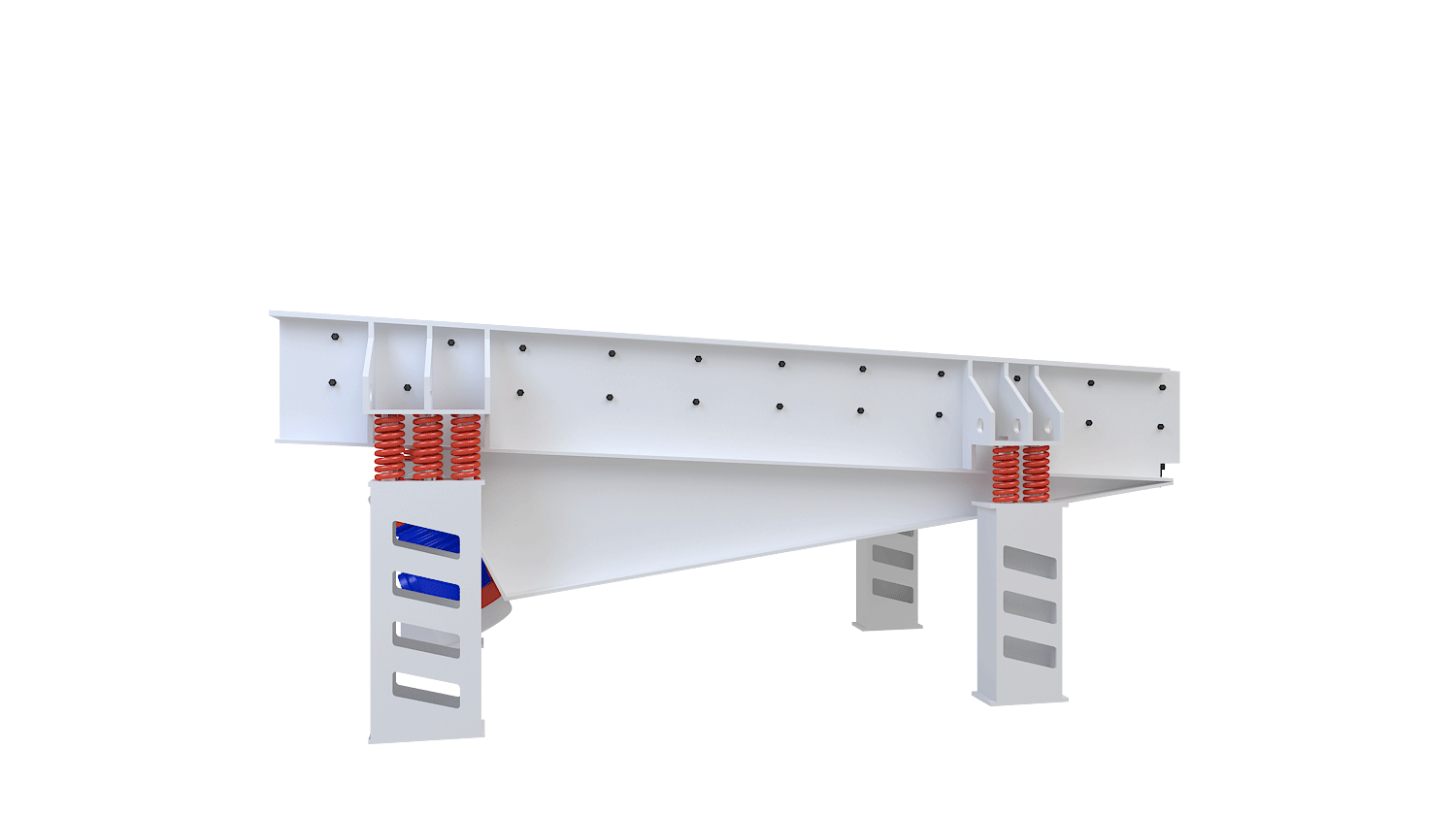

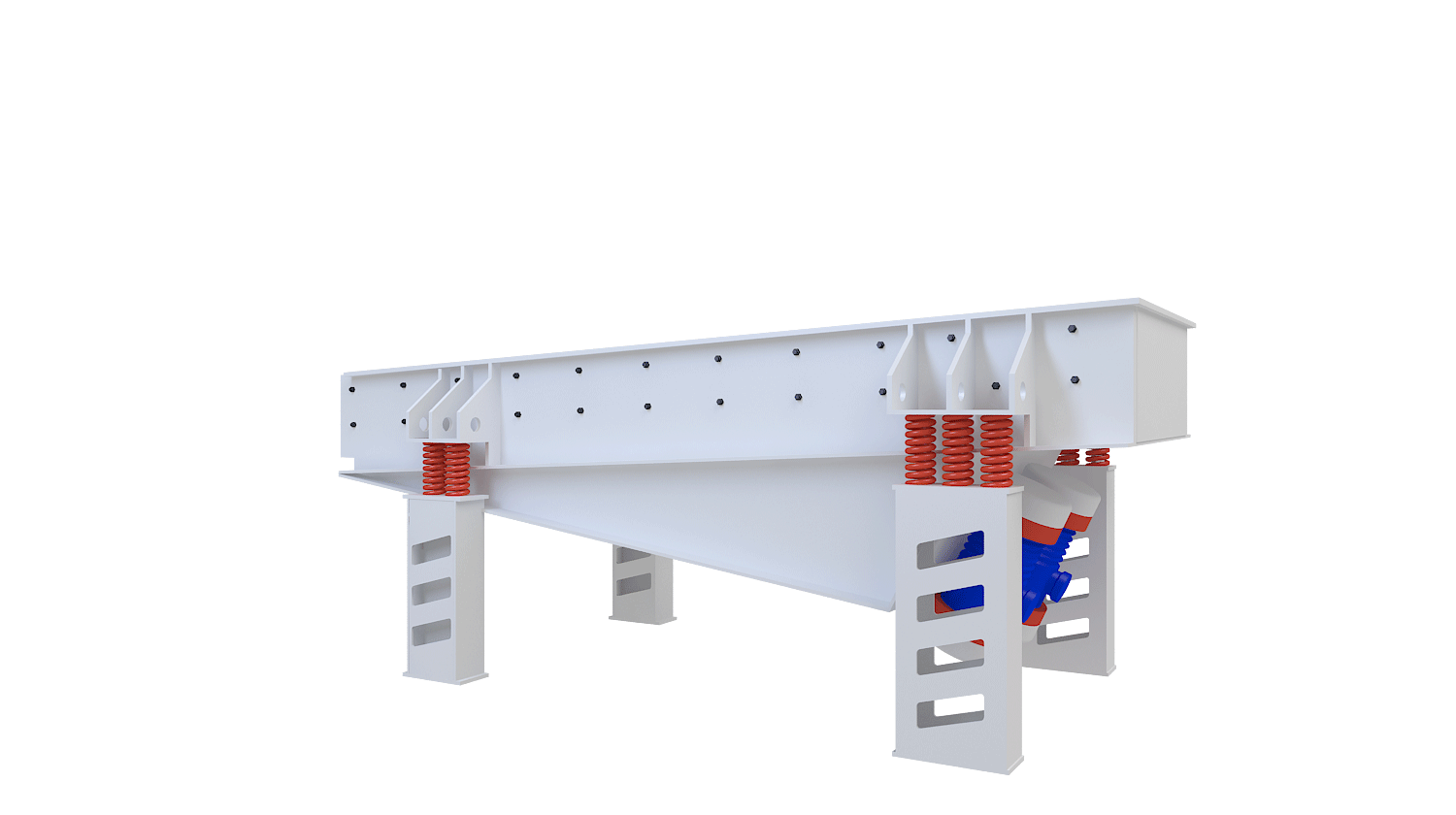

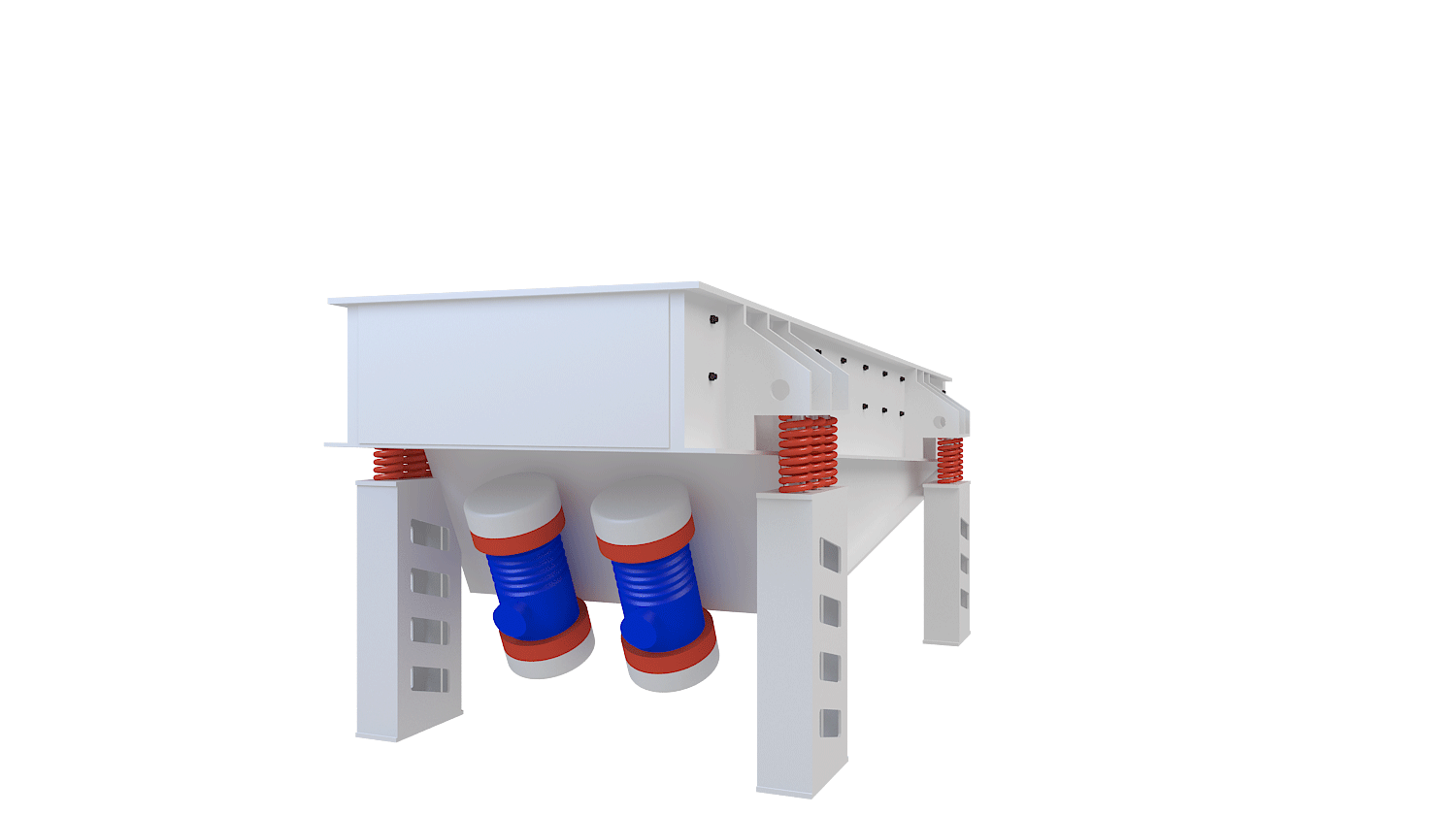

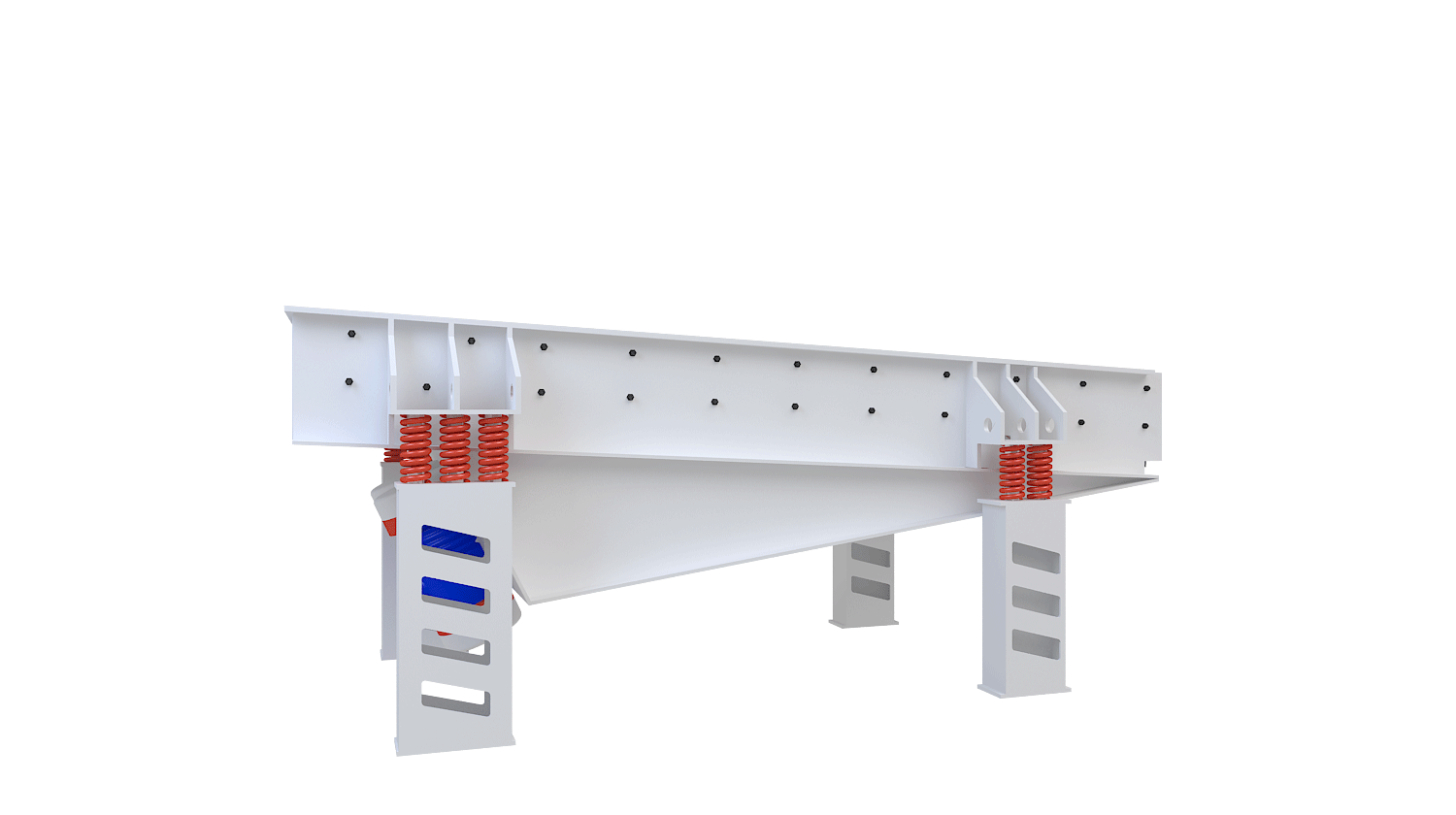

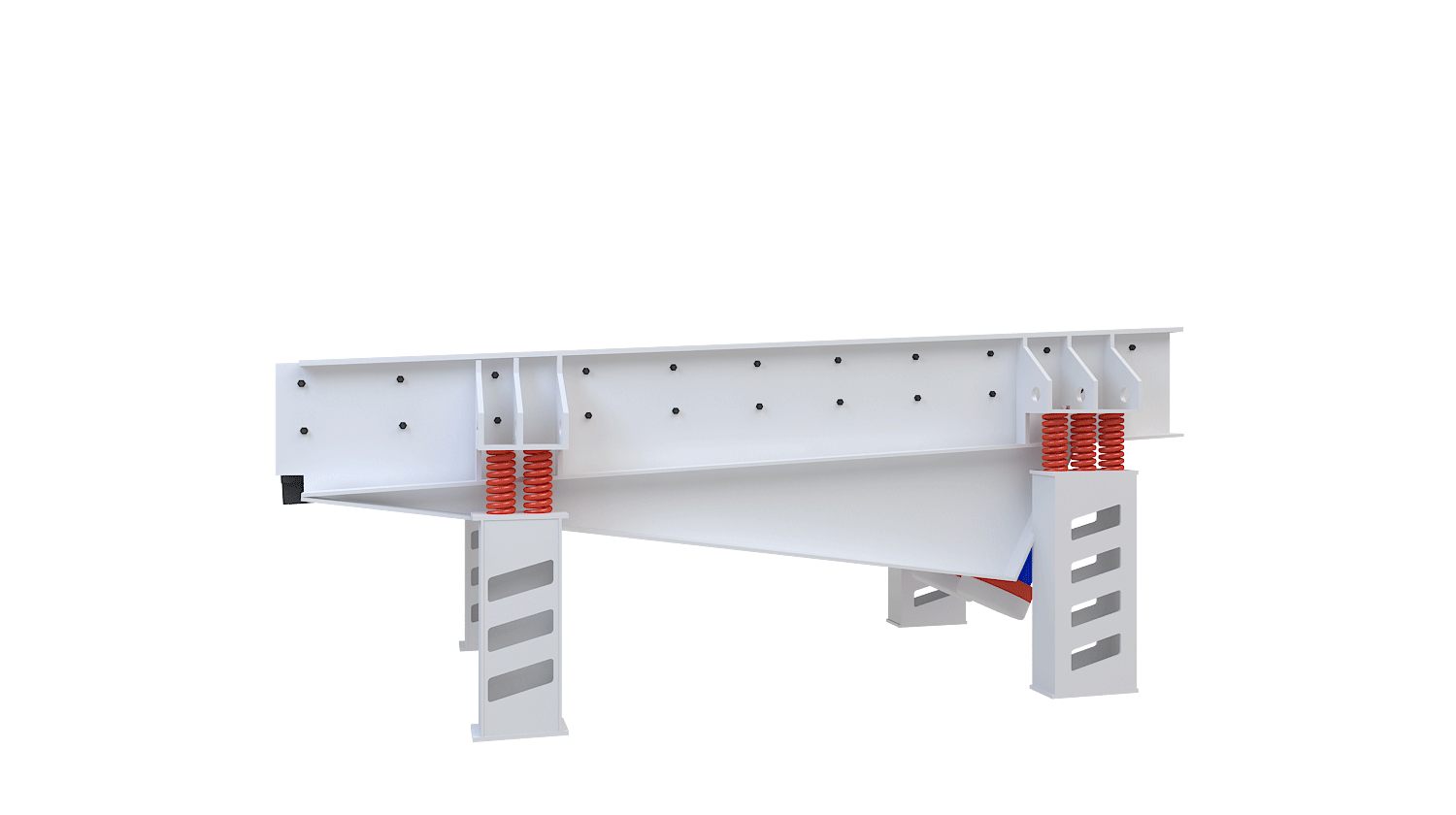

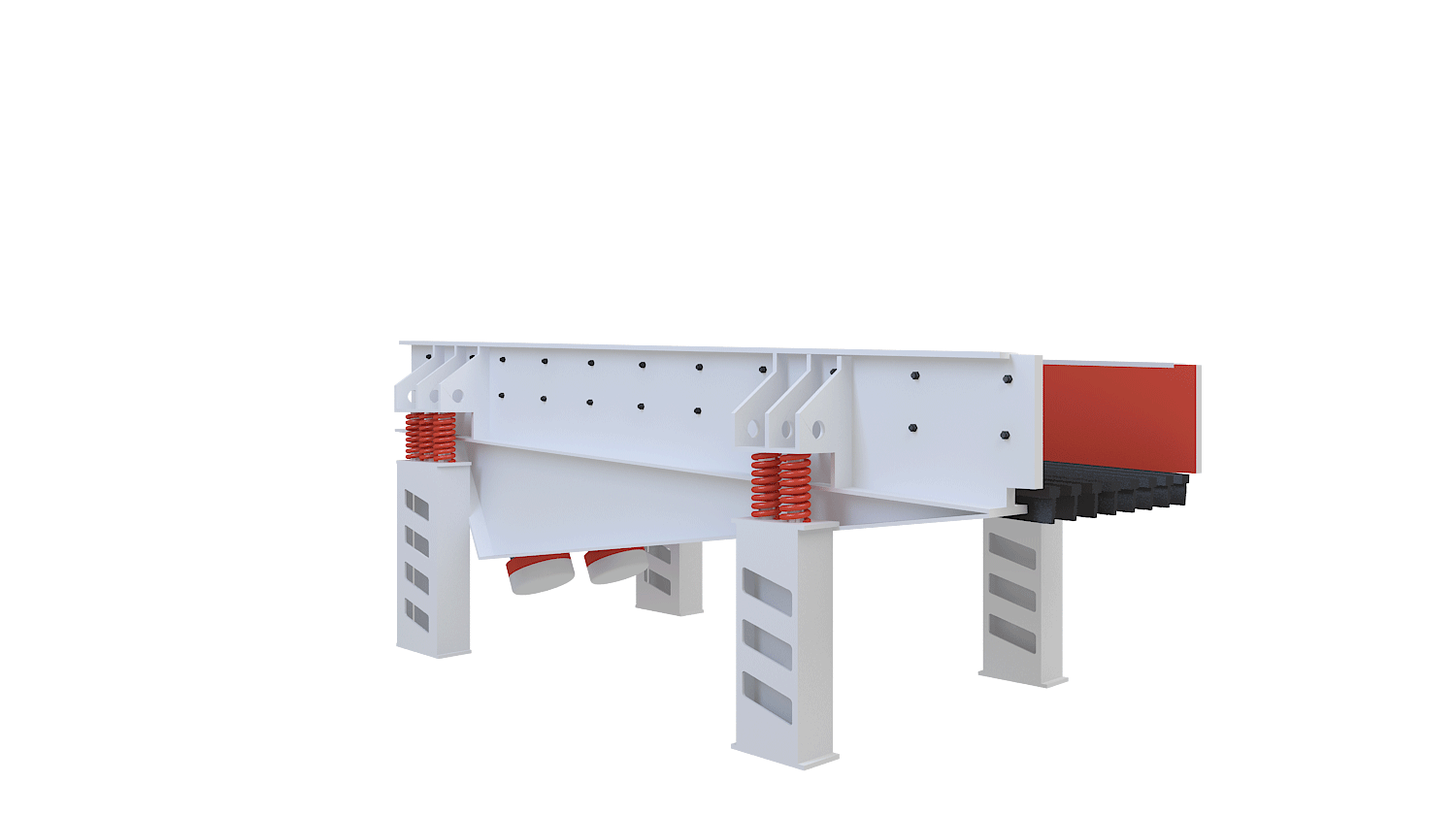

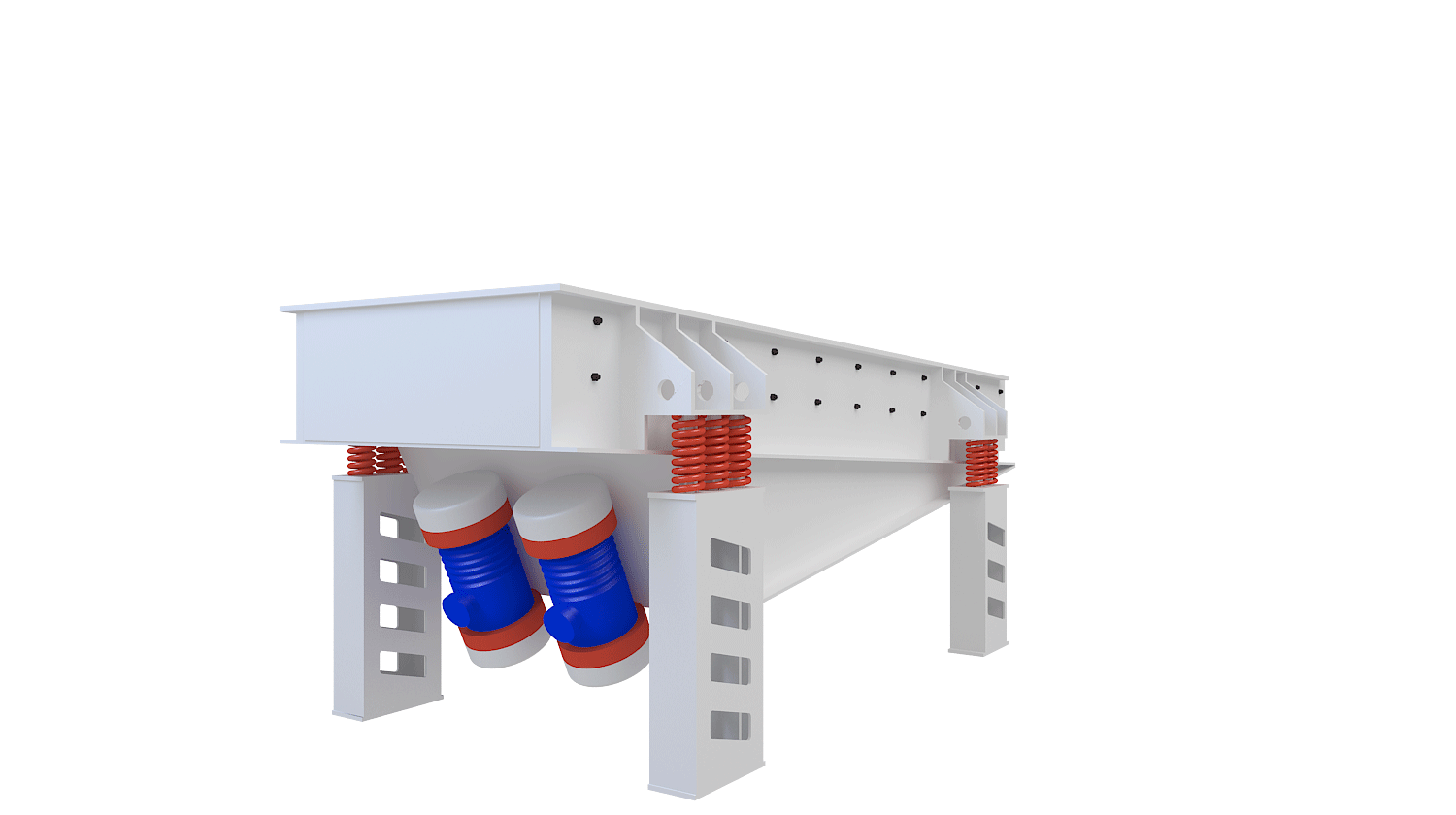

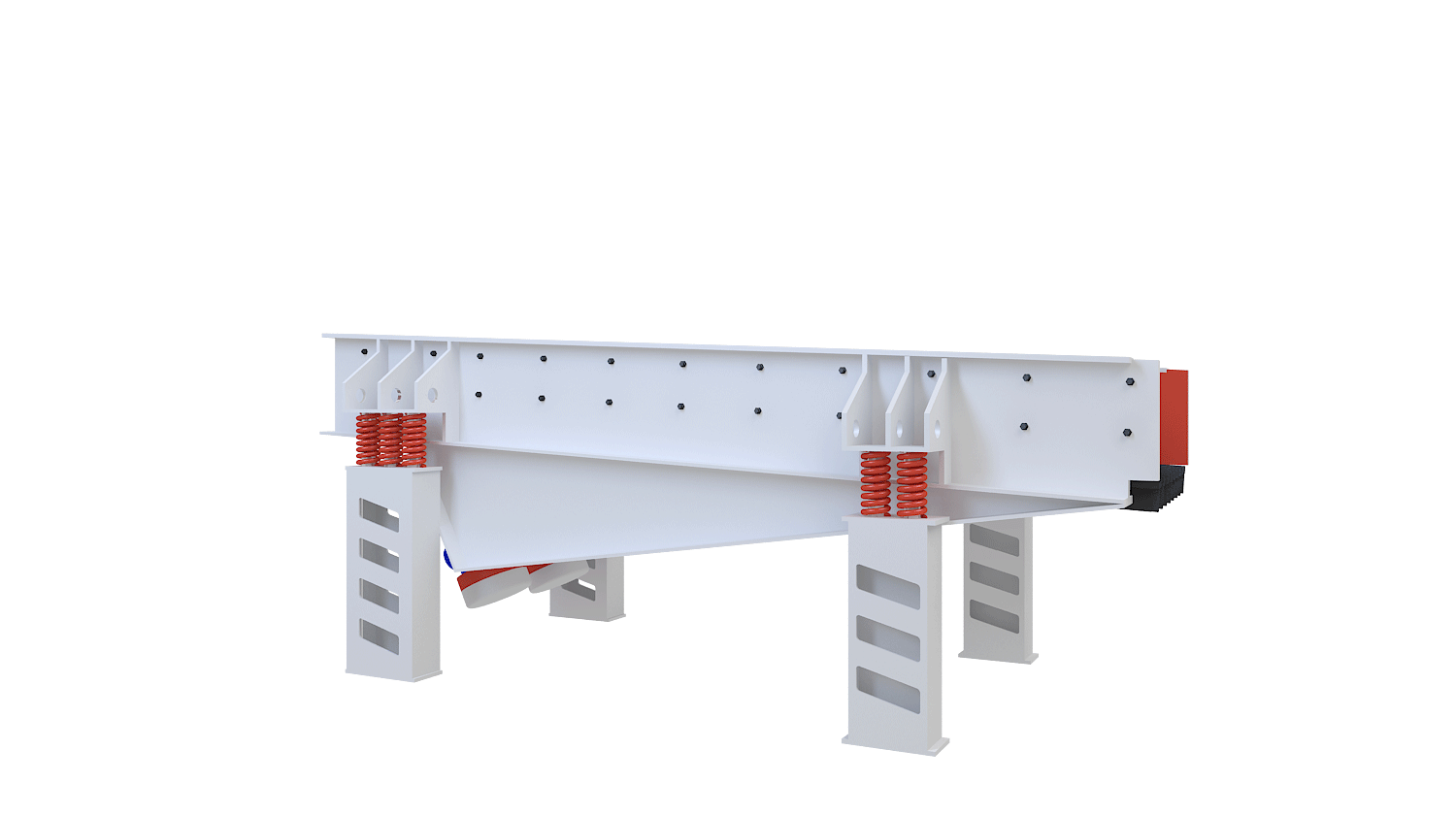

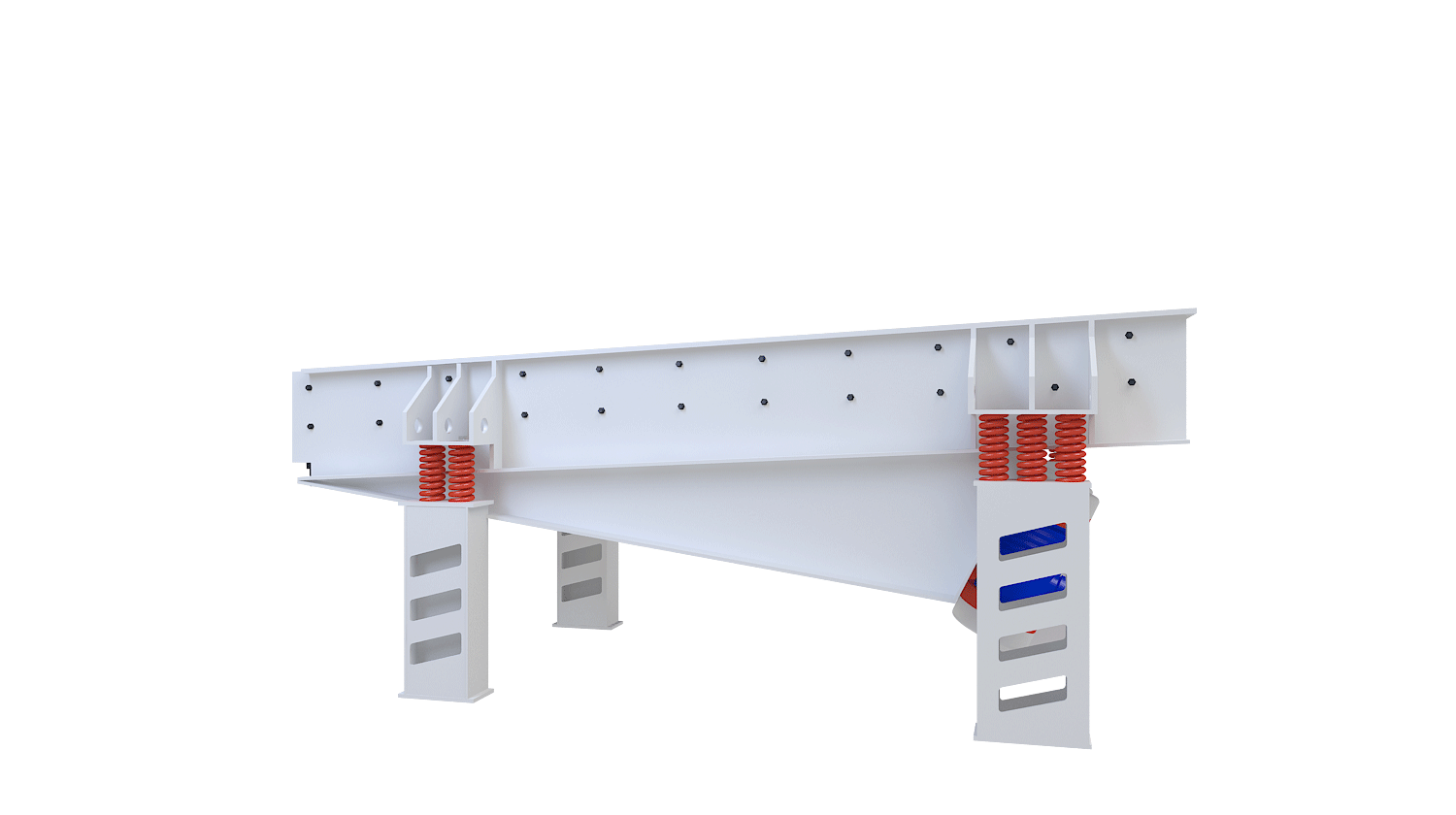

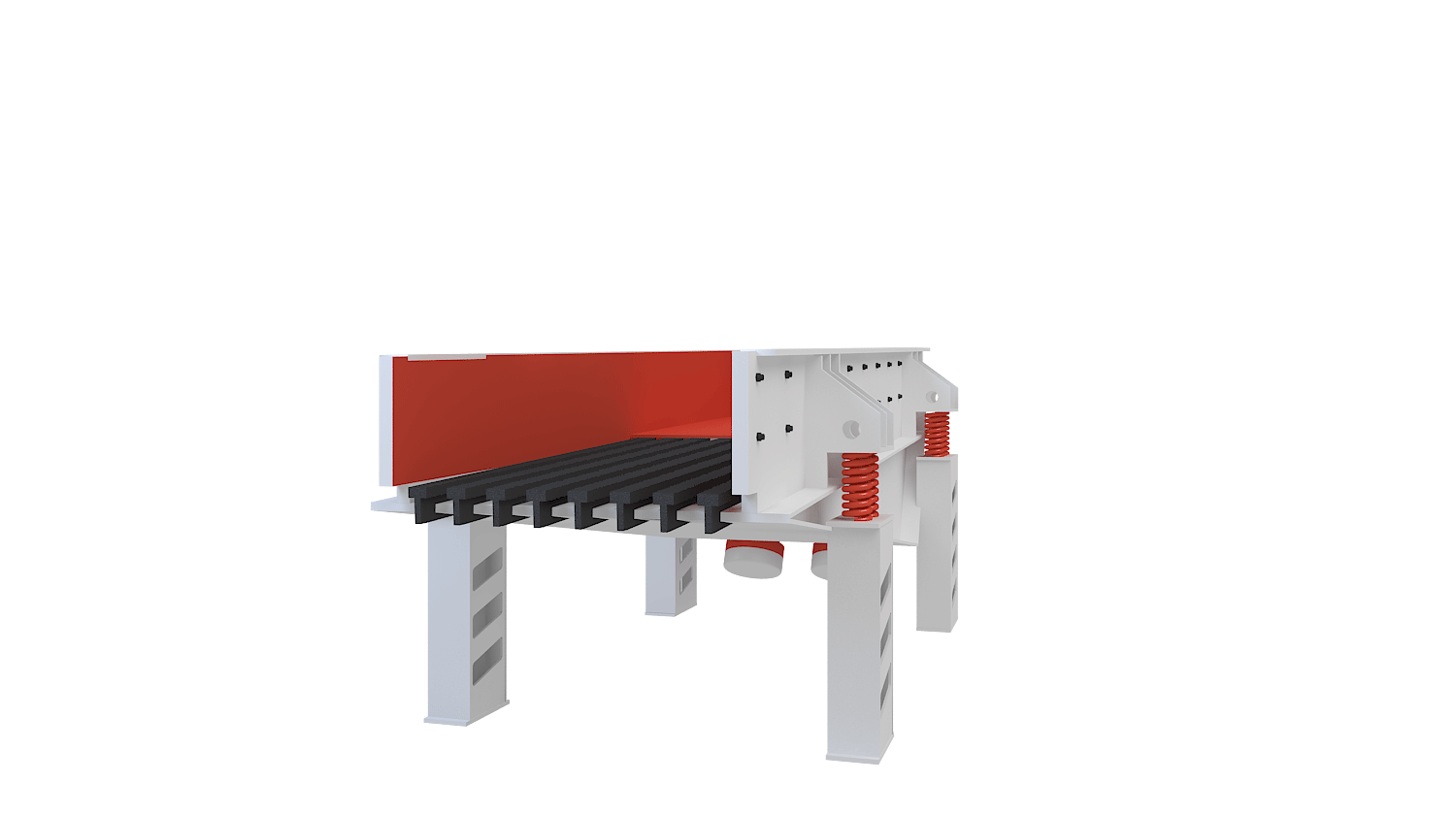

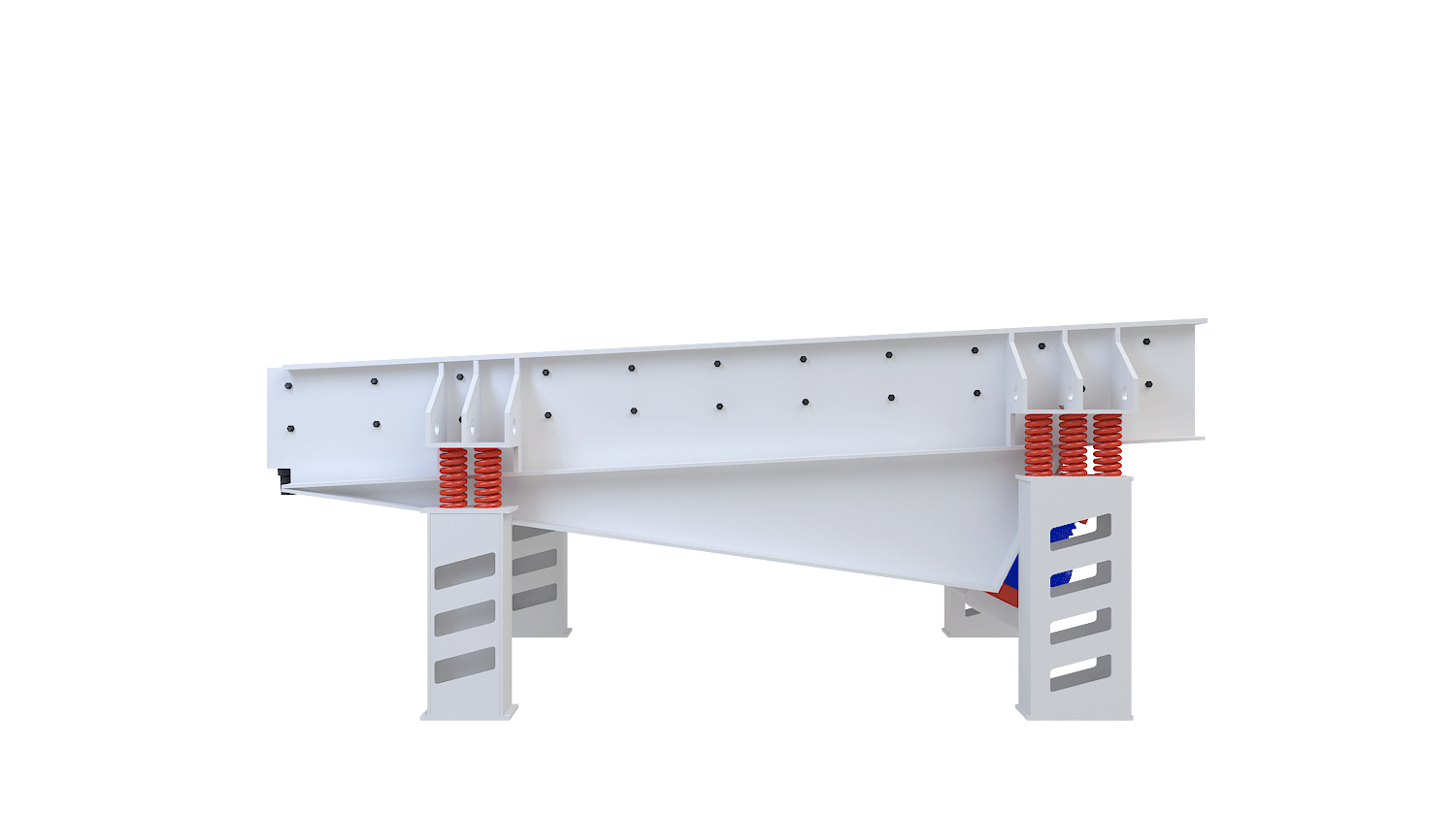

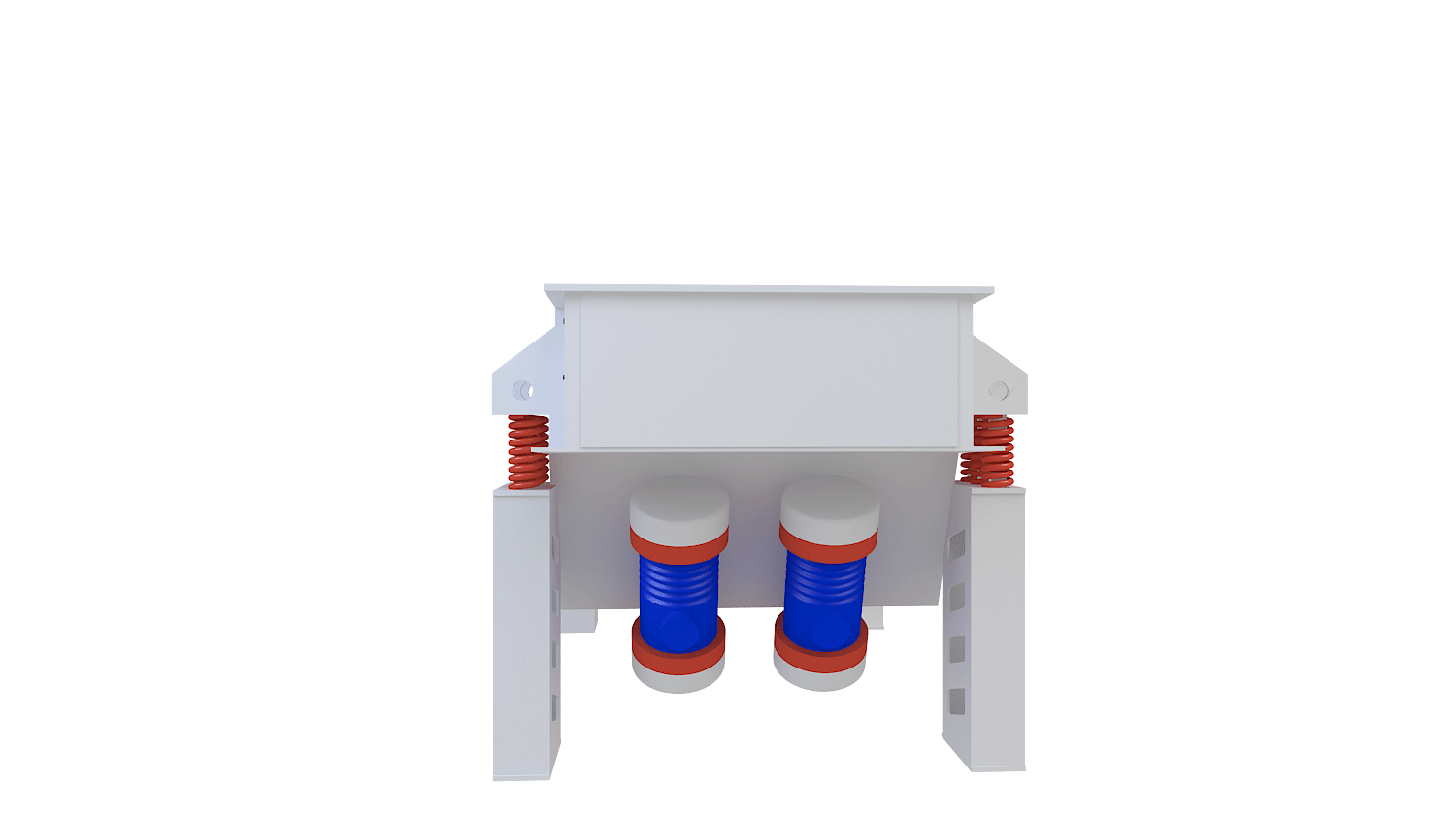

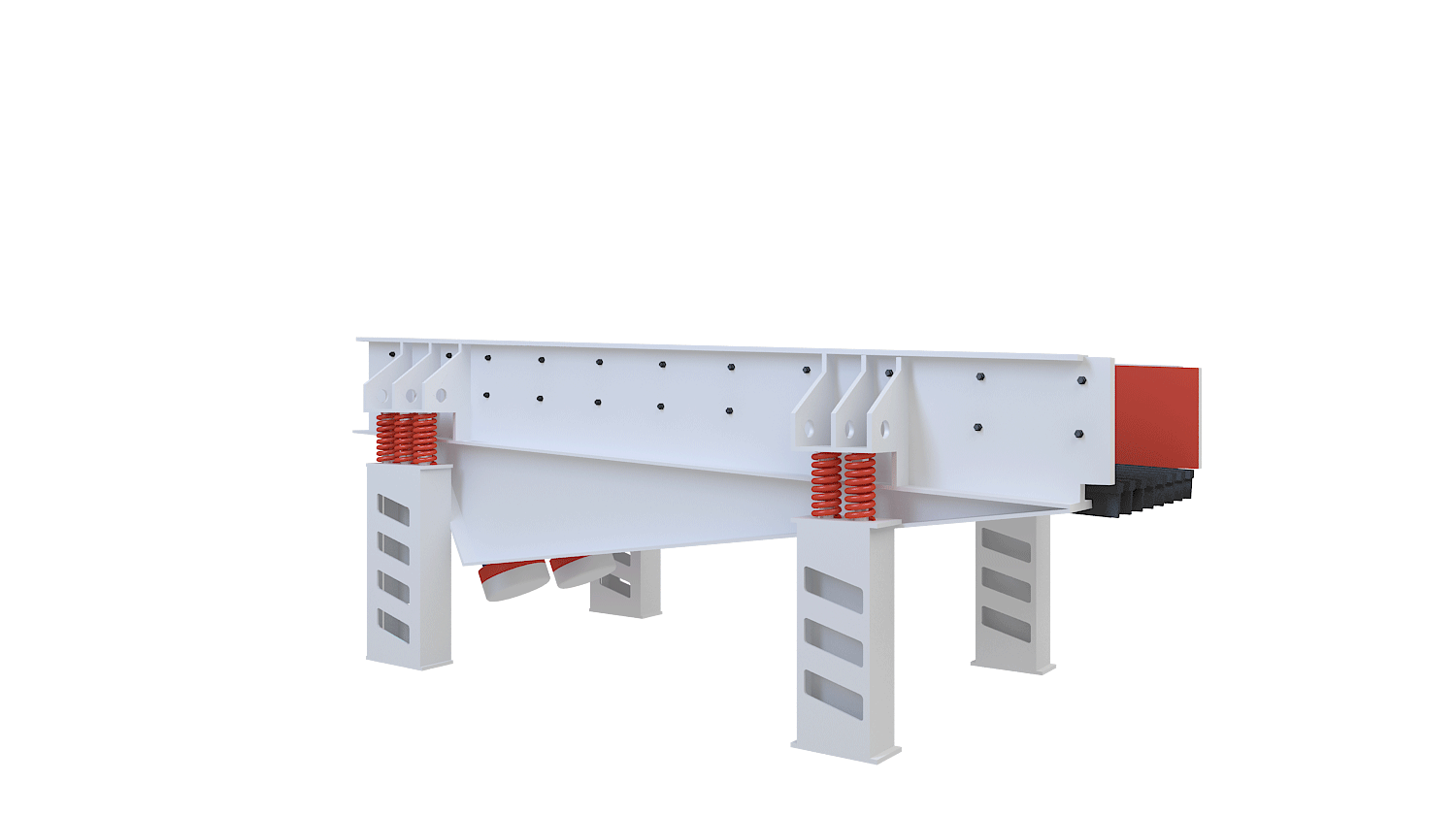

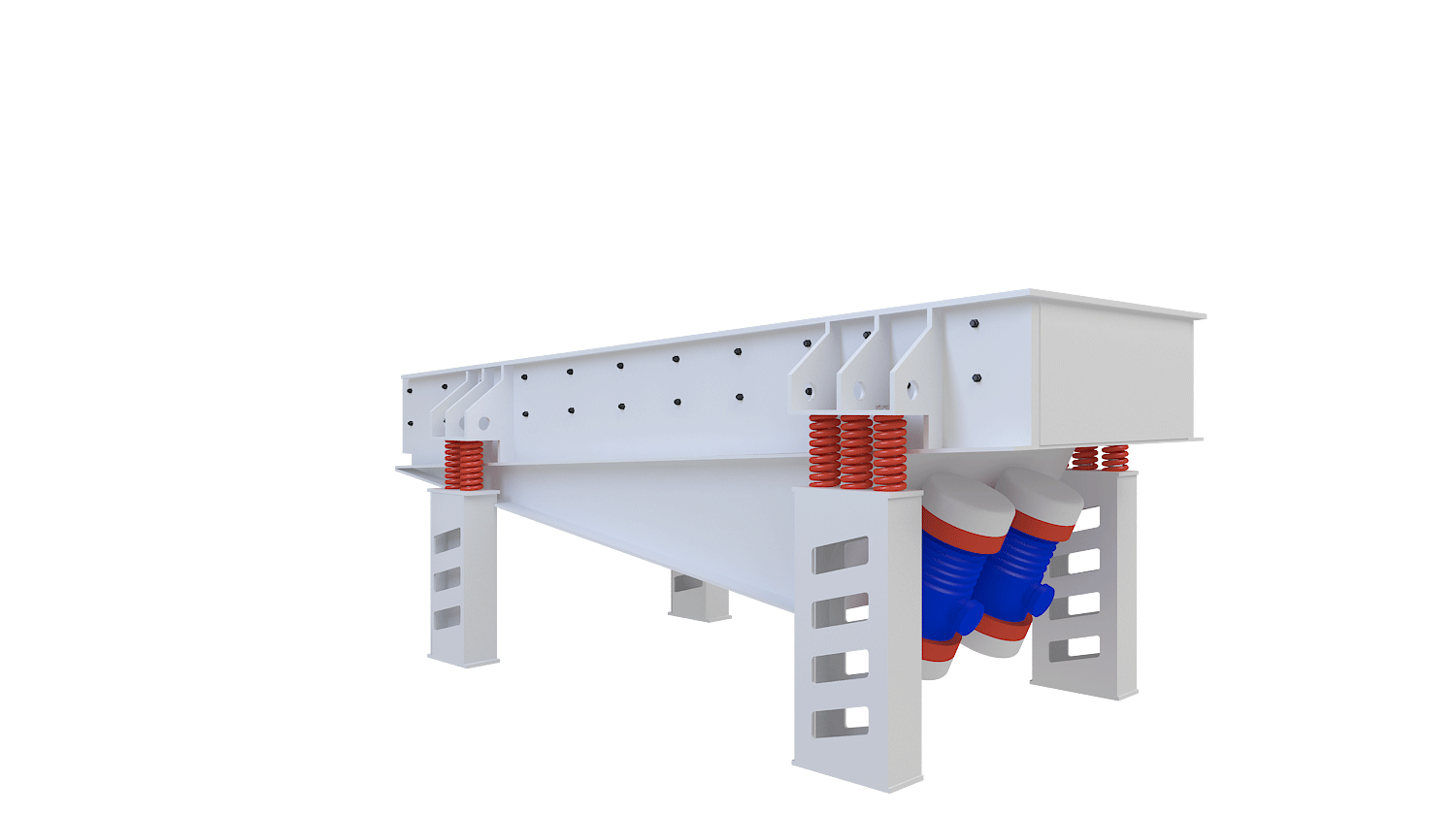

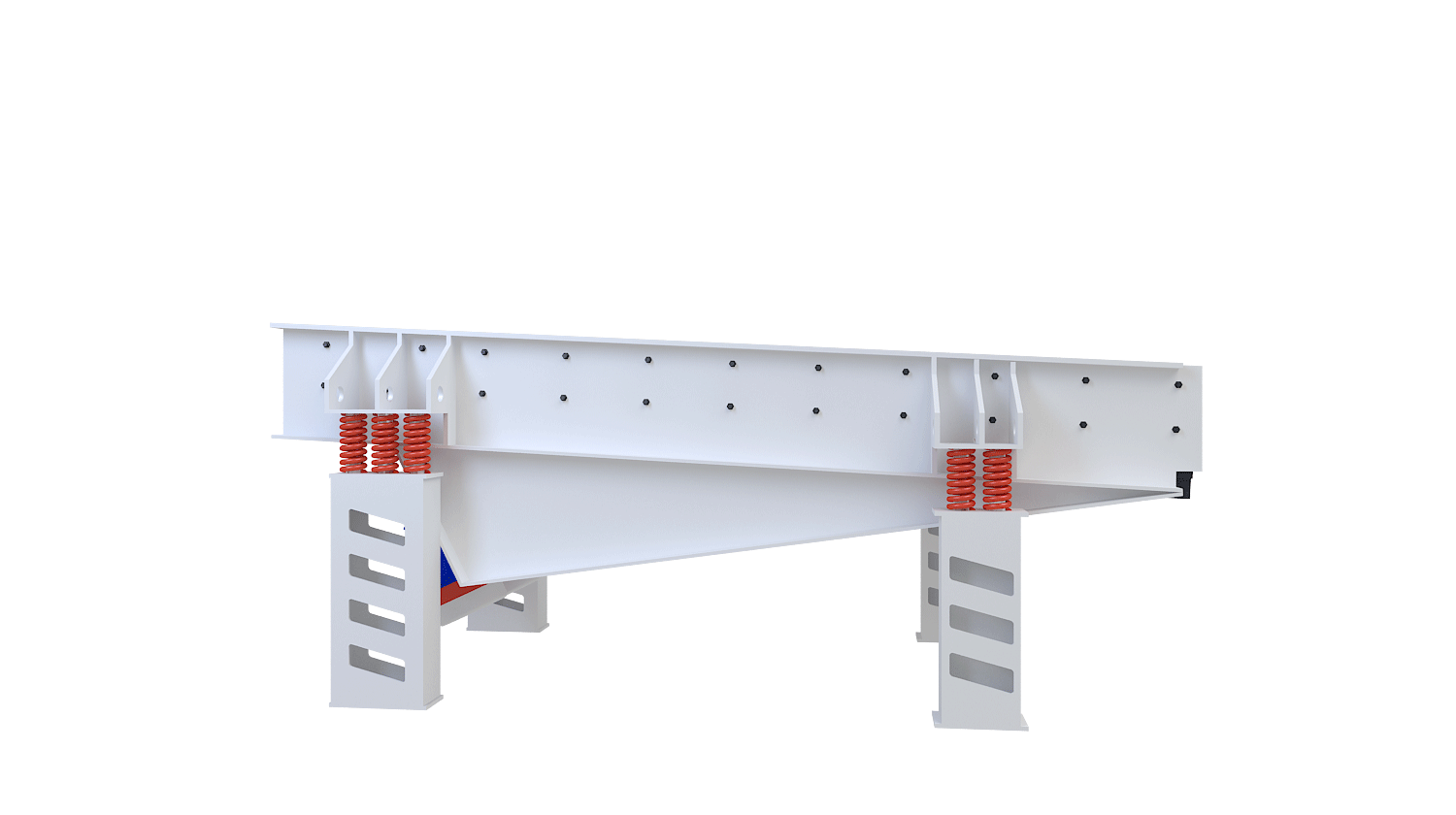

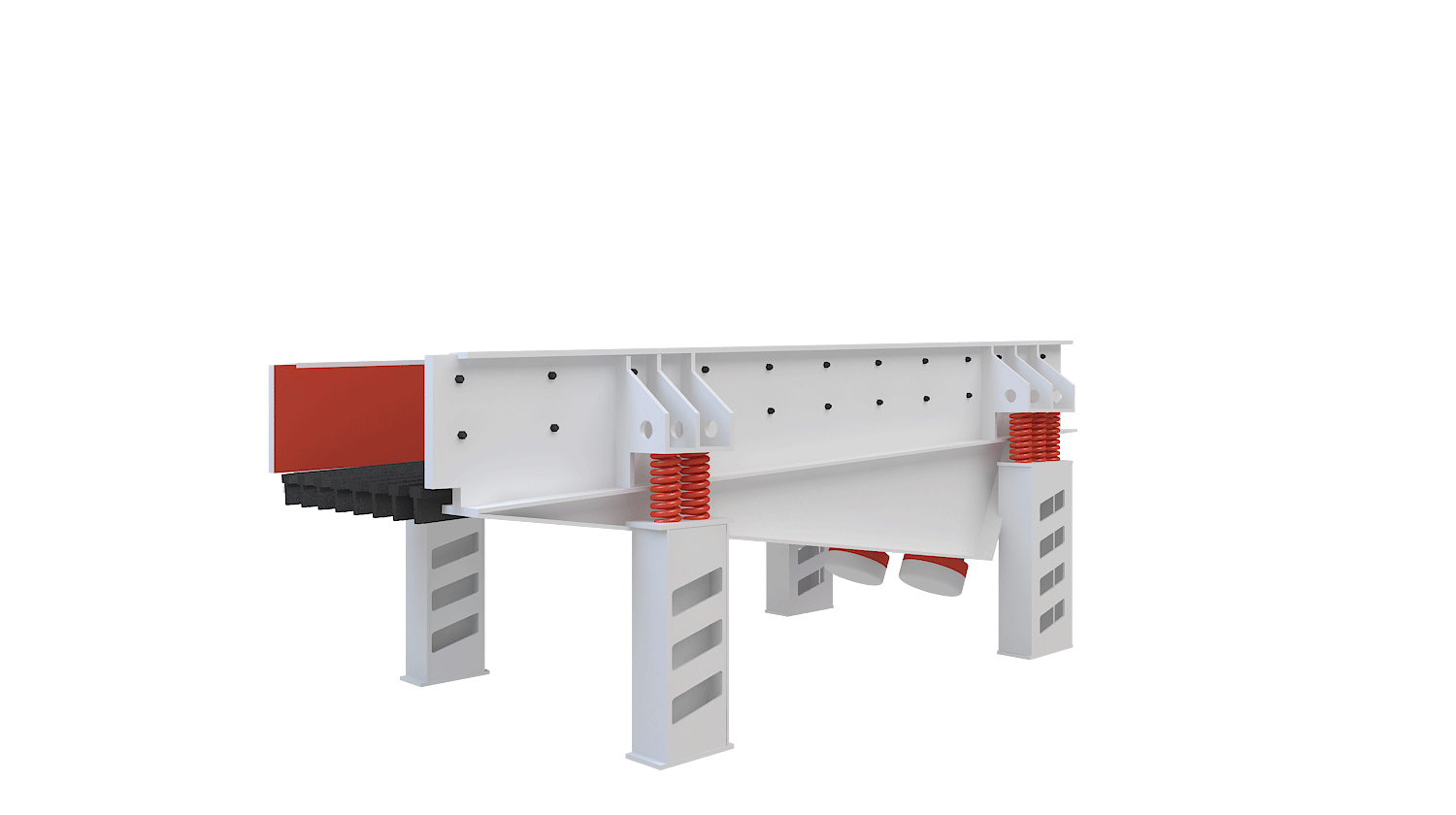

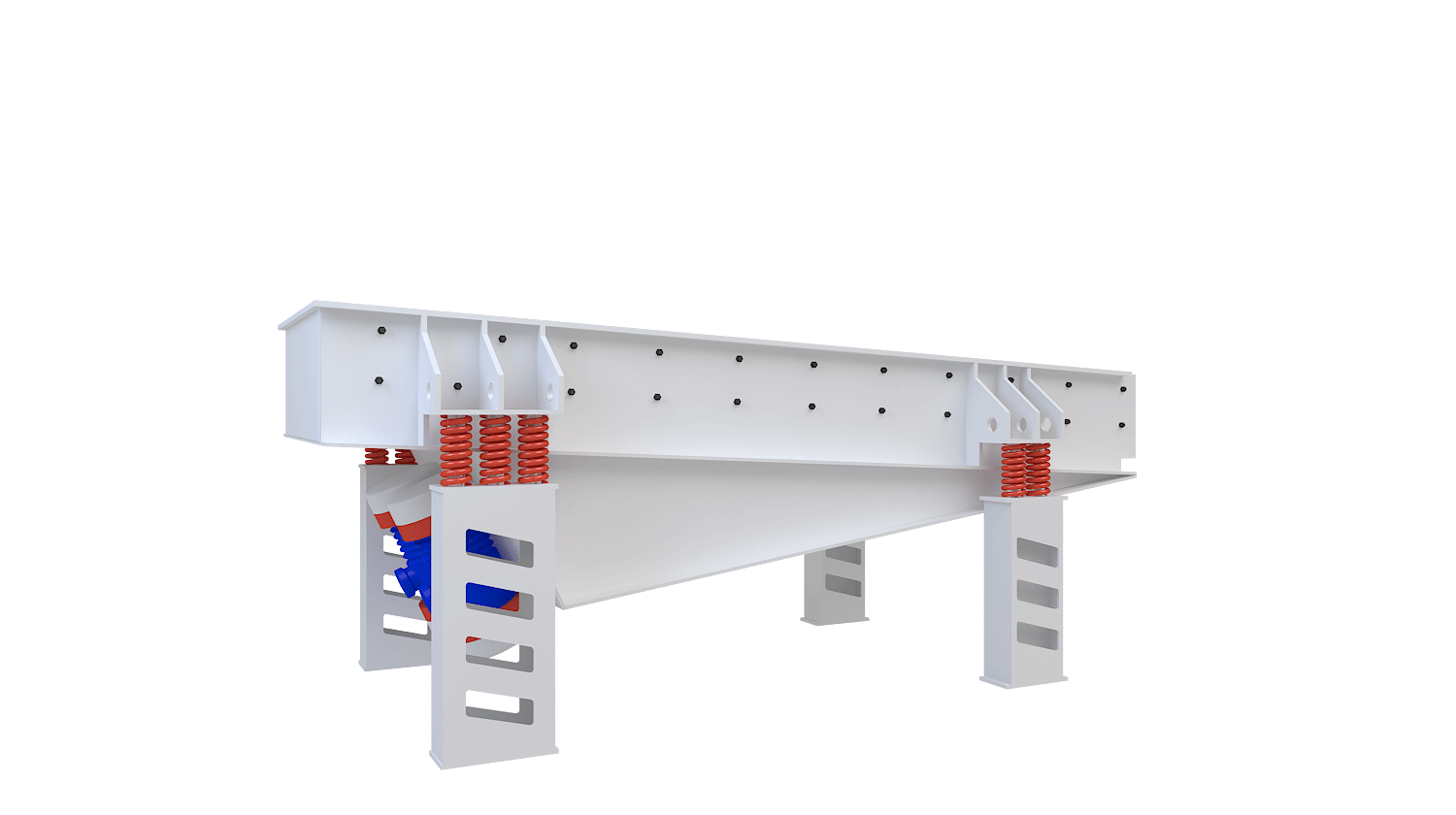

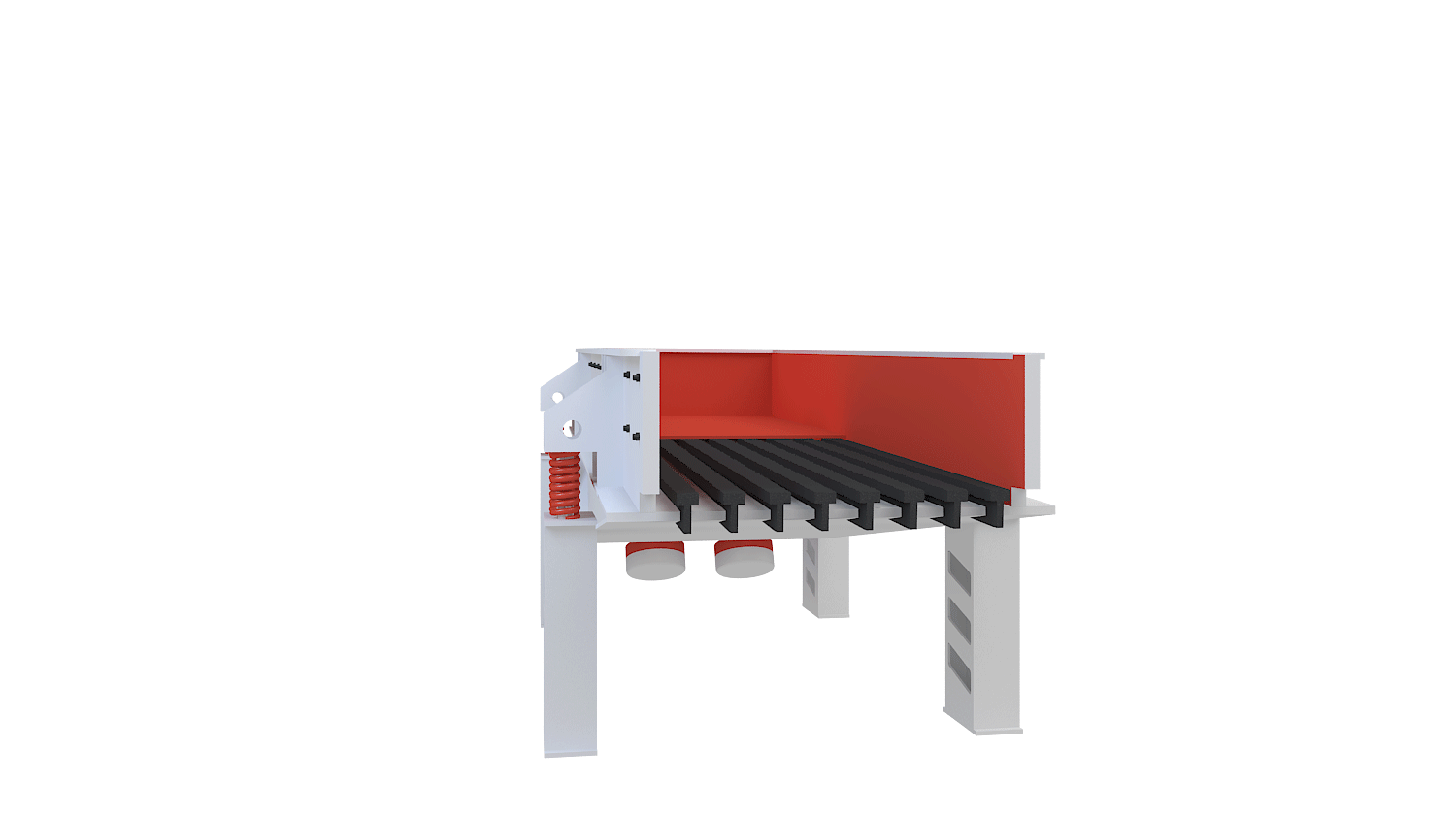

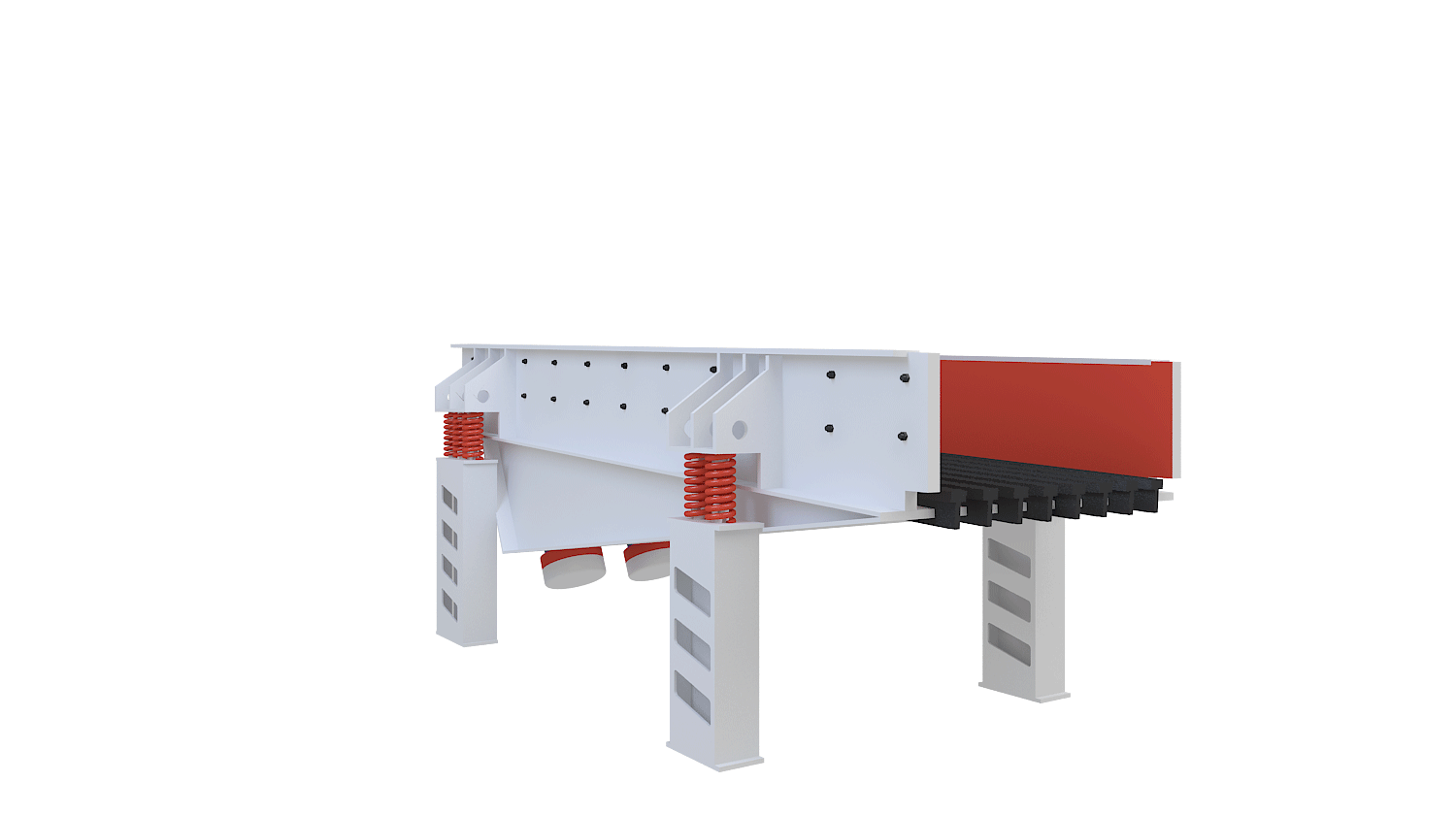

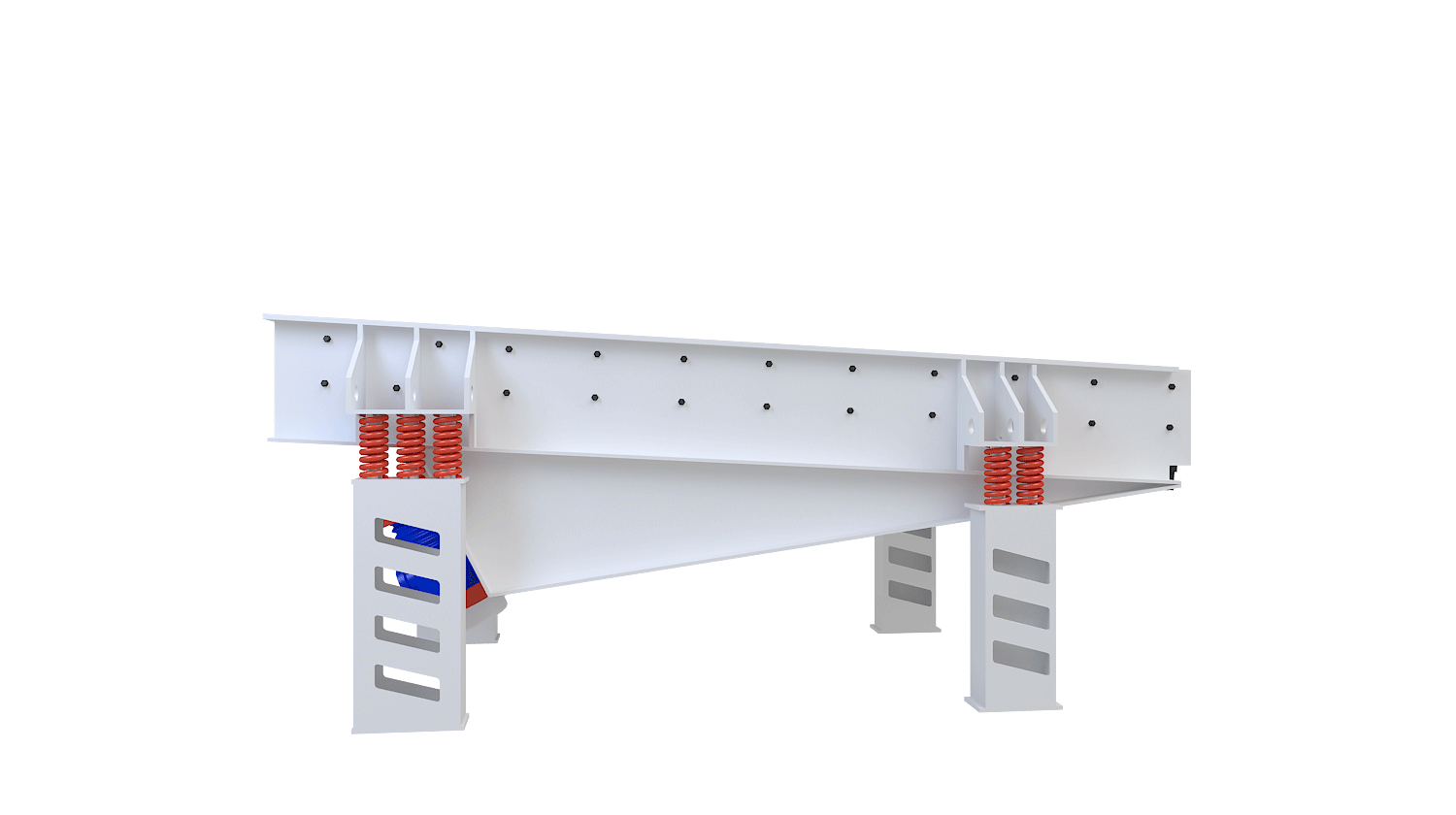

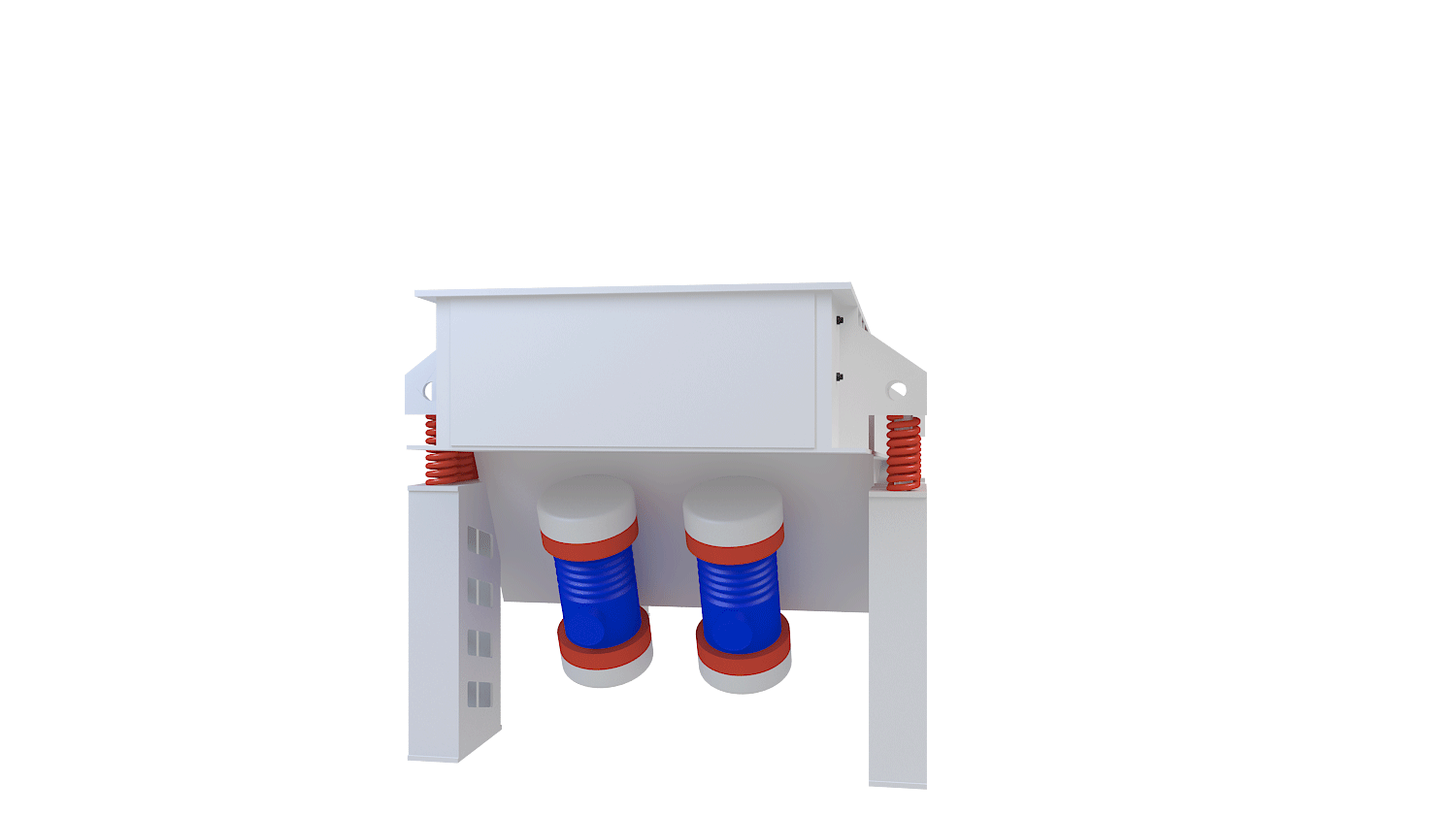

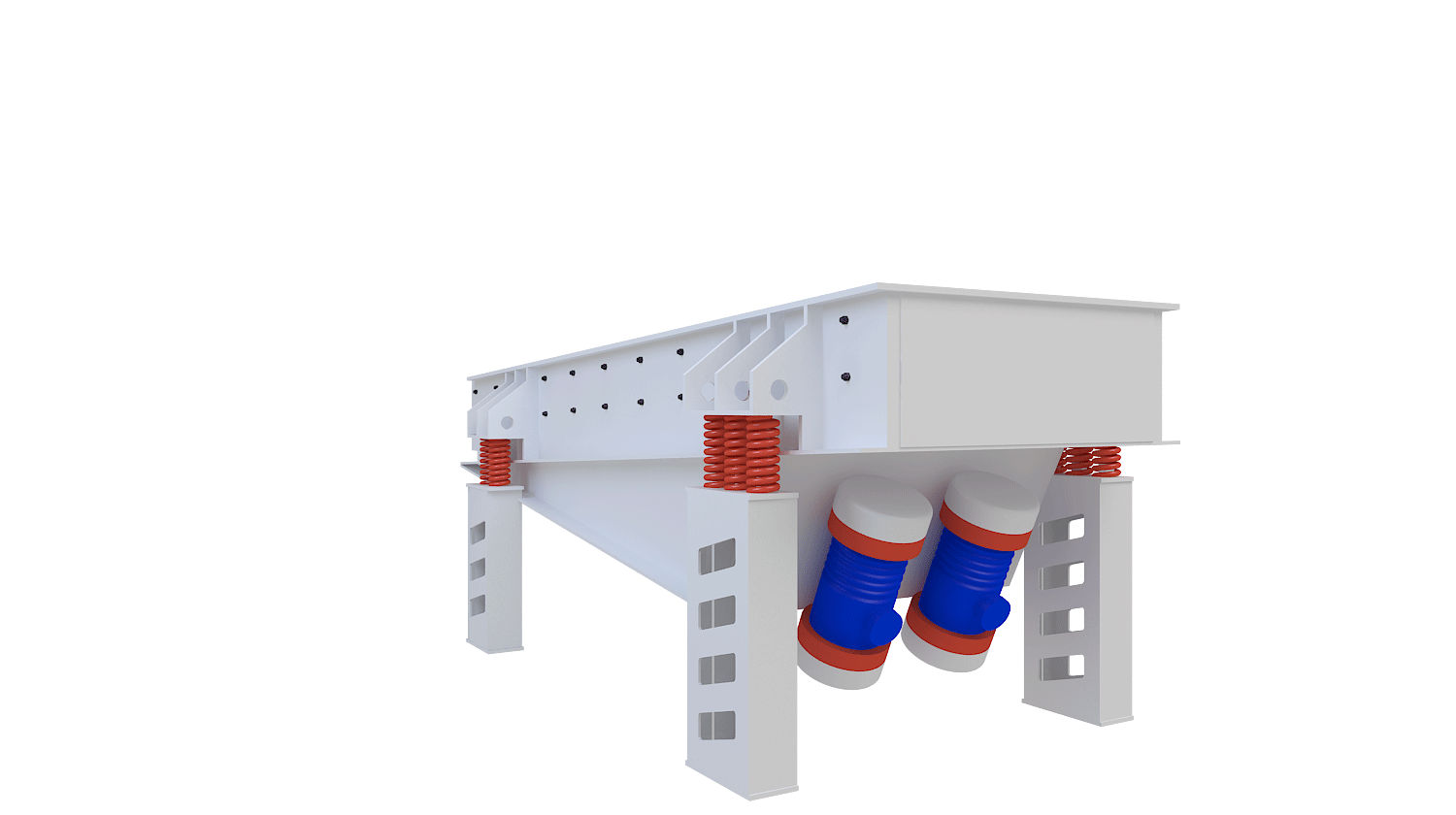

360° panoramic view of the product

Features

Multipurpose Machine

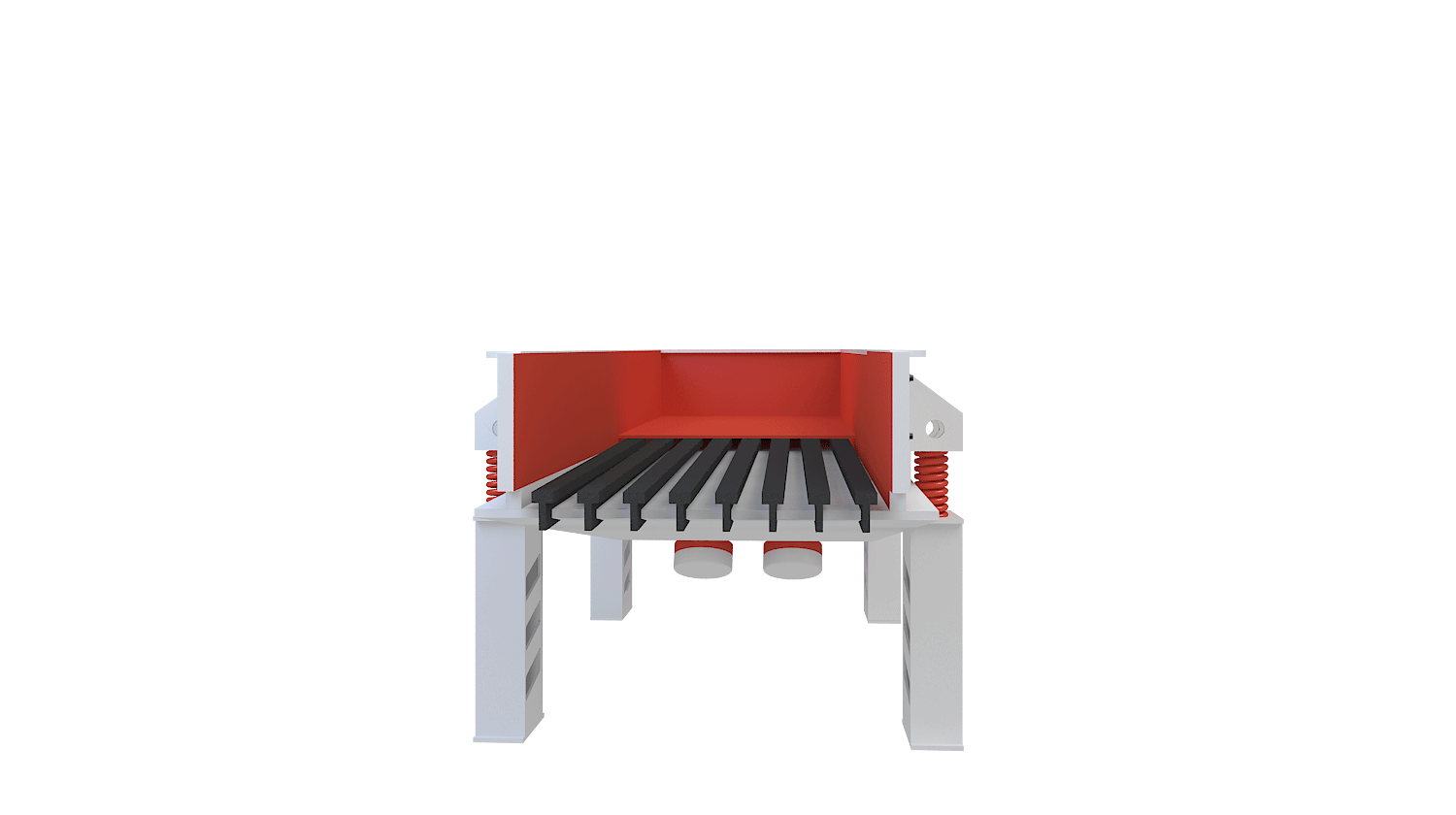

The liner is detachable, and the smaller materials fall through the gap and directly enter the next process, thus playing a pre-screening effect. It is used for both feeding and screening

Stepless Adjustment

Steplessly adjust the relative angle of the eccentric block, change the size of the exciting force, conveniently control the feeding amount, and produce normally in rainy days

Simple Structure

The operation is convenient and the labor cost is effectively reduced

Customized

Models can be customized as required

dETAIL

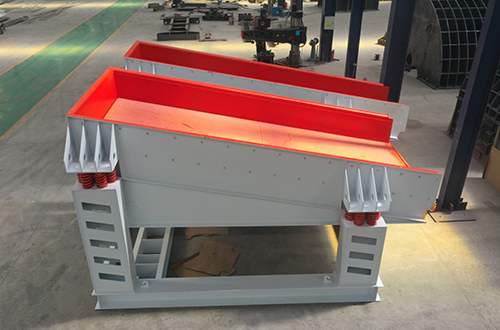

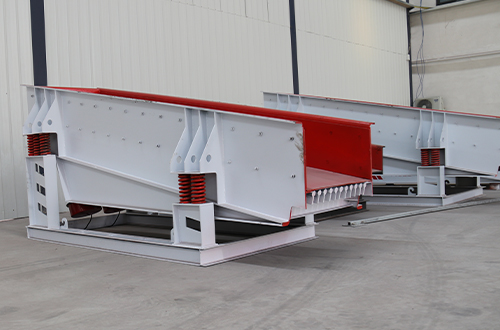

Product Detail Show
